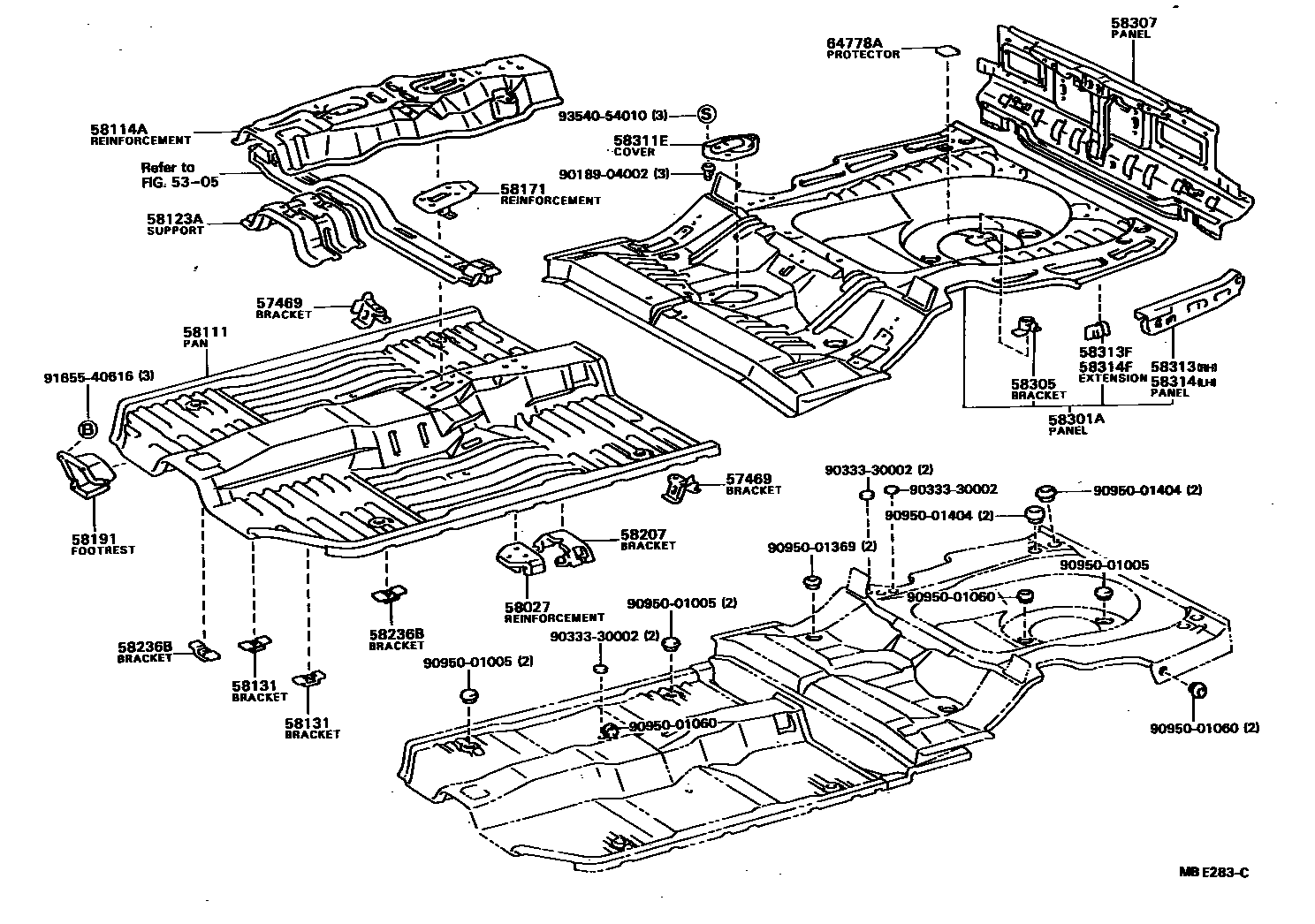

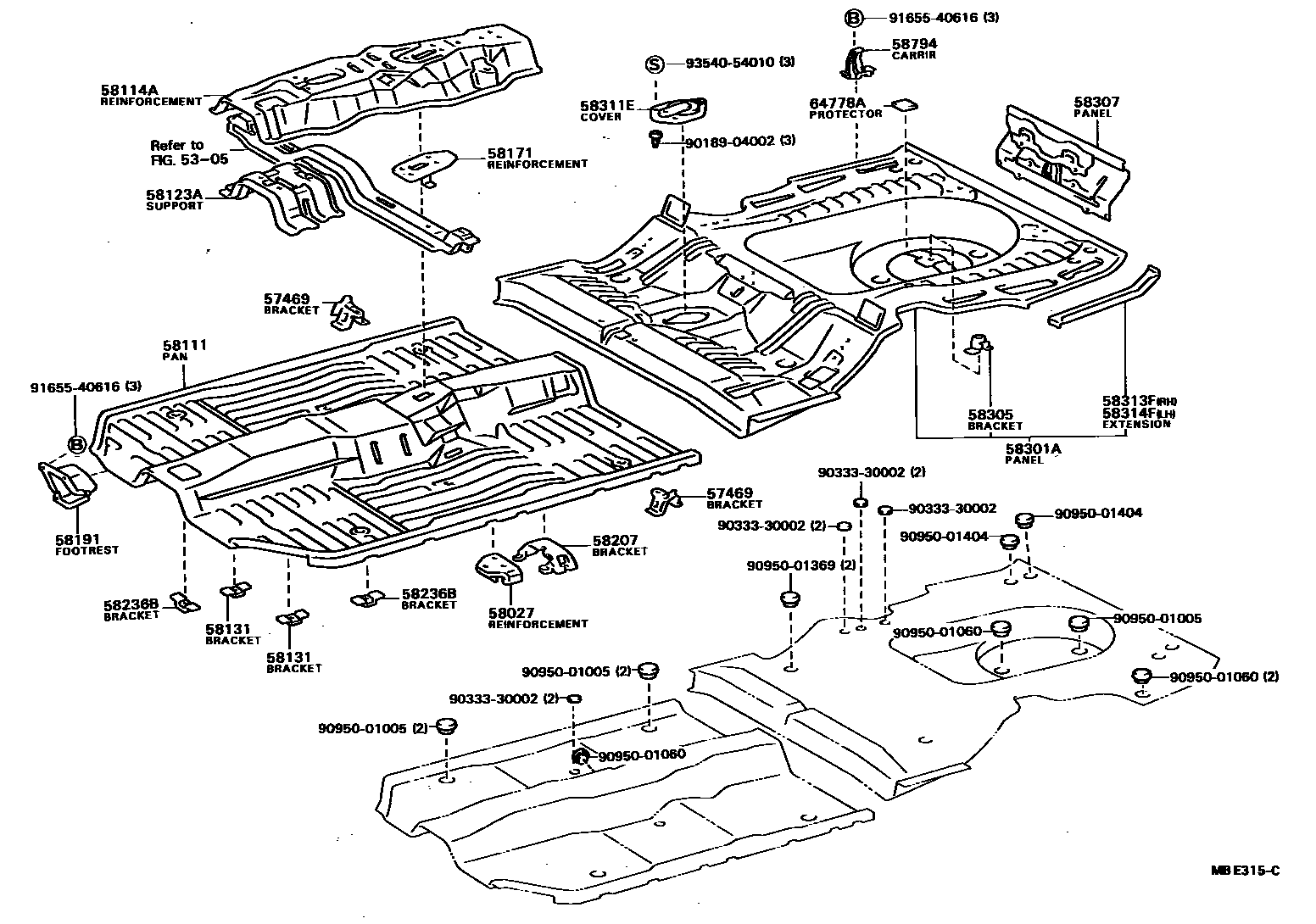

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57469 | Front seat outer bracket | 57468-32010 · 57469-32010 |
| 58027 | Seat belt anchor No. 1 to floor pan reinforcement | 58027-32010 |
| 58111 | front floor pan | 58111-32010 |
| 58114A | front floor reinforcement | 58114-32900 |
| 58123A | shift lever bracket | 58013-32010 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-32010 |
| 58171 | Parking brake base reinforcement | 58107-32010 |
| 58191 | Front floor footrest | 58191-32010 · 58191-32020 |
| 58207 | Parking brake No. 1 cable bracket sub-assembly | 58207-32010 |
| 58236B | Central floor insulation pad bracket | 58236-14010 |
| 58301A | Rear floor sub-assembly | 58301-32050 · 58301-32060 · 58301-32070 · 58301-32080 · 58301-32090 · 58301-32100 · 58301-32110 · 58301-32902 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-32040 · 58307-32070 |
| 58311E | Rear floor access hole cover | 58325-32010 |
| 58313 | Rear floor right panel | 58313-32010 · 58313-32020 |
| 58313F | Rear floor pan to right side apron extension | 58313-32030 · 58315-32010 |
| 58314 | rear floor left panel | 58314-32010 · 58314-32020 |
| 58314F | Rear floor pan to left side apron extension | 58314-32030 · 58317-32010 |
| 58794 | jack bracket | 58791-32020 |
| 64778A | Spare tire protection device | 64778-14020 |
