Toyota CAMRY 前围板通风装置 — Figure 5502

Toyota CAMRY EPC diagram 5502, 前围板通风装置, with 2 images and 2 PNC and OE references.

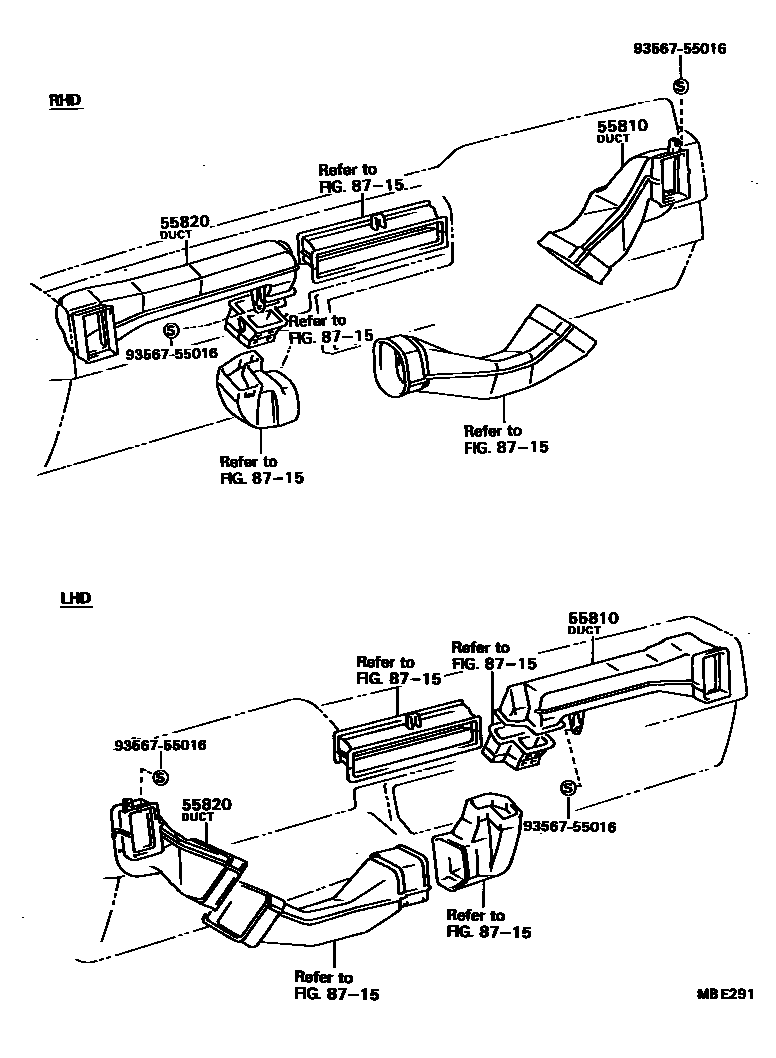

Toyota CAMRY 前围板通风装置 EPC diagram — MBE291
前围板通风装置 — MBE291 (198210 – 198406)

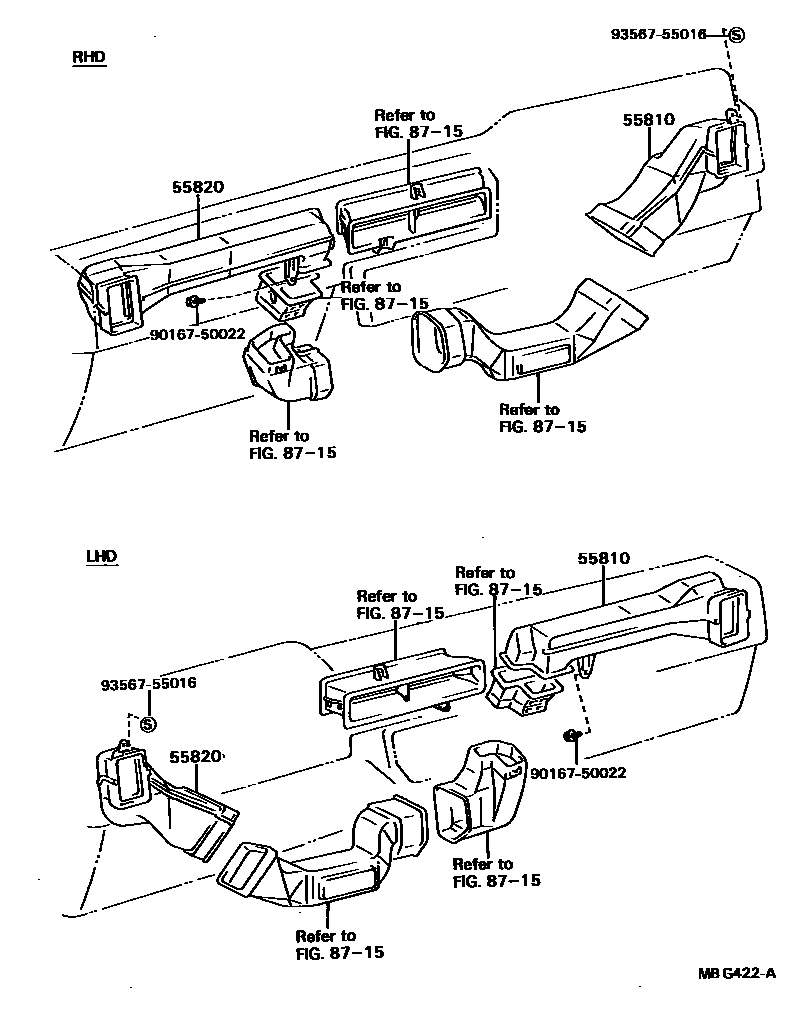

Toyota CAMRY 前围板通风装置 EPC diagram — MBG422A
前围板通风装置 — MBG422A (198406 – 999999)

PNC and OE references

PNCPart nameOE numbers
55810Right ventilation duct assembly55084-32010 · 55088-32020 · 55088-32030 · 55088-32031
55820Left ventilation duct assembly55084-32020 · 55084-32030 · 55084-32031 · 55088-32010
