Toyota CAMRY Floor stringers — Figure 5305

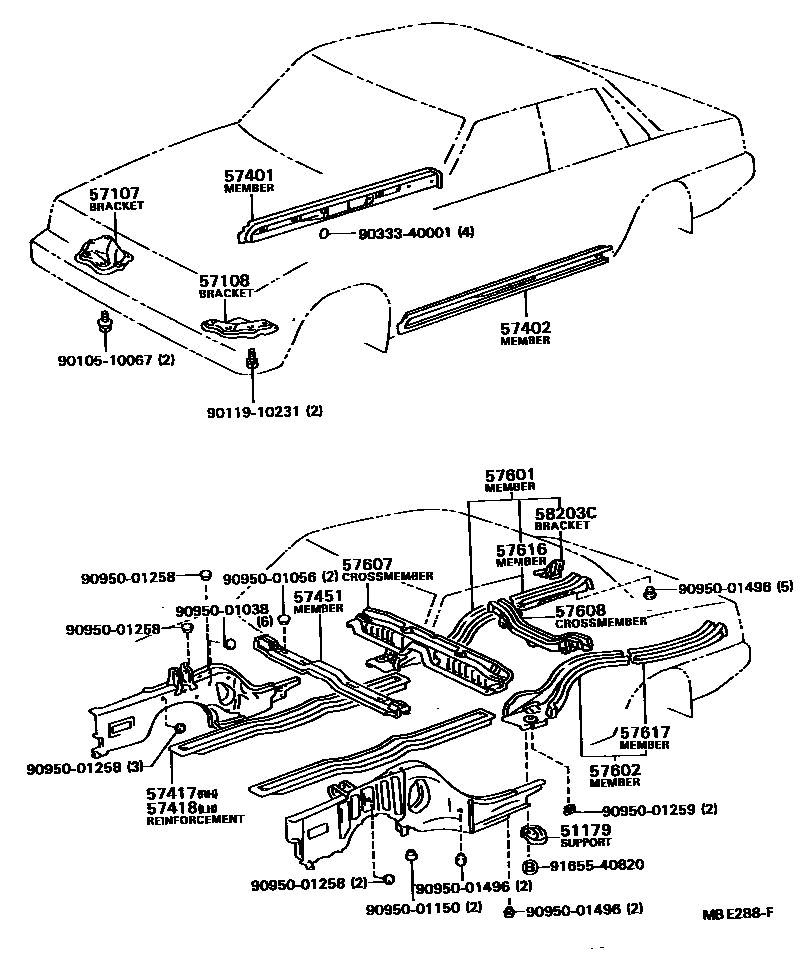

Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51179 | Lift the bracket | 51179-32010 |
| 57107 | Right support rod bracket sub-assembly | 57107-32010 |
| 57108 | Left support rod bracket sub-assembly | 57108-32010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-32010 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-32010 |
| 57417 | Front floor lower right reinforcement | 57417-32020 |
| 57418 | Front floor lower left reinforcement | 57417-32020 |
| 57451 | front floor cross member | 57408-32010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-32010 · 57601-32030 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-32010 · 57602-32030 |
| 57607 | Rear floor No. 1 cross member sub-assembly | 57605-32010 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-32020 |
| 57616 | Rear floor right rear longitudinal member | 57615-32900 |
| 57617 | Rear floor left rear longitudinal member | 57616-32900 |
| 58203C | Exhaust pipe mounting bracket sub-assembly | 58203-32011 |
