Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 33 PNC and OE references.

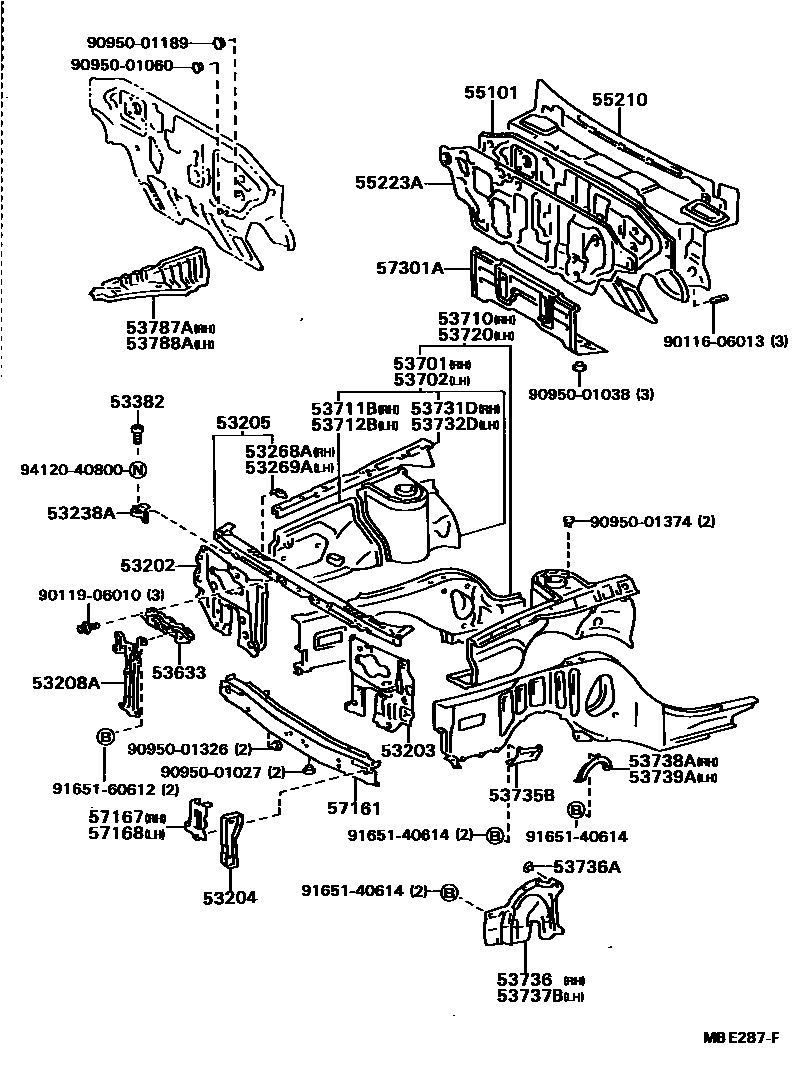

Toyota CAMRY 前翼子板挡泥板和前围板 EPC diagram — MBE287F
前翼子板挡泥板和前围板 — MBE287F (198210 – 198406)

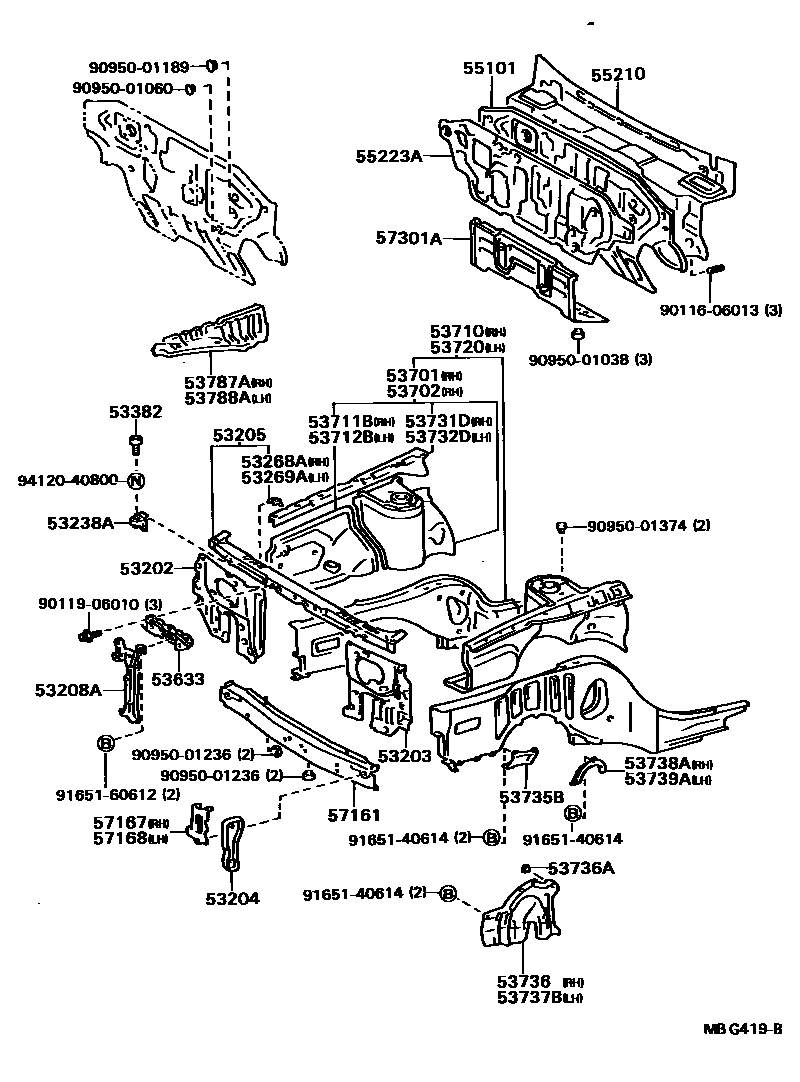

Toyota CAMRY 前翼子板挡泥板和前围板 EPC diagram — MBG419B
前翼子板挡泥板和前围板 — MBG419B (198406 – 999999)

PNC and OE references

PNCPart nameOE numbers
53202Radiator right side bracket sub-assembly53211-32010 · 53211-32011
53203Radiator left bracket sub-assembly53212-32010 · 53212-32011 · 53212-32020 · 53212-32021
53204Radiator bracket to cross member bracket sub-assembly53217-32010 · 53217-32020 · 53218-32010 · 53218-32020
53205Radiator upper bracket sub-assembly53216-32010 · 53216-32020
53208AEngine cover lock bracket sub-assembly53208-32010 · 53208-32011 · 53208-32030
53238AEngine cover bumper mounting bracket53238-32010
53268AInstall reinforcement on the right side of the radiator53268-32010 · 53268-32011
53269AInstall reinforcement on the left side of the radiator53268-32010 · 53269-32010
53382Engine cover front buffer block53382-20011
53633Hood lock control cable guard53633-32010 · 53633-32020
53701Right front fender fender sub-assembly53701-32902 · 53701-32905
53702Left front fender fender sub-assembly53702-32901 · 53702-32904
53710Right fender assembly with front longitudinal beam53701-32030 · 53701-32031
53711BRight front fender front fender53711-32020
53712BLeft front fender front fender53712-32020
53720Left fender assembly with front longitudinal beam53702-32030 · 53702-32031
53731DRight front fender to cowl side upper beam53731-32010
53732DLeft front fender to cowl side upper beam53732-32010
53735BFront fender fender seal53735-32010
53736Right front fender fender seal53736-32010
53736AClip (for front fender fender seal)90467-09030
53737BLeft front fender fender seal53737-32010
53738ARight front fender fender rear seal53738-32010
53739ALeft front fender fender rear seal53739-32010
53787ARight front fender fender lower corner panel53787-32010
53788ALeft front fender fender lower corner panel53788-32010
55101Front apron sub-assembly55101-32900 · 55101-32901 · 55101-32902 · 55101-32903 · 55101-32904
55210Front wall insulation pad assembly55210-32010 · 55210-32011 · 55210-32020 · 55210-32021
55223AFront wall outer heat insulation pad55223-32010 · 55223-32011 · 55223-32020 · 55223-32021
57161front cross member57104-32020 · 57104-32050 · 57104-32060
57167Front cross member upper right corner panel57167-32020
57168Front cross member upper left corner panel57168-32020
57301ASteering housing support beam sub-assembly57301-32010 · 57301-32020
