Toyota CAMRY 制动助力器和真空管 — Figure 4703

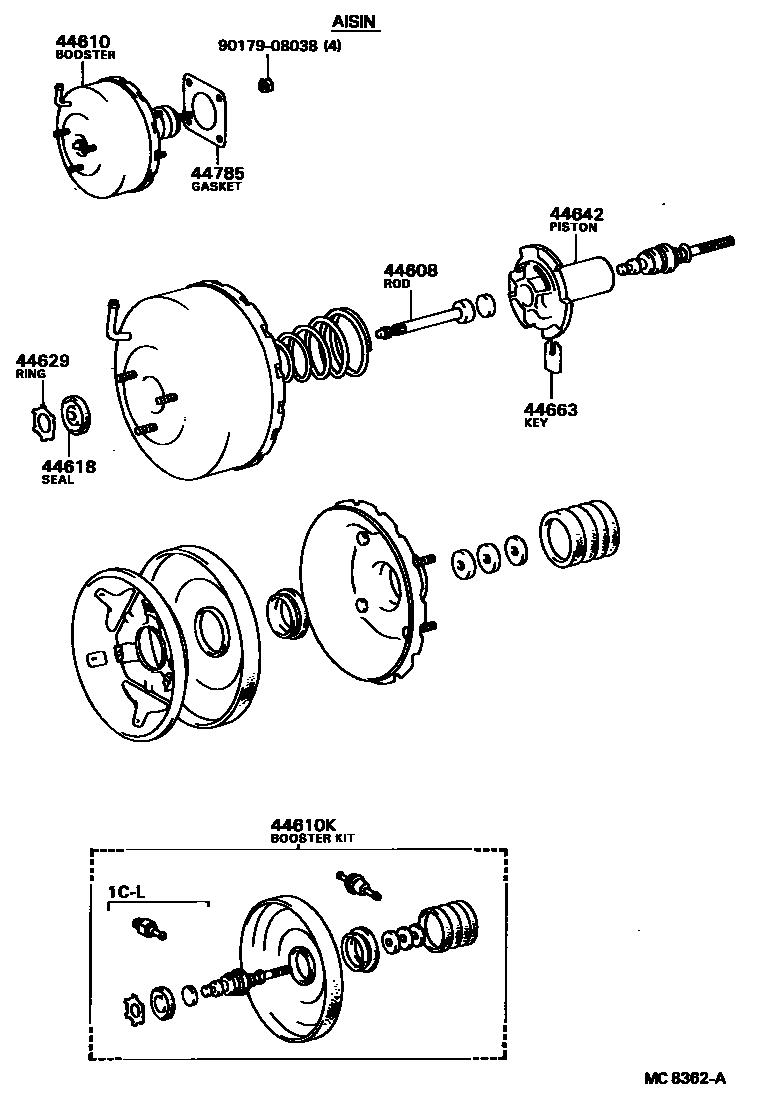

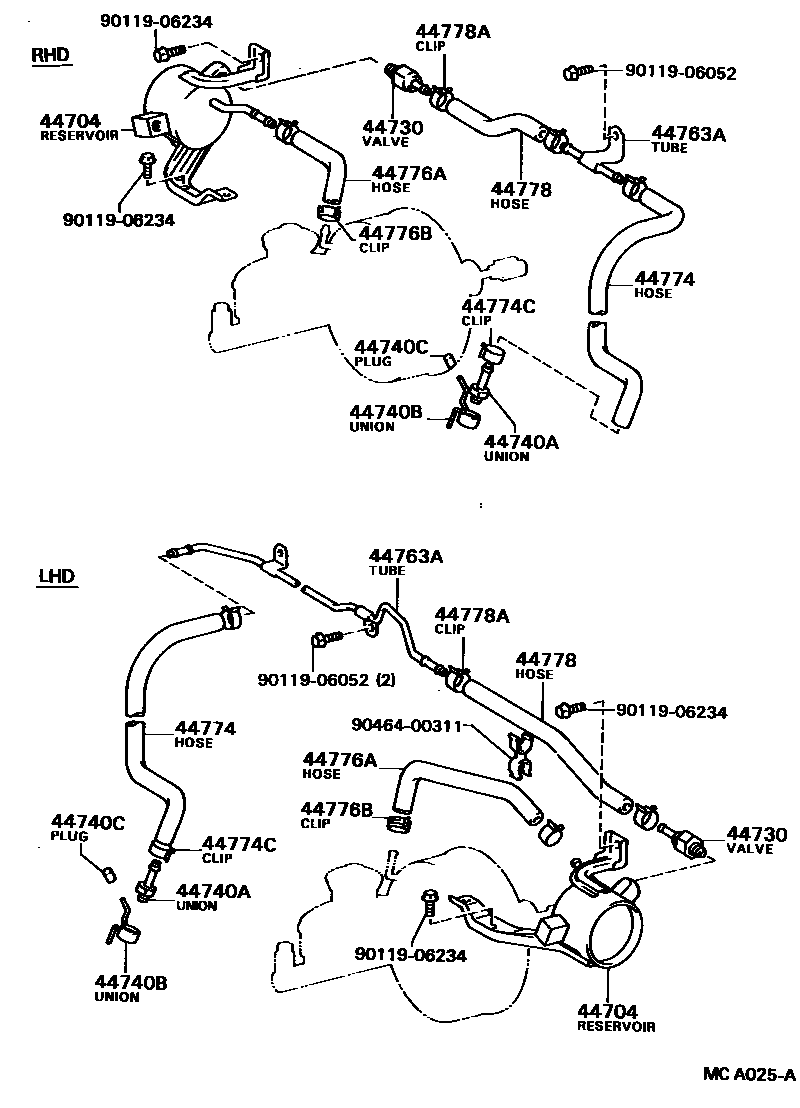

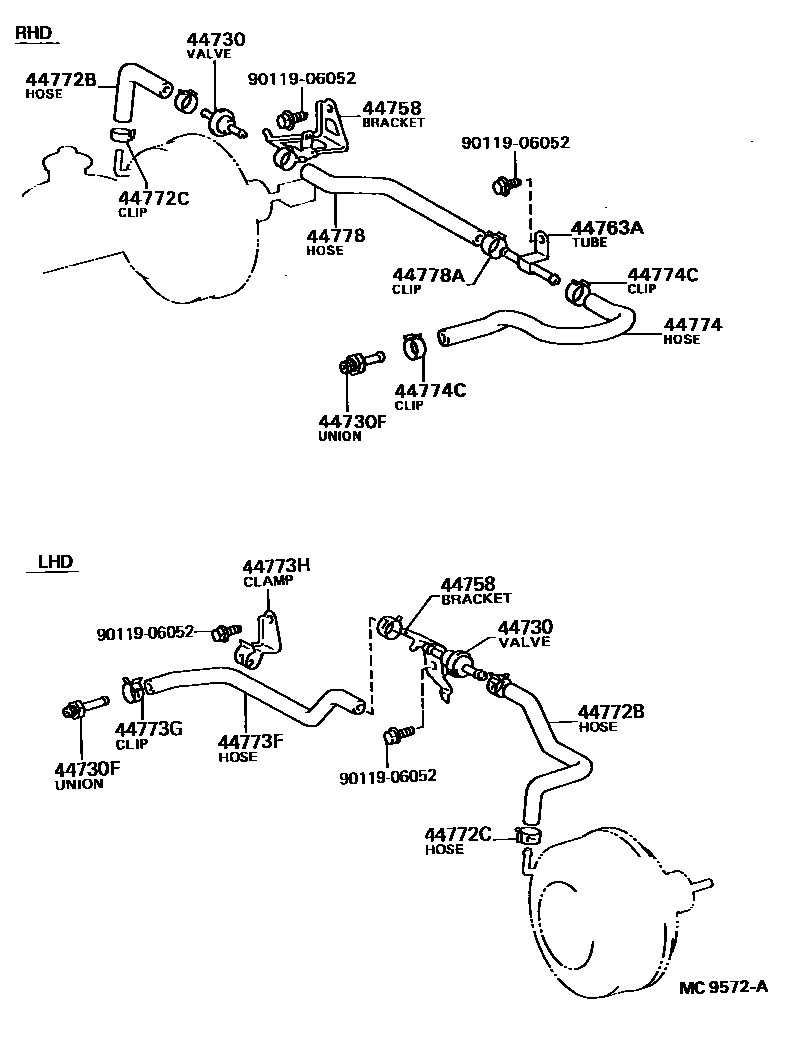

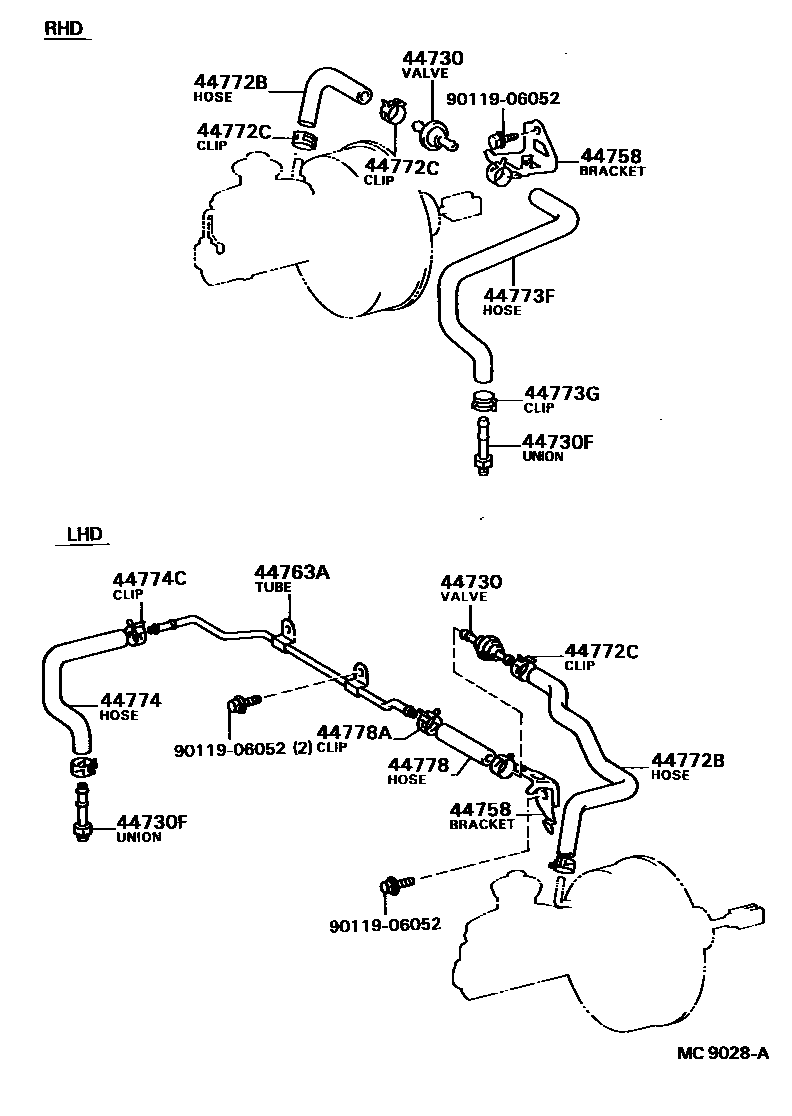

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44608 | Booster push rod sub-assembly | 44606-12520 · 44606-32010 |
| 44610 | brake booster assembly | 44610-32050 · 44610-32051 · 44610-32070 · 44610-32071 · 44610-32110 · 44610-32130 |
| 44610K | brake booster components | 04443-32030 · 04443-32031 · 04443-32120 · 04443-32121 |
| 44618 | Booster body sealing ring | 44621-28120 |
| 44629 | annular inner ring | 44628-28120 |
| 44642 | brake booster piston | 44642-32010 |
| 44663 | valve stop key | 44635-28120 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-32010 · 44704-32011 · 44704-32020 · 44704-32021 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-60040 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51007 · 90404-51237 |
| 44740A | Connector No. 1 (for vacuum pump) | 90404-09006 |
| 44740B | Connector No. 2 (for vacuum pump) | 90405-04003 |
| 44740C | Screw plug (for connector) | 90339-03005 |
| 44758 | Vacuum check valve bracket | 44758-32010 · 44758-32020 · 44758-32030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-32010 · 44763-32020 · 44763-32030 · 44763-32040 |
| 44772B | Hoses (check valve to brake booster) | 44772-32010 · 44772-32020 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16002 |
| 44773F | Hoses (connector to check valve) | 44773-32010 · 44773-32031 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16002 |
| 44773H | Clamp (for connector to check valve hose) | 90949-01020 |
| 44774 | Hoses (joints to connector tubes) | 44774-32011 · 44774-32020 · 44774-32030 · 44774-32040 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16002 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-32010 · 44778-14020 |
| 44776B | Clamp (for vacuum reservoir to brake booster) | 90467-16002 |
| 44778 | Hoses (connector to check valve) | 44778-32010 · 44778-32020 · 44778-32030 · 90445-17039 |
| 44778A | Clip (for connector to check valve hose) | 90467-16002 |
| 44785 | brake booster pad | 44785-32010 |
