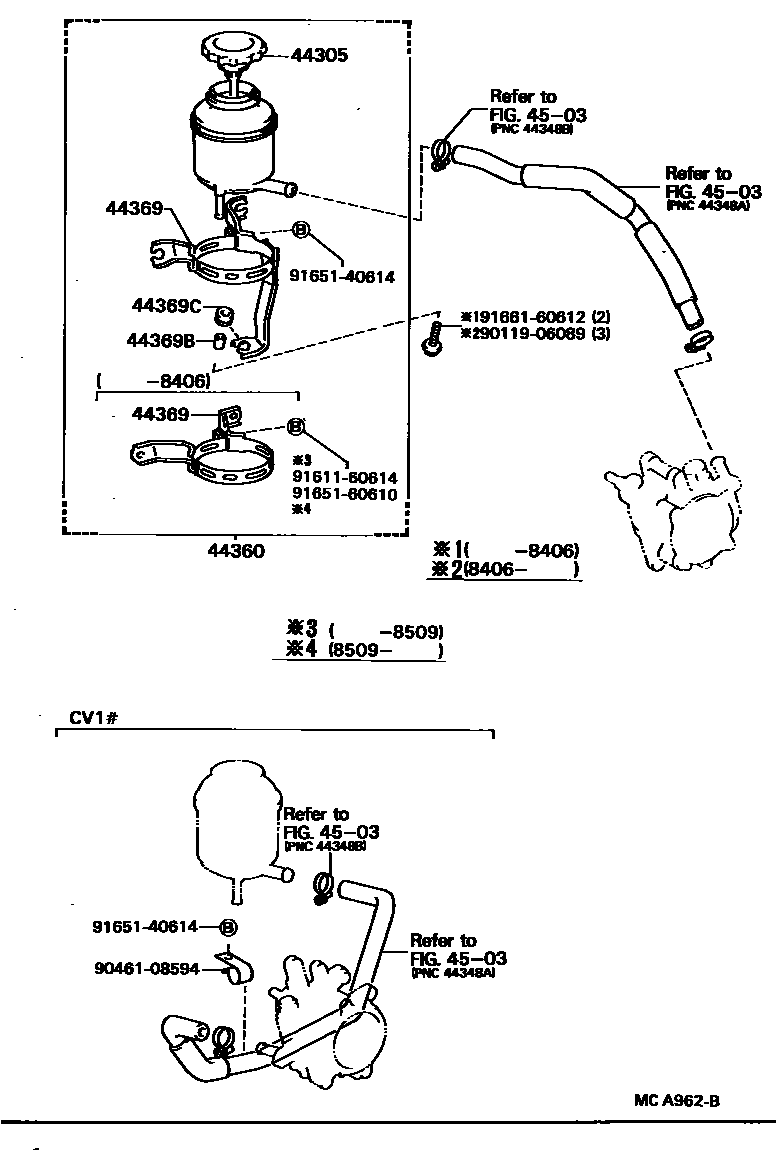

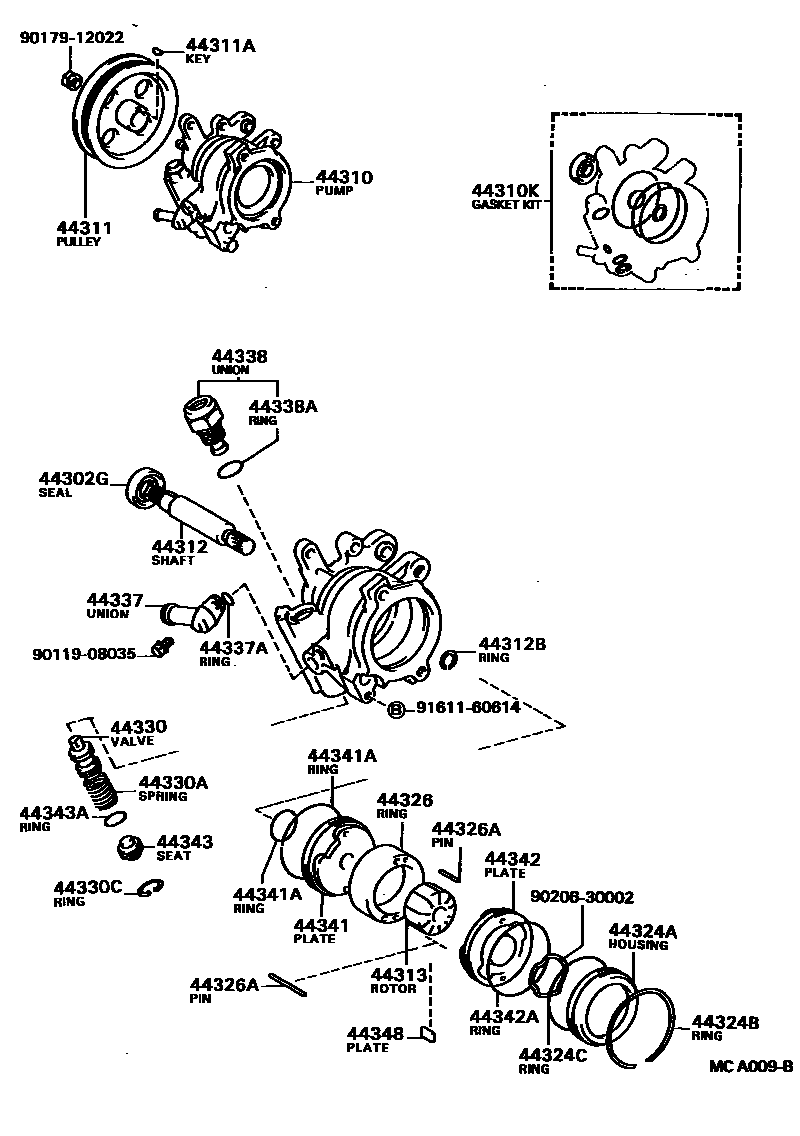

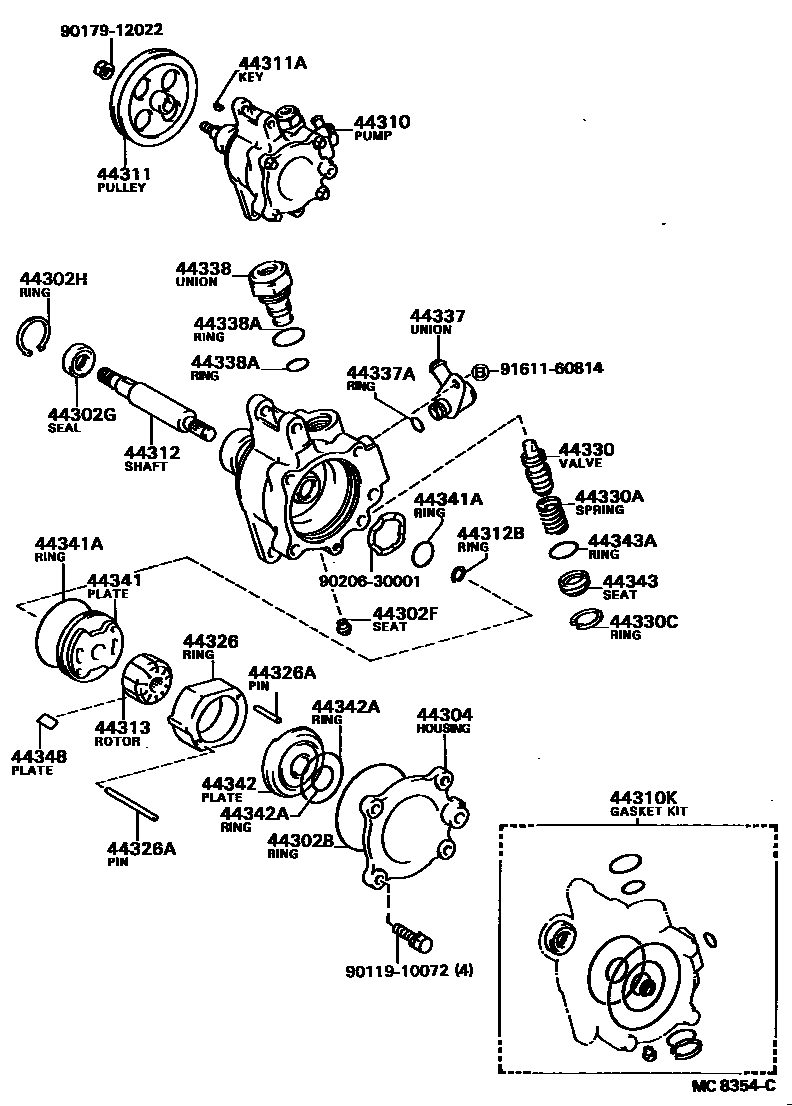

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-63002 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18003 · 90311-18007 · 90311-18008 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90521-32001 |
| 44304 | Vane pump rear housing sub-assembly | 44324-16010 · 44324-22030 · 44324-32010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-32010 |
| 44310 | Vane pump assembly | 44320-12050 · 44320-12051 · 44320-32010 · 44320-32011 · 44320-32012 · 44320-32013 |
| 44310K | Power steering pump gasket assembly | 04446-12020 · 04446-16010 · 04446-16011 |
| 44311 | vane pump pulley | 44311-12030 · 44311-32010 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12020 · 44312-12030 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-12010 · 44313-12020 · 44313-12030 · 44313-12040 · 44313-12050 |
| 44324A | Pump back shell | 44324-12030 · 44324-12031 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 |
| 44326 | Cam ring (for vane pumps) | 44325-12060 · 44325-12070 · 44325-12080 · 44325-12090 · 44325-12100 · 44325-12110 · 44325-12120 · 44325-12130 · 44325-12140 · 44325-12150 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-05008 · 90250-05017 |
| 44330 | Flow control valve assembly | 44330-12130 · 44330-12140 · 44330-12150 · 44330-12160 · 44330-12170 · 44330-12180 · 44330-14010 · 44330-14020 · 44330-14030 · 44330-14040 · 44330-14050 · 44330-14060 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-12447 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 · 96151-02200 |
| 44337 | Power steering suction port connector | 44337-12010 · 44337-32010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-12003 · 96711-19013 |
| 44338 | Pressure port connector | 44308-12020 · 44308-12021 · 44308-20010 · 44308-20011 · 44308-20012 · 44308-32010 · 44308-32011 · 44308-32012 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-22001 · 96711-19014 |
| 44341 | Vane pump front cover | 44341-12010 · 44341-12020 · 44341-12030 |
| 44341A | O-ring (for vane pump front cover) | 90301-21001 · 90301-25001 · 90301-52001 · 90301-56002 |
| 44342 | Vane pump rear end cover | 44342-12010 · 44342-12020 · 44342-12021 · 44342-22010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-13004 · 90301-30004 · 90301-37002 · 90301-52001 |
| 44343 | Flow control spring seat | 44343-12010 · 44343-12030 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 · 96711-19019 |
| 44348 | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44360 | Vane pump oil storage tank assembly | 44360-32010 · 44360-32020 |
| 44369 | No. 1 oil storage tank bracket | 44369-32010 · 44369-32020 |
| 44369B | Spacer (for oil tank bracket) | 90560-06014 · 90560-08022 |
| 44369C | Cushion pad (for oil tank bracket) | 90540-09015 · 90540-10023 |
