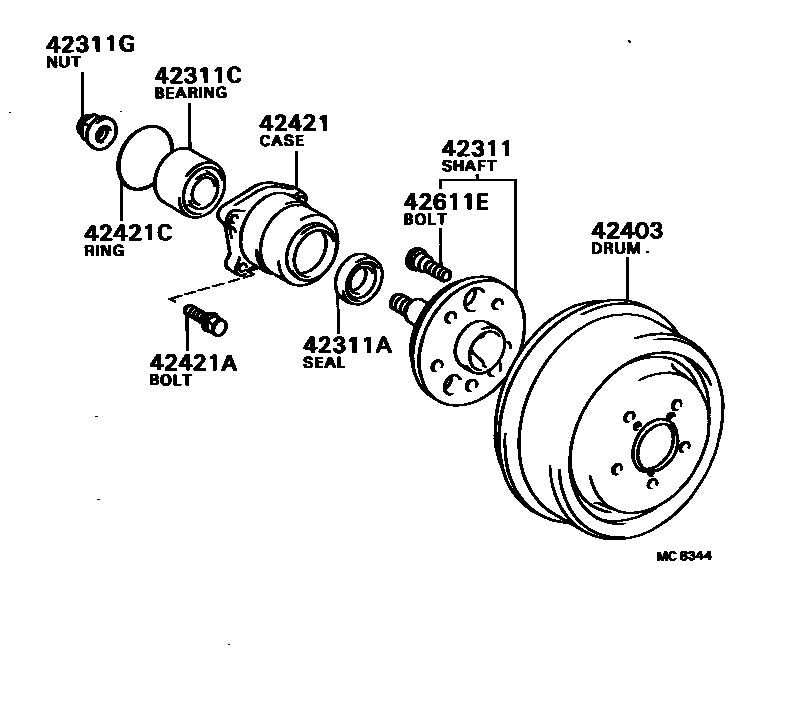

Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102
Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311 | Rear axle half shaft | 42301-32010 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42006 · 90311-42018 |
| 42311C | Bearings (for rear axle half shaft) | 90369-30043 · 90369-30044 |
| 42311G | Nut (for rear axle half shaft) | 90179-20003 |
| 42403 | Rear brake drum sub-assembly | 42431-32010 |
| 42421 | Rear axle bearing housing | 42421-20020 · 42421-32010 |
| 42421A | Bolt (for rear axle bearing housing) | 90105-10006 · 90105-10120 |
| 42421C | O-ring (for rear axle bearing housing) | 90301-63003 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
