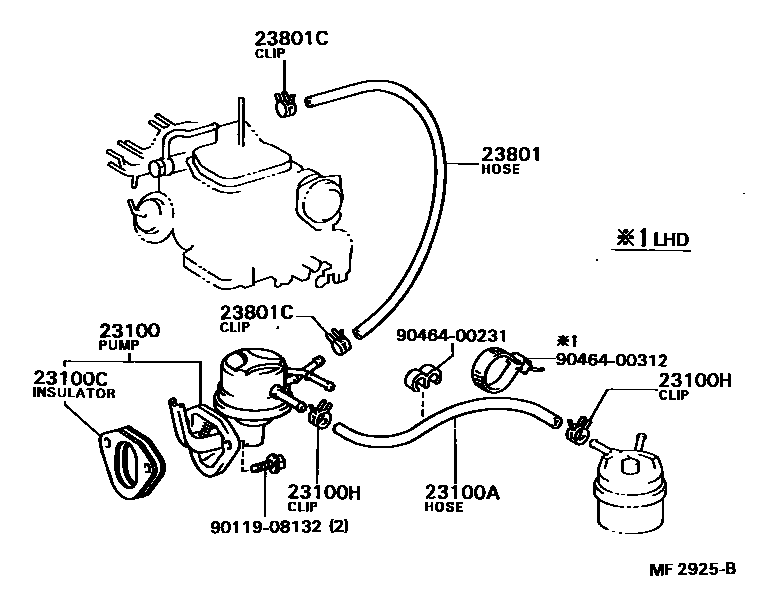

Toyota CAMRY 燃油泵和燃油管 — Figure 2301
Toyota CAMRY EPC diagram 2301, 燃油泵和燃油管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-69065 |
| 23100A | fuel hose | 23271-63010 · 95332-06040 |
| 23100C | Fuel pump vibration isolation pad | 23915-63020 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 95333-06040 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
