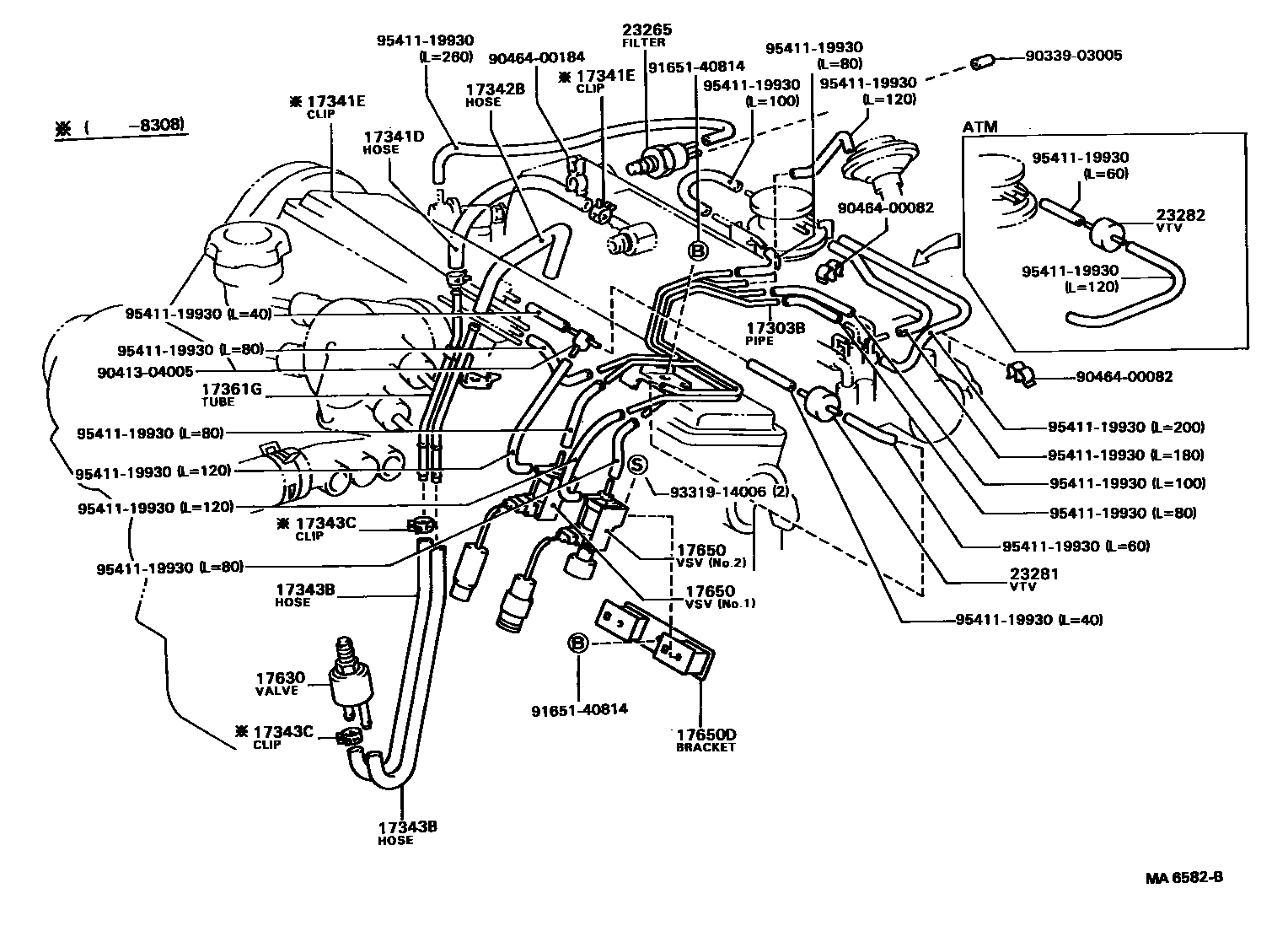

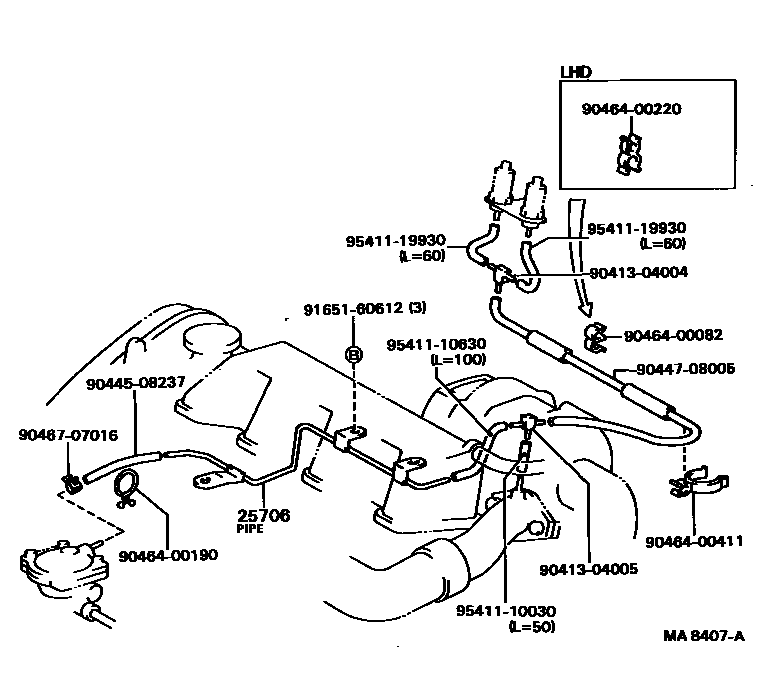

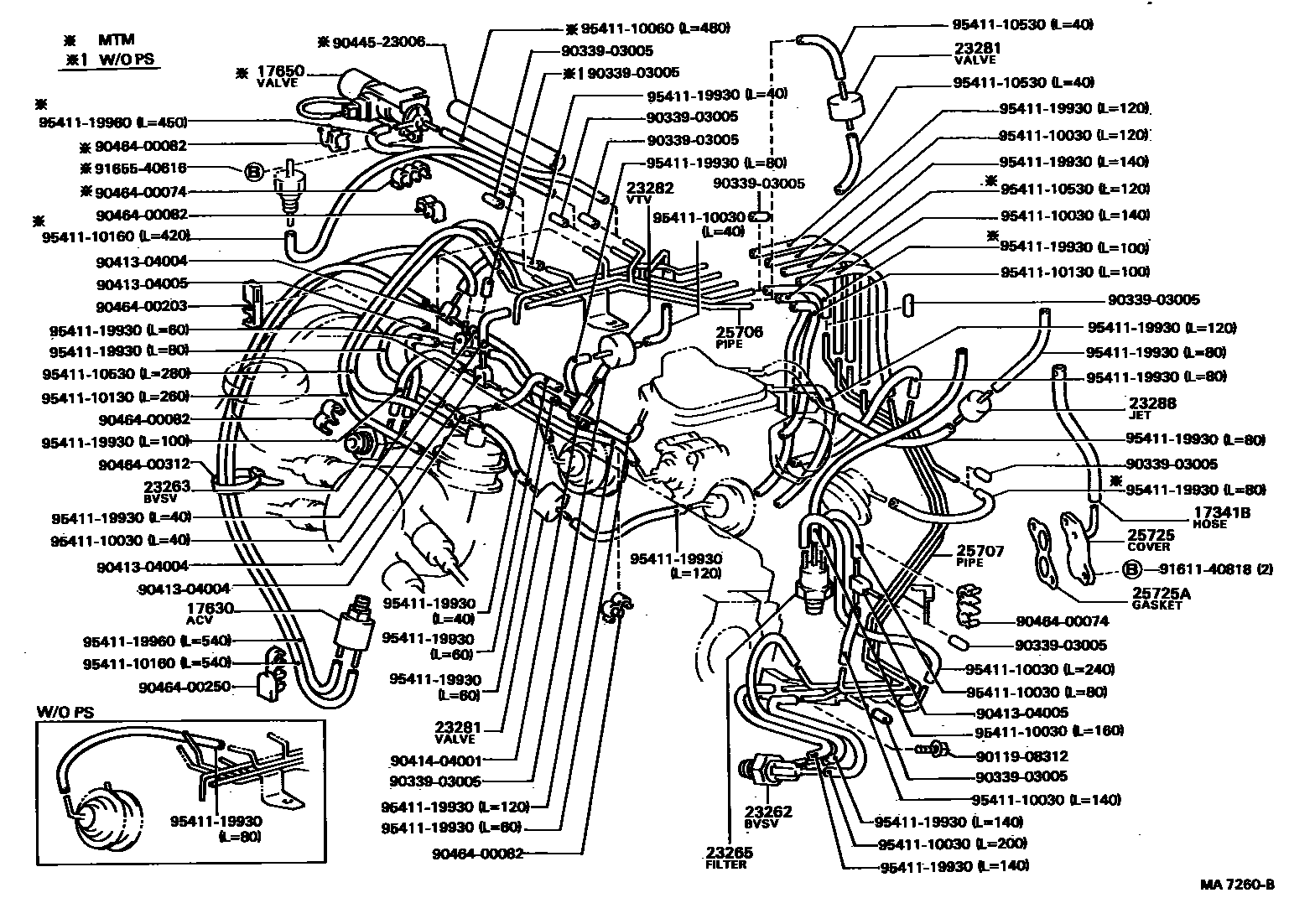

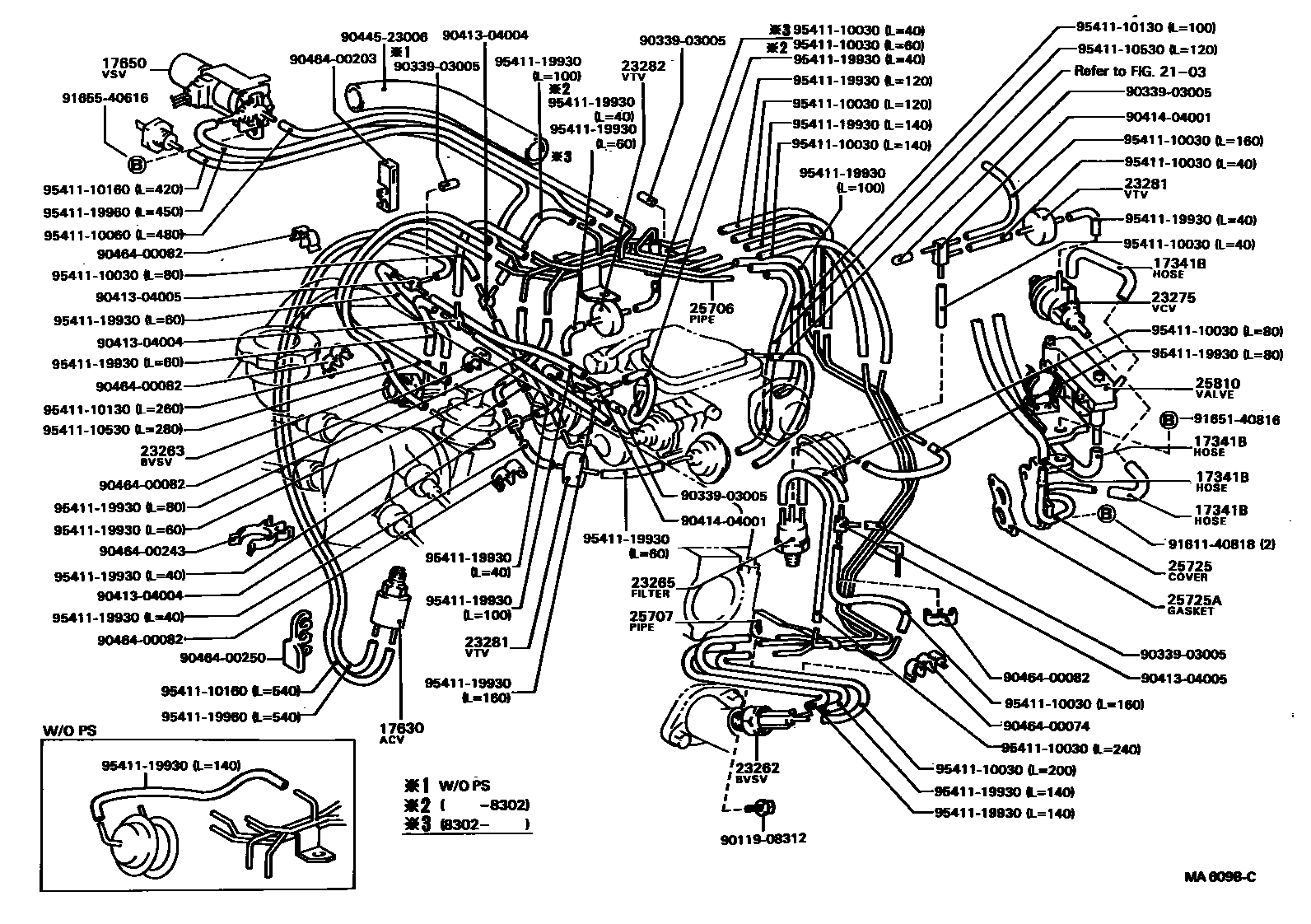

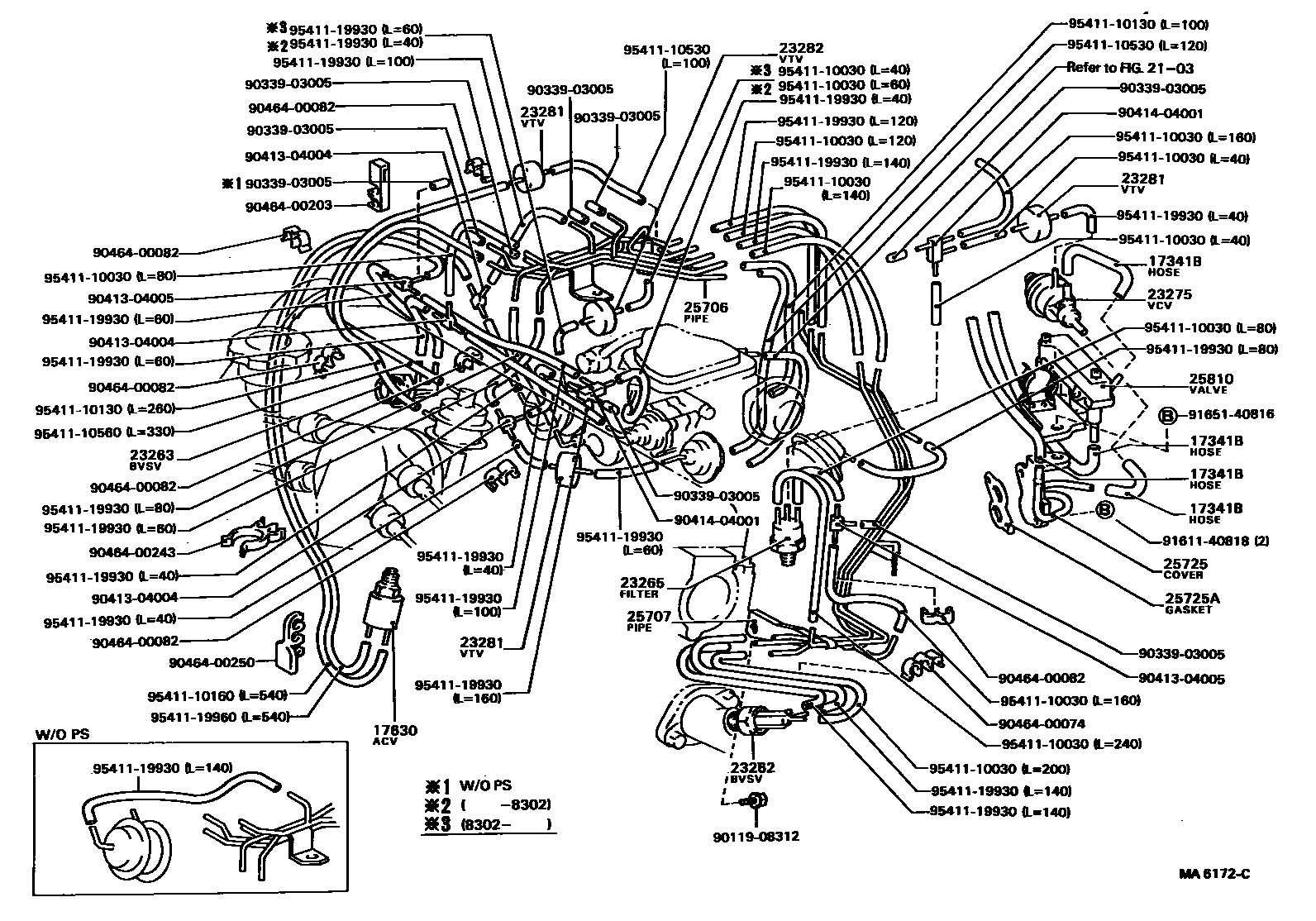

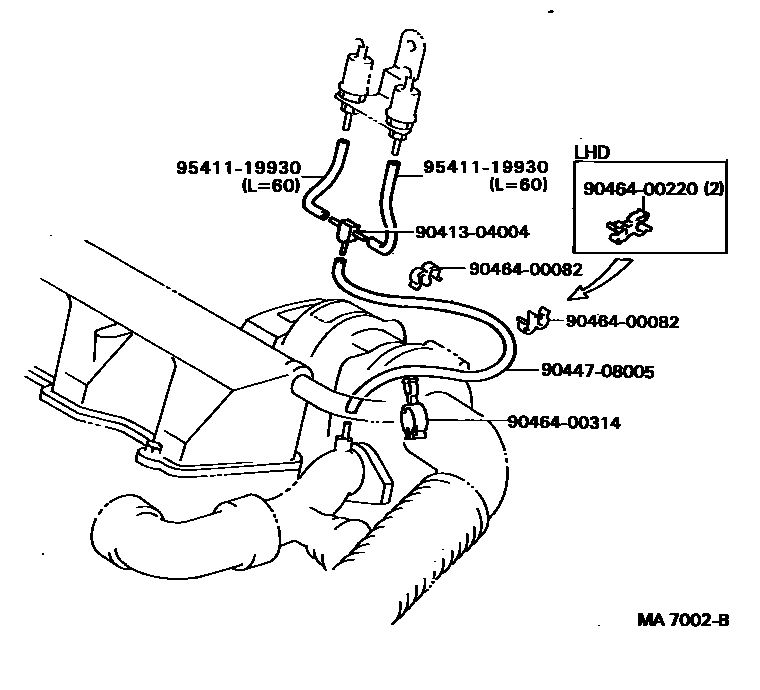

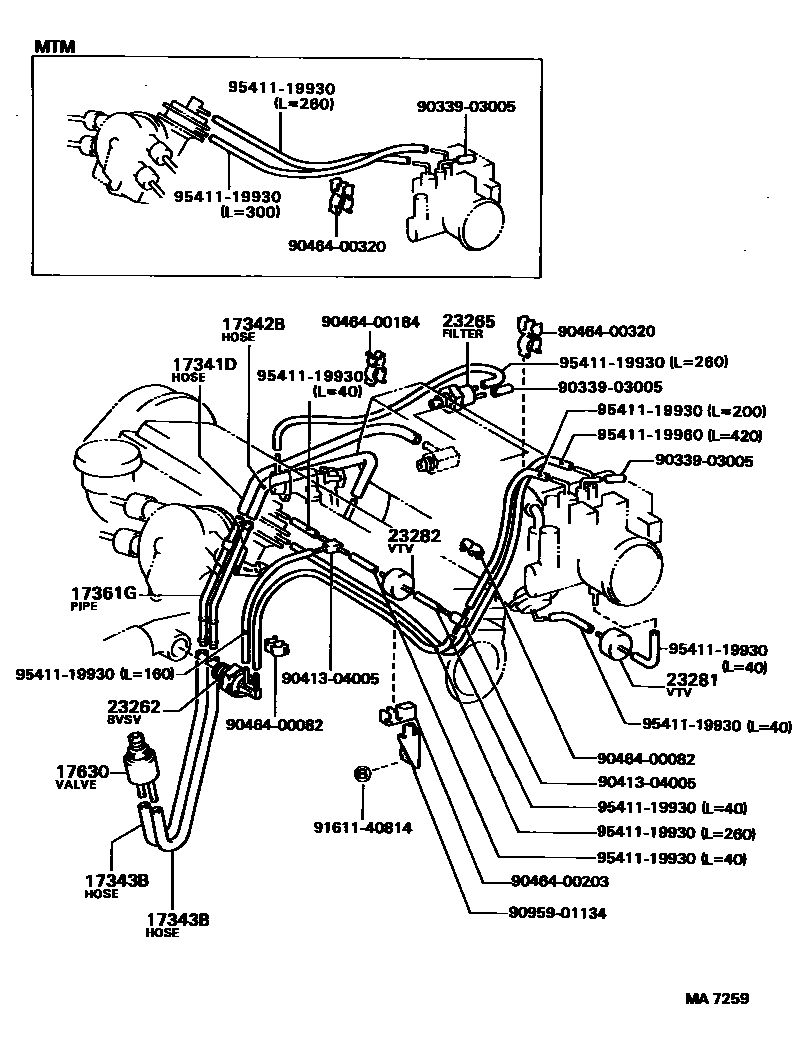

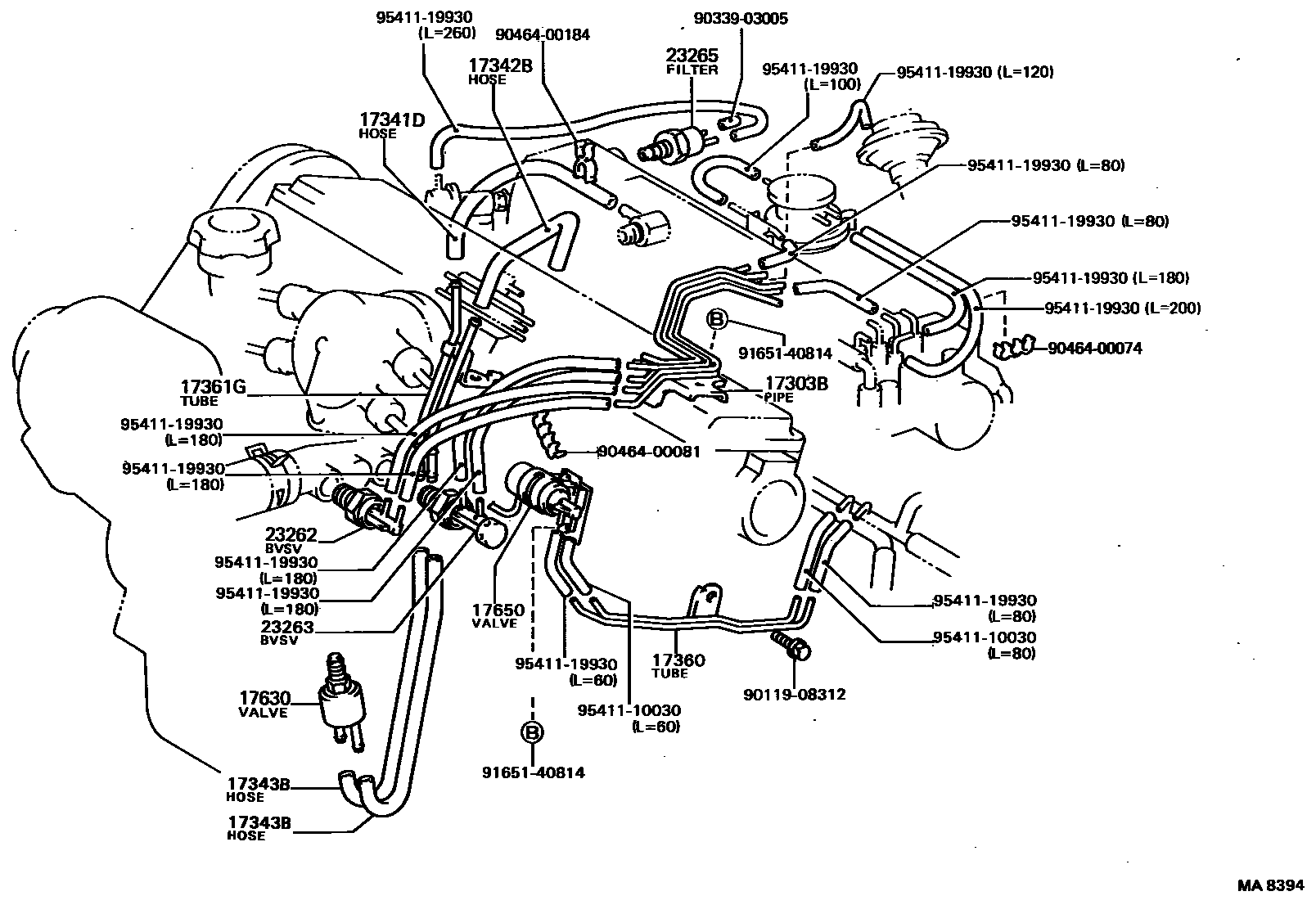

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 9 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-74010 · 17303-74020 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-63020 · 17342-63020 · 17343-63010 · 90445-11961 |
| 17341D | No. 1 hose (for idle boost) | 17341-63050 · 90445-11040 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-74010 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-74010 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 96132-30400 |
| 17360 | air pipe assembly | 17360-63041 |
| 17361G | Air pipe (for idle boost) | 17361-74010 |
| 17630 | Air control valve assembly | 17630-15010 · 17630-28010 · 17630-70020 |
| 17650 | Vacuum switch valve assembly | 89570-14120 · 89570-20230 · 89570-32030 · 89570-32040 |
| 17650D | Vacuum switch valve bracket | 89579-32010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25810-27010 · 90925-05051 · 90925-05068 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25820-13020 · 90925-05056 |
| 23265 | No. 1 gas filter | 90917-11023 · 90917-11024 |
| 23275 | Vacuum control valve No. 1 | 90925-03140 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01021 · 90925-01029 · 90925-01062 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01029 · 90925-01092 |
| 23288 | Nozzle No. 1 | 90925-04006 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-63050 · 25706-63090 · 25706-64020 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-63080 · 25707-63100 |
| 25725 | Emission control valve cover | 25725-63010 · 25725-63021 |
| 25725A | Emission control valve cover gasket | 25627-63020 |
| 25810 | Bimetal valve assembly | 25810-63020 |
