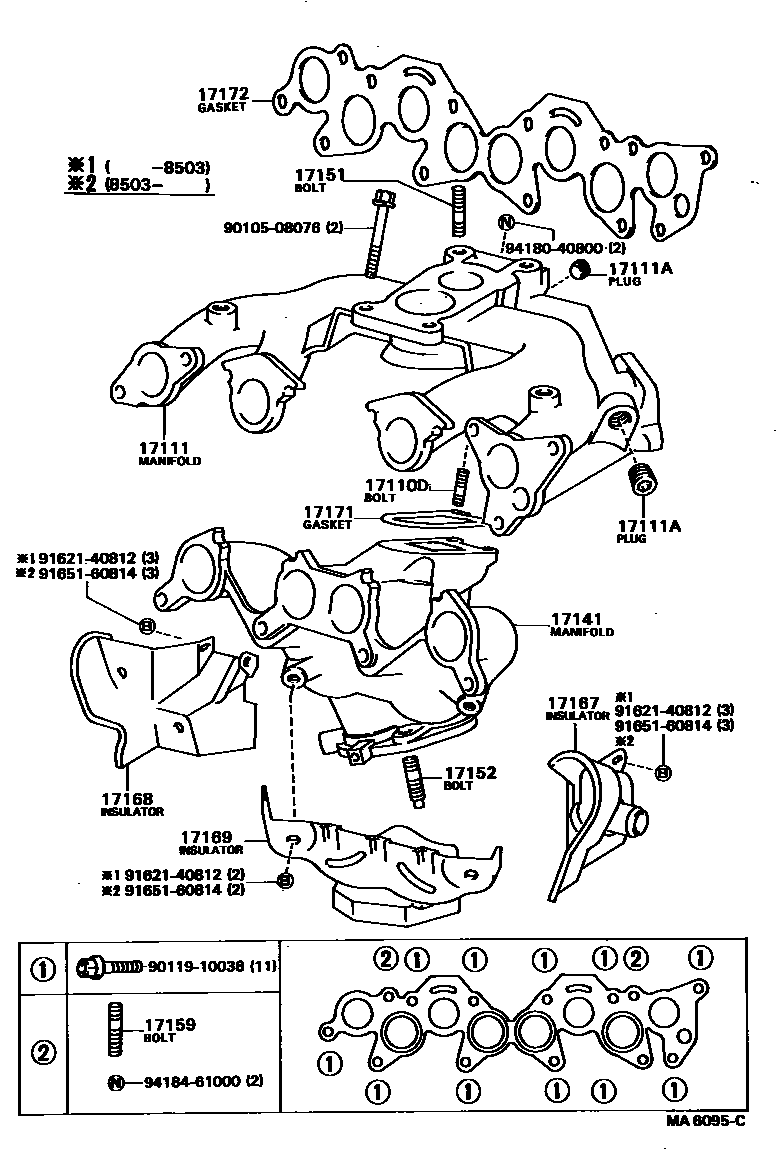

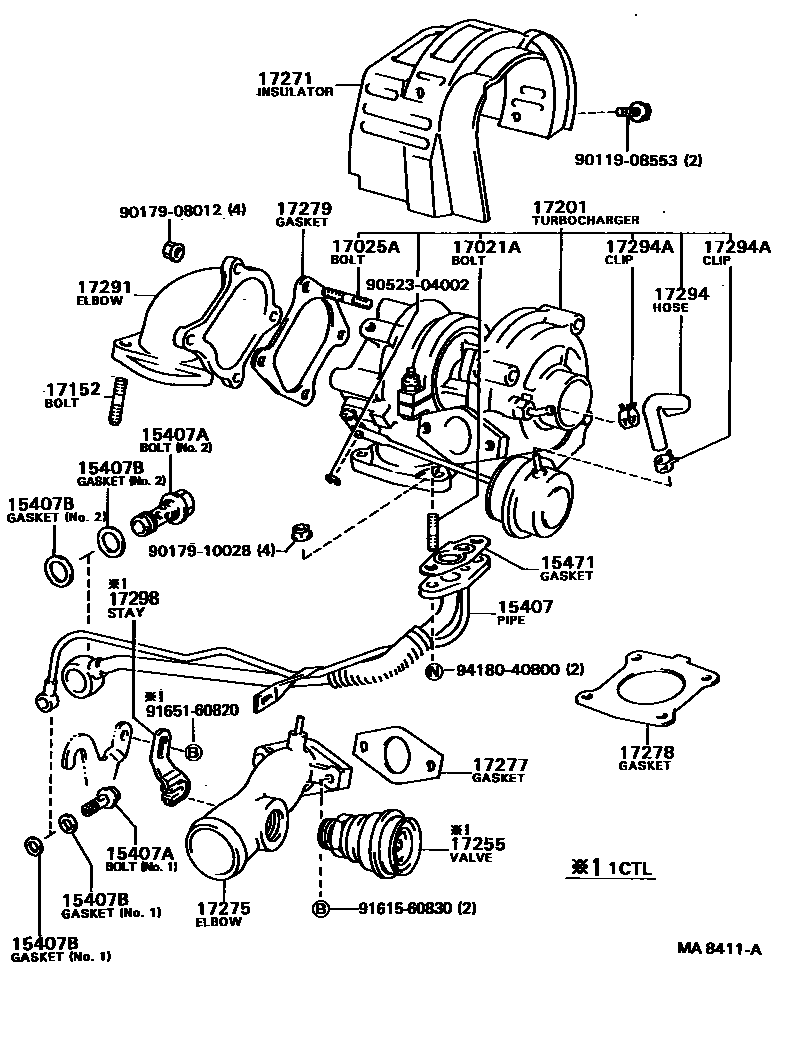

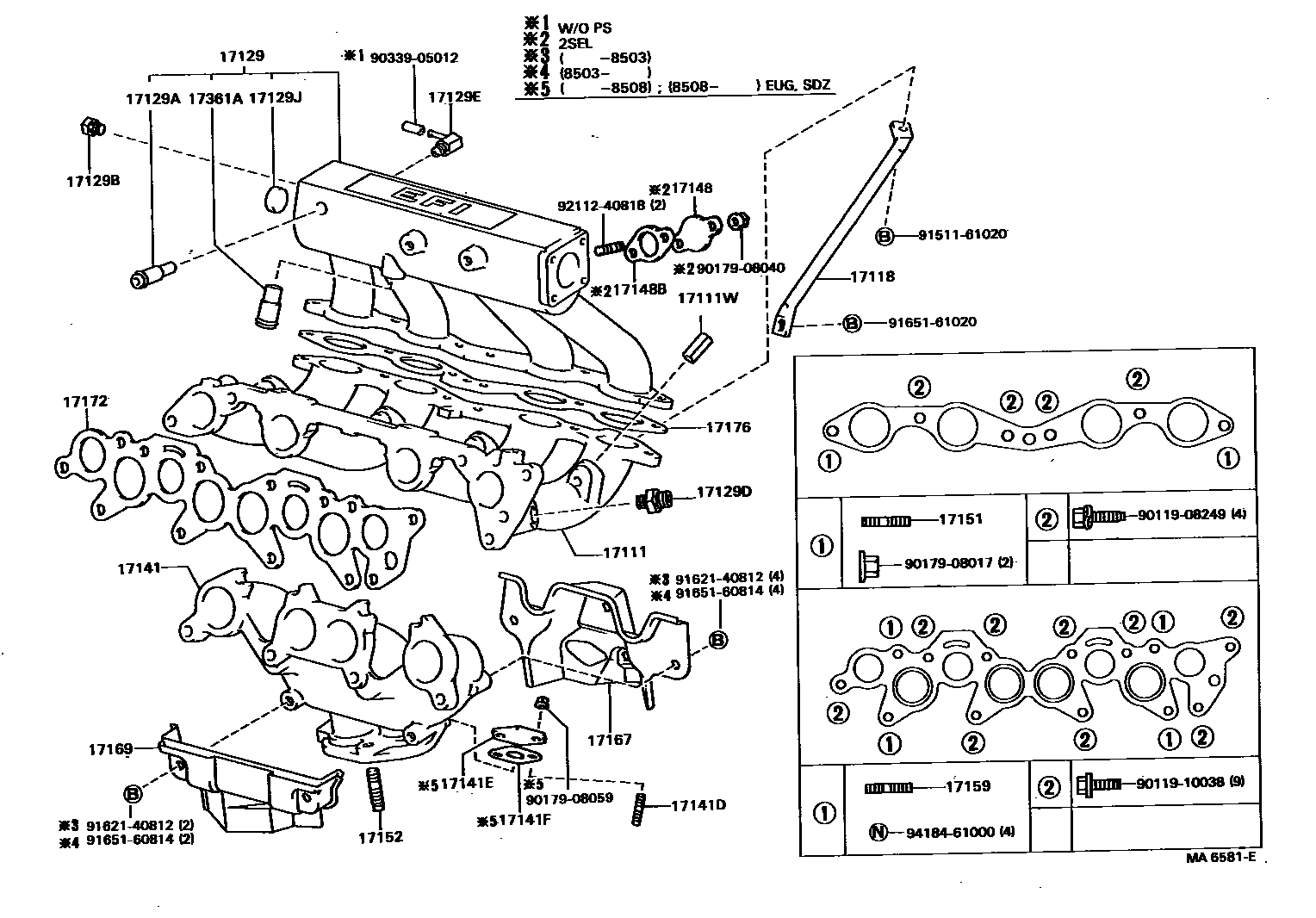

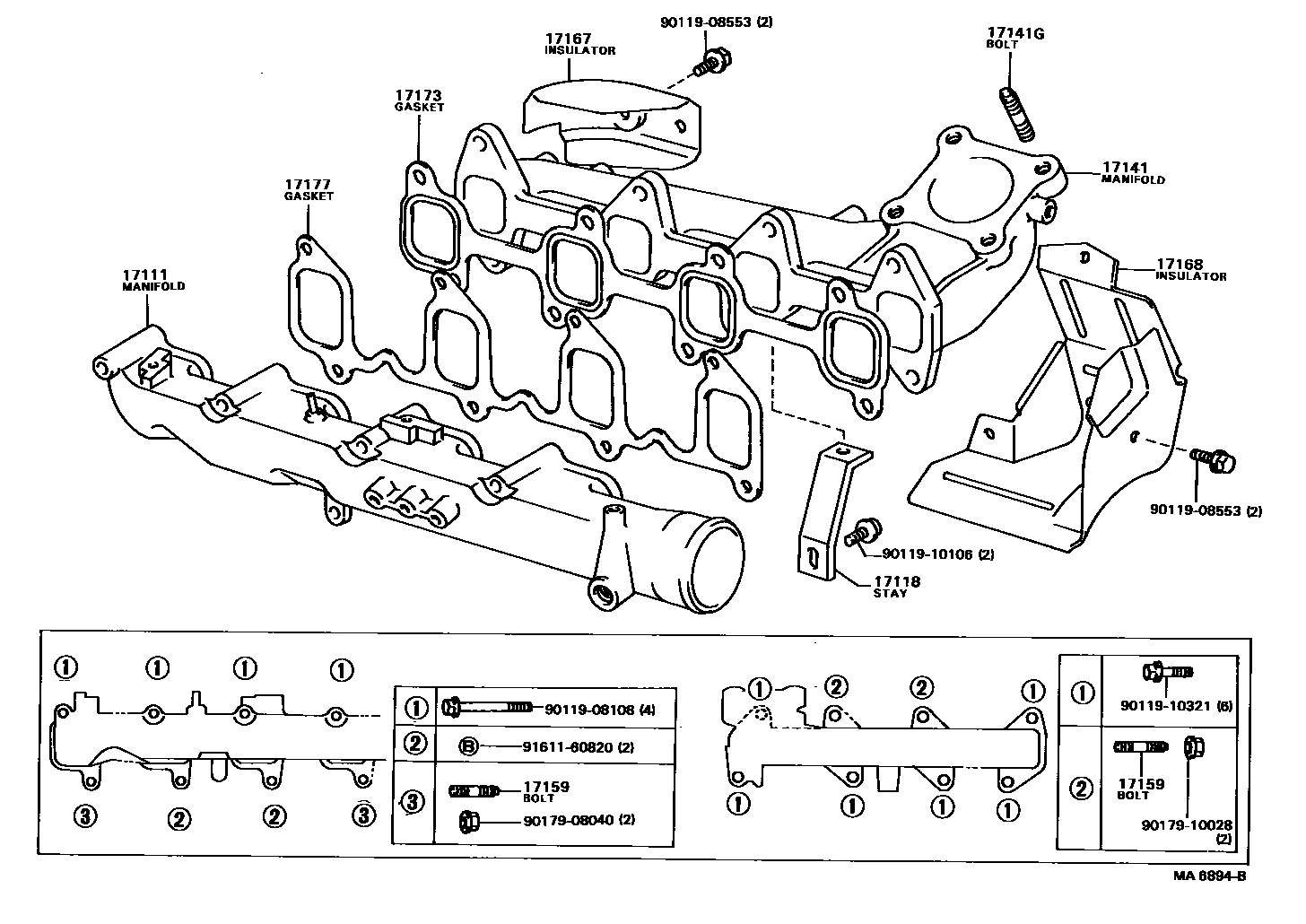

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 5 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-64010 · 15407-64011 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-27001 · 90401-27002 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90210-27001 · 90430-10035 |
| 15471 | Turbine oil inlet pipe gasket | 15471-54010 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17025A | Stud bolts (for turbine housing) | 90116-08154 · 90116-08200 |
| 17110D | Bolts (for intake manifold to exhaust manifold) | 92112-40825 · 92112-60825 |
| 17111 | Intake Manifold | 17101-64030 · 17111-63020 · 17111-63040 · 17111-64090 · 17111-74011 |
| 17111A | No. 1 screw plug | 90344-53011 |
| 17111W | Slotted spring pin (for intake manifold) | 90254-11001 |
| 17118 | Manifold stays | 17118-63030 · 17118-64020 · 17118-74010 |
| 17129 | Intake pressure tank | 17109-74011 · 17109-74012 |
| 17129A | Connector No. 1 | 90406-09001 |
| 17129B | Screw plug | 90345-51025 |
| 17129D | Connector No. 2 | 90341-18002 · 90404-20001 · 90404-20014 |
| 17129E | Connector No. 3 | 90404-51042 |
| 17129J | Sealing plug (for air intake surge tank) | 96411-43000 |
| 17141 | exhaust manifold | 17141-63050 · 17141-63051 · 17141-64030 · 17141-64031 · 17141-74010 · 17141-74011 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 |
| 17141E | Exhaust manifold plate | 17148-74010 |
| 17141F | Gasket (for exhaust manifold plate) | 89466-32010 |
| 17141G | Stud bolts (for turbocharger) | 90116-10054 |
| 17148 | Exhaust manifold plate (for EGR intake) | 25617-74010 · 25617-74020 |
| 17148B | EGR air intake gasket | 25627-74010 |
| 17151 | Studs (for manifold to carburetor) | 92122-40832 · 92122-60825 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10095 · 90116-10123 · 92122-60820 · 92122-61025 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-64031 · 17167-74010 · 17902-63020 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-64020 · 17168-64021 · 17932-63030 |
| 17169 | Exhaust manifold No. 3 heat shield | 17904-63020 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-63020 · 17171-63021 · 17171-63022 |
| 17172 | Gasket (manifold to cylinder head) | 17172-63010 · 17172-63020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-64030 · 17173-64050 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-74011 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-64010 |
| 17201 | Turbocharger sub-assembly | 17201-64010 · 17201-64020 |

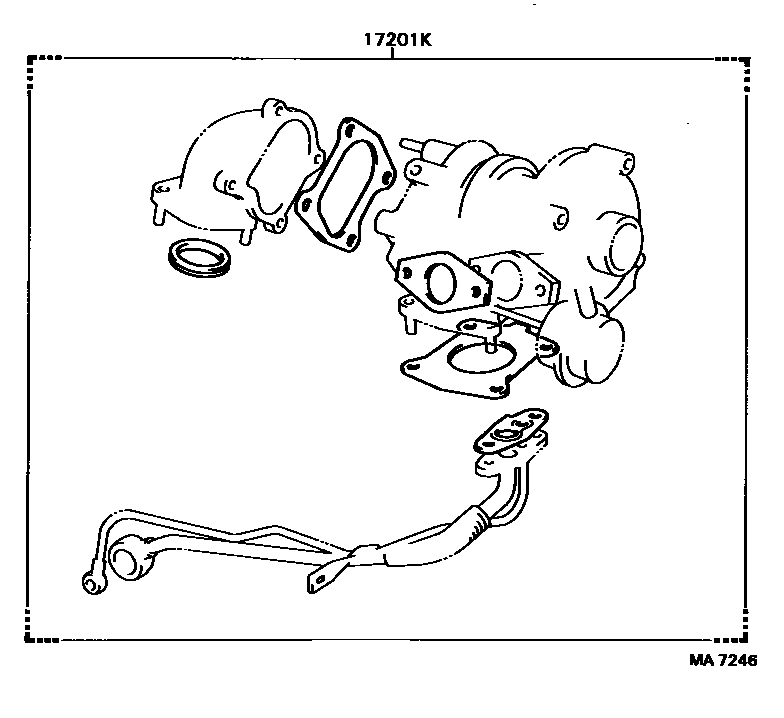

| 17201K | Turbocharger gasket assembly | 04175-64010 · 04175-64020 · 04175-64021 · 04175-64022 |
| 17255 | Intake pressure reducing valve | 17255-64010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-64010 |
| 17275 | Compressor oil outlet elbow | 17275-64010 · 17275-64020 · 17275-64040 |
| 17277 | Compressor oil outlet gasket | 17277-54010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-64010 |
| 17279 | Turbine outlet elbow gasket | 17279-64010 |
| 17291 | Turbine oil outlet elbow | 17291-64010 |
| 17294 | Actuator hose | 17294-28010 |
| 17294A | Clamp (for actuator hose) | 96132-30600 |
| 17298 | Compressor elbow brace | 17298-64010 |
| 17361A | Air tube (for EFI) | 90405-14001 |
