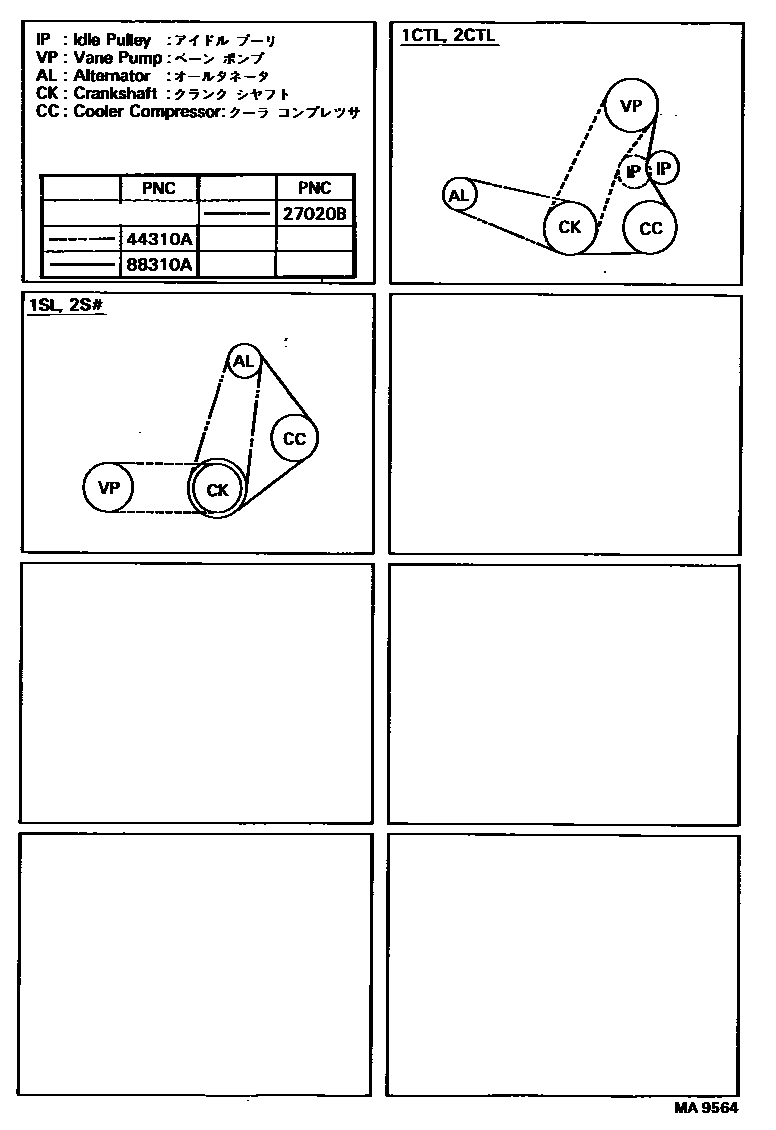

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020B | V-belt (for generator) | 90916-02125 · 90916-02155 · 99365-01000 |
| 44310A | V-belt (for vane pump) | 99363-50760 · 99365-51120 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99365-51110 · 99365-51120 · 99365-51210 |
