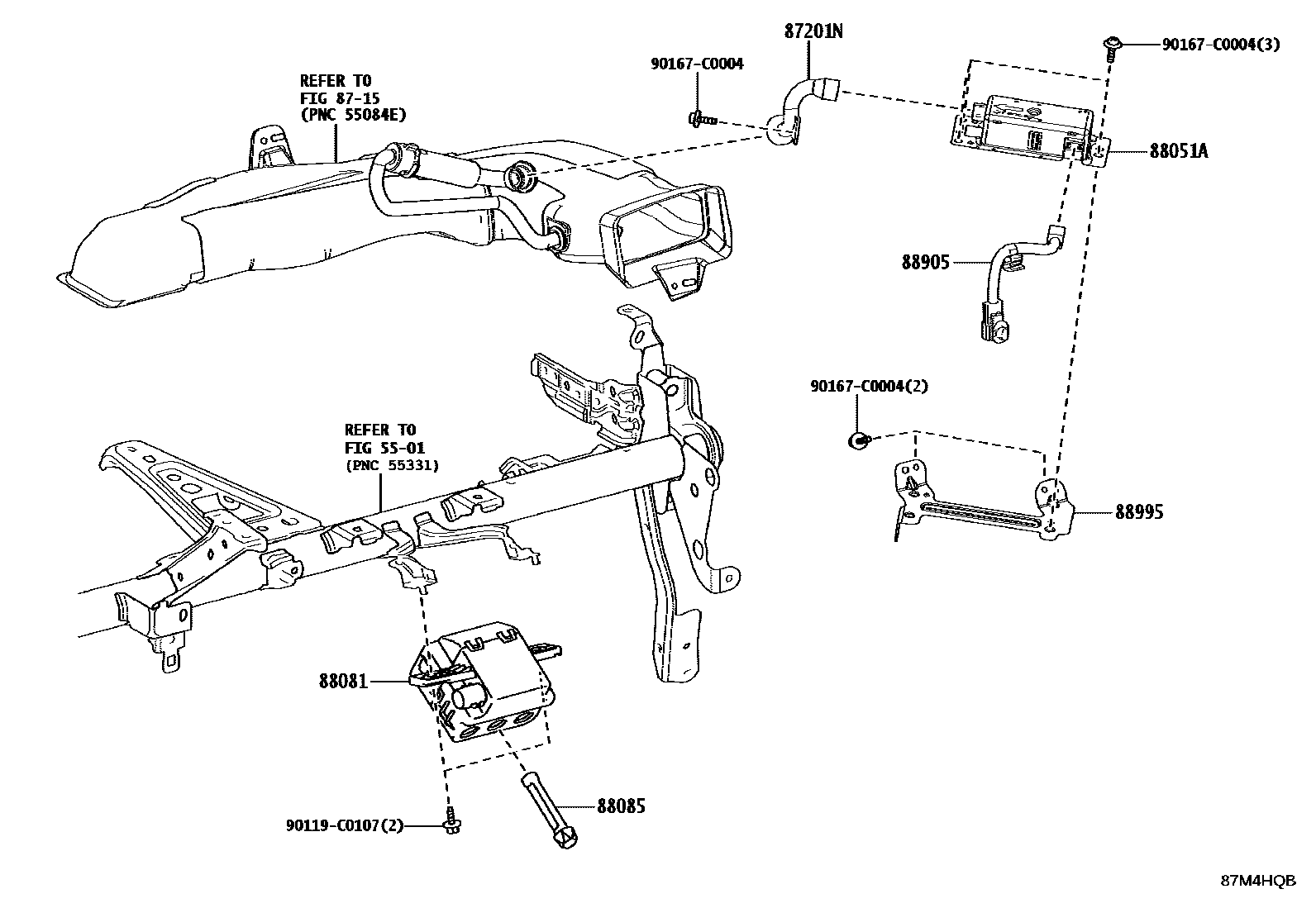

Toyota CAMRY 空气净化器或离子发生器 — Figure 8724
Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87201N | Air duct sub-assembly | 55848-06080 |
| 88051A | Ion generator sub-assembly | 88051-08020 |
| 88081 | SOUS-ENS GENERATEUR, FRAGRANCE | 88081-06010 |
| 88085 | SOUS-ENS CARTOUCHE, FRAGRANCE | 88085-06010 · 88085-06020 · 88085-06030 · 88085-06040 · 88085-06050 · 88085-06060 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 82144-06010 |
| 88995 | No. 1 ion generator bracket | 88995-06010 |
