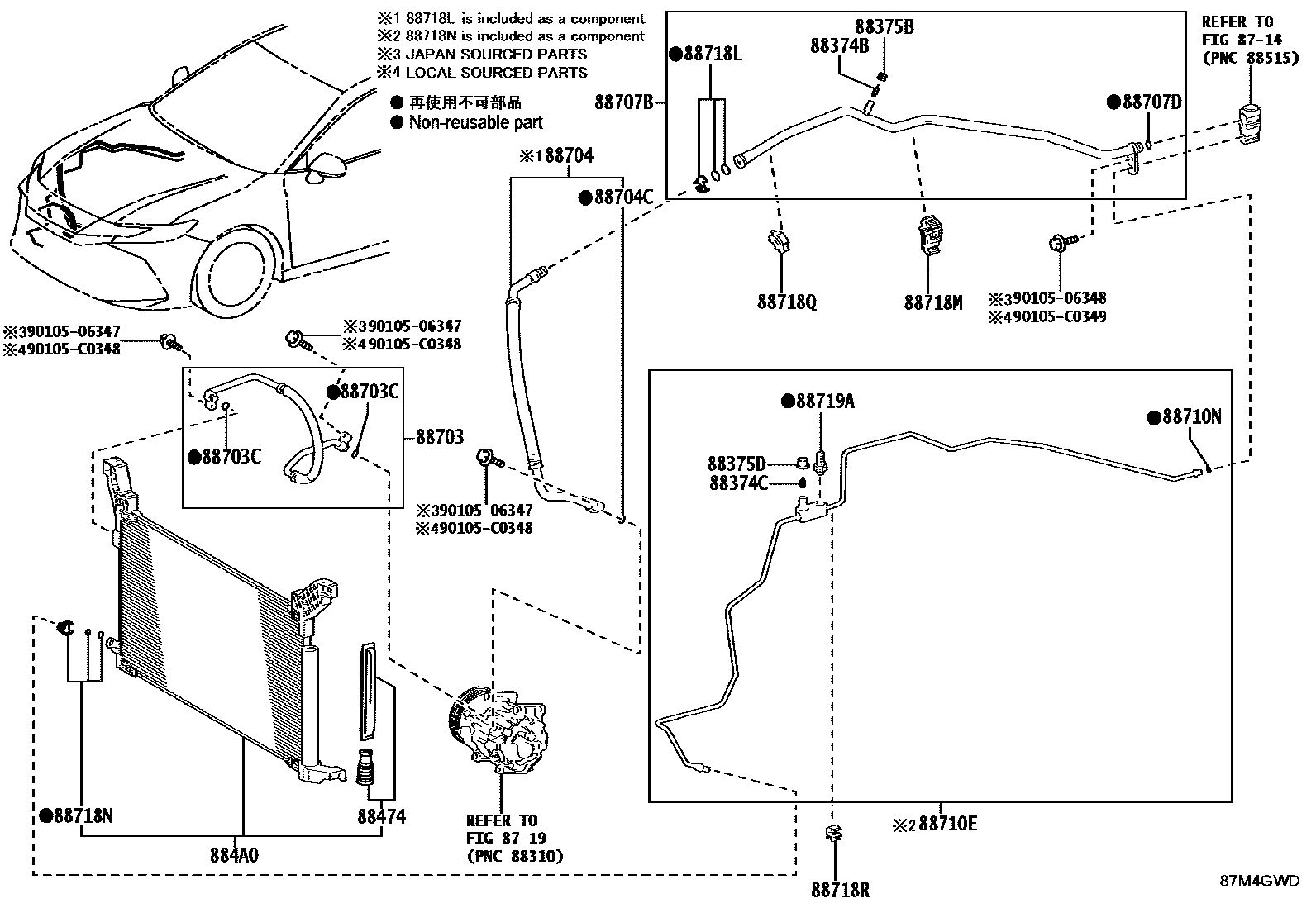

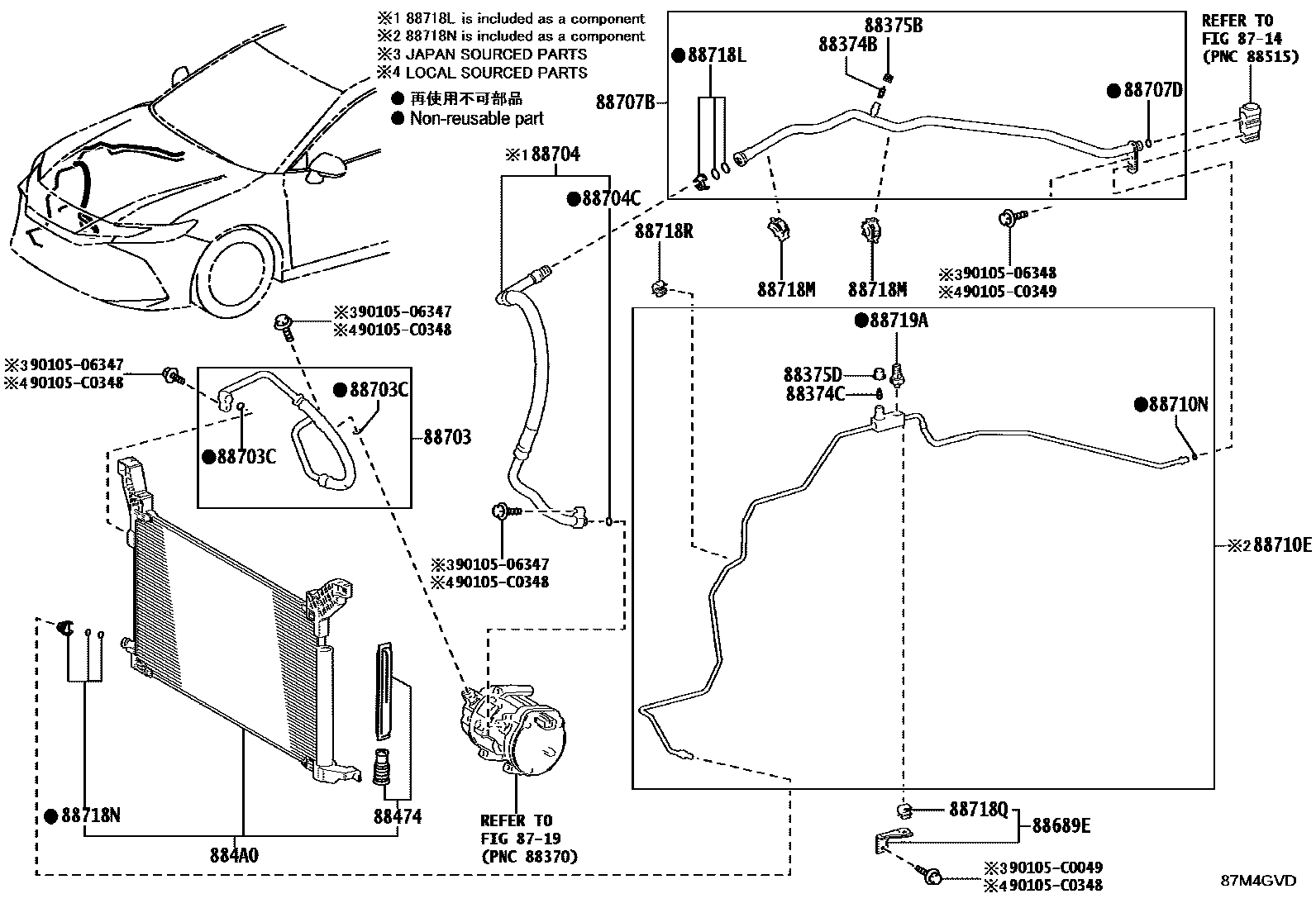

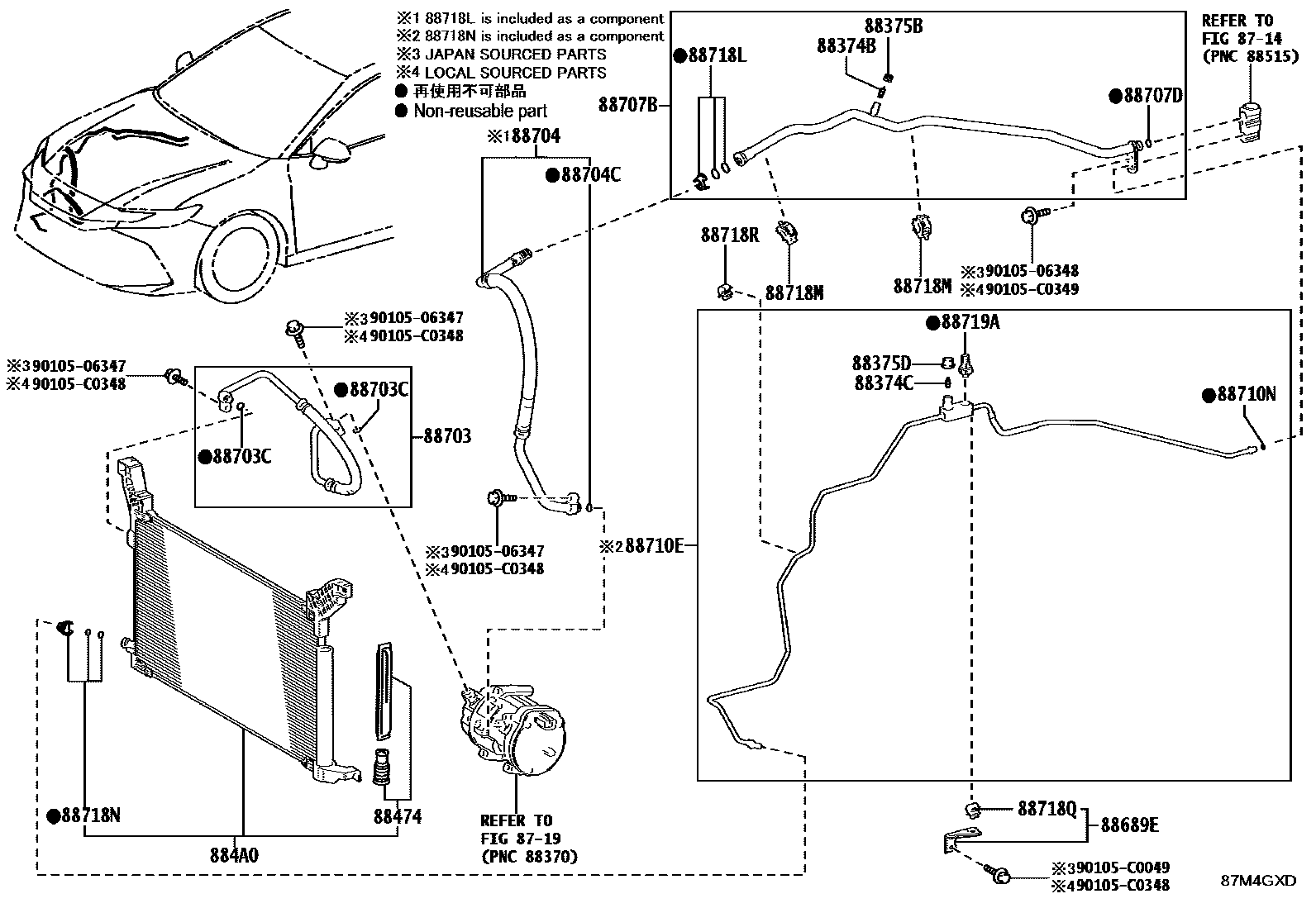

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88474 | cooler dryer | 88474-12010 |
| 884A0 | Air conditioning condenser assembly | 884A0-06100 · 884A0-06110 |
| 88689E | Cooler Bracket No. 1 | 88688-06400 |
| 88703 | Discharge hose sub-assembly | 88703-06250 · 88703-06260 · 88703-06270 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-06630 · 88704-06640 · 88704-06650 |
| 88704C | B suction hose sub-assembly | 90099-14121 |
| 88707B | Suction pipe B sub-assembly | 88707-06260 · 88707-06370 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06730 · 88710-06750 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 90099-14119 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | Pipe clamp | 88718-06540 · 88718-06560 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-06540 · 88718-06550 |
| 88718R | Pipe clamp | 88718-06550 |
| 88719A | Air conditioning pressure sensor | 88719-06020 |
