Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-07050 |

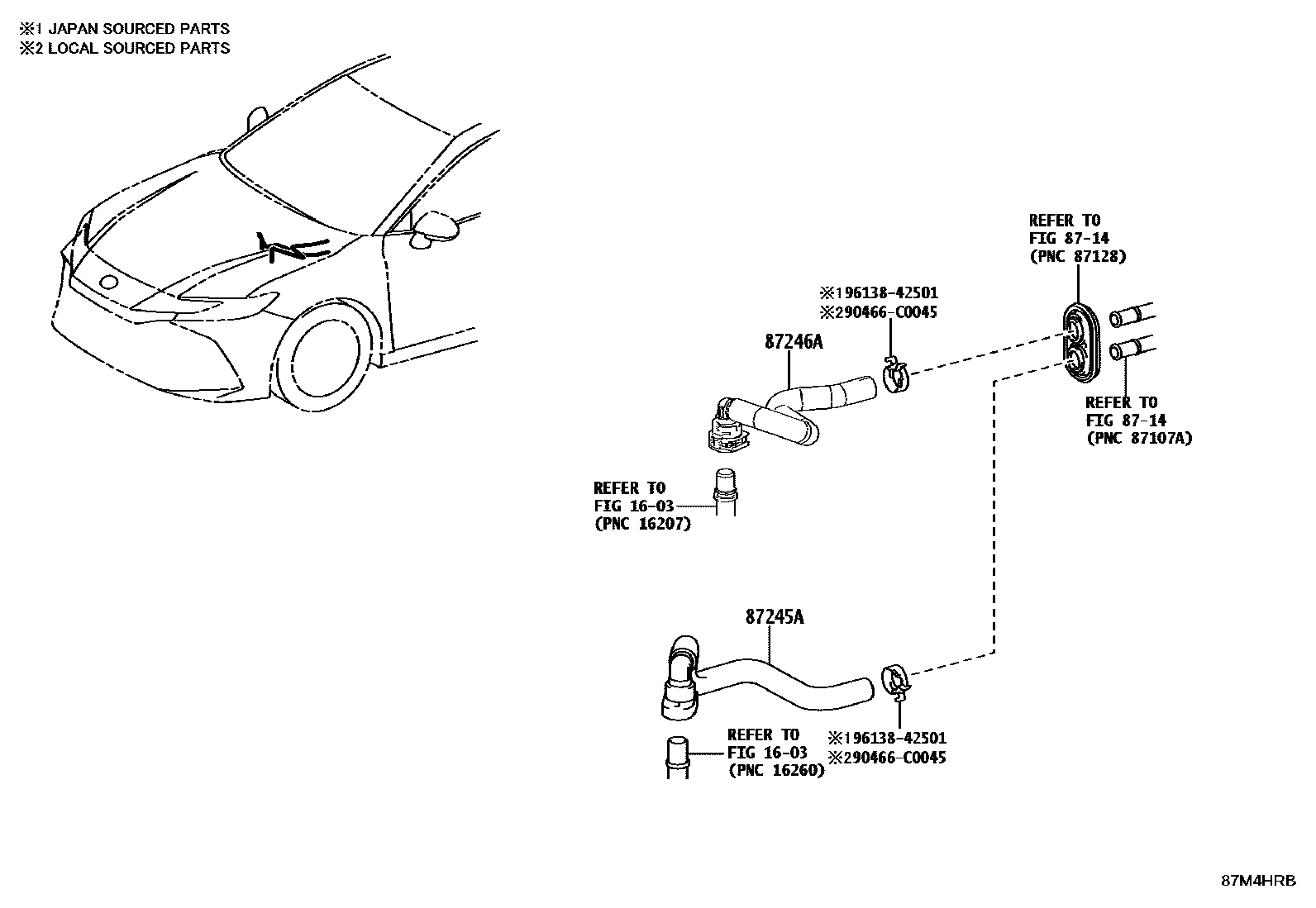

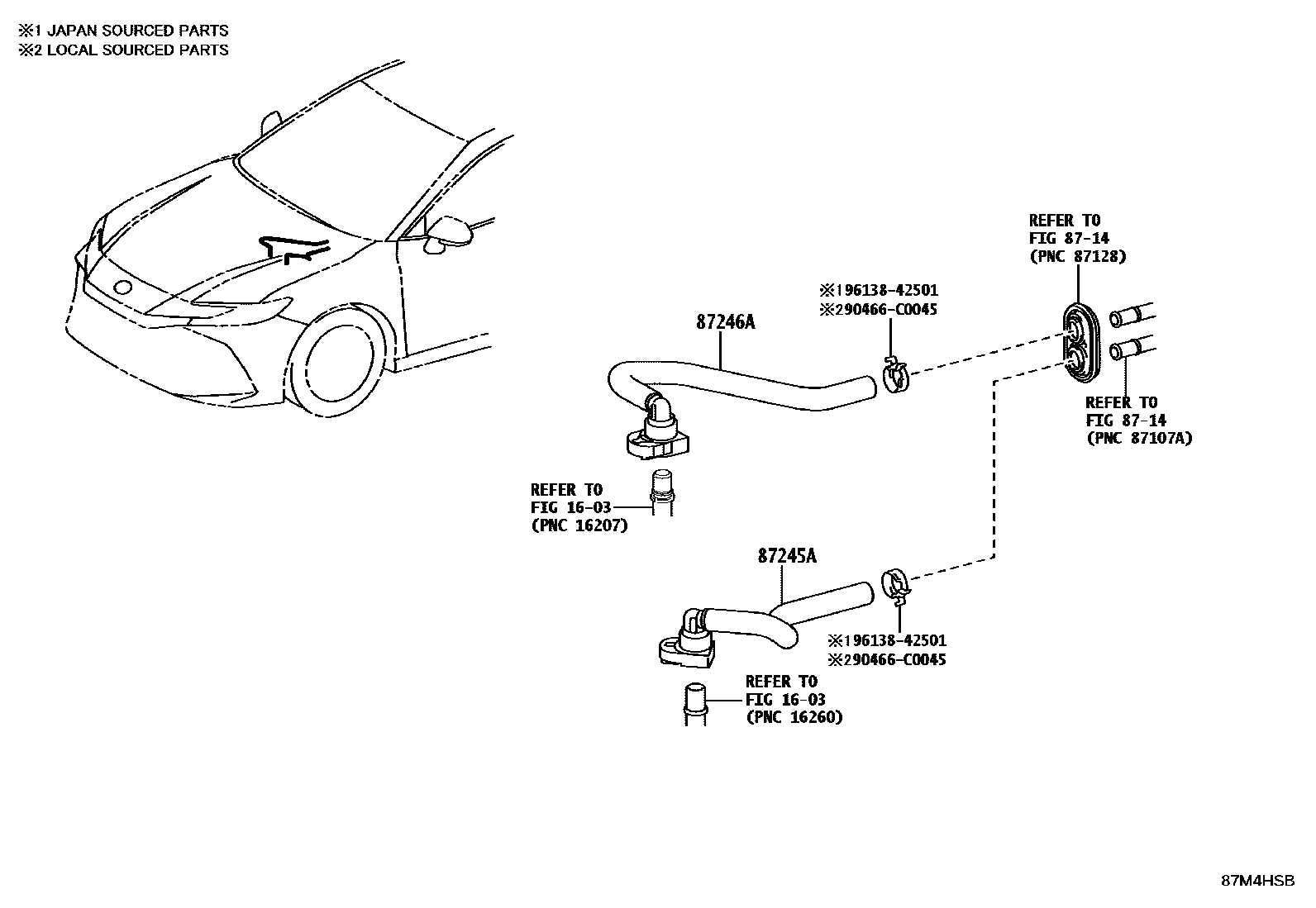

| 87245A | Heater water inlet hose A | 87209-06290 · 87209-06330 |
| 87246A | Heater outlet hose A | 87209-06300 · 87209-06340 |
