Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

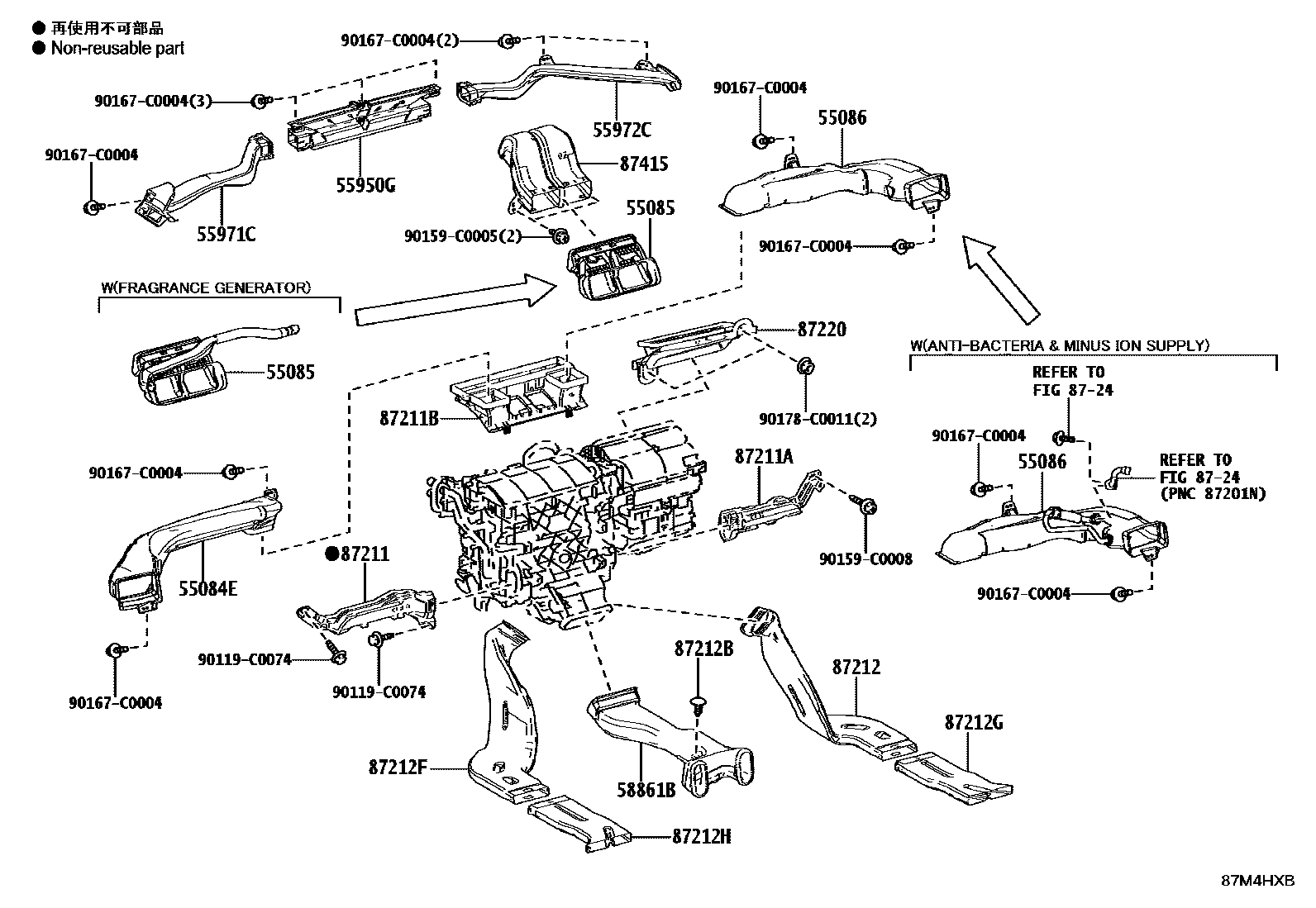

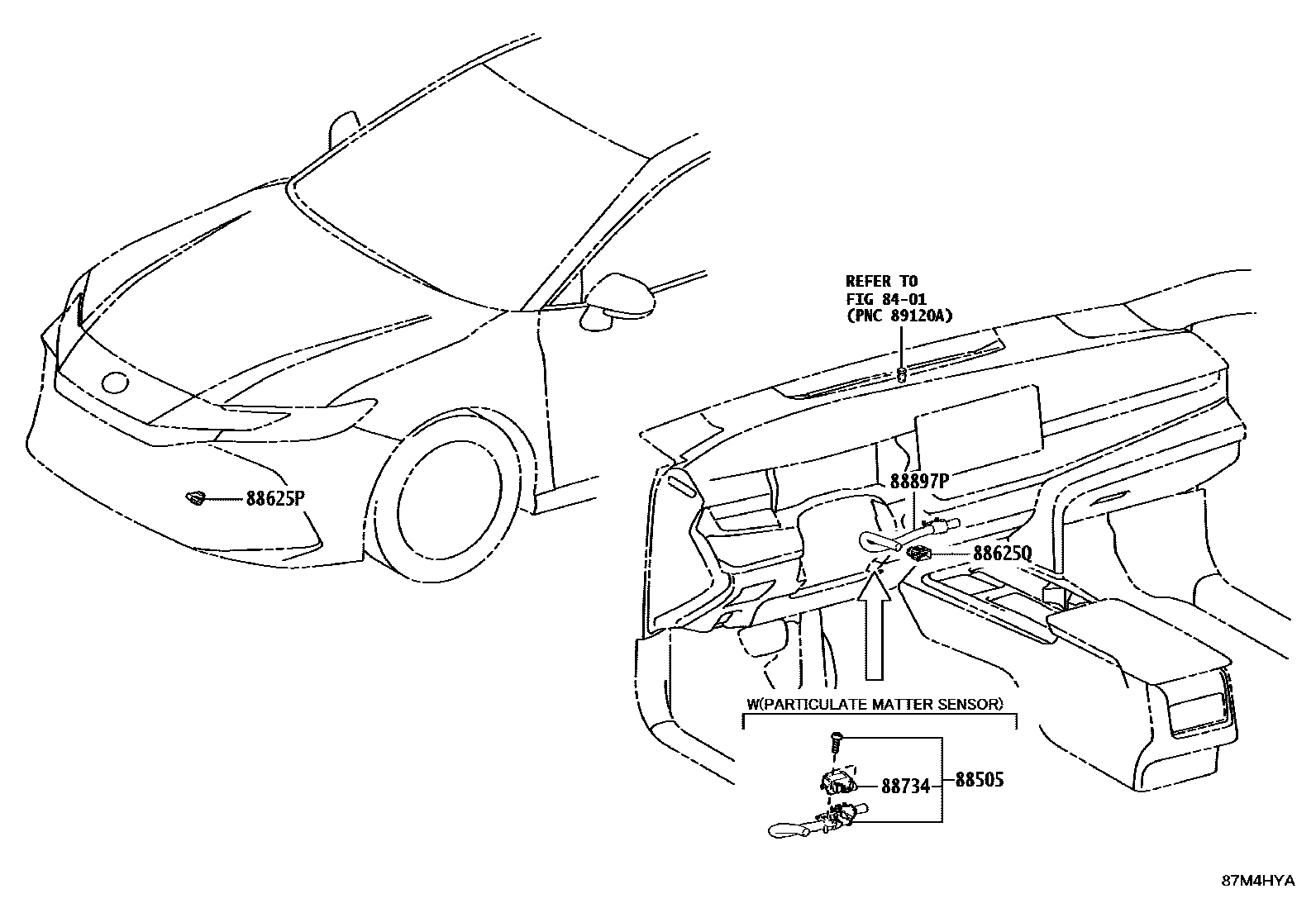

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-06300 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55835-06010 · 55844-06360 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-06200 · 55870-06030 |
| 55900 | Air conditioning control assembly | 55900-06750 · 55900-06751 · 55900-06760 · 55900-06761 · 55900-06770 · 55900-06771 · 55900-06780 · 55900-06781 · 55900-06790 · 55900-06791 · 55900-06800 · 55900-06801 |
| 55950G | Defroster nozzle assembly | 55950-06250 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06230 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06230 |
| 58861B | Air duct No. 1 for armrest box | 58861-06300 |
| 87211 | No. 1 air duct | 87201-06C60 |
| 87211A | Duct No. 2 | 87201-06C80 |
| 87211B | No. 3 air duct | 87211-06040 |
| 87212 | No. 1 rear air duct | 87212-06100 |
| 87212F | No. 2 rear air duct | 87213-06101 |
| 87212G | No. 3 rear air duct | 87215-06060 |
| 87212H | No. 4 rear air duct | 87216-06060 |
| 87220 | Air duct assembly | 87220-06020 |
| 87415 | air duct | 87415-06020 |
| 88505 | Air conditioning duct sub-assembly | 88505-06020 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-06040 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06060 |
| 88734 | Air conditioning PM sensor | 88734-06010 |
| 88897P | aspirator | 88505-06010 |
