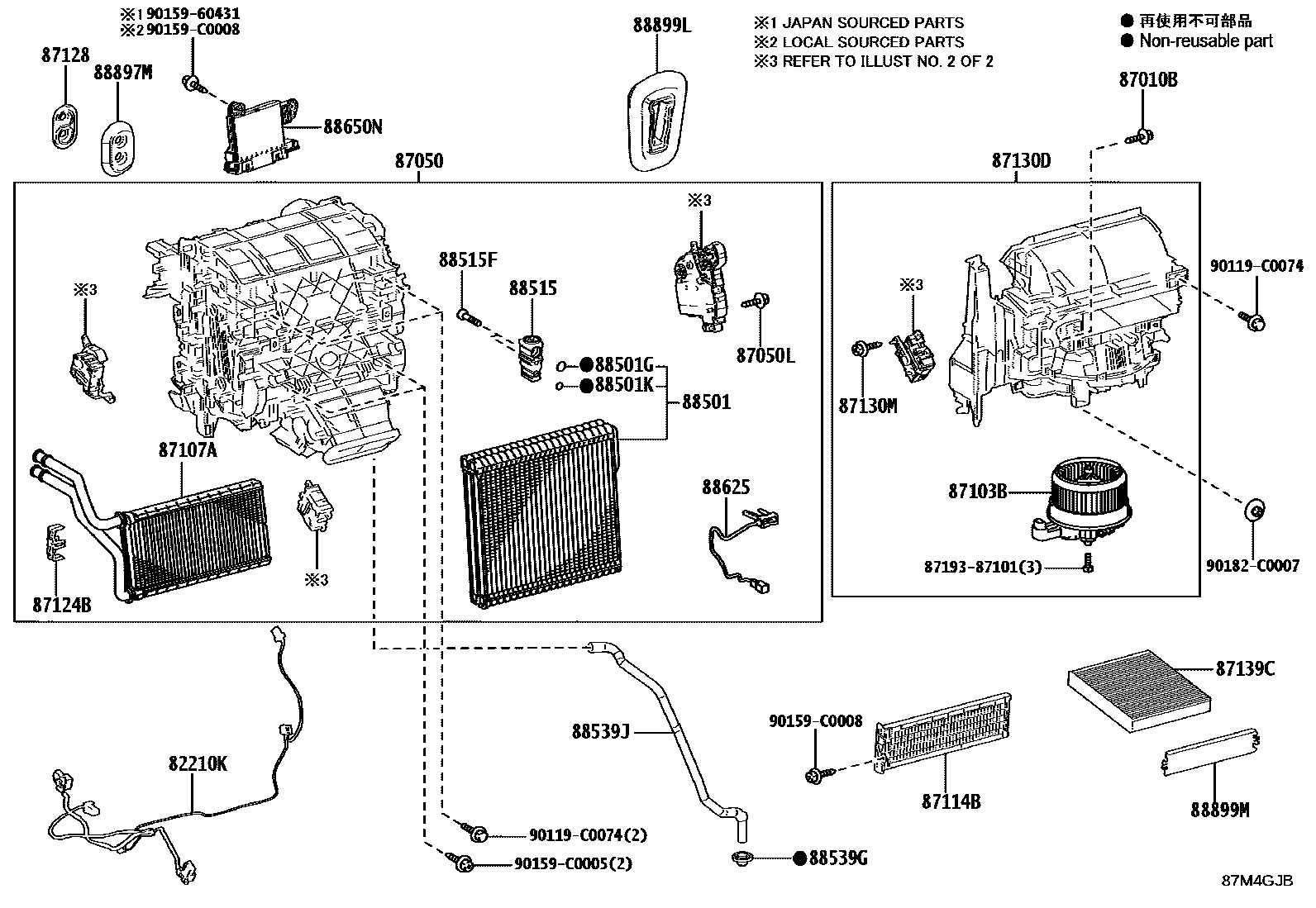

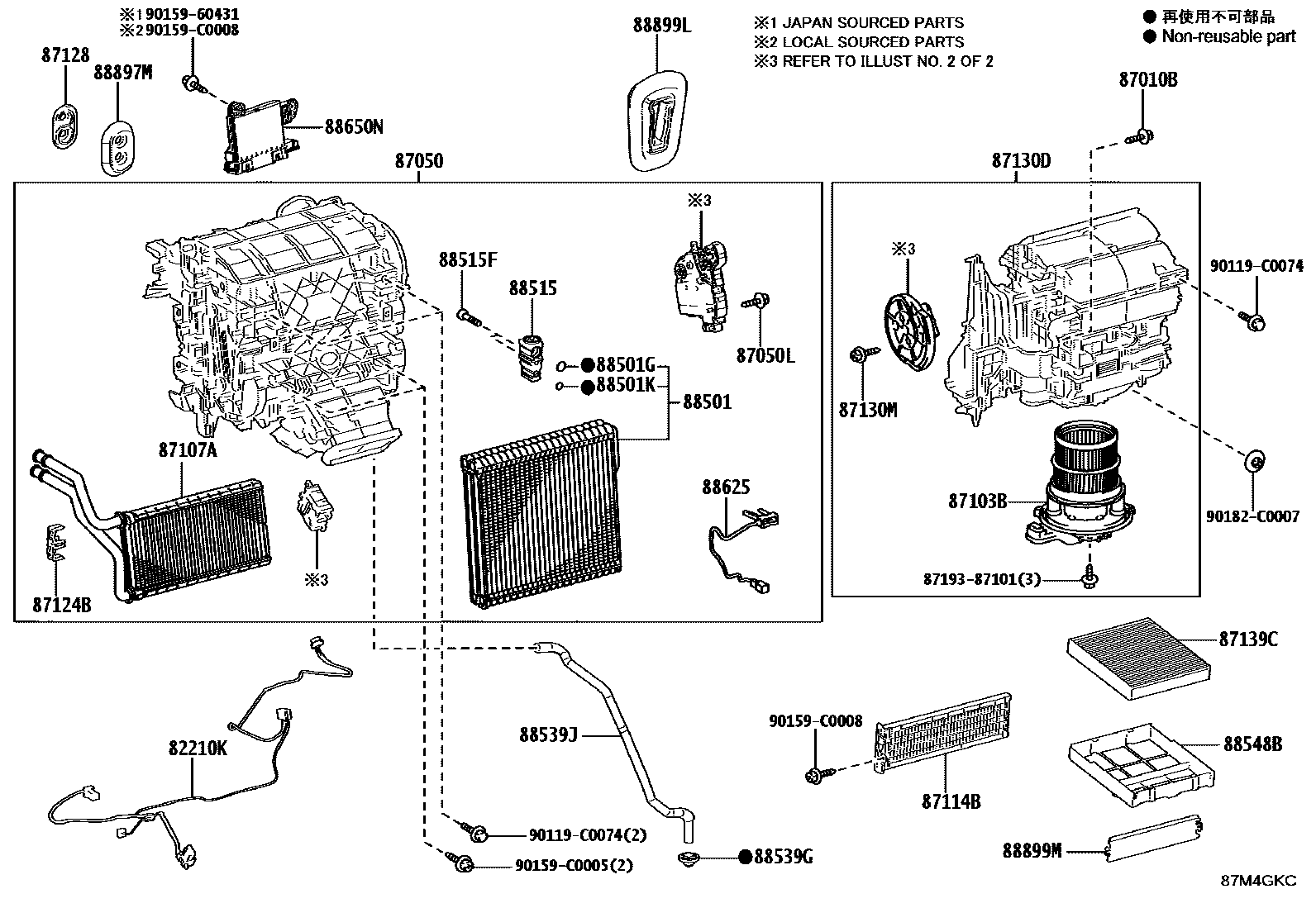

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06210 · 82212-06290 · 82212-0E150 |
| 87010B | Screws (for air conditioning unit) | 90099-00968 |
| 87050 | Air conditioning radiator assembly | 87050-06B90 · 87050-06C50 · 87050-0E440 · 87050-0E450 |

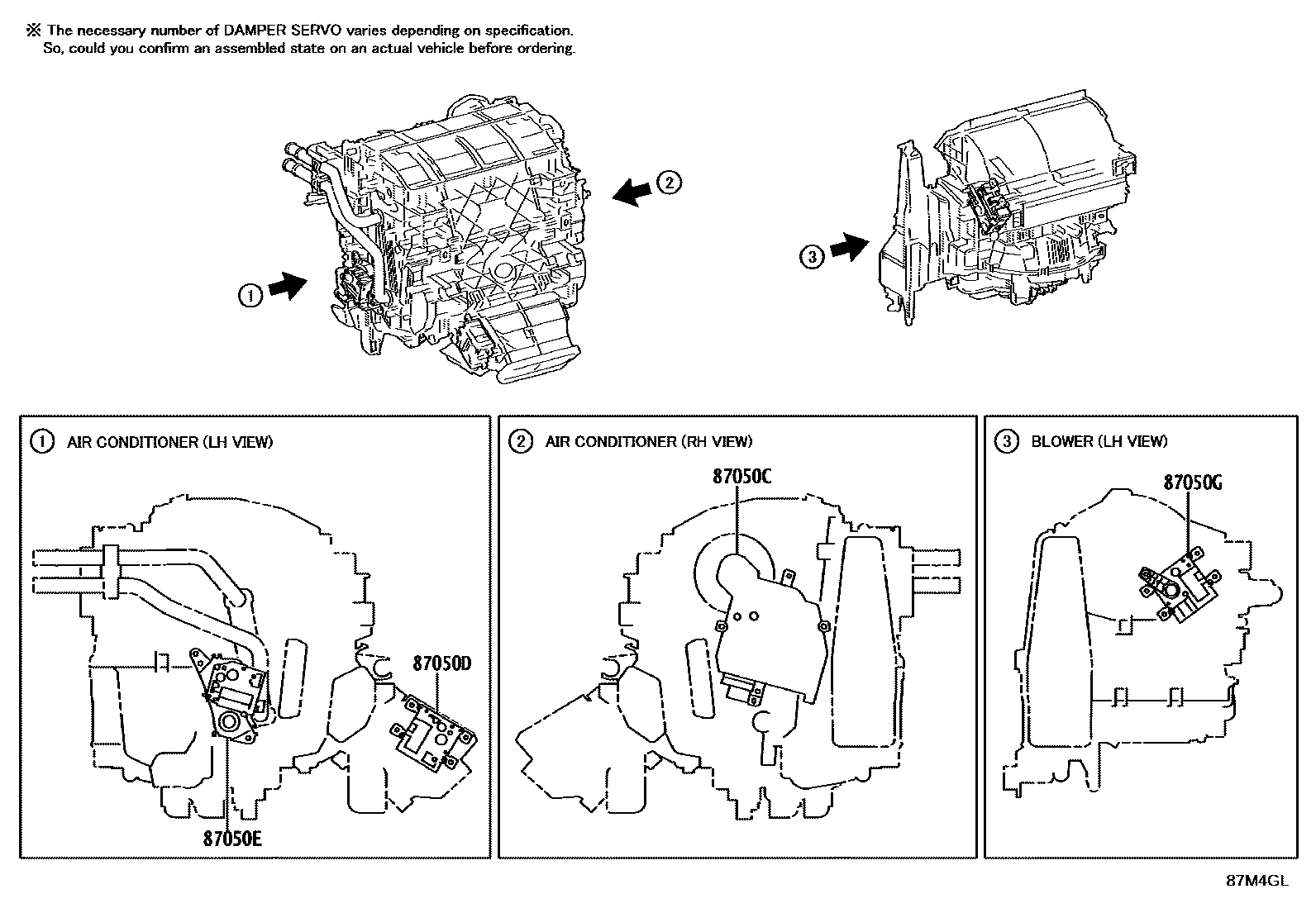

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06370 · 87106-0E220 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06380 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-06400 |
| 87050G | No. 5 air conditioner radiator damper servo mechanism sub-assembly | 87106-06390 · 87106-0E230 |
| 87050L | Screws (for air conditioner radiator) | 90099-00968 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E110 · 87103-0R050 |
| 87107A | Heater radiator device sub-assembly | 87107-06110 |
| 87114B | heater cover | 87114-0E131 |
| 87124B | heater clip | 87124-06110 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-0E060 · 87130-0R070 |
| 87130M | Screws (for blower) | 90099-00968 |
| 87139C | air purification filter | 87139-06170 · 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06470 · 88501-0E240 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-06150 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06030 |
| 88539J | Cooler drain hose | 88539-06250 |
| 88548B | air filter housing | 88899-02491 |
| 88625 | Cooler No. 1 Thermistor | 88620-06080 |
| 88650N | Air conditioning amplifier assembly | 886H0-06040 · 886H0-06050 |
| 88897M | Seals (for heater tubes) | 87128-06020 |
| 88899L | Cooling unit parts | 88899-06290 |
| 88899M | cover (for air cleaner) | 88899-0E090 |
