Toyota CAMRY 后视镜 — Figure 8701

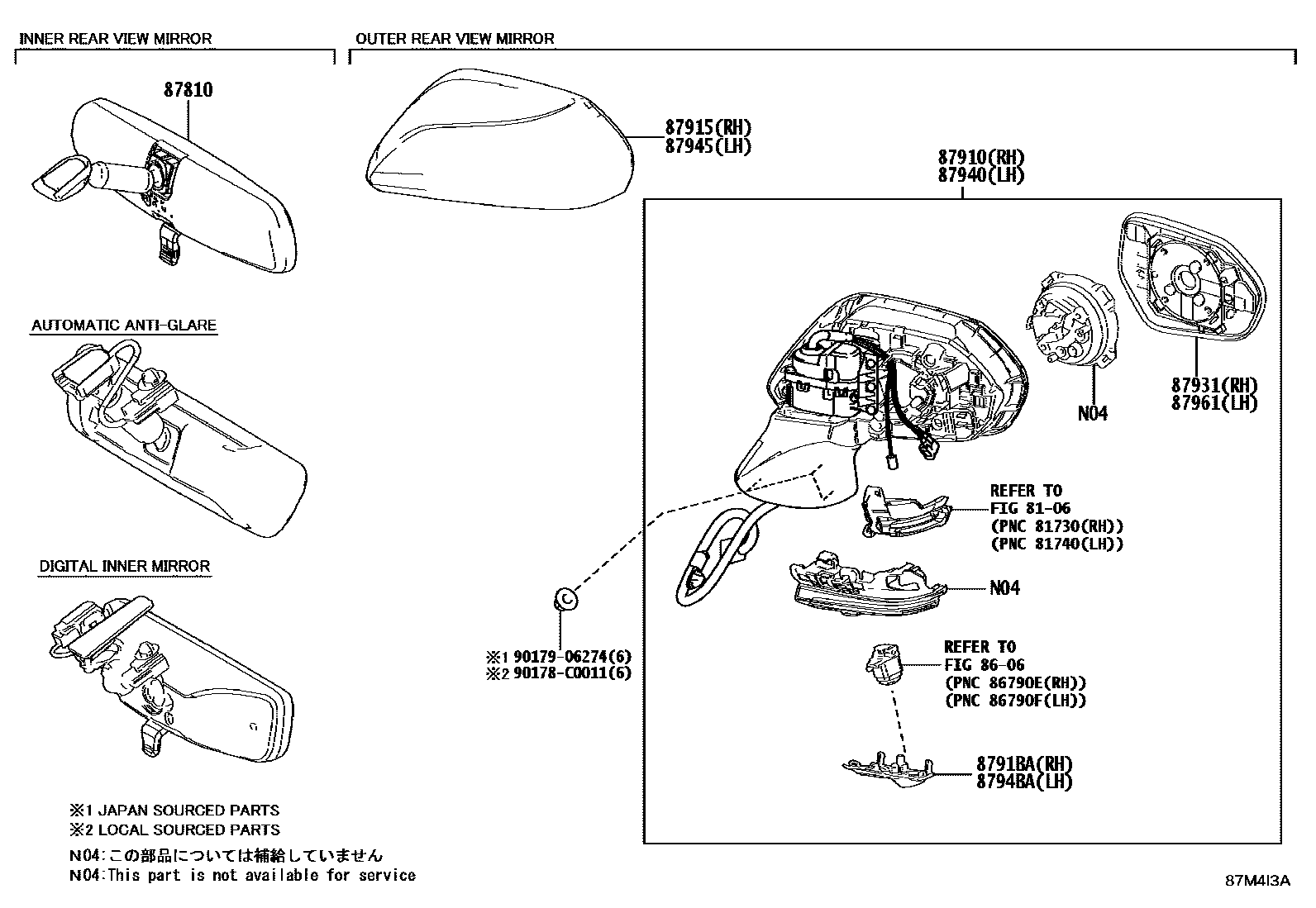

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06240 · 87810-06260 · 87810-06270 · 87810-0E270 |
| 87910 | Right exterior rearview mirror assembly | 87910-06E30 · 87910-06E40 · 87910-06E50 · 87910-06E60 · 87910-06E70 |
| 87915 | Right exterior rearview mirror cover | 87915-06916 |
| 8791BA | No. 3 right exterior mirror cover | 8791B-06E50 · 8791B-06E60 · 8791B-06E70 |
| 87931 | Right exterior rearview mirror | 87902-06040 · 87902-06070 |
| 87940 | Left exterior rearview mirror assembly | 87940-06C60 · 87940-06E00 · 87940-06E10 · 87940-06E20 · 87940-06E30 |
| 87945 | Left exterior rearview mirror cap | 87945-06916 |
| 8794BA | No. 3 left exterior rearview mirror cap | 8794B-06C60 · 8794B-06E20 · 8794B-06E30 |
| 87961 | Left exterior rearview mirror | 87907-06150 · 87907-06220 |
