Toyota CAMRY 车载电话和呼救装置 — Figure 8615

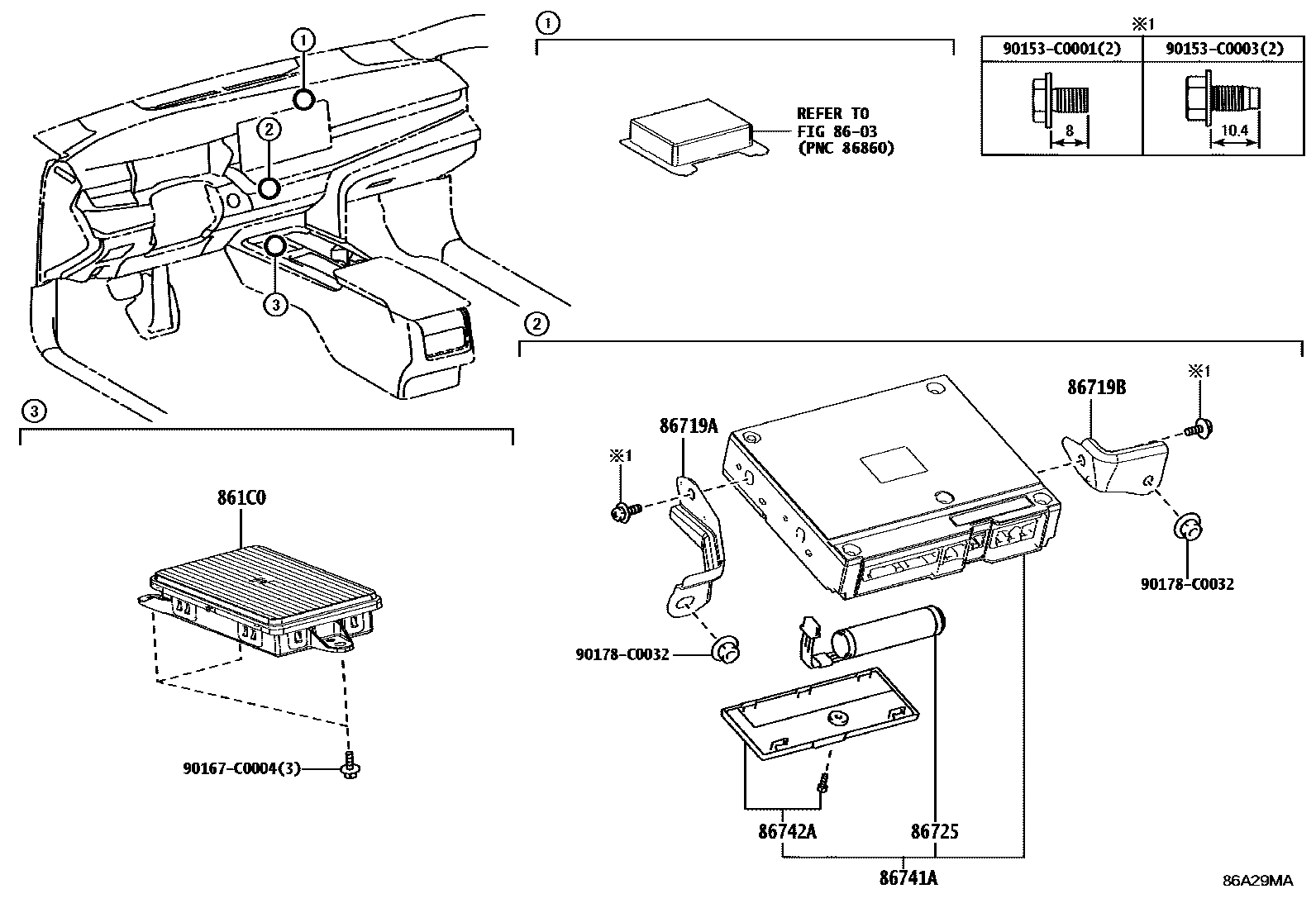

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Mobile wireless charger bracket assembly | 861C0-06120 |
| 86719A | Phone holder No. 1 | 86719-06210 |
| 86719B | Phone holder No. 2 | 86719-06220 |
| 86725 | mobile phone battery | 86725-F4010 |
| 86741A | Telecommunications transceiver | 86741-02230 |
| 86742A | transceiver cover | 86742-0A010 |
