Toyota CAMRY 喇叭 — Figure 8611

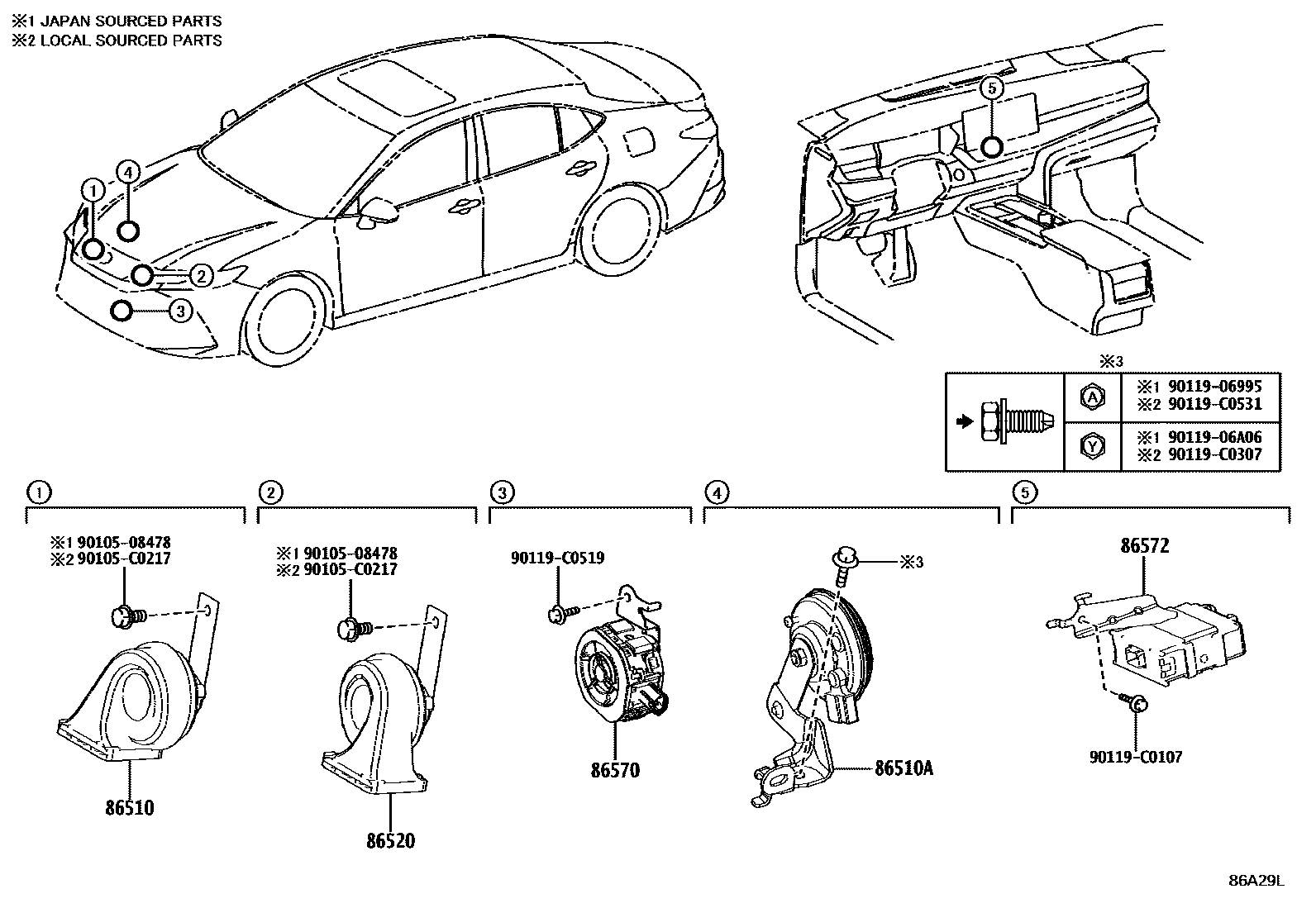

Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-06240 |
| 86510A | Alarm horn assembly | 86560-06090 |
| 86520 | Subwoofer assembly | 86520-06230 |
| 86570 | Vehicle intrusion speaker assembly | 86570-06020 |
| 86572 | vehicle hacking speaker controller | 86572-06050 · 86572-06060 |
