Toyota CAMRY 倒车影像和摄像头 — Figure 8606

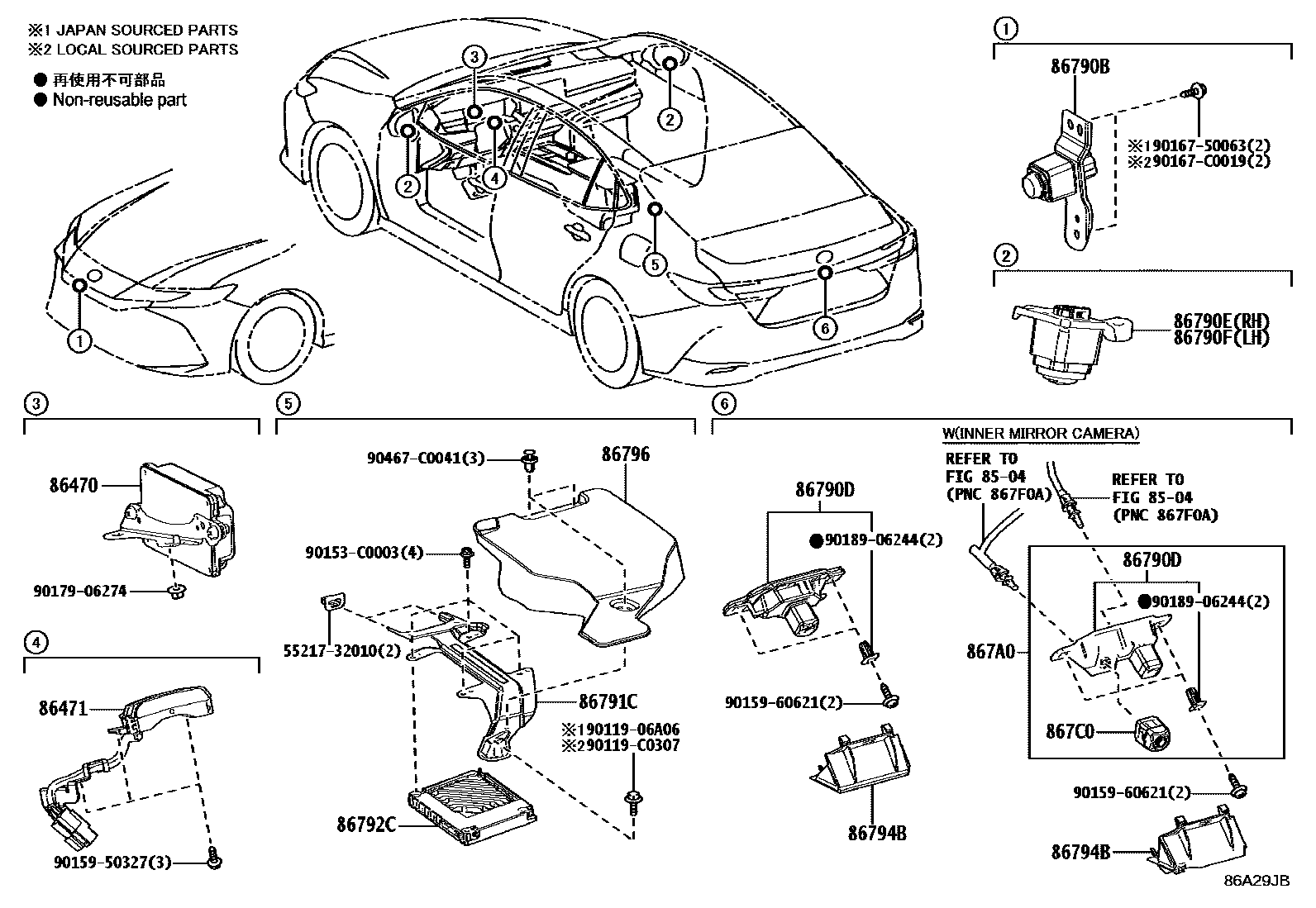

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86470 | Driver monitor ECU assembly | 86470-33050 |
| 86471 | driver monitor camera | 86471-30040 |
| 86790B | Front image camera assembly | 86790-06370 · 86790-06380 |
| 86790D | Rear reversing image camera assembly | 86790-06400 · 86790-06410 · 867B0-06200 · 867B0-06220 · 867B0-06230 · 867B0-06250 · 867B0-33430 |
| 86790E | Right image camera assembly | 86790-06360 |
| 86790F | Left image camera assembly | 86790-06350 |
| 86791C | Parking assist ECU No. 1 bracket | 86791-06070 |
| 86792C | Parking assist ECU | 86792-06050 · 86792-06060 · 86792-06070 · 86792-06080 · 86792-06090 · 86792-06100 |
| 86794B | Reversing camera cover | 86794-06010 · 86794-33010 · 86794-33020 |
| 86796 | Parking assist ECU cover | 86796-06070 |
| 867A0 | Surveillance and interior rearview mirror camera assembly | 867A0-06060 · 867A0-06070 |
| 867C0 | Interior rearview mirror camera assembly | 8679C-06010 |
