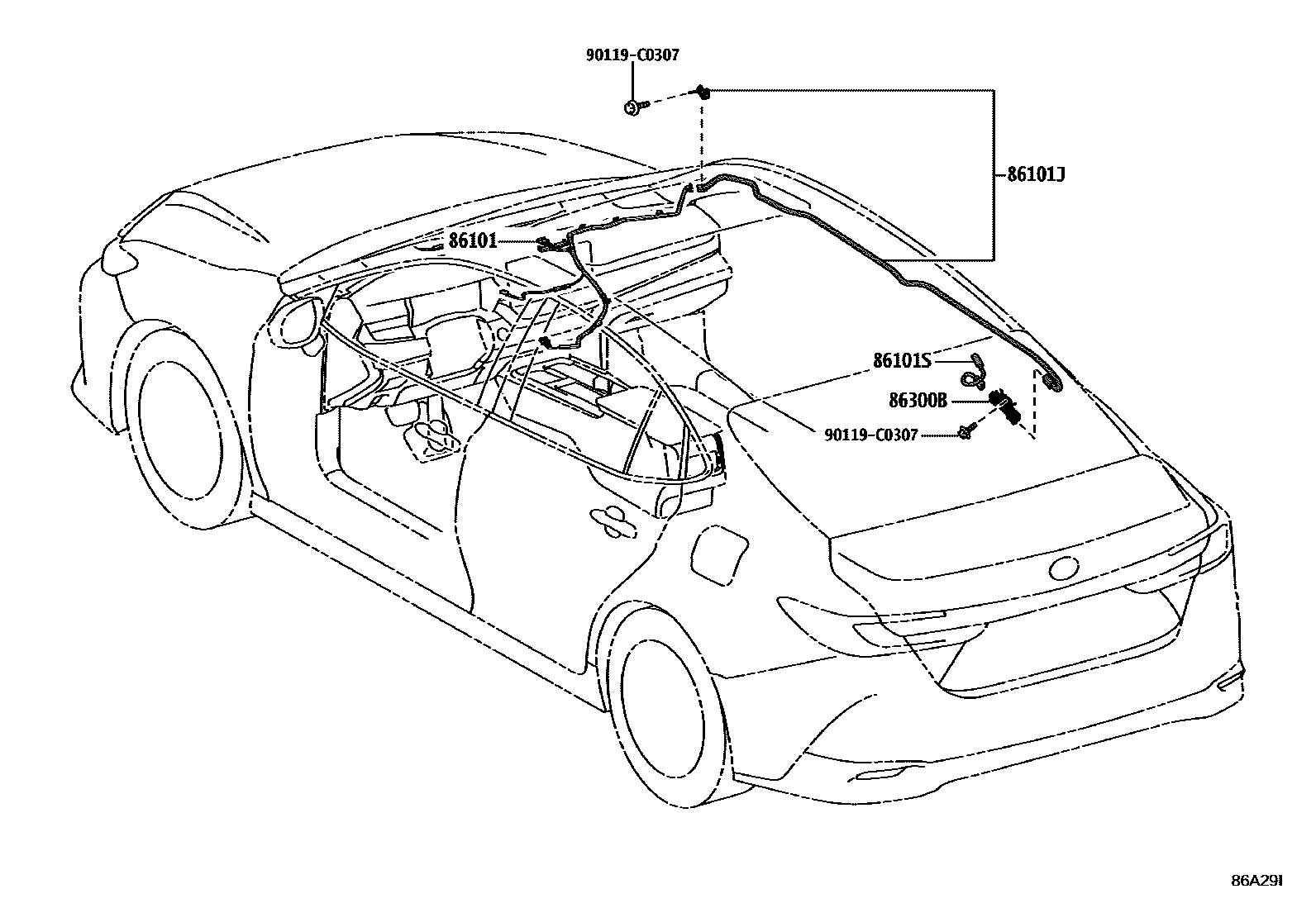

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-06M90 · 86101-06N00 · 86101-06N01 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-06N20 · 86101-06N21 |
| 86101S | Antenna wire sub-assembly | 86101-06A30 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0E110 |
