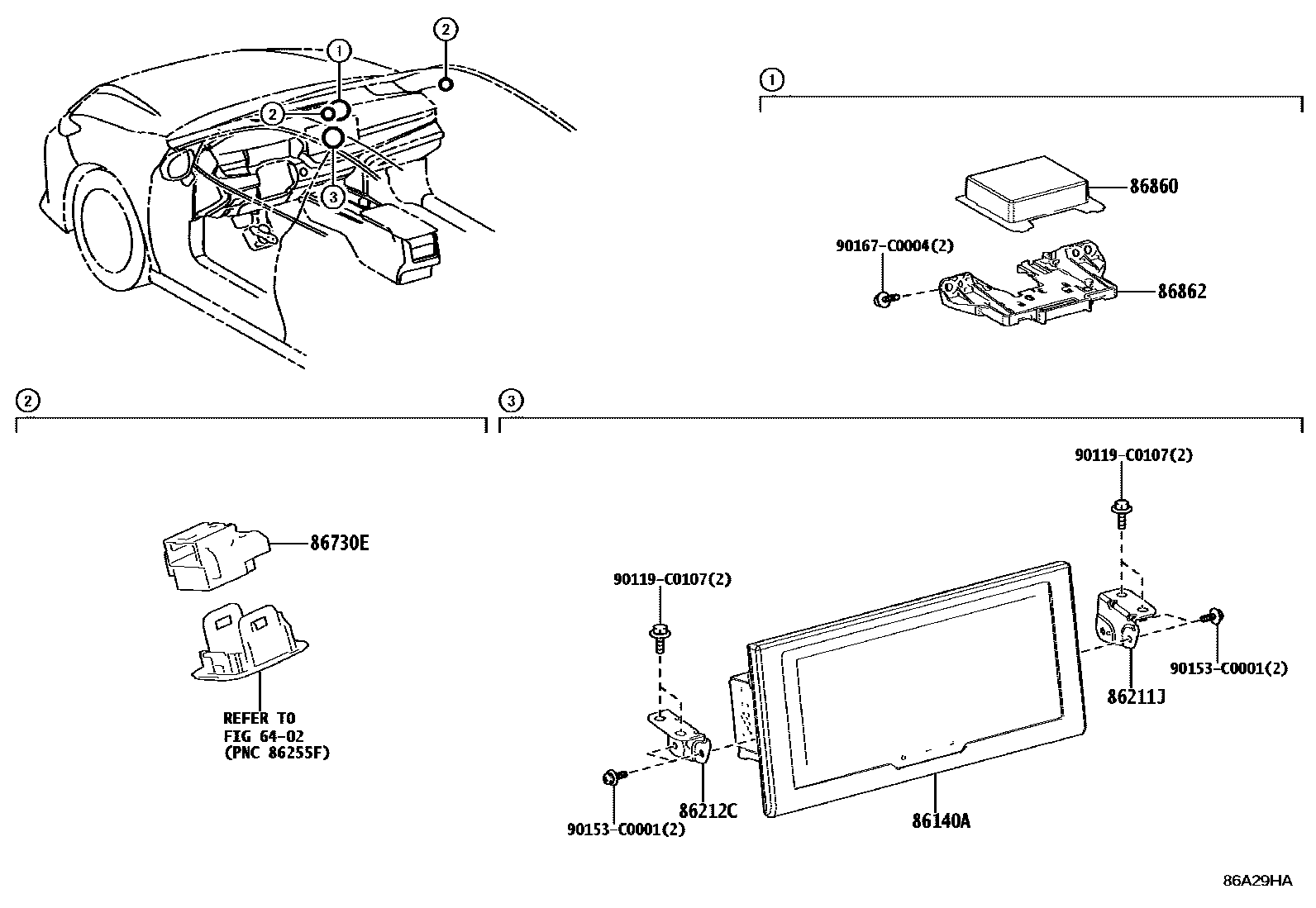

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-06430 · 86100-06540 · 86100-06550 · 86100-06560 · 86100-06570 · 86140-06C60 · 86140-06D10 |
| 86211J | No. 1 radio bracket | 86211-06410 |
| 86212C | No. 2 radio bracket | 86212-06410 |
| 86730E | Amplifier assembly | 86730-0A020 |
| 86860 | Navigation antenna assembly | 86880-02100 |
| 86862 | Navigation antenna bracket | 86862-0E030 · 86862-42010 |
