Toyota CAMRY 扬声器 — Figure 8602

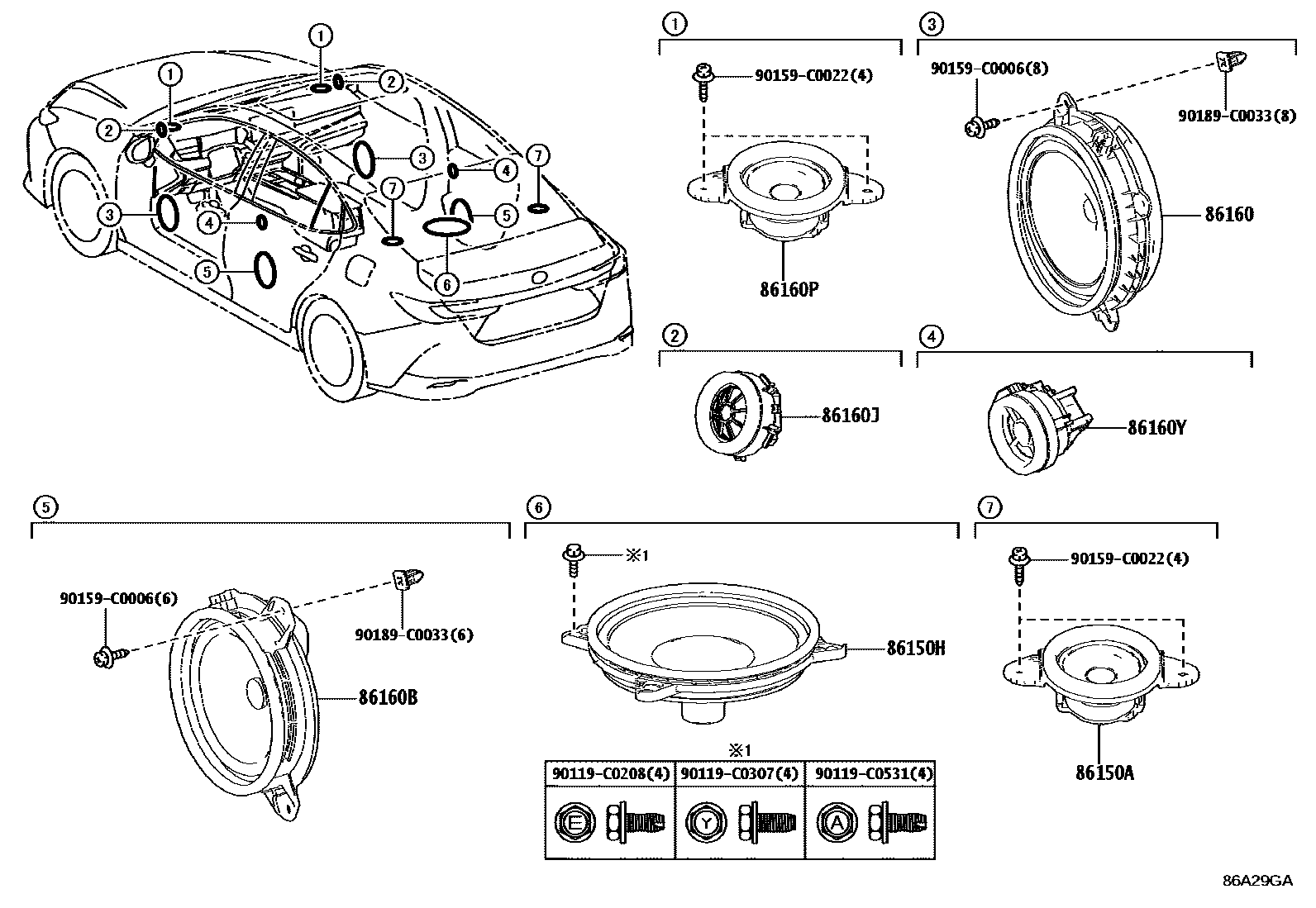

Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150H | Speaker assembly with stand | 86150-06070 |
| 86160 | No. 1 front speaker assembly | 86160-06880 · 86160-06B10 |
| 86160B | Rear speaker assembly | 86160-02C10 · 86160-02C11 · 86160-06A90 |
| 86160J | No. 3 front speaker assembly | 86150-06050 |
| 86160P | No. 2 front speaker assembly | 86160-06690 · 86160-06A50 |
| 86160Y | No. 2 rear speaker assembly | 86150-07120 · 86160-0D300 |
