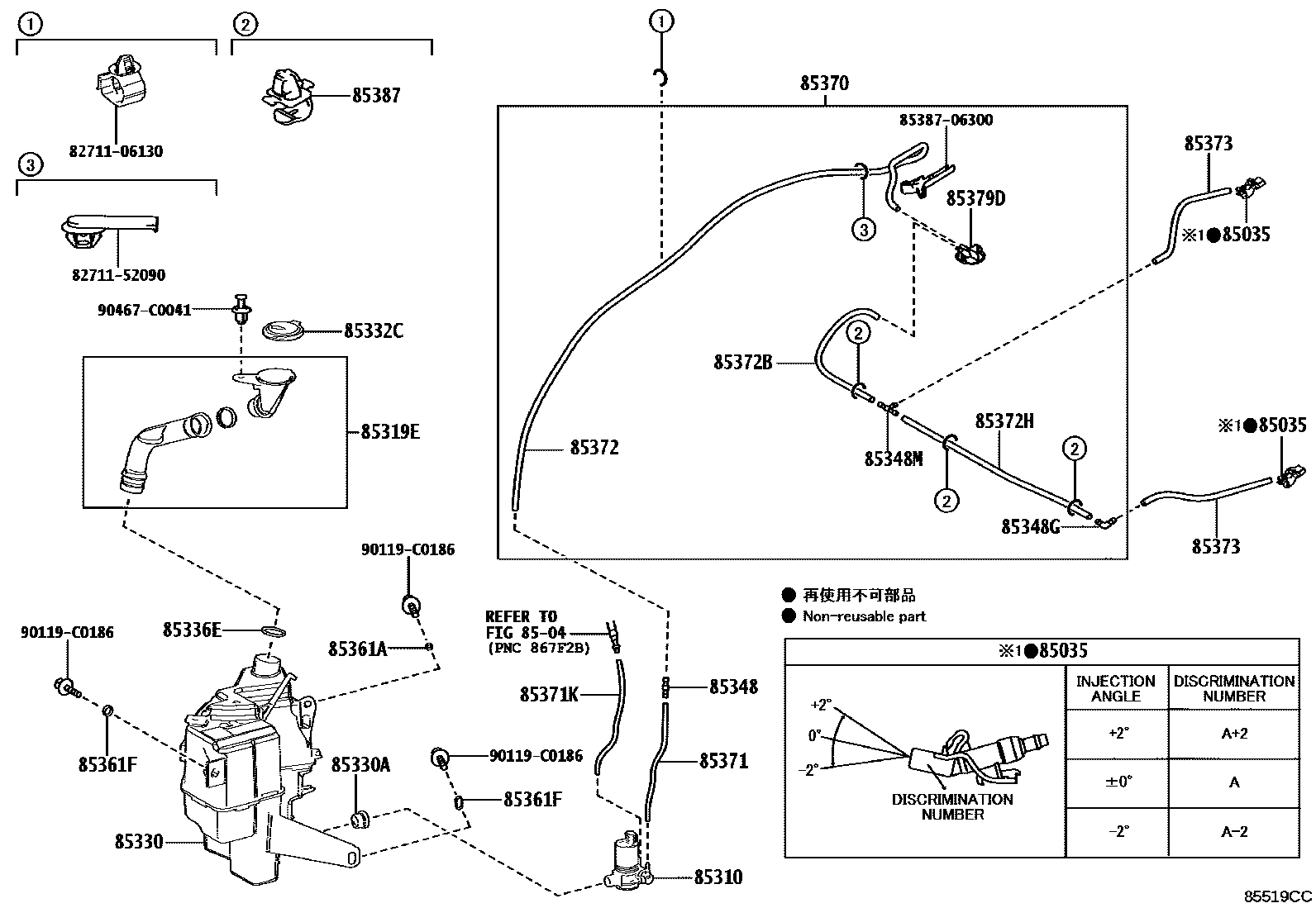

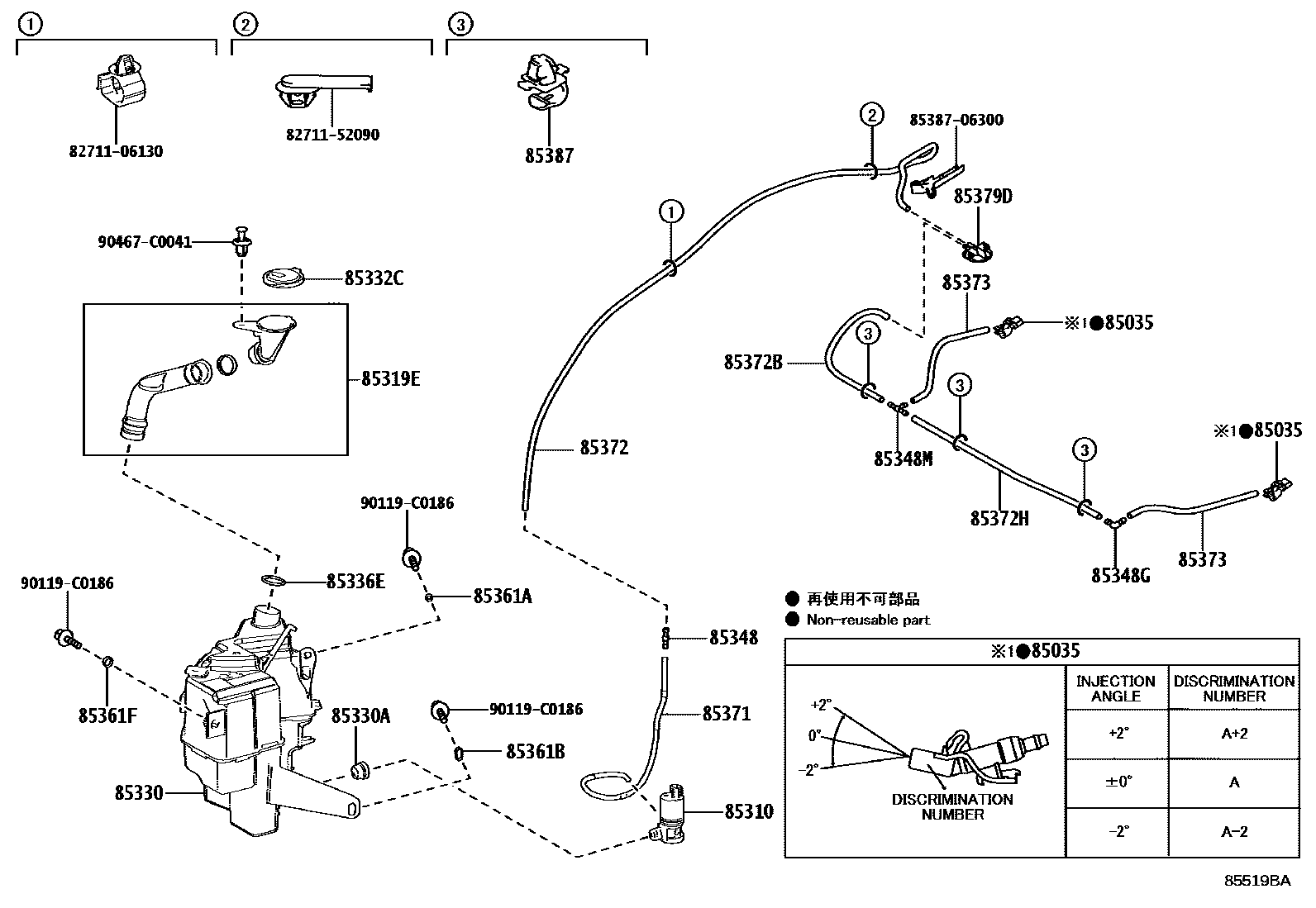

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0E090 · 85381-0E100 · 85381-0E110 |
| 85310 | Windshield washer motor and pump assembly | 85330-02110 · 85330-0E050 |
| 85319E | Cleaner water inlet | 85319-06360 |
| 85330 | Windshield washer fluid tank assembly | 85315-06360 |
| 85330A | Windshield washer fluid tank bushing | 90069-52046 |
| 85332C | Front washer water tank cover | 85316-0A100 |
| 85336E | Windshield washer water inlet hose seal | 90069-52051 |
| 85348 | Windshield washer hose connector No. 1 | 85375-06360 |
| 85348G | Windshield washer hose connector No. 2 | 85377-06300 |
| 85348M | No. 3 windshield washer hose connector | 85378-06300 |
| 85361A | Windshield washer bracket No. 1 | 85337-02530 |
| 85361B | Windshield washer bracket No. 2 | 85338-02530 |
| 85361F | No. 3 windshield washer bracket | 85339-02530 |
| 85370 | Windshield washer hose assembly | 85370-06300 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46315 · 90069-46316 |
| 85371K | Windshield washer hose (from motor to connector) | 90069-46317 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46318 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46319 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90069-46320 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90069-46321 |
| 85379D | Cleaner seal A | 85379-06300 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-0E040 |
