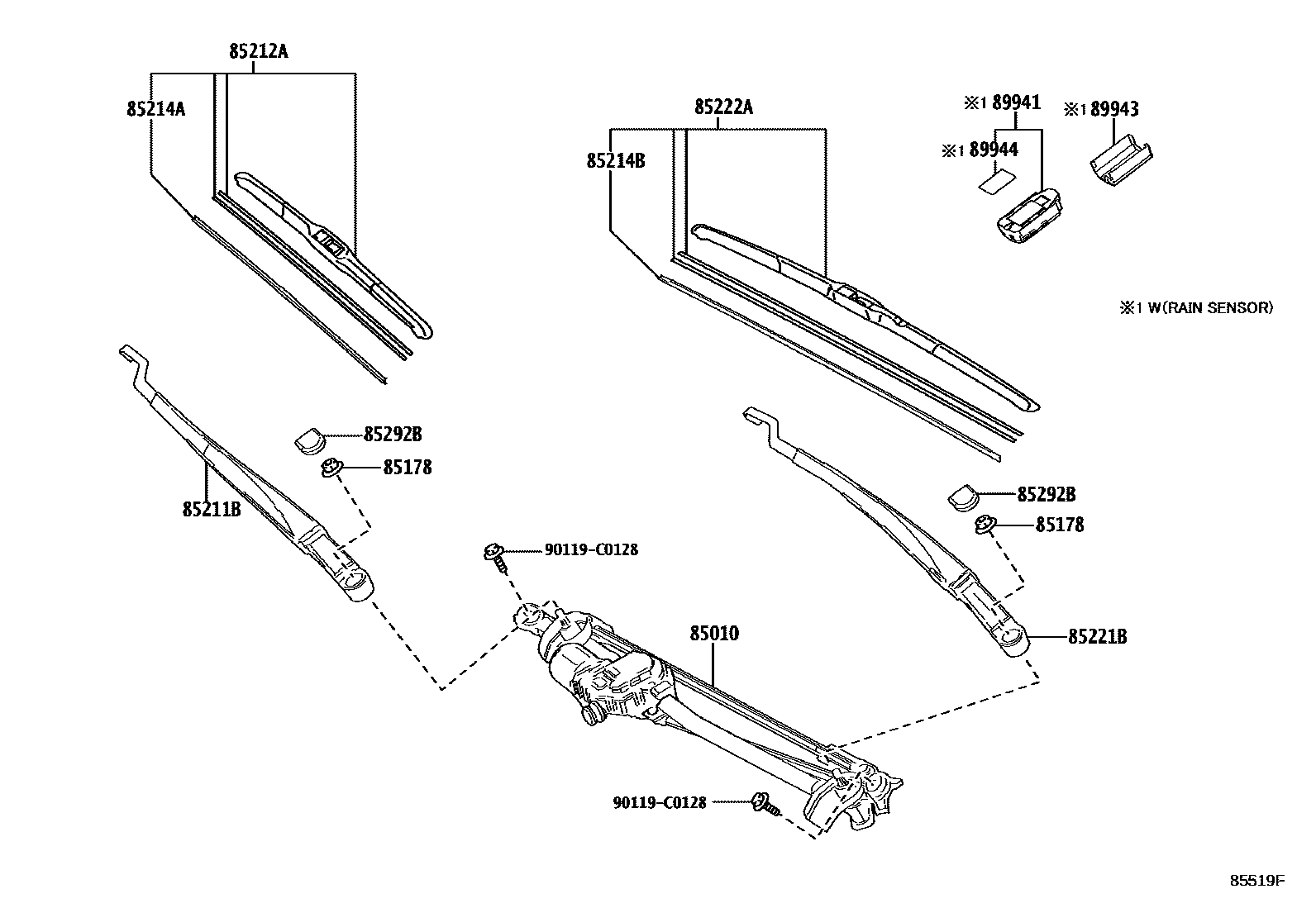

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85010 | Front wiper motor and connecting rod assembly | 85010-06270 |
| 85178 | Nut (for securing front wiper arm) | 90182-C0012 |
| 85211B | Right front wiper arm | 85211-06260 |
| 85212A | Right front wiper blade | 85212-06260 |
| 85214A | Right wiper rubber strip | 85214-06200 |
| 85214B | Left wiper rubber strip | 85214-06240 |
| 85221B | Left front wiper arm | 85221-06260 |
| 85222A | Left front wiper blade | 85222-06260 |
| 85292B | Front wiper arm cap | 85292-0D110 |
| 89941 | rain sensor | 89941-0R030 |
| 89943 | Rain sensor cover | 89943-06020 |
| 89944 | Rain sensor tape | 89944-42020 |
