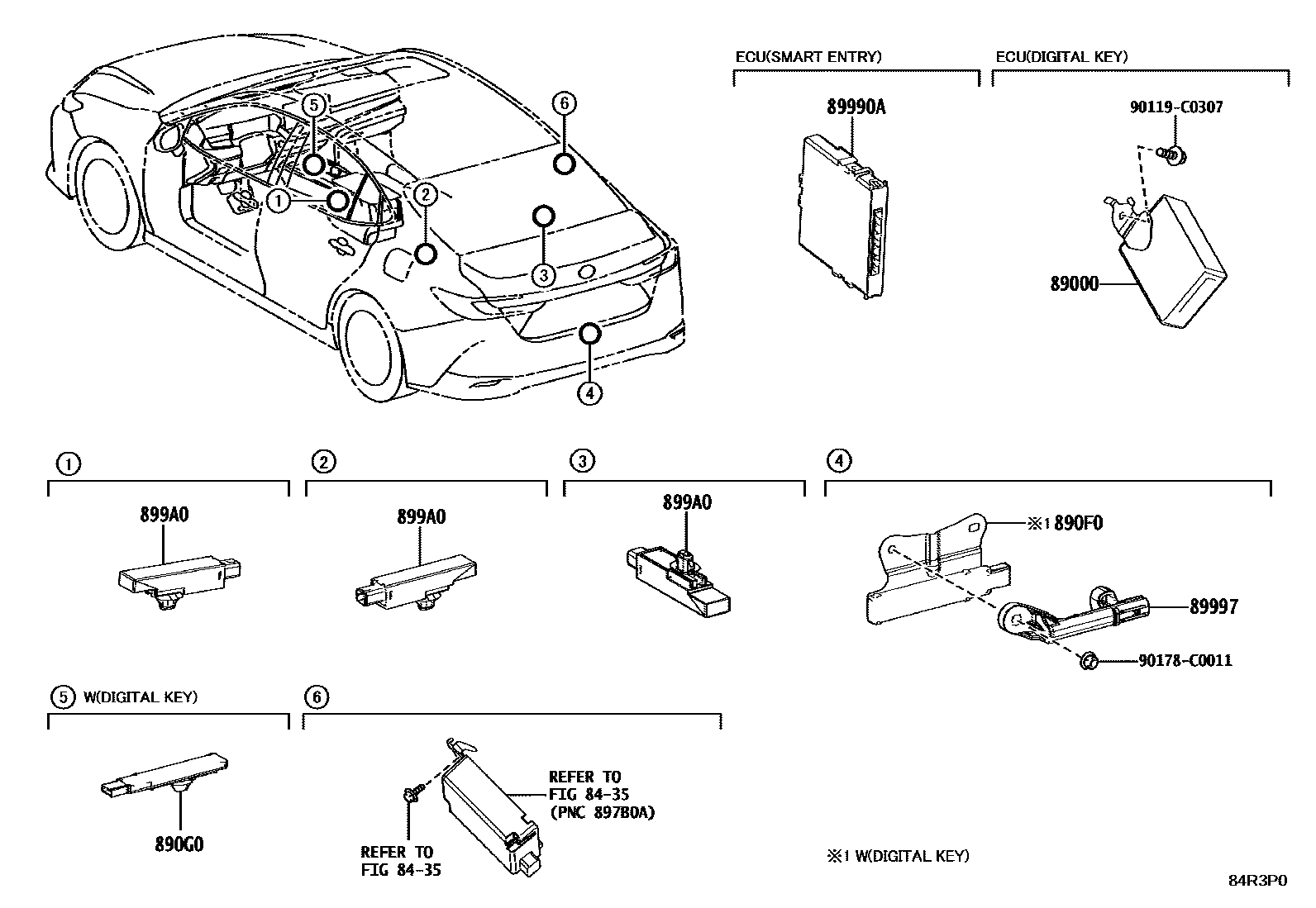

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | Digital key ECU assembly | 89000-06010 · 89000-06011 |
| 890F0 | BLE (Bluetooth Low Energy) luggage digital key receiver assembly | 890E0-06010 · 890F0-0E031 |
| 890G0 | BLE (Bluetooth Low Energy) in-car digital key receiver assembly | 890E0-02030 |
| 89990A | Smart key ECU assembly | 899H0-06040 · 899H0-06041 · 899H0-06080 · 899H0-06081 · 899H0-06100 · 899H0-06101 · 899H0-06110 · 899H0-06111 · 899H0-06120 · 899H0-06121 |
| 89997 | electronic key antenna | 89997-0E061 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02330 · 899A0-02450 |
