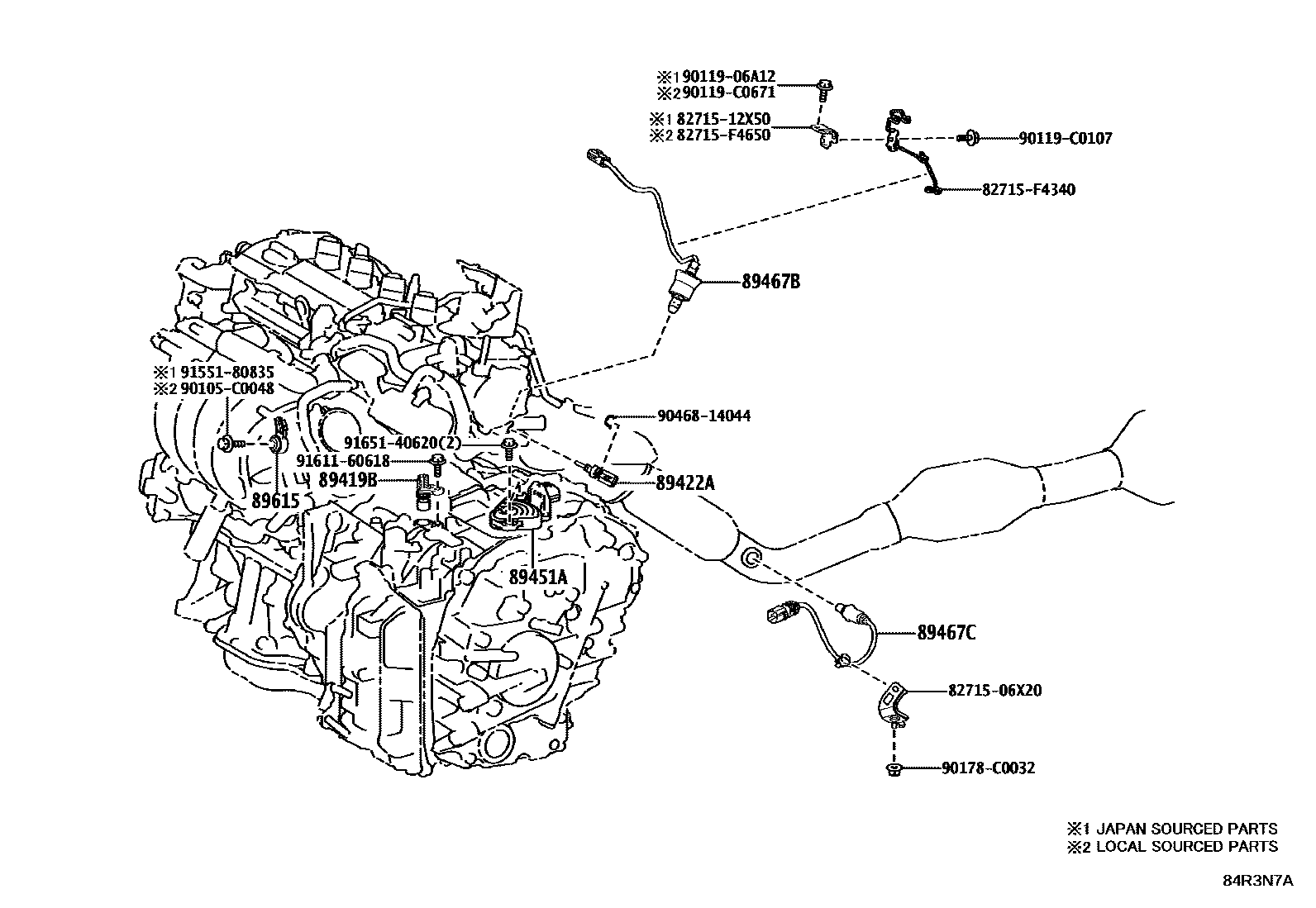

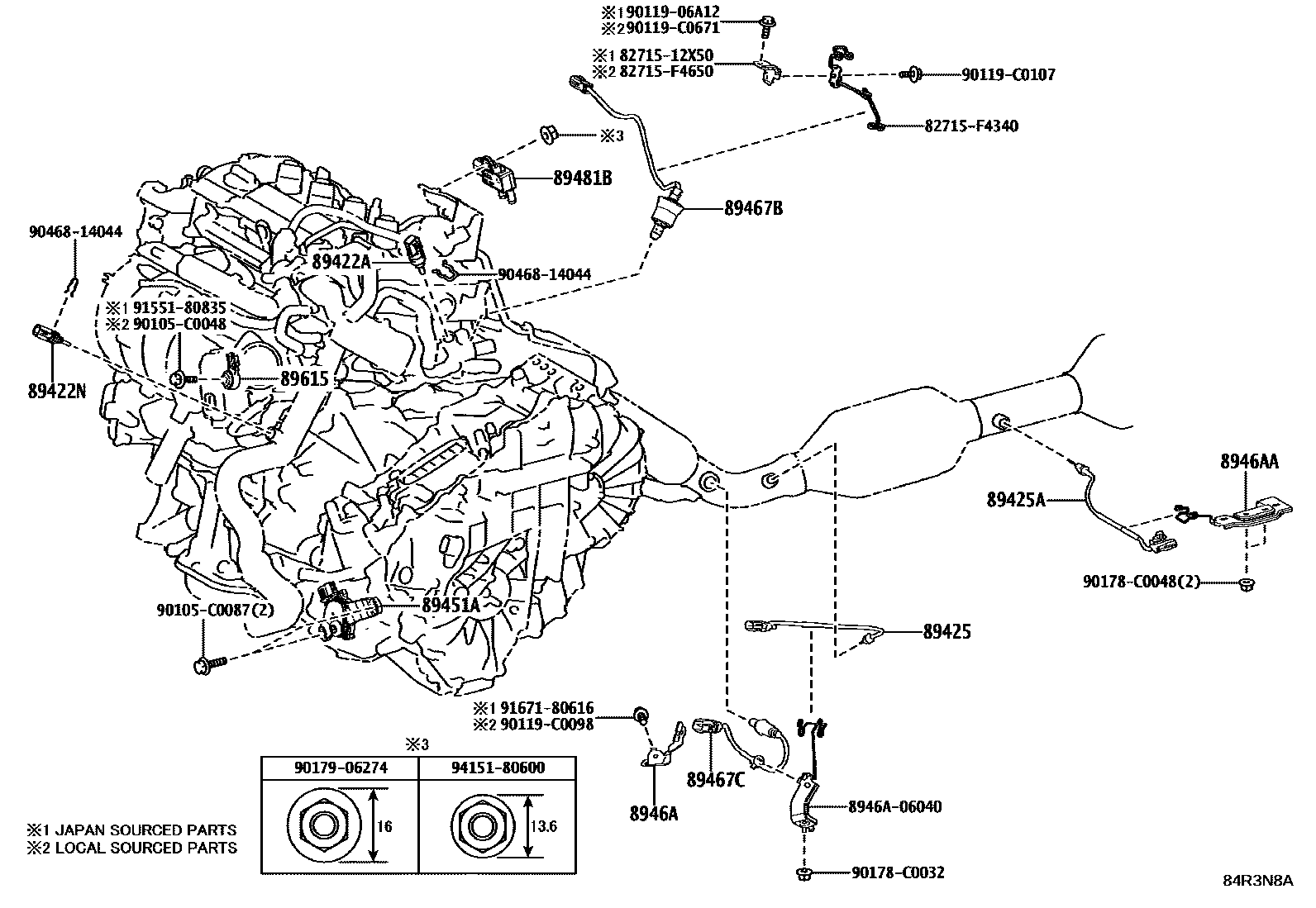

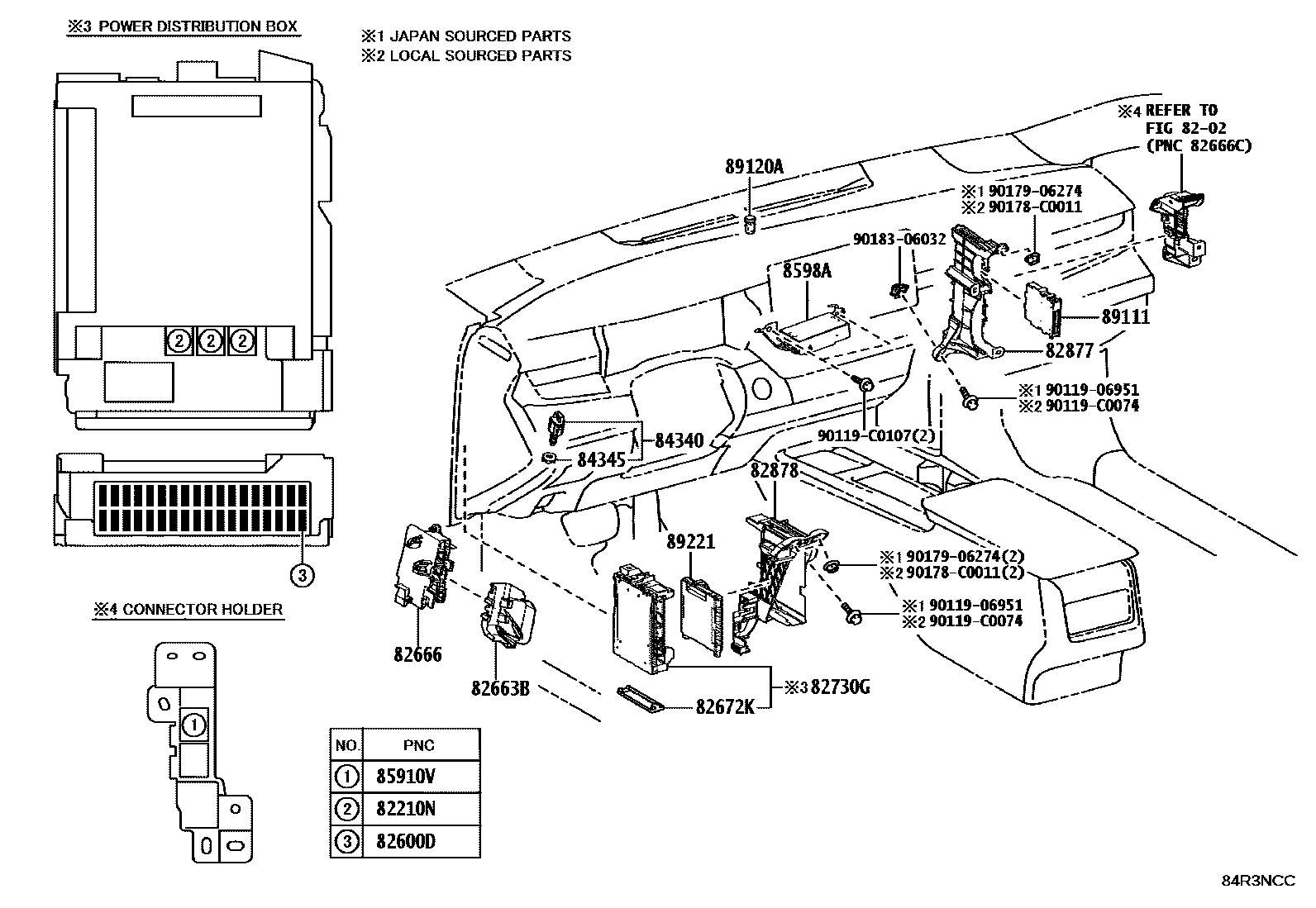

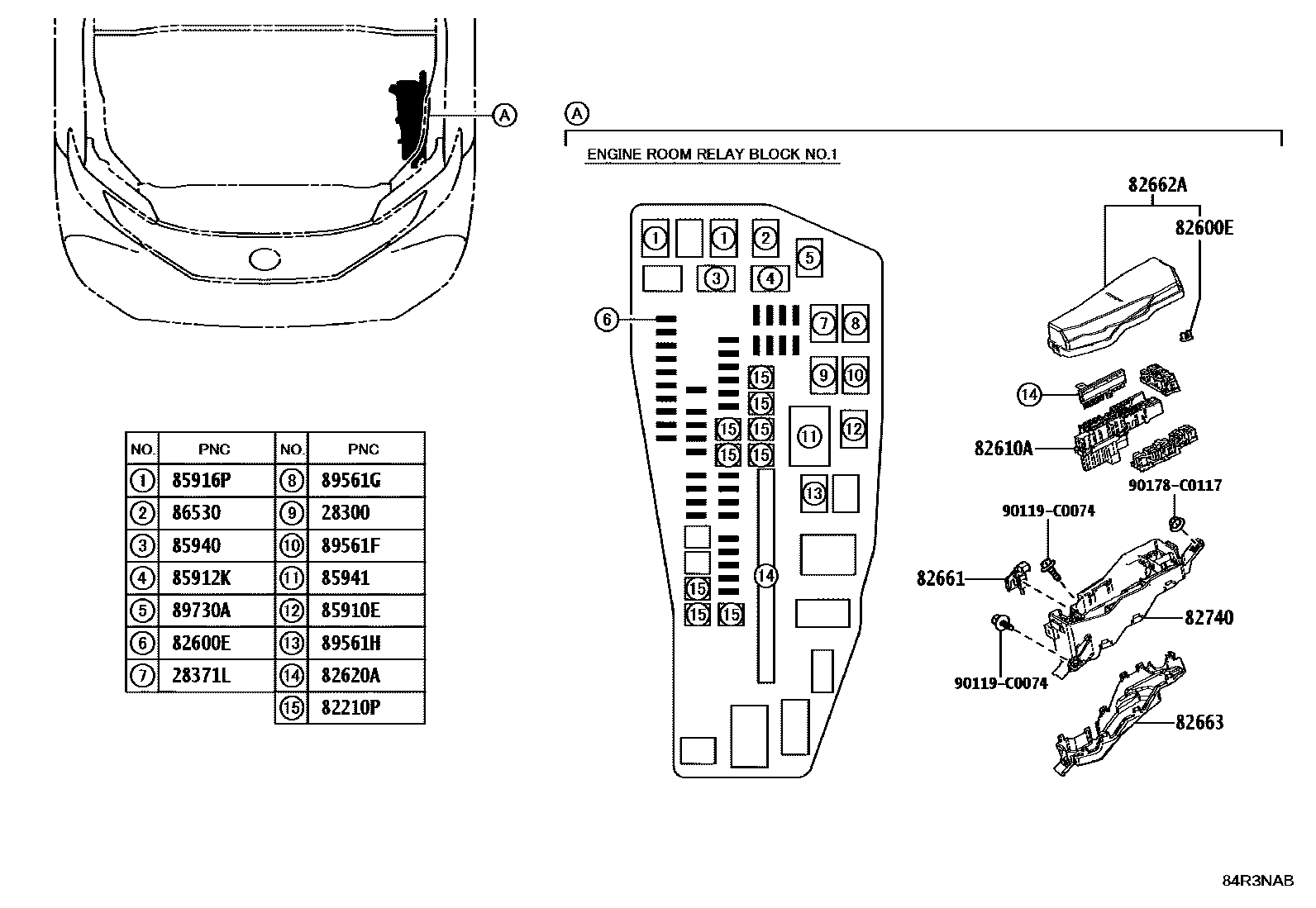

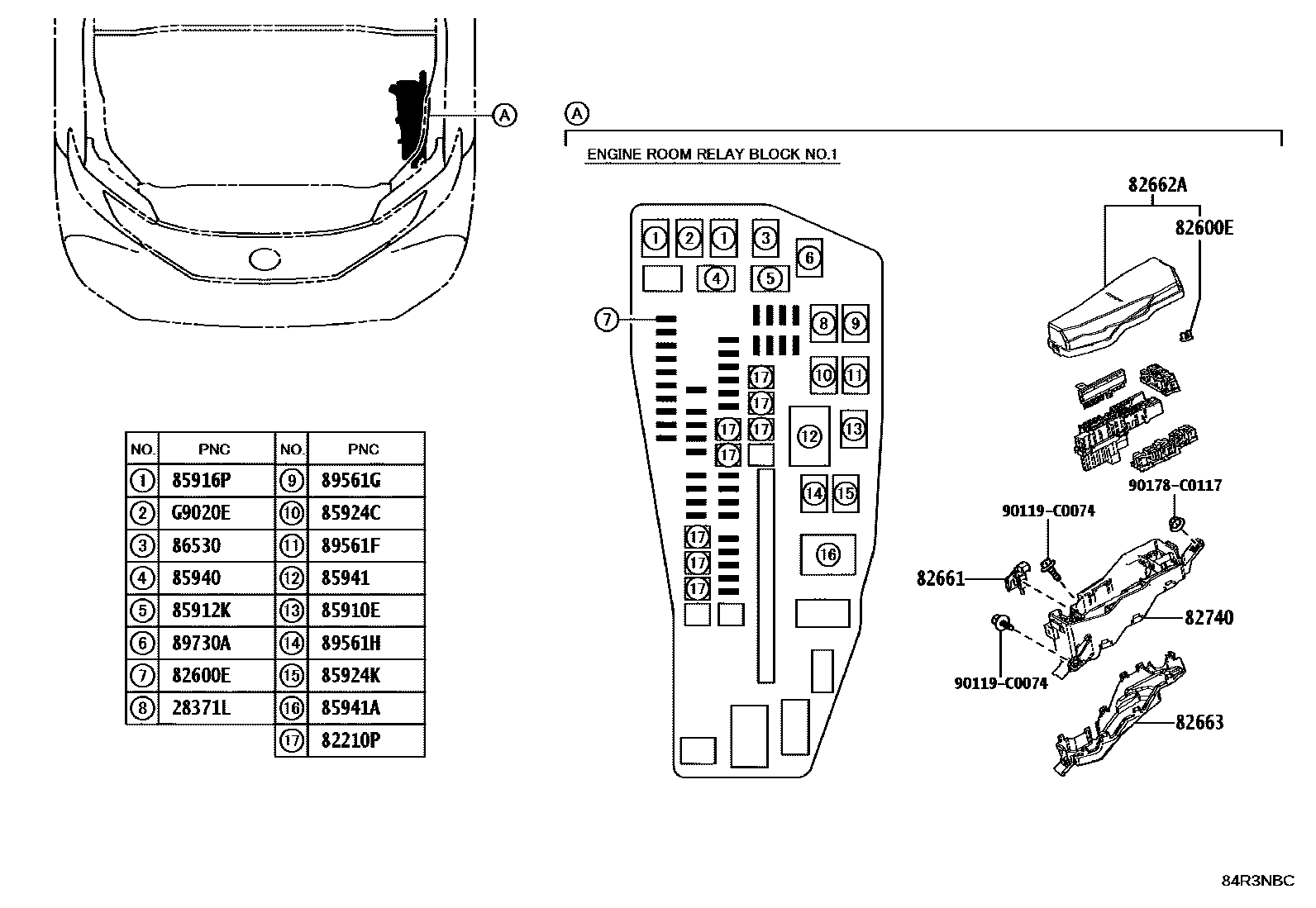

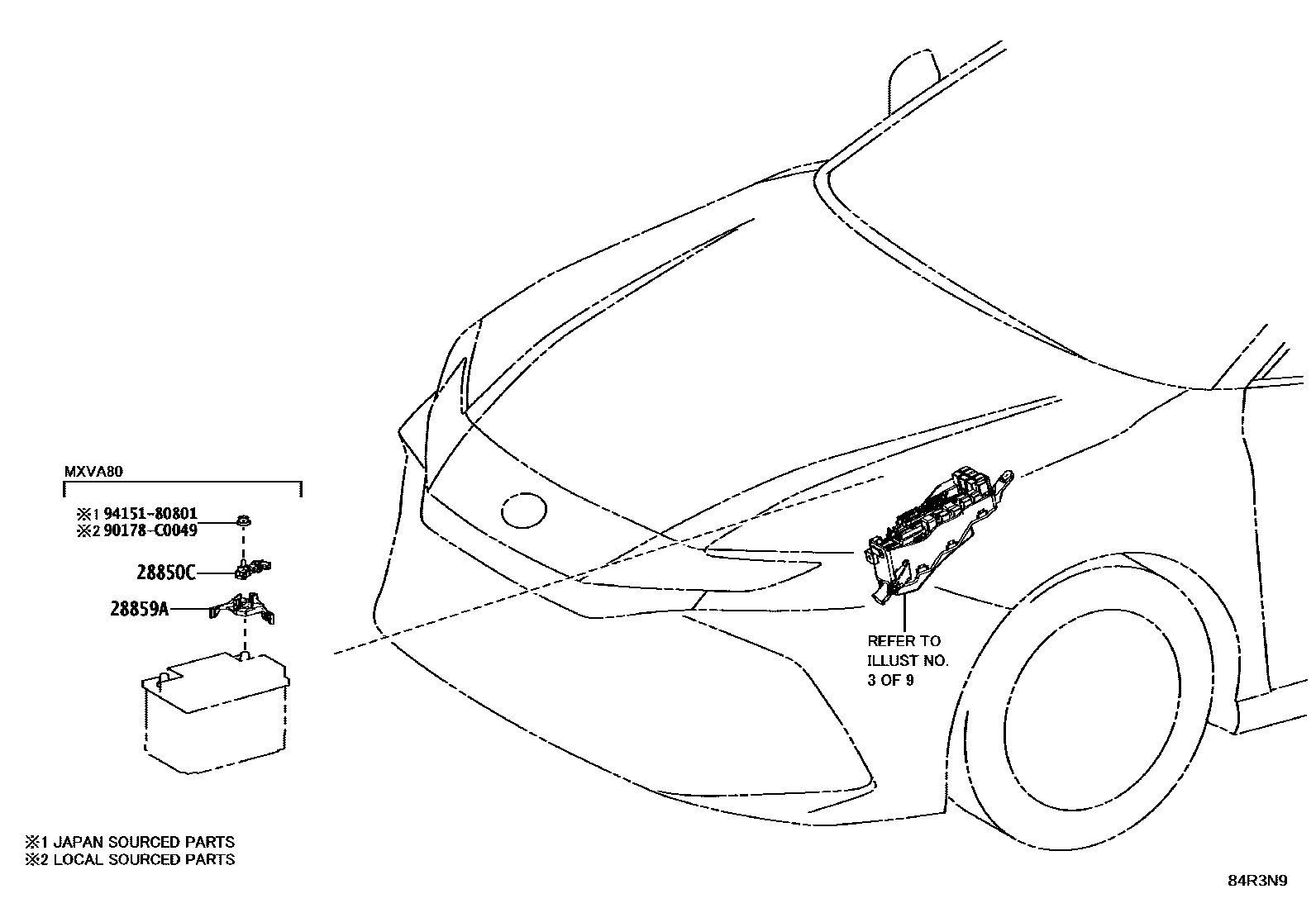

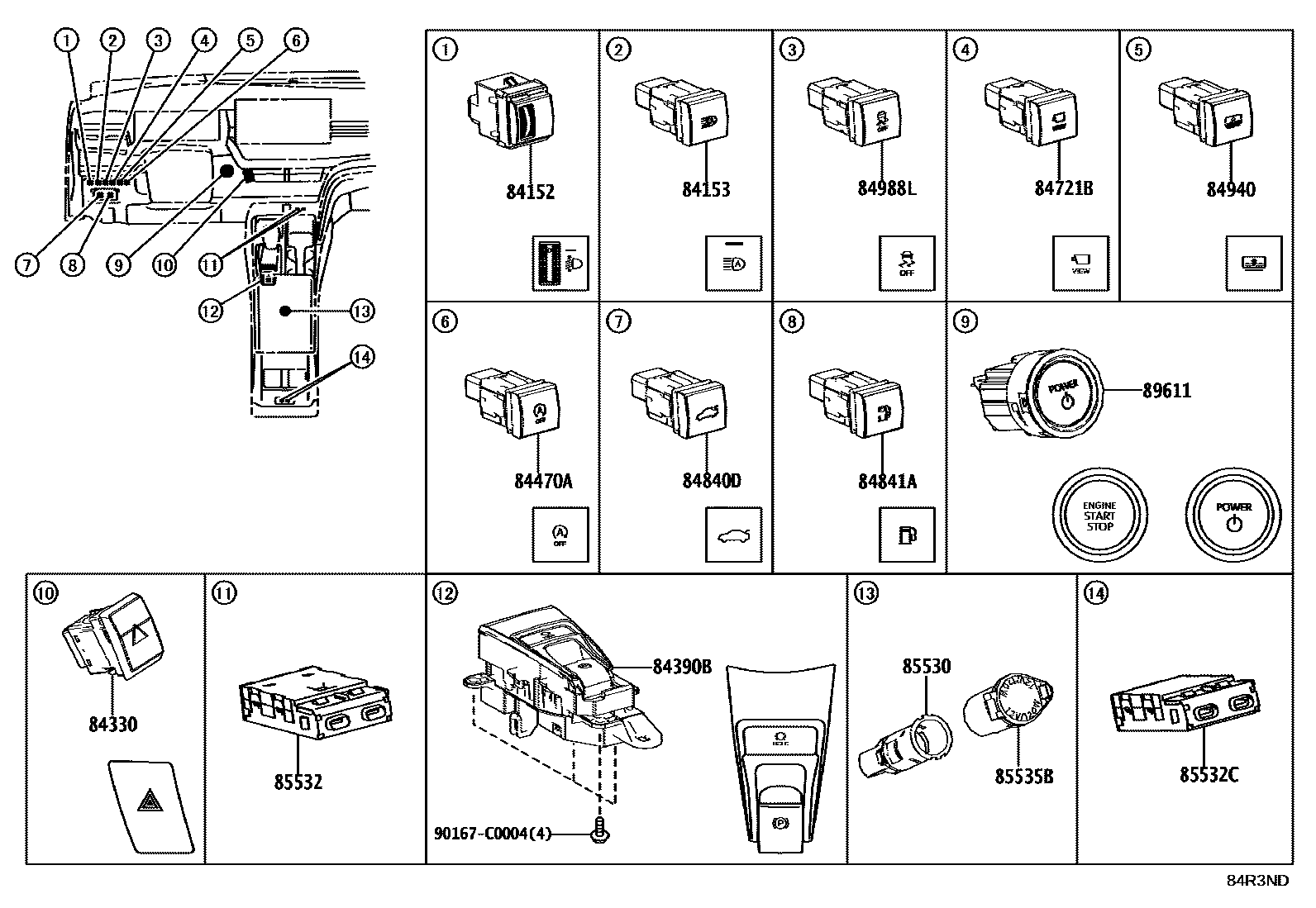

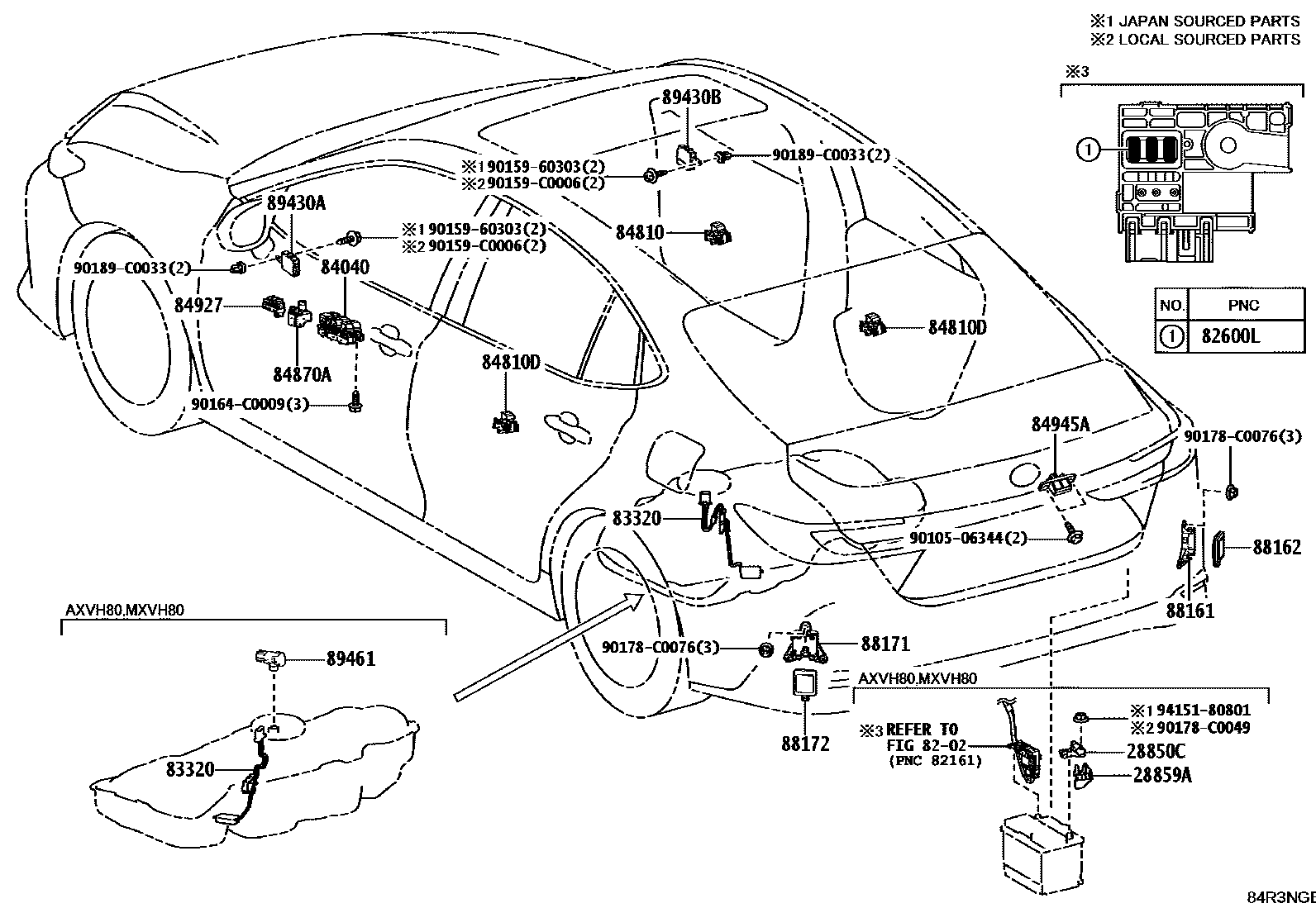

Toyota CAMRY 开关和继电器和ECU — Figure 8401

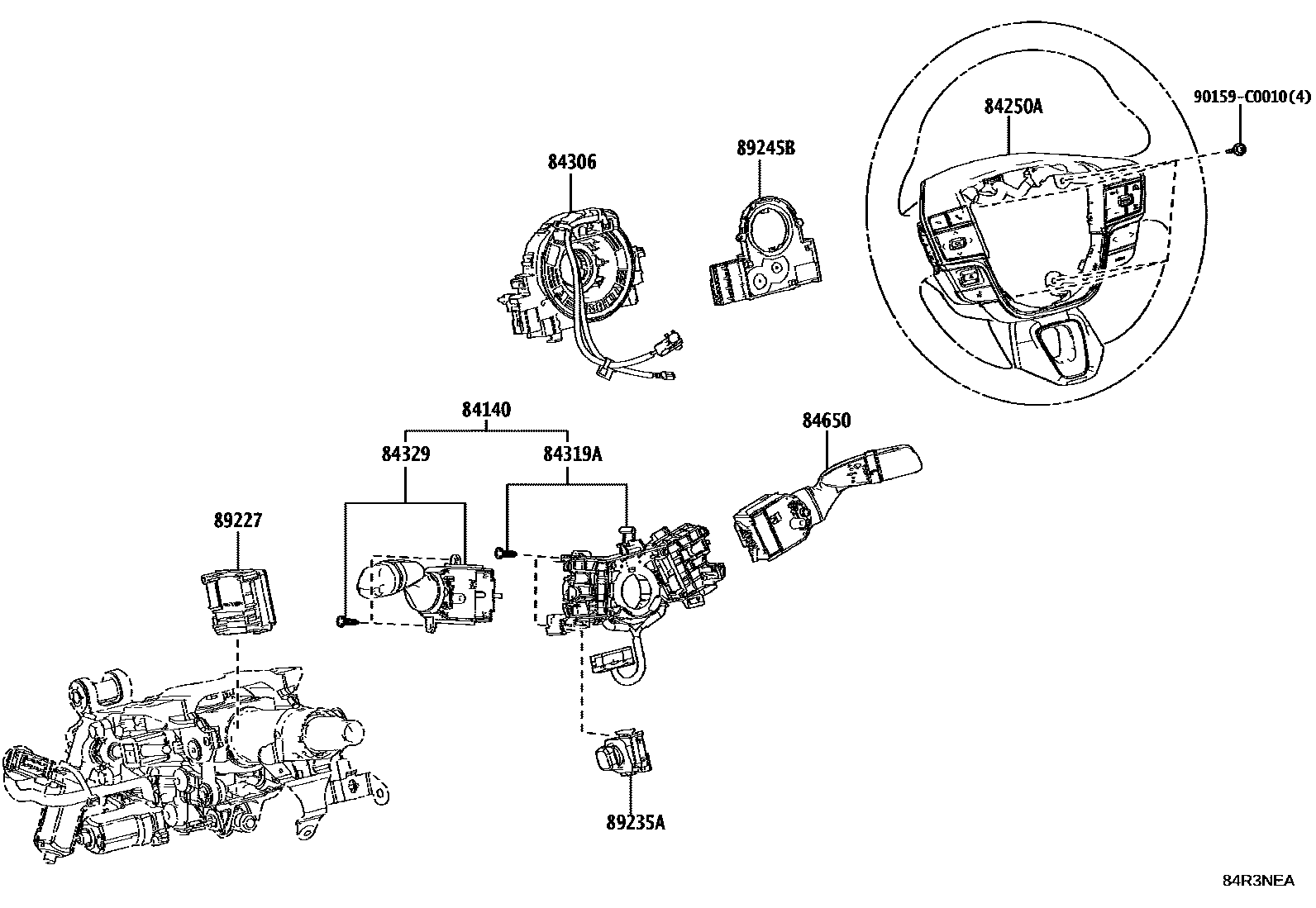

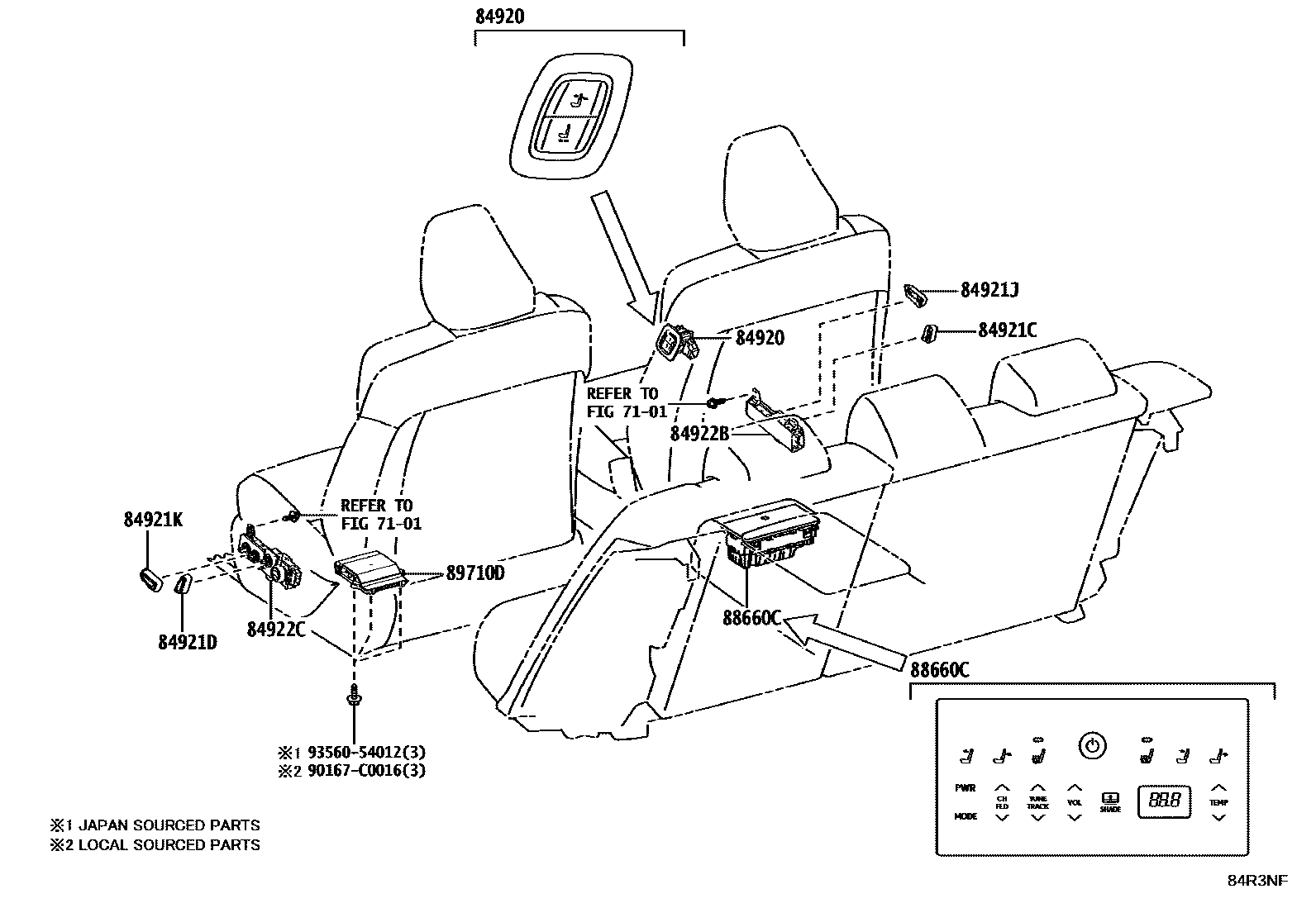

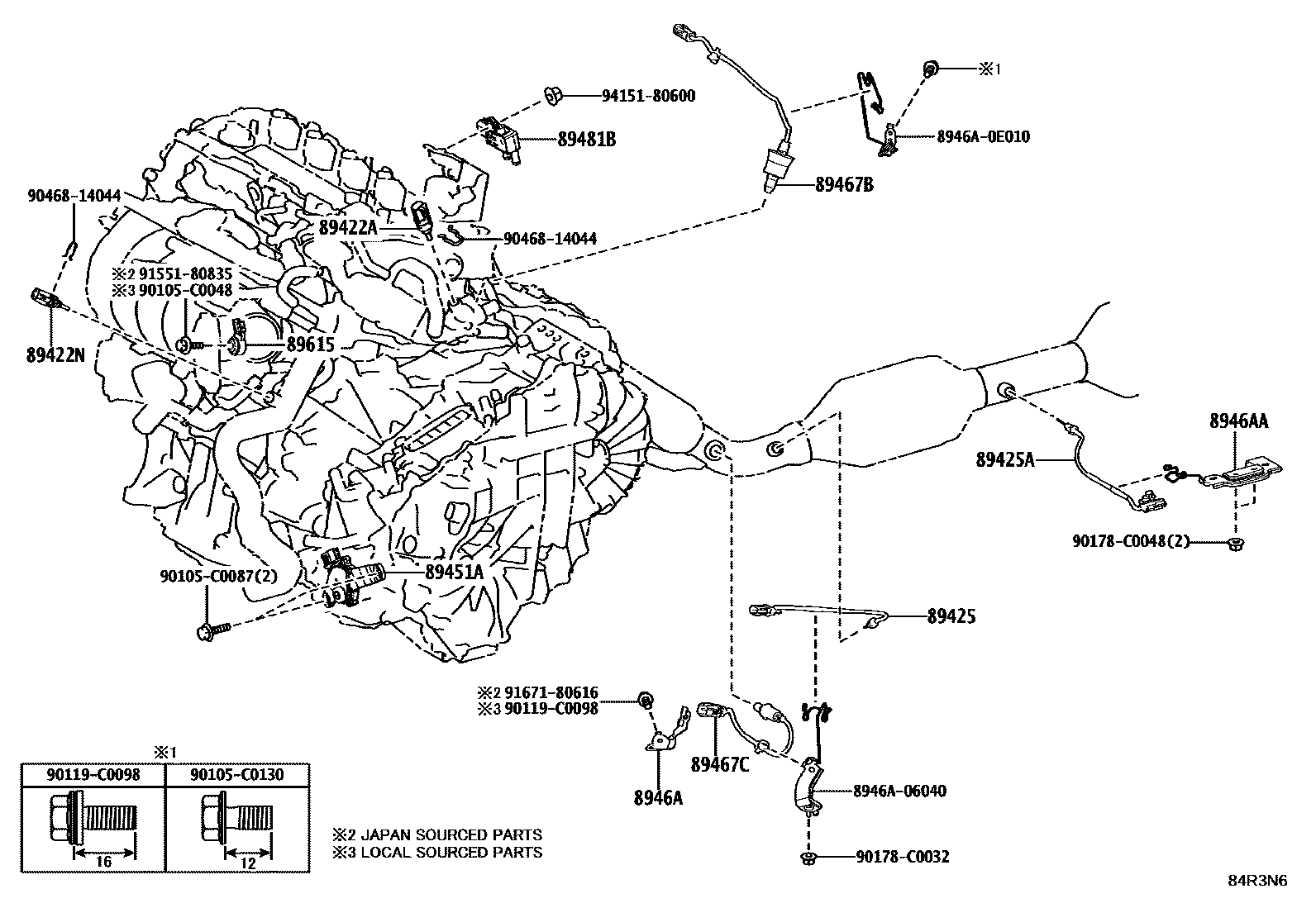

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-F2010 |
| 28371L | IGP relay | 90987-T2005 |
| 28850C | Battery status sensor assembly | 28850-0Z020 |
| 28859A | Battery current sensor mount | 28859-F0310 · 28859-F2200 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08298 · 90982-08311 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82600L | luggage fuse | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-33180 |
| 82620A | Fuse box assembly | 82620-06030 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662A | No. 1 relay box upper cover | 82662-06C40 · 82662-06C50 · 82662-06C60 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663B | No. 3 relay box lower cover | 82663-33280 |
| 82666 | Connector holder | 82666-33570 |
| 82672K | Electric power distribution box cover | 82672-06250 |
| 82730G | Distribution box assembly | 82730-06A00 · 82730-06A10 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82877 | Right ECU integrated box | 82877-06080 |
| 82878 | Left ECU integrated box | 82878-06020 · 82878-06040 |
| 83320 | Fuel gauge sensor assembly | 83320-06230 · 83320-06231 · 83320-06240 |
| 84040 | Multi-channel network main switch assembly | 84040-0R200 |
| 84140 | Headlight dimmer switch assembly | 84140-02G90 |
| 84152 | Headlight beam height adjustment switch | 84152-06040 |
| 84153 | Automatic high beam switch | 84153-0R050 |
| 84306 | Spiral cable sub-assembly | 84308-0R090 · 84308-0R100 |
| 84319A | Electric curtain switch housing | 84319-02050 |
| 84329 | turn signal switch | 84329-02200 |
| 84330 | Hazard warning signal switch assembly | 84332-06180 |
| 84340 | brake light switch assembly | 84340-09510 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-06090 |
| 84470A | Economic operation cancel switch assembly | 84470-0E110 |
| 84650 | Windshield wiper switch assembly | 84652-06600 · 84652-0R170 · 84652-0R210 |
| 84721B | Panoramic display switch | 84721-0A060 |
| 84810 | Electric window lift switch assembly | 84810-06180 |
| 84810D | Rear electric window lift switch assembly | 84810-06180 |
| 84840D | Trunk door opening switch assembly | 84840-06040 |
| 84841A | Fuel filler cap opener switch | 84841-0R050 |
| 84870A | Exterior rearview mirror switch assembly | 84872-06260 · 84872-06270 · 84872-06280 |
| 84922B | Front right electric seat switch | 84922-06220 |
| 84927 | Seat memory switch | 84927-06040 |
| 84940 | Curtain switch assembly | 84940-06080 |
| 84945A | Luggage electronic key switch | 84945-02080 |
| 84988L | VSC off switch | 84988-08010 |
| 85530 | No. 1 power socket assembly | 85530-0E070 |
| 85532 | USB charging socket | 85532-06110 |
| 85532C | USB charging socket No. 2 | 85532-06110 |
| 85535B | No. 1 power outlet cover | 85535-0E140 |
| 85910E | Injector relay | 90987-T2005 |
| 85910V | seat heater relay | 90987-T2005 |
| 85912K | VVT relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2005 |
| 85924C | IGCT relay | 90987-T2005 |
| 85924K | No. 2 IGCT relay | 90987-T2005 |
| 85940 | Windshield wiper relay assembly | 90987-02027 · 90987-T2005 |
| 85941 | windshield washer relay | 90987-02025 · 90987-04010 · 90987-T2004 · 90987-T4002 |
| 85941A | Rear windshield washer relay | 90987-04010 · 90987-T4002 |
| 8598A | door control battery | 8598A-06040 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 88161 | Blind spot monitor right bracket | 88161-06020 |
| 88162 | Blind spot monitor right sensor | 88162-0R140 |
| 88171 | Blind spot monitor left bracket | 88161-06020 |
| 88172 | Blind spot monitor left sensor | 88162-0R140 |
| 88660C | Cooler control switch assembly | 84660-06080 |
| 89111 | Network gateway ECU | 89111-12170 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-0E040 |
| 89221 | Multi-channel network body ECU | 89221-06430 · 89221-06520 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-06010 |
| 89235A | Tilt-telescoping steering column switch | 89235-06020 |
| 89245B | steering sensor | 8924B-02080 |
| 89419B | gear shift sensor | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89422N | No. 2 water temperature sensor | 89422-33040 |
| 89425 | Exhaust gas temperature sensor | 89425-06030 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-06070 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-06110 |
| 89430B | Right exterior mirror control ECU assembly | 89430-06120 |
| 89451A | shift lever position sensor | 89451-28020 · 89451-42010 |
| 89461 | steam pressure sensor | 89461-47010 |
| 89467B | air fuel ratio sensor | 89467-0R160 · 89467-0R190 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-06300 · 89467-06350 |
| 8946A | Exhaust sensor clip bracket | 8946A-06050 |
| 8946AA | No. 2 exhaust sensor clip bracket | 8946A-06020 |
| 89481B | Differential pressure sensor | 89481-0E010 · 89481-48010 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-T2005 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-T2005 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02033 |
| 89611 | One-button start switch | 89611-0E240 · 89611-0E250 |
| 89615 | knock control sensor | 89615-20090 · 89615-78010 |
| 89710D | Left position control ECU assembly | 89710-06050 |
| 89730A | Relay (for safety warnings) | 90987-02027 · 90987-T2005 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2005 |
