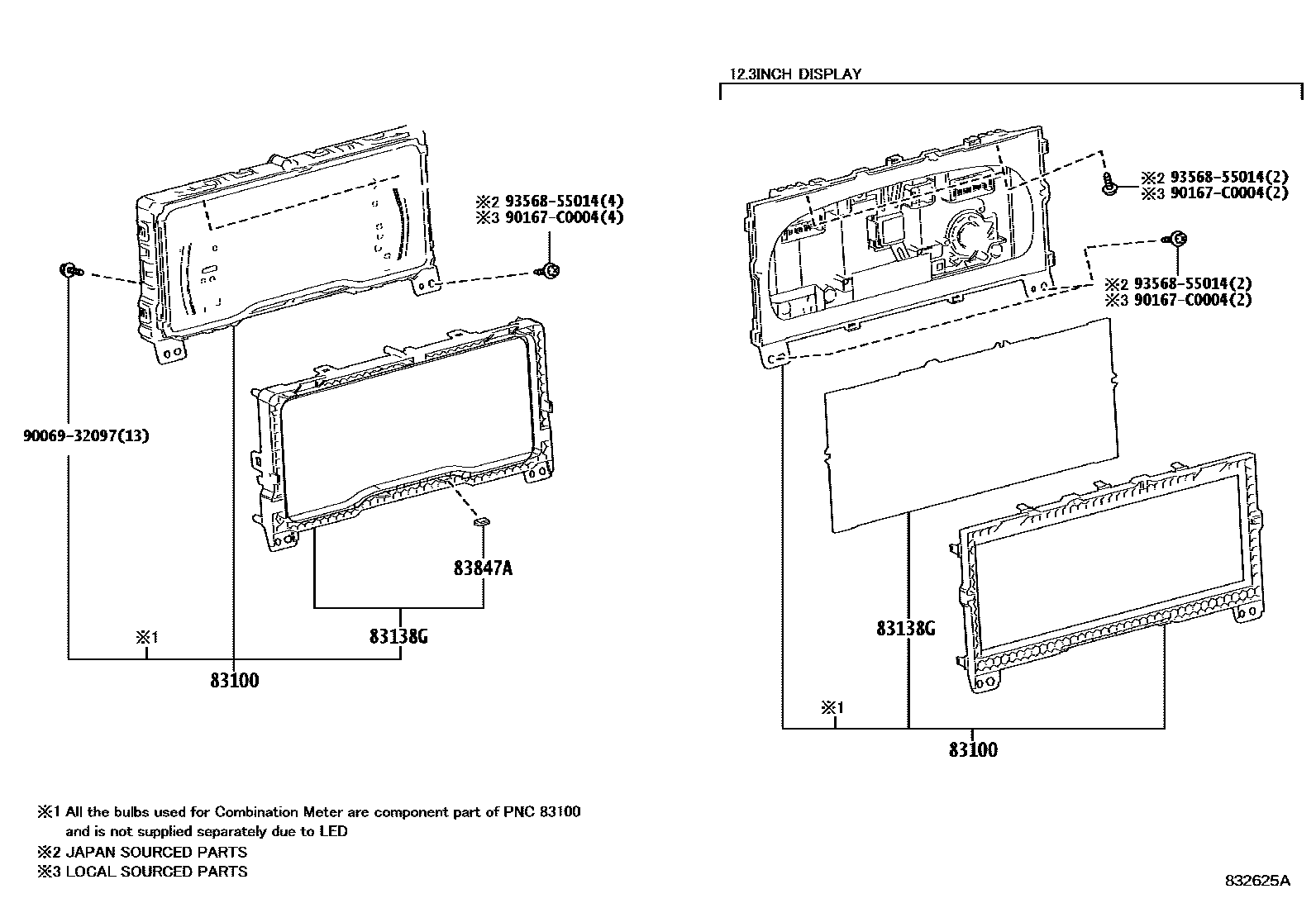

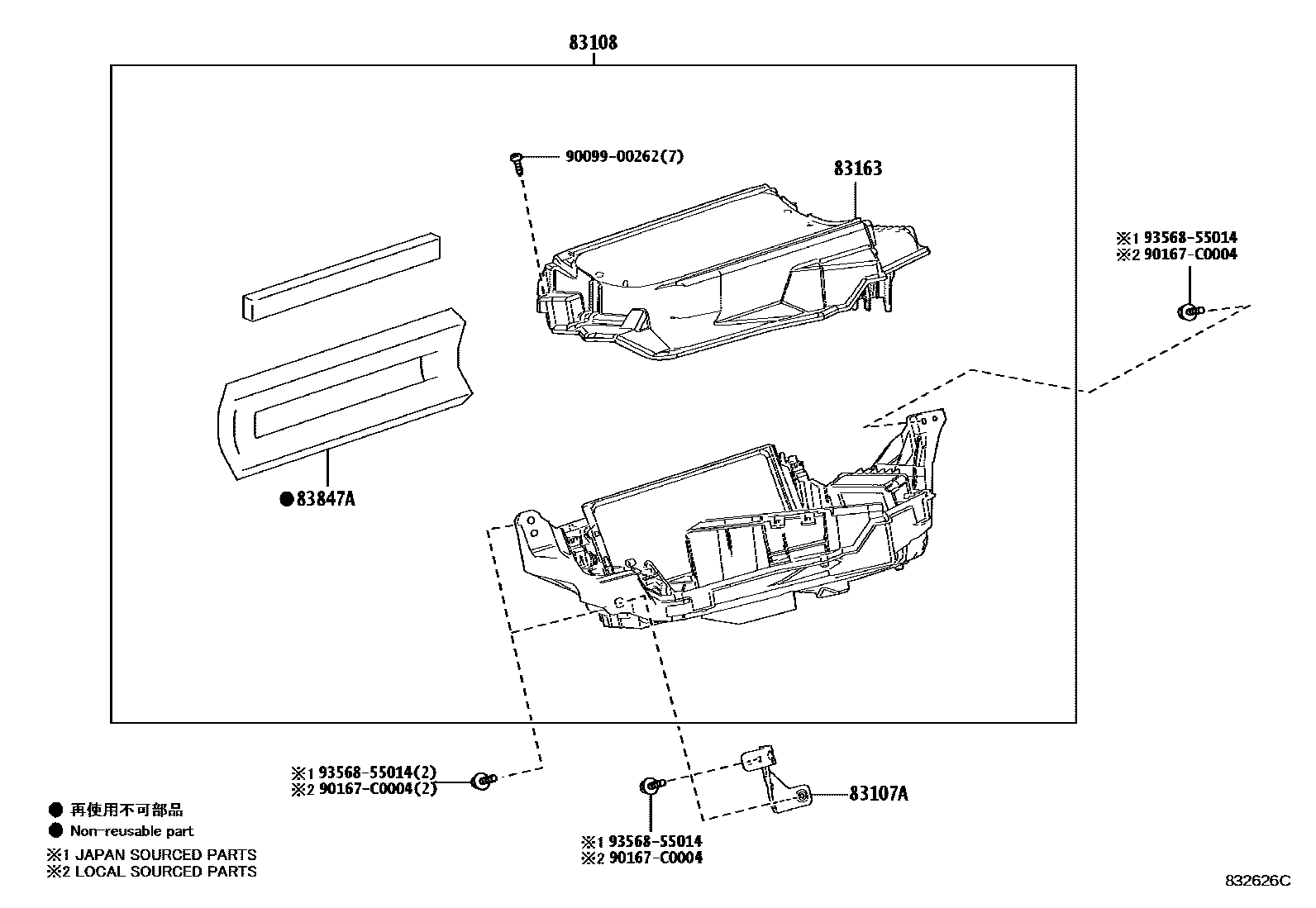

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83A00-06031 · 83A00-06041 · 83A00-06050 · 83A00-06051 · 83A00-06060 · 83A00-06061 |
| 83107A | No. 1 instrument bracket sub-assembly | 83107-06110 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-06110 · 83108-06111 |
| 83138G | Instrument cluster glass | 83852-06030 · 83A52-06050 |
| 83163 | No. 1 instrument cluster rearview mirror panel | 83163-06110 |
| 83847A | Combination speedometer cushion | 83847-06030 · 83848-06080 |
