Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 24 images and 123 PNC and OE references.

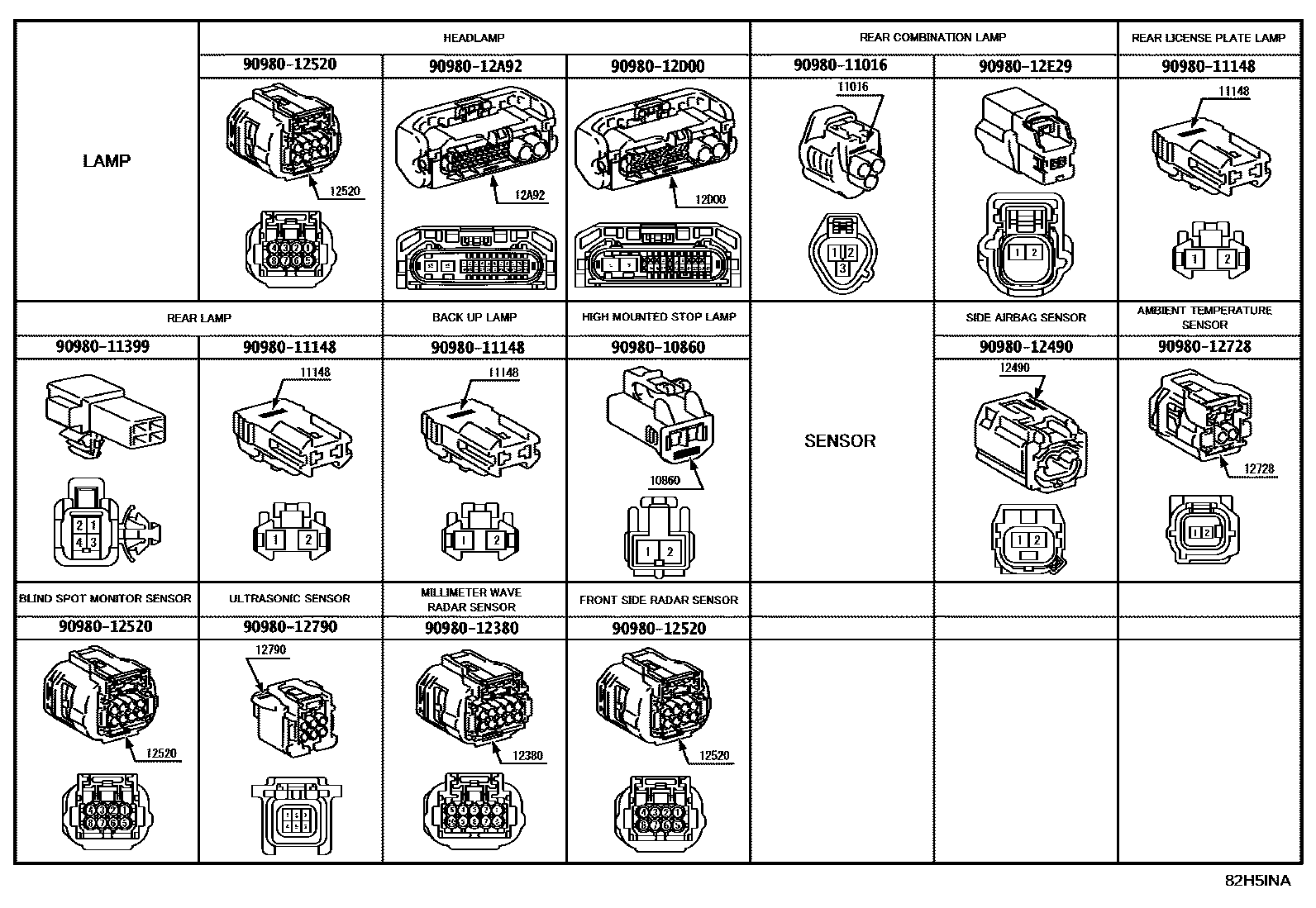

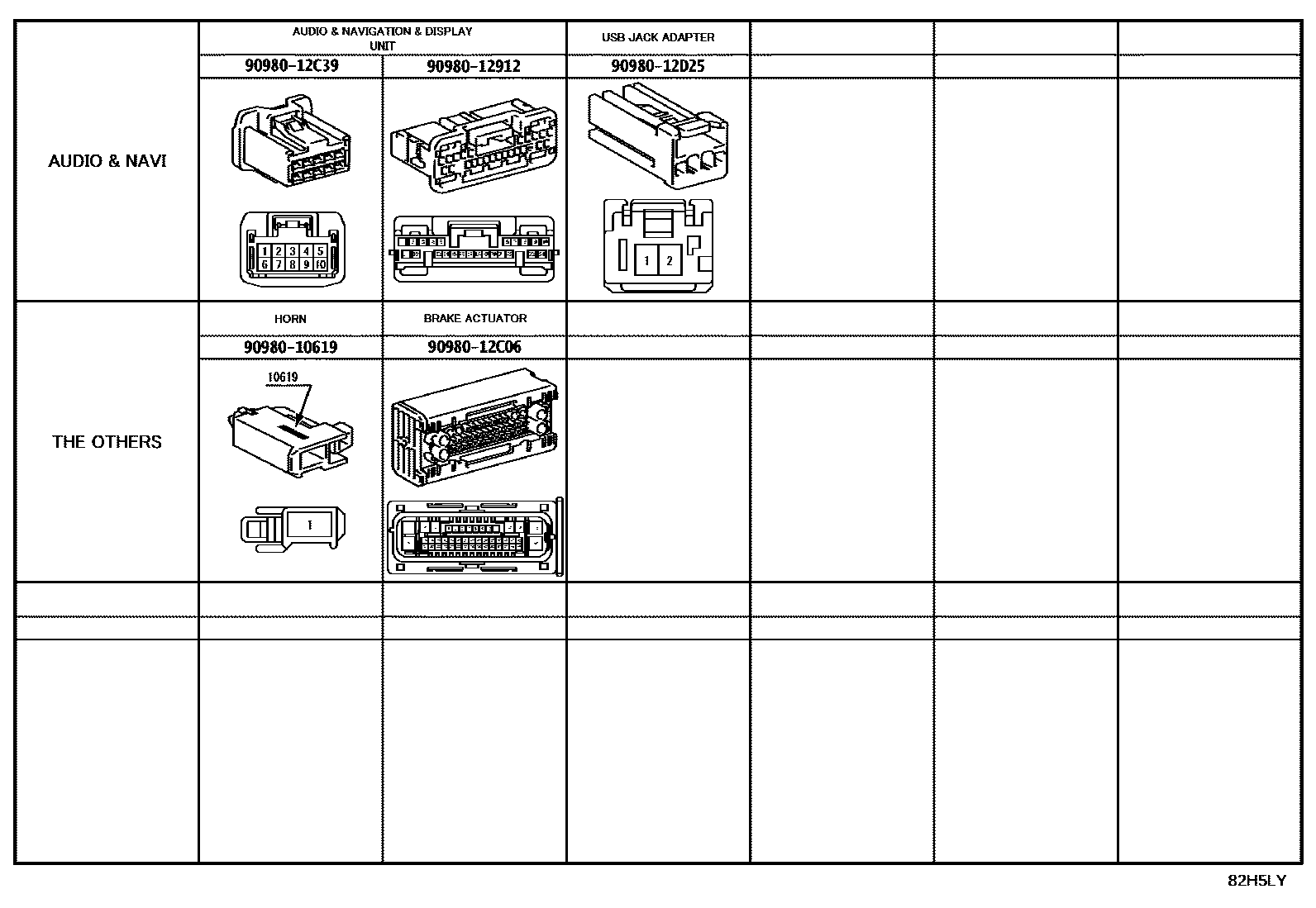

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

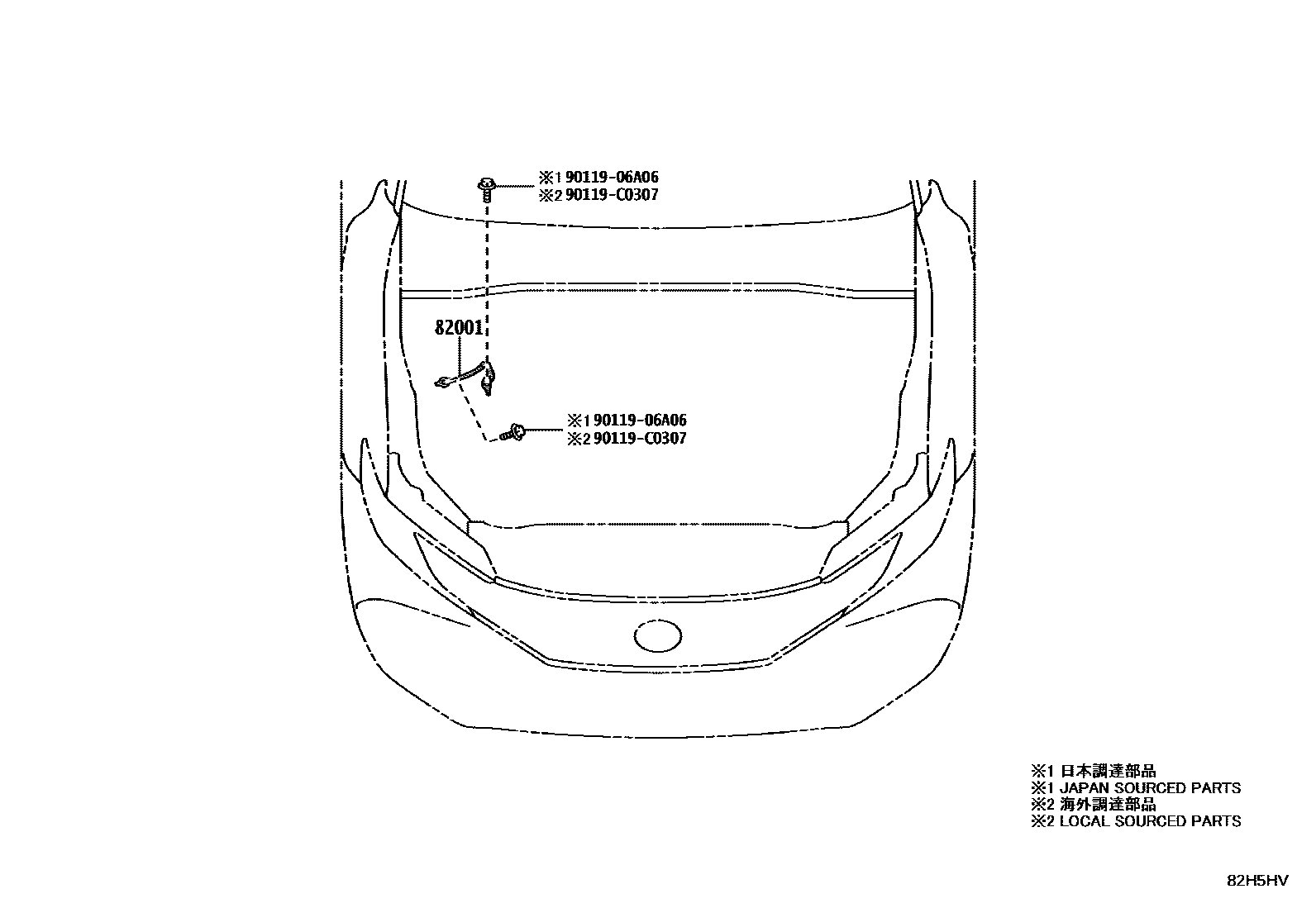

| 82001 | Connection cable No. 1 | 82286-06020 · 82286-33020 |
| 82090A | Extension cord assembly | 82090-06050 |

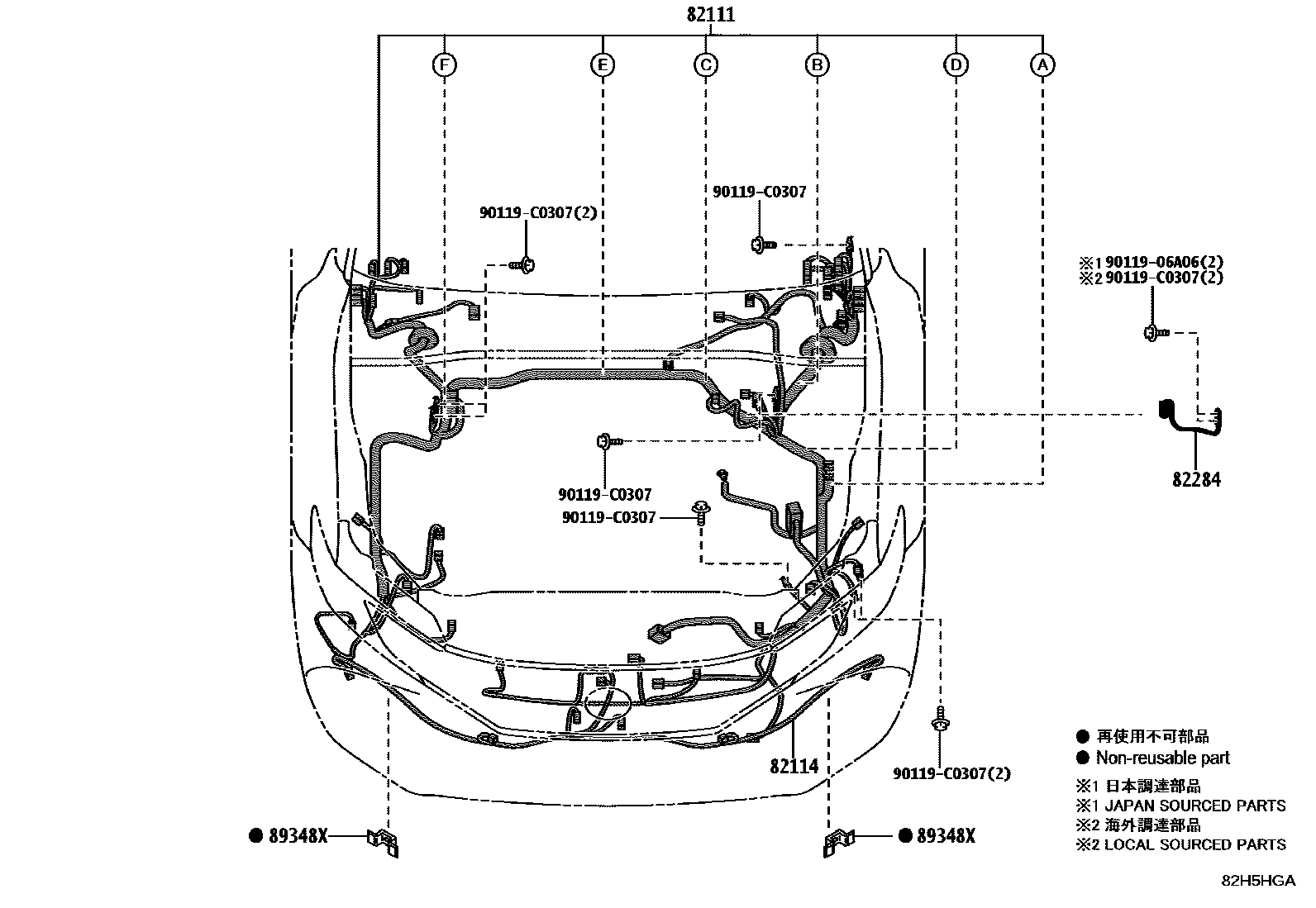

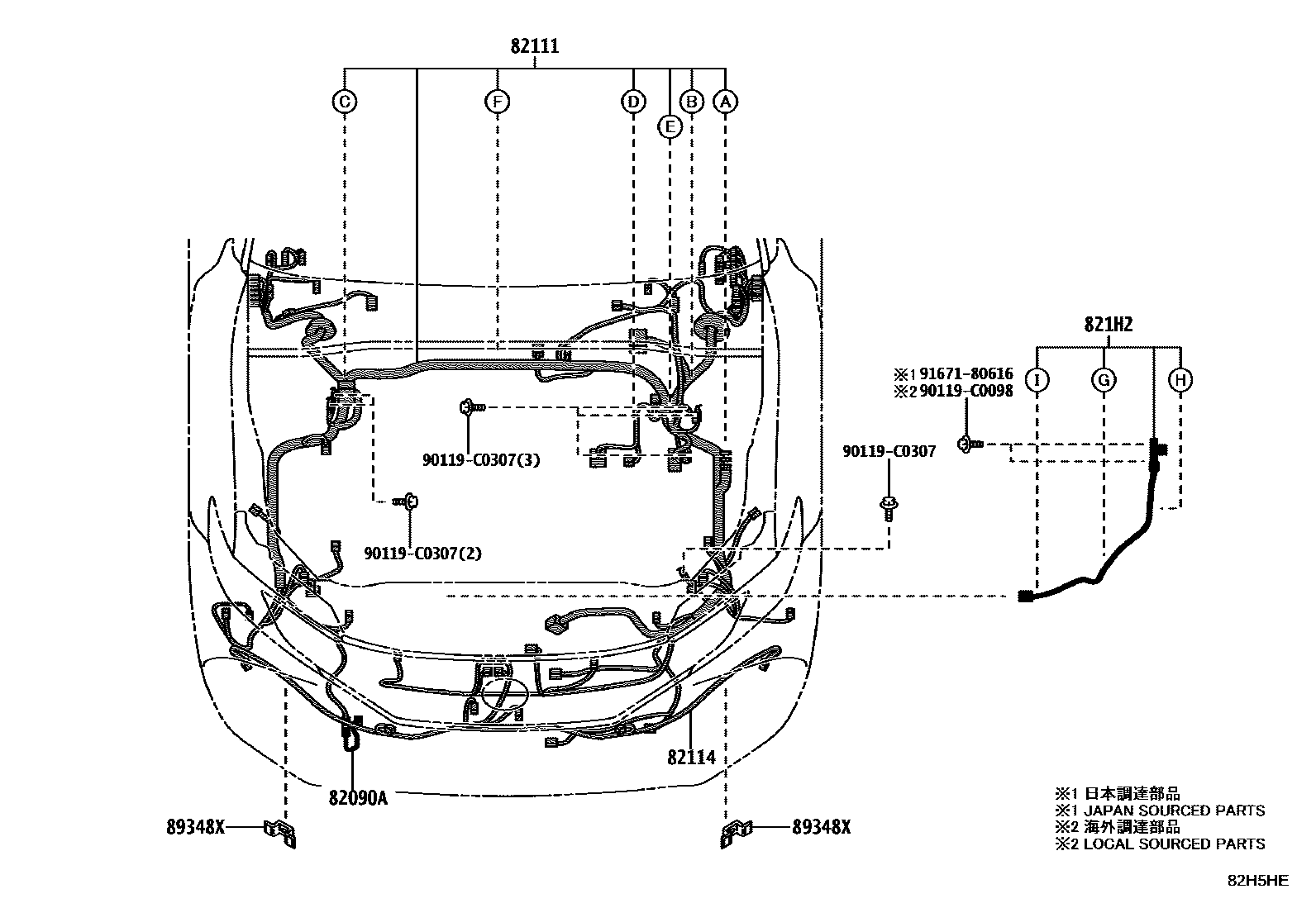

| 82111 | Engine room main wiring harness | 82116-06L70 · 82116-06L90 · 82116-06M00 · 82116-06N20 · 82116-06N30 · 82116-06T90 · 82116-06U00 |
| 82114 | Engine room wiring harness No. 4 | 82114-06430 · 82114-06440 · 82114-06470 · 82114-06480 · 82114-06490 |

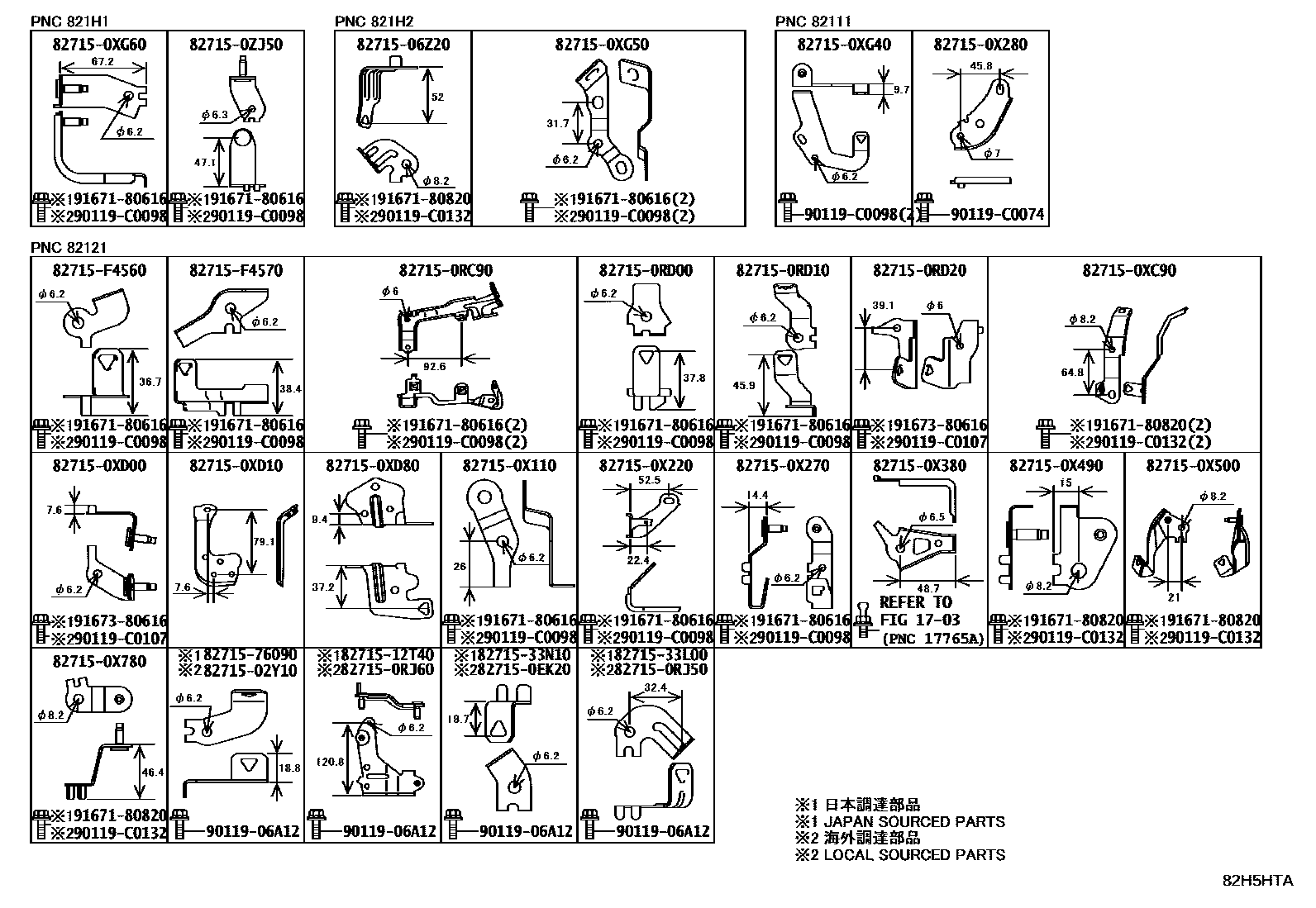

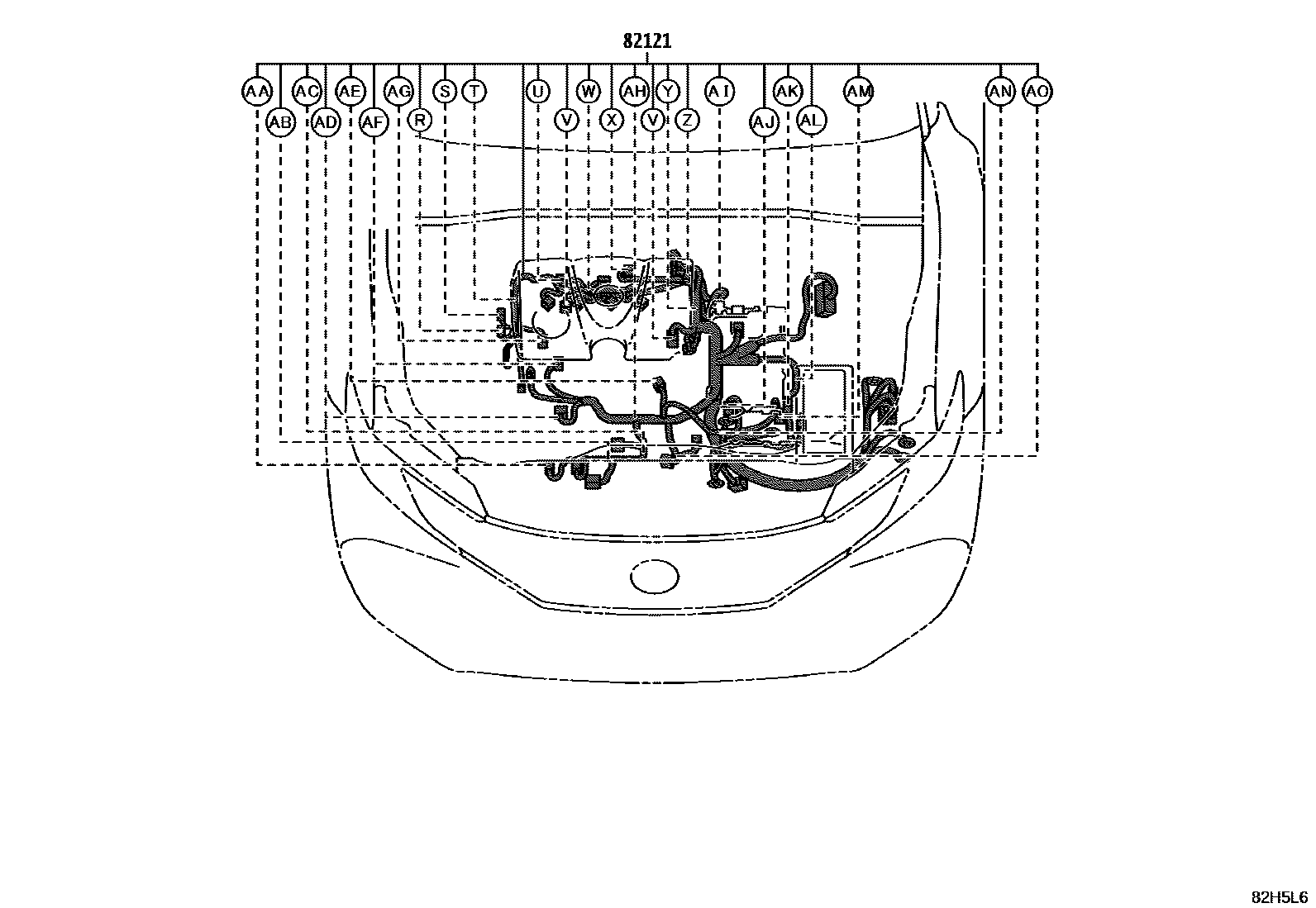

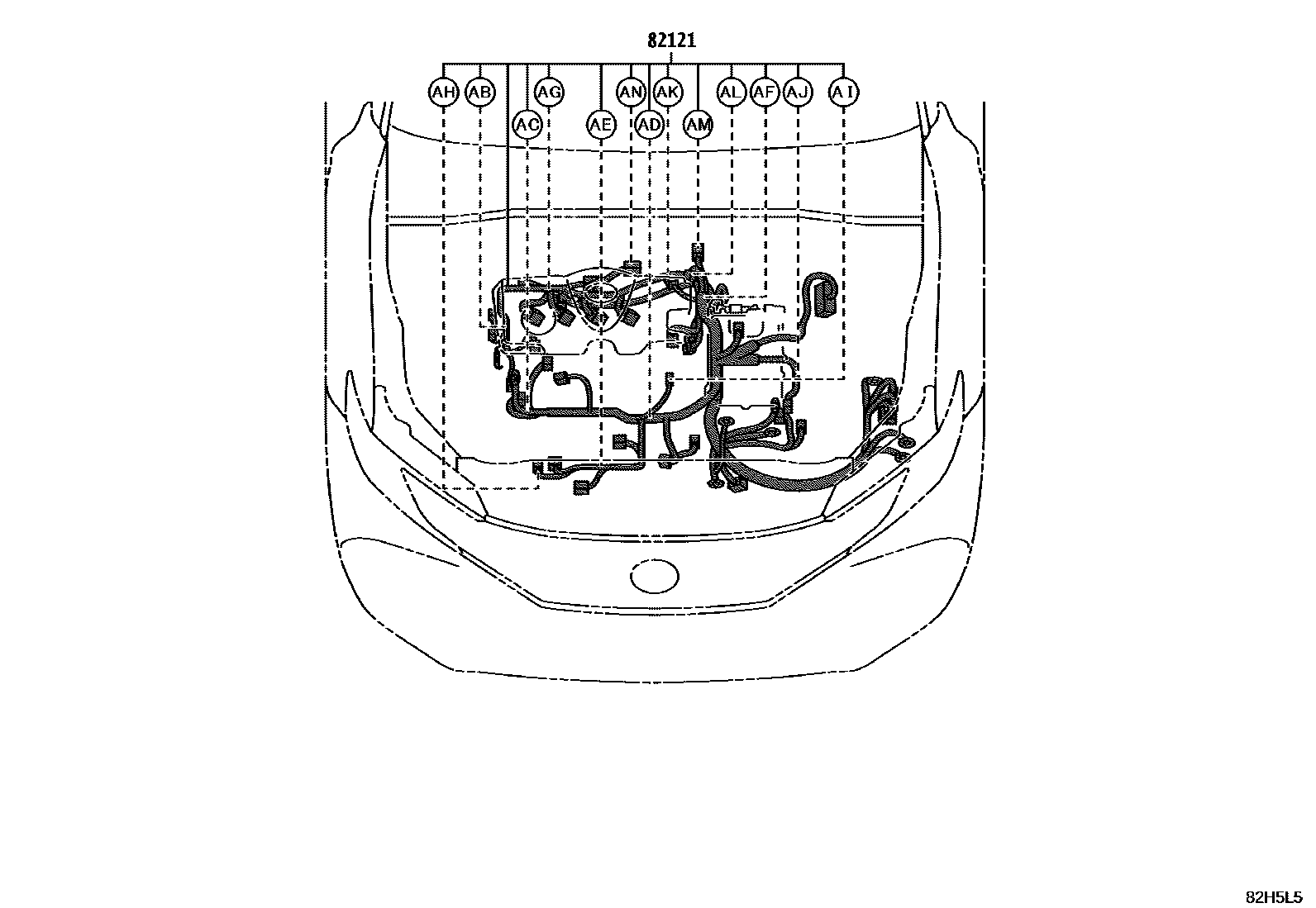

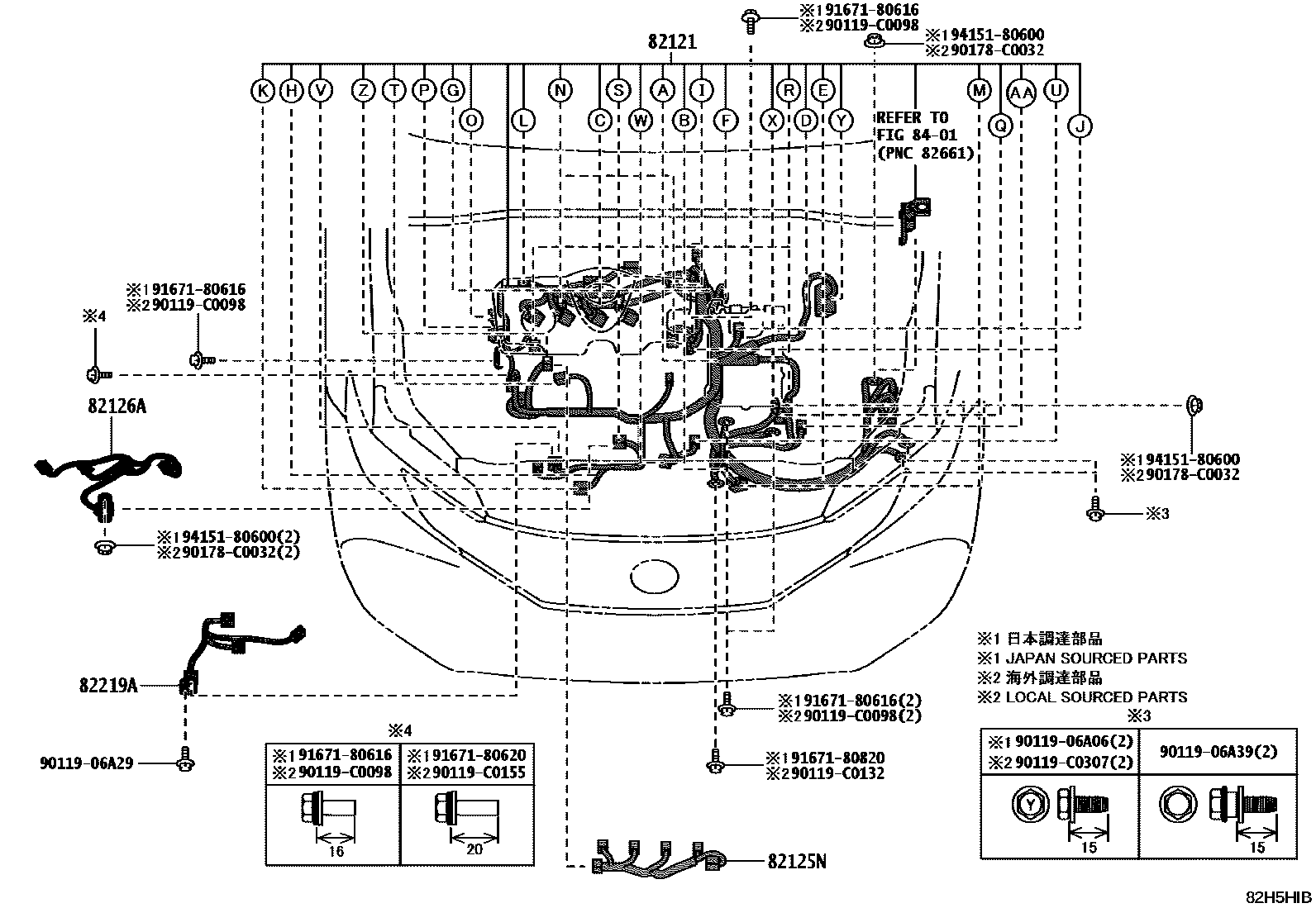

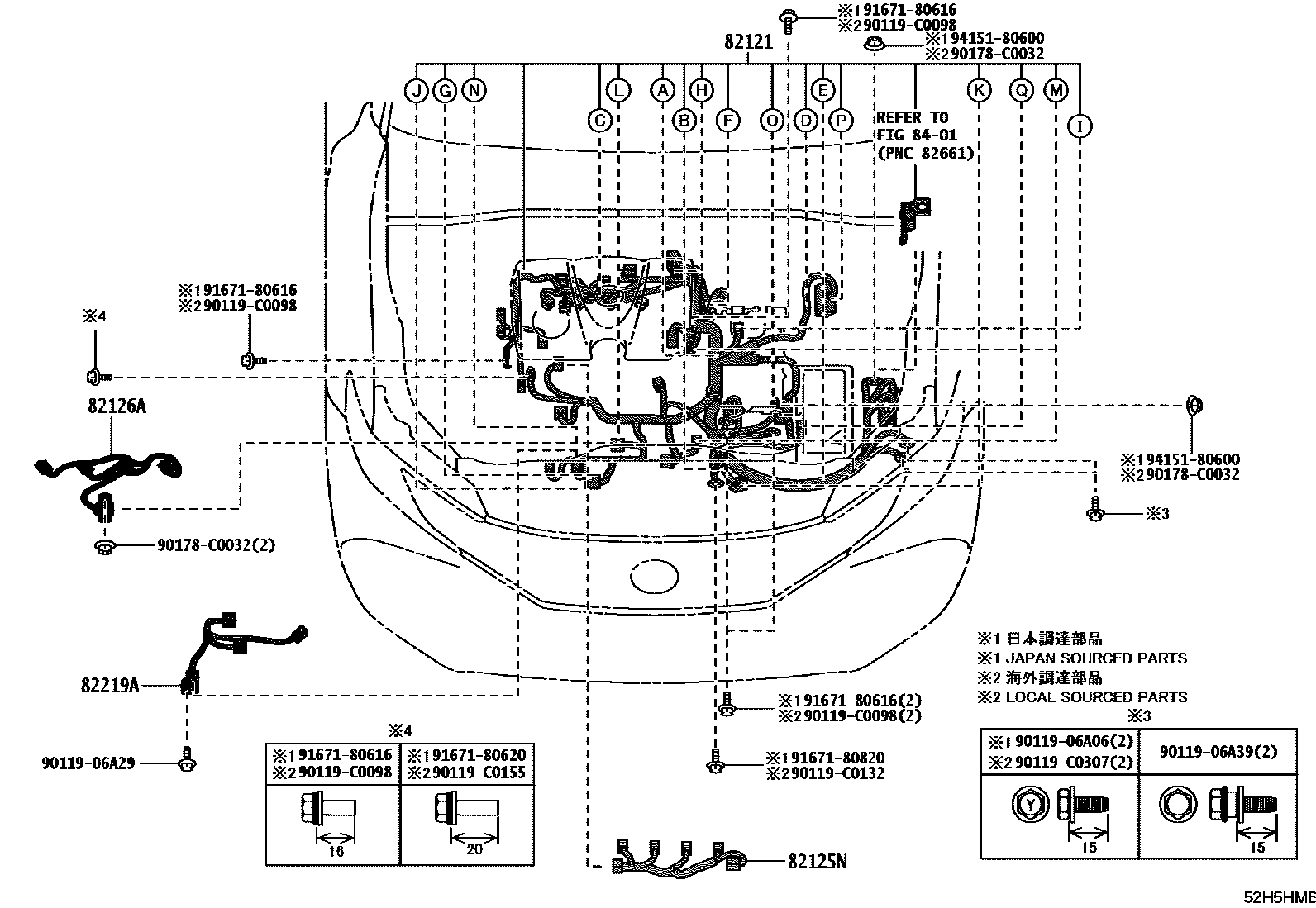

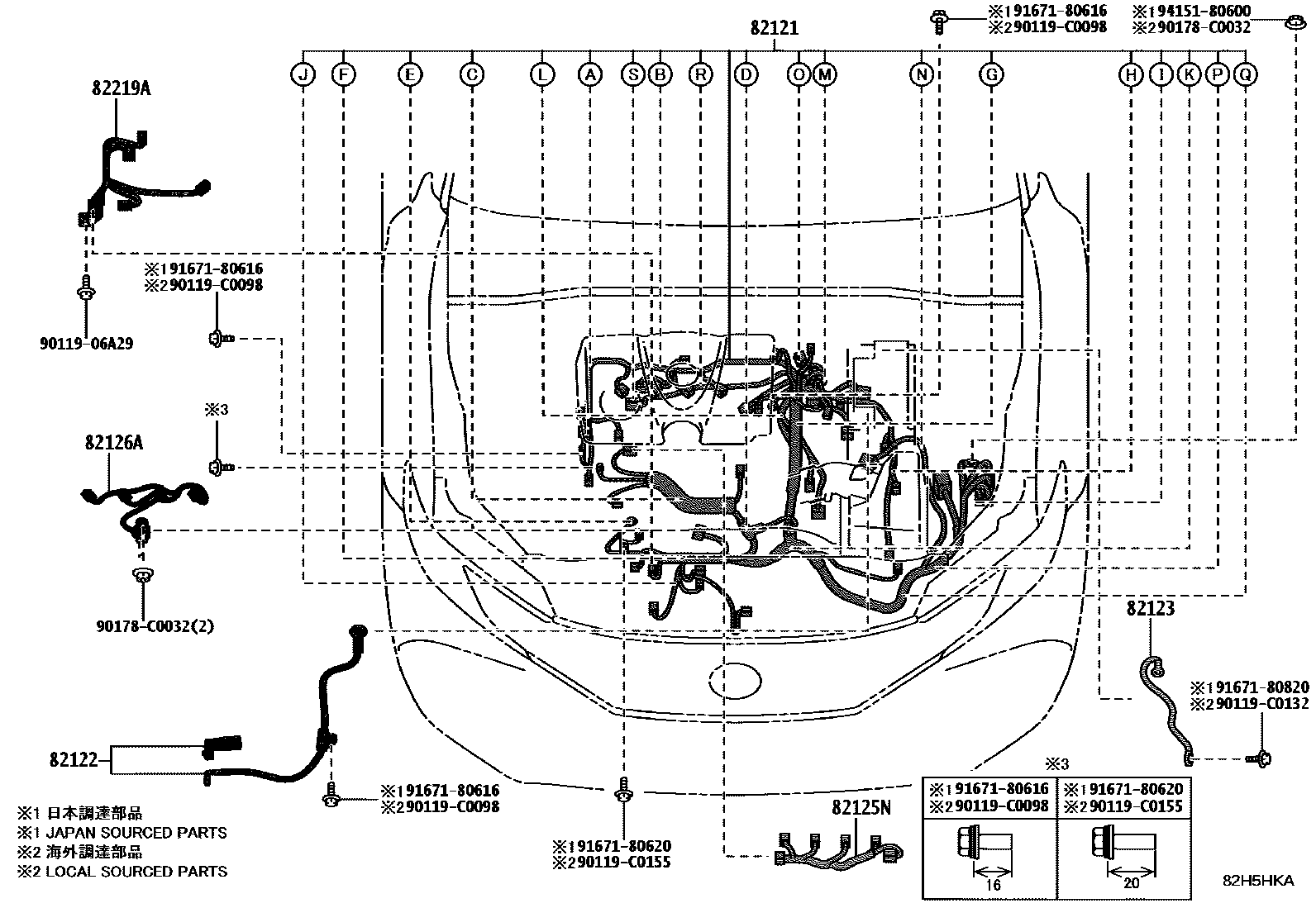

| 82121 | Engine wiring harness | 82121-06S00 · 82121-06S10 · 82121-06S20 |

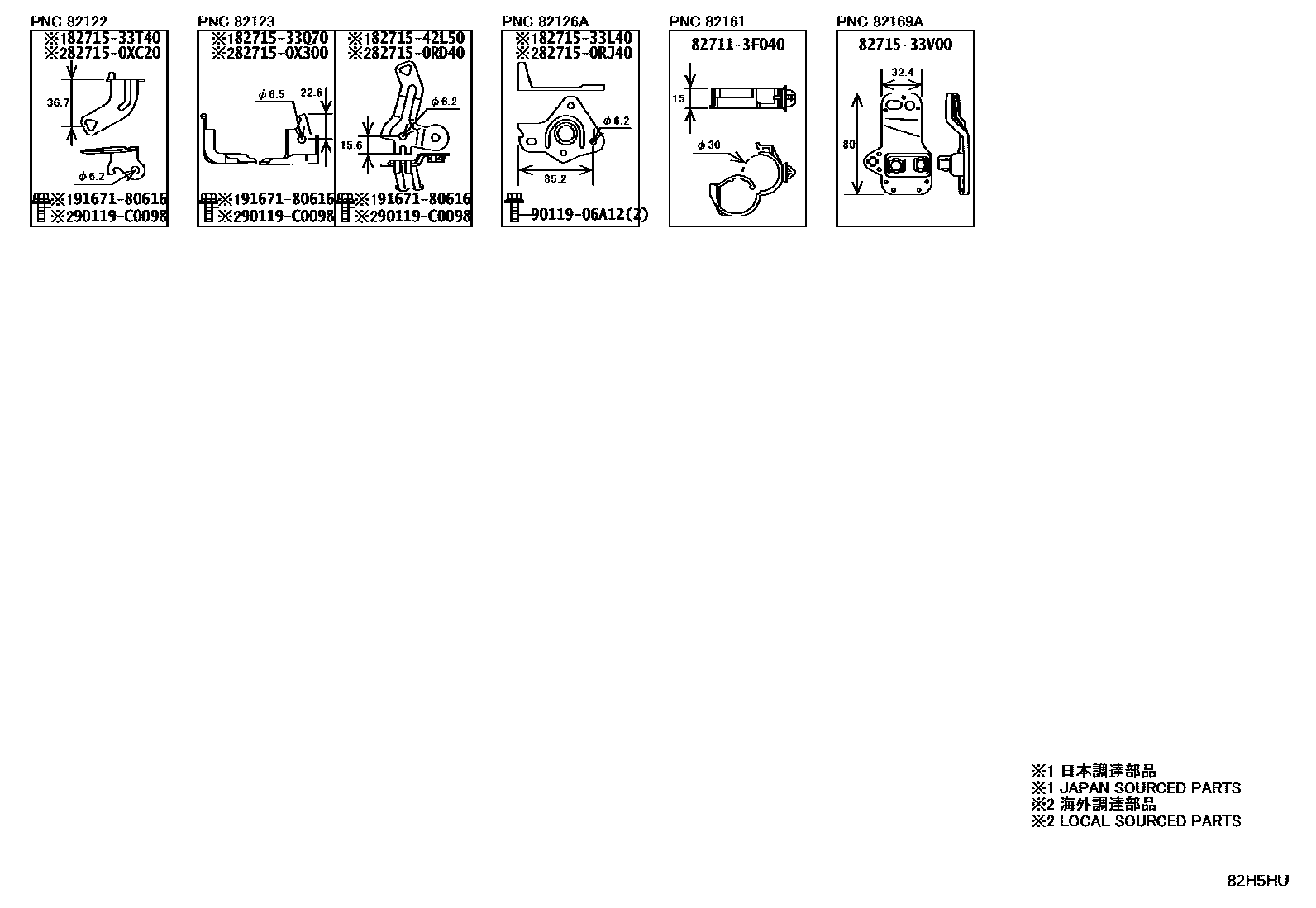

| 82122 | Engine No. 2 wiring harness | 82122-06271 |
| 82123 | Engine No. 3 wiring harness | 82123-06170 |
| 82125N | Engine No. 5 wiring harness | 82125-0E060 · 82125-0R010 |
| 82126A | No. 6 engine wiring harness | 82126-0E030 · 82126-0R020 |

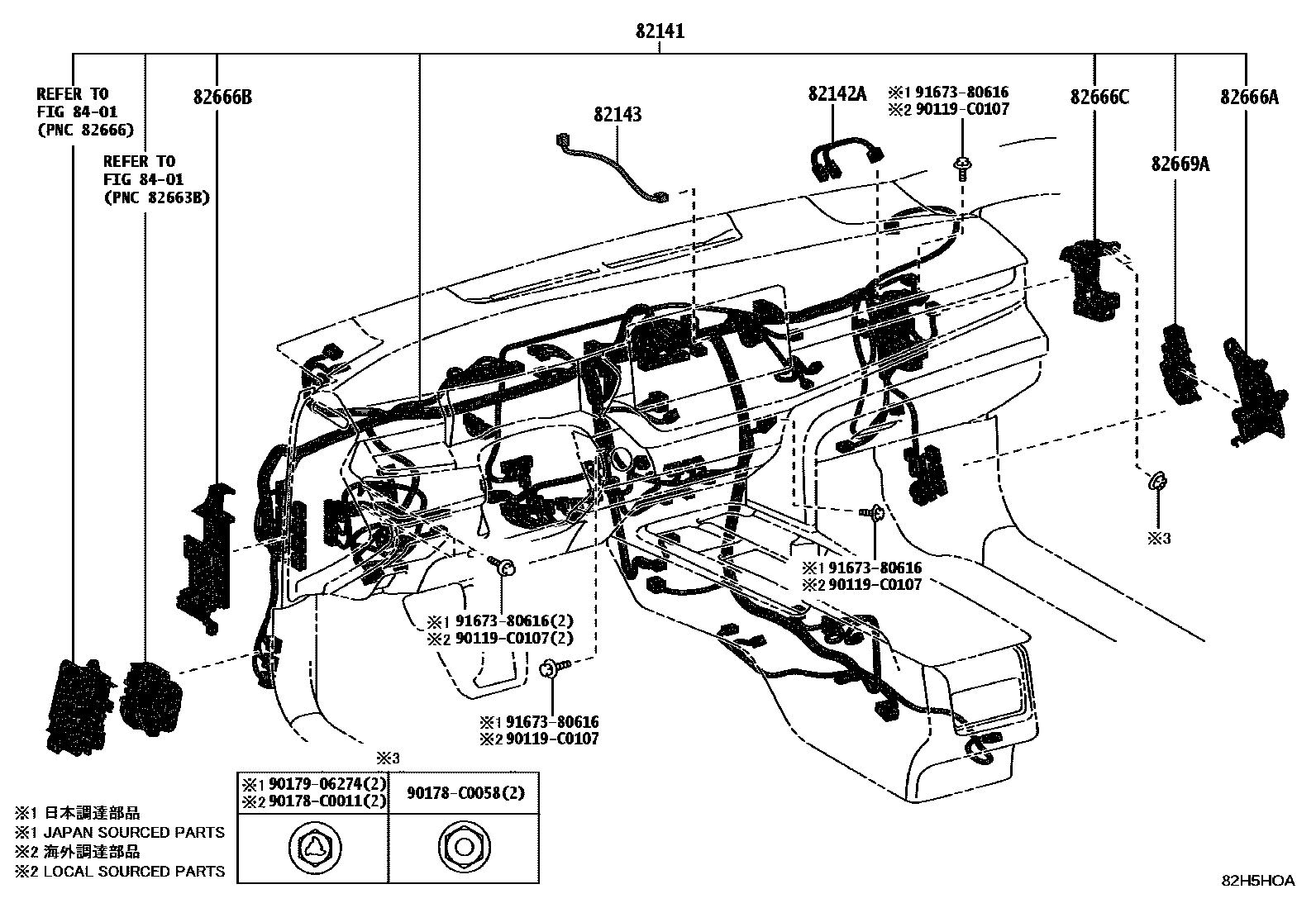

| 82141 | Dashboard wiring harness | 82145-0XE00 · 82145-0XZ20 · 82145-0XZ40 · 82145-0XZ60 · 82146-06180 · 82146-06190 · 82146-06200 · 82146-06210 · 82146-06220 · 82146-06230 · 82146-06240 · 82146-06250 · 82146-06260 · 82146-06270 · 82146-06280 · 82146-06290 · 82146-06300 · 82146-06310 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-06070 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-06610 |

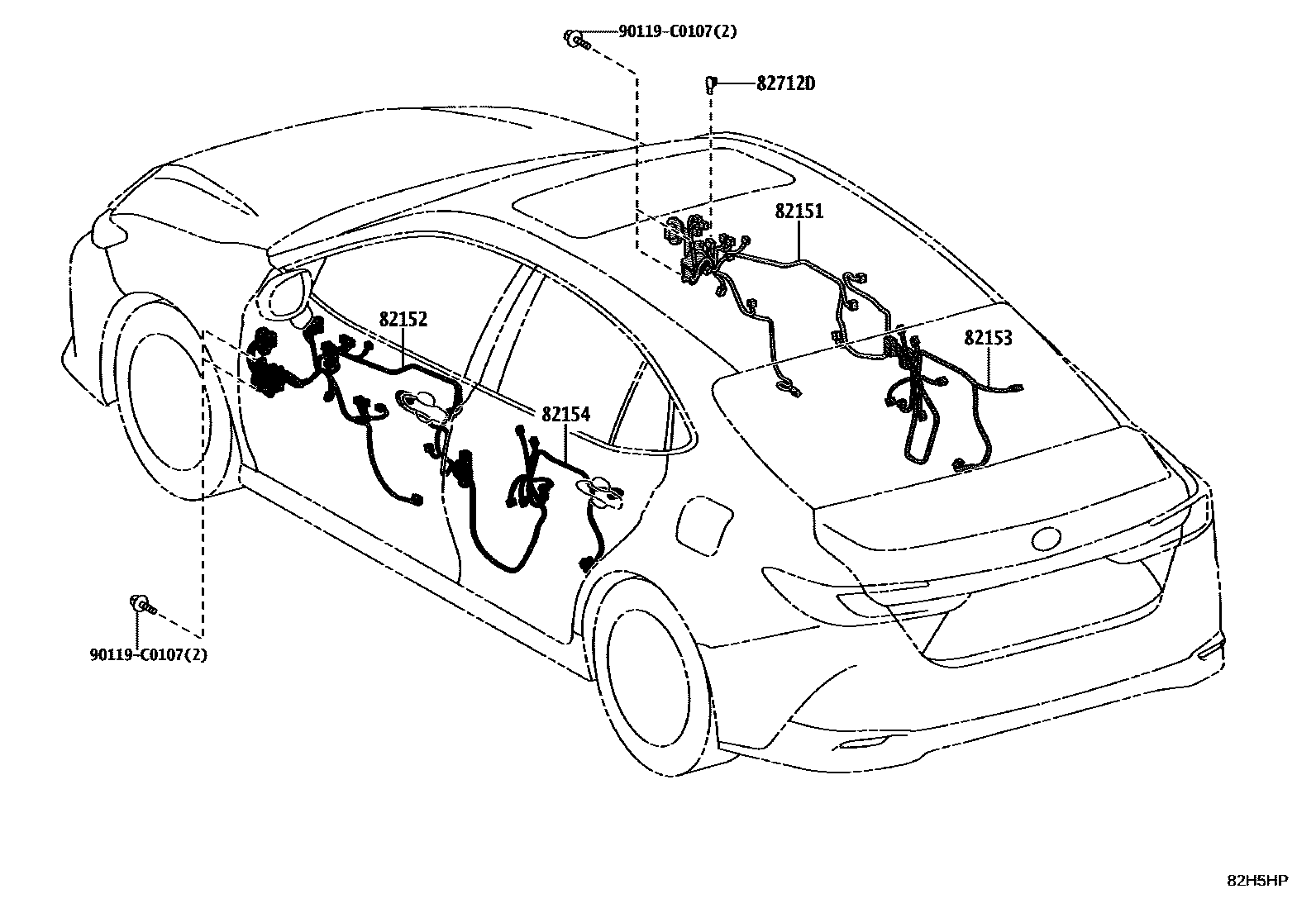

| 82151 | Right front door wiring harness | 82151-06M00 · 82151-06W90 · 82151-06X00 · 82151-06X10 · 82151-06X20 · 82151-06X30 · 82151-06X40 · 82151-06X50 · 82151-06X60 · 82151-06X70 · 82151-06X80 · 82151-0X030 |
| 82152 | Left front door wiring harness | 82152-06W50 · 82152-06Y80 · 82152-06Y90 · 82152-06Z00 · 82152-06Z10 · 82152-06Z20 · 82152-06Z30 · 82152-06Z40 · 82152-06Z50 · 82152-06Z60 · 82152-06Z70 · 82152-0X220 |
| 82153 | Rear door wiring harness No. 1 | 82153-06B10 · 82153-06B20 · 82153-06B30 · 82153-06B40 |
| 82154 | Rear door wiring harness No. 2 | 82154-06B10 · 82154-06B20 · 82154-06B30 · 82154-06B40 |

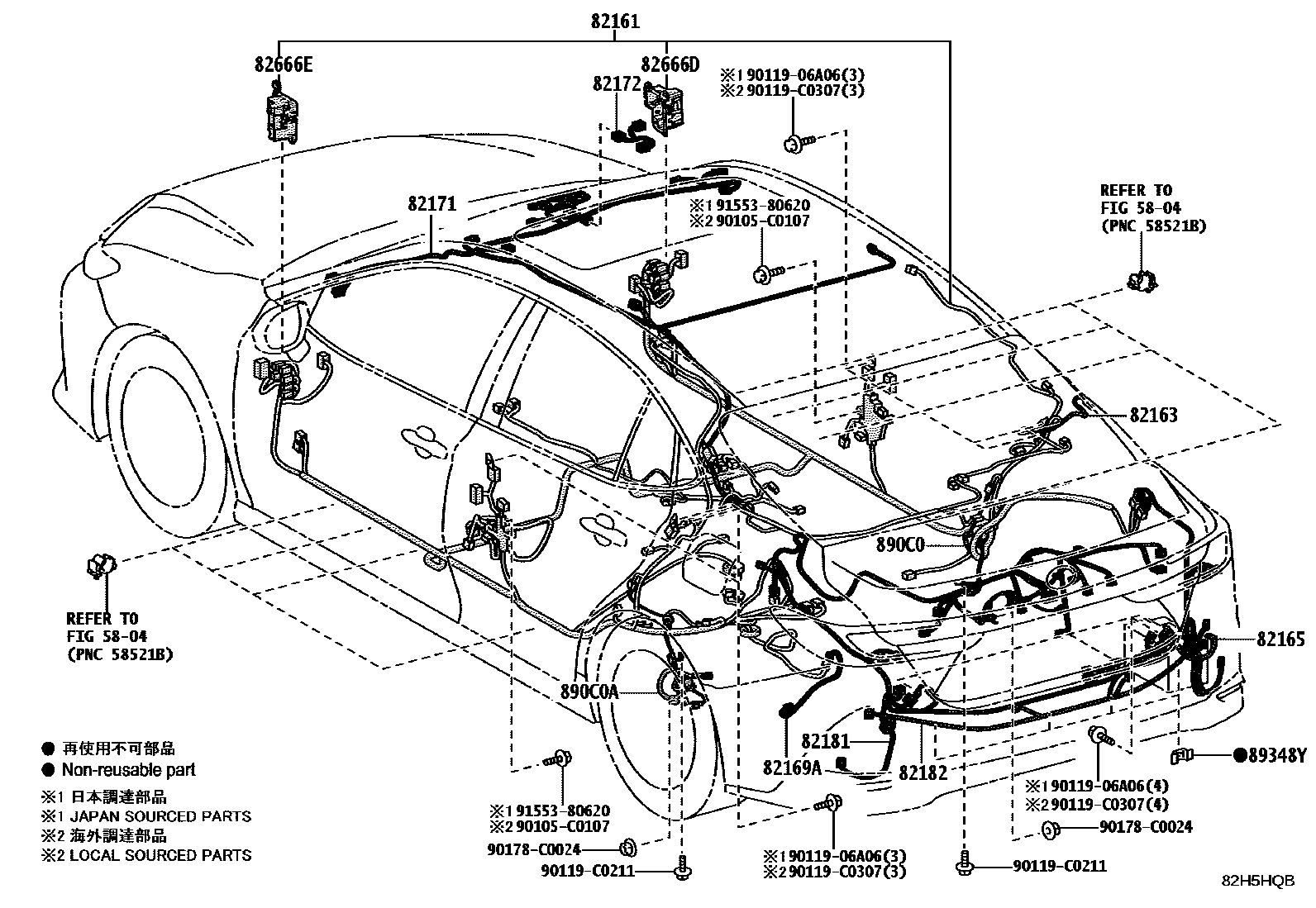

| 82161 | floor wiring harness | 82199-06U30 · 82199-06U40 · 82199-06U50 · 82199-06U51 · 82199-06U60 · 82199-06U70 · 82199-06U80 · 82199-06U90 · 82199-06V10 · 82199-06V20 · 82199-06V30 · 82199-06V31 · 82199-06V70 · 82199-06V80 · 82199-06V90 · 82199-06V91 · 82199-06W00 · 82199-06W20 · 82199-06W21 · 82199-0X040 |
| 82163 | Floor wiring harness No. 3 | 82163-06230 |
| 82165 | No. 2 frame wiring harness | 82165-06140 |
| 82169A | No. 6 floor wiring harness | 82169-06040 |
| 82171 | Roof No. 1 wiring harness | 82171-0X810 · 82171-0X820 · 82171-0X830 · 82171-0X840 · 82171-0X850 · 82171-0X860 · 82171-0X870 |
| 82172 | Roof No. 2 wiring harness | 82172-06100 |
| 82181 | Luggage No. 1 wiring harness | 82181-06Z60 · 82181-0X620 · 82181-0X630 · 82181-0X640 · 82181-0X650 · 82181-0X660 · 82181-0X670 · 82181-0X690 · 82181-0X700 · 82181-0X710 · 82181-0X840 · 82181-0X850 · 82181-0X860 |
| 82182 | Luggage No. 2 wiring harness | 82182-06740 |

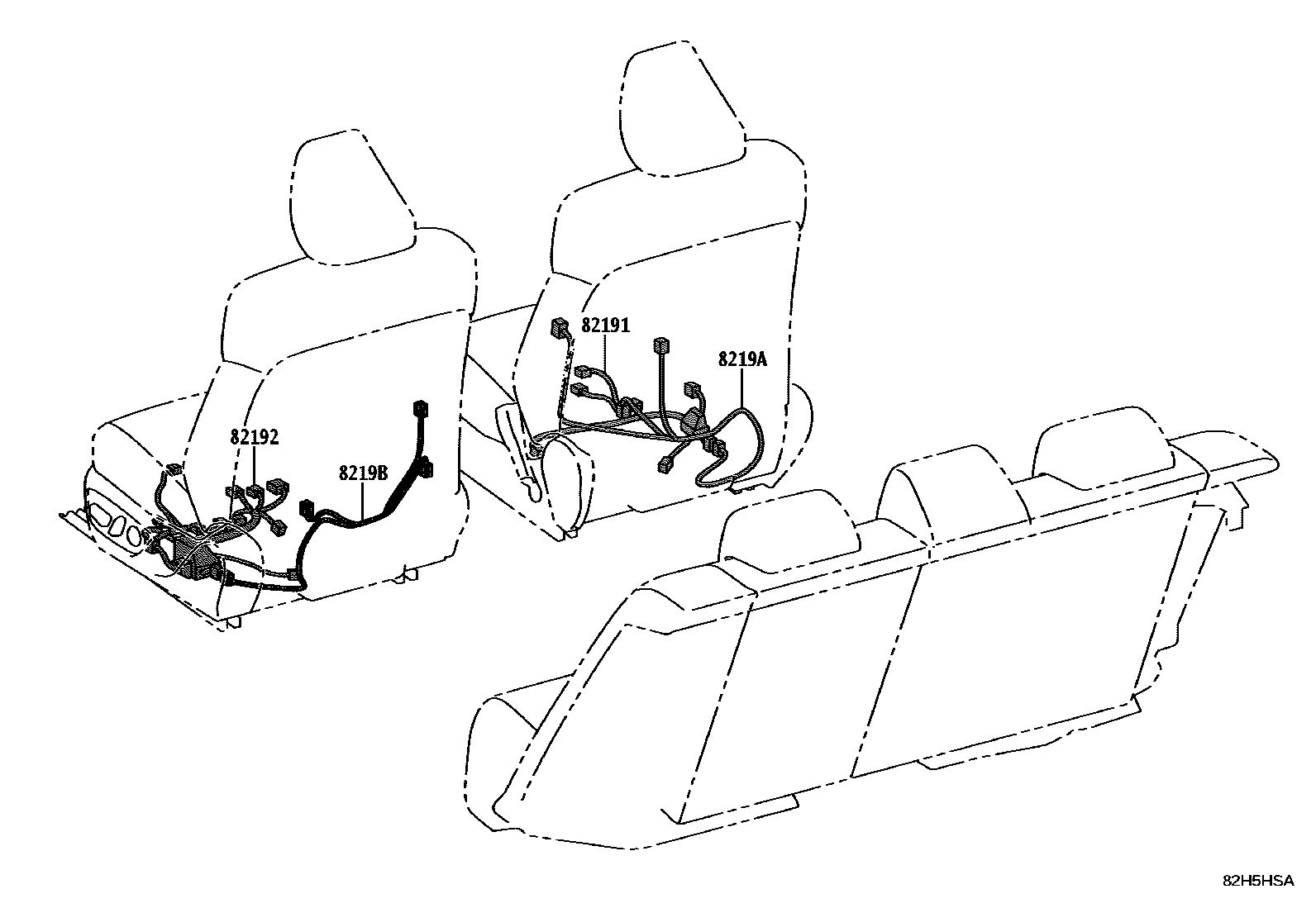

| 82191 | Front right seat wiring harness | 82191-06A80 · 82191-06A90 · 82191-06B00 |
| 82192 | Front left seat wiring harness | 82192-06A40 · 82192-06A50 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-06470 · 8219A-06480 · 8219A-06550 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-06510 · 8219B-F4040 |

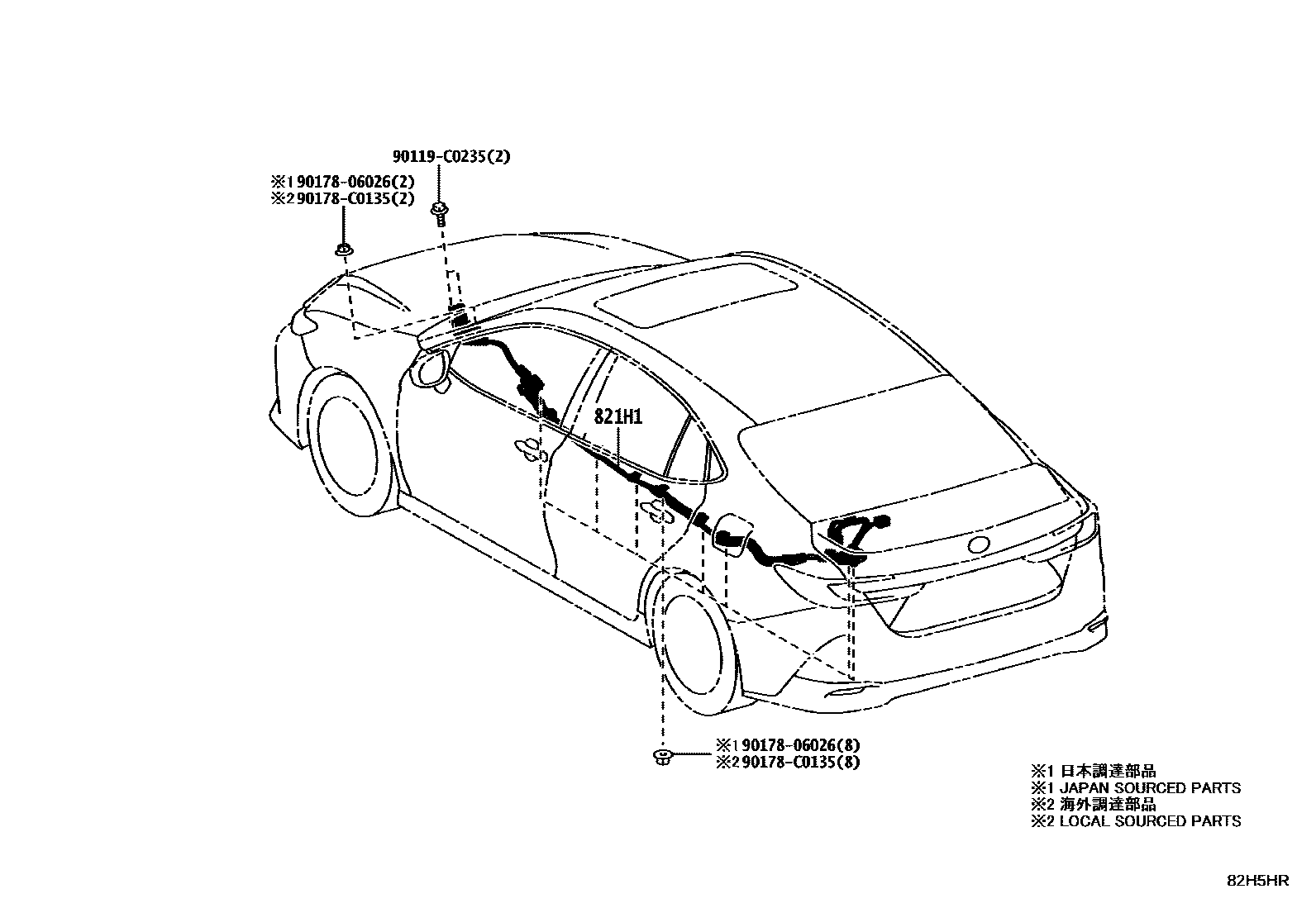

| 821H1 | Underfloor wiring harness | 821H1-06100 |
| 821H2 | HV air conditioner wiring harness | 821H2-06100 · 821H2-06110 |
| 82219A | sensor harness | 82219-06320 · 82219-0A060 · 82219-76020 |
| 82284 | Ground wire | 82284-06420 |
| 82666A | Connector holder No. 2 | 82666-33580 |
| 82666B | No. 3 connector holder | 82666-33630 |
| 82666C | No. 4 connector holder | 82666-33640 |
| 82666D | No. 5 connector holder | 82666-33650 |
| 82666E | No. 6 connector holder | 82666-33660 |
| 82669A | Connector box lower cover | 82663-33250 |
| 82712A | Wire harness bracket | 82712-33160 |
| 82712D | Wire harness bracket | 82712-60550 |

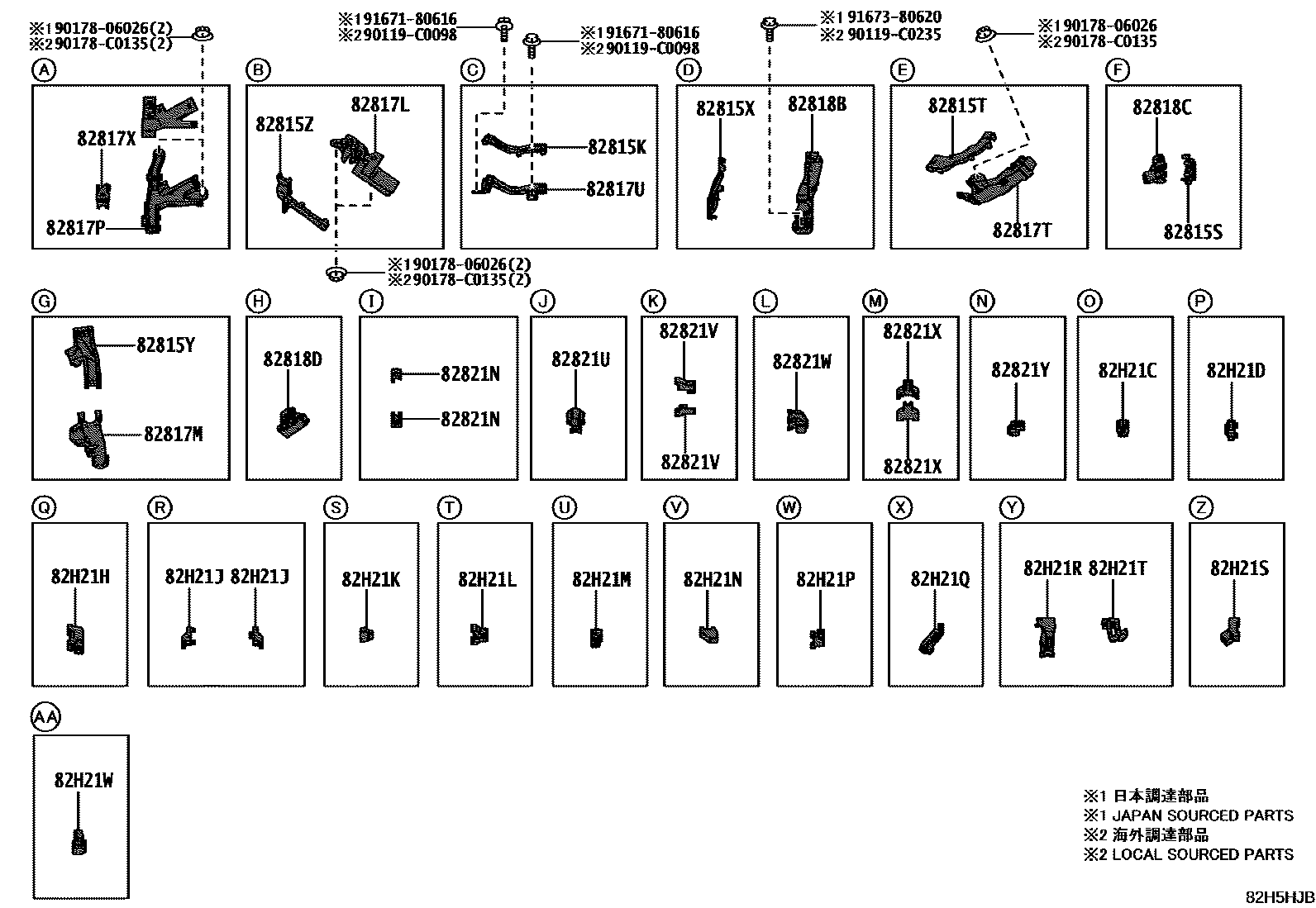

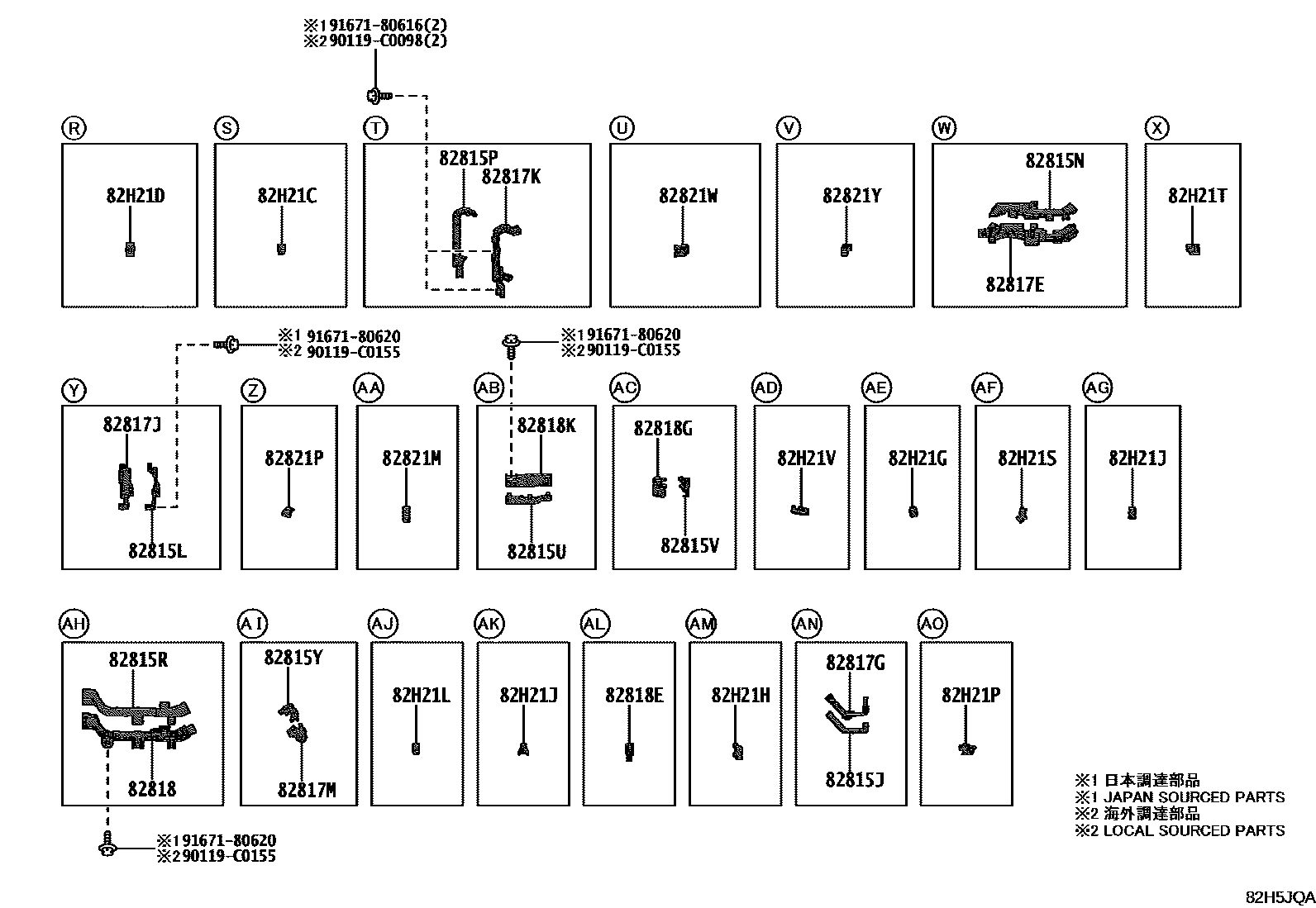

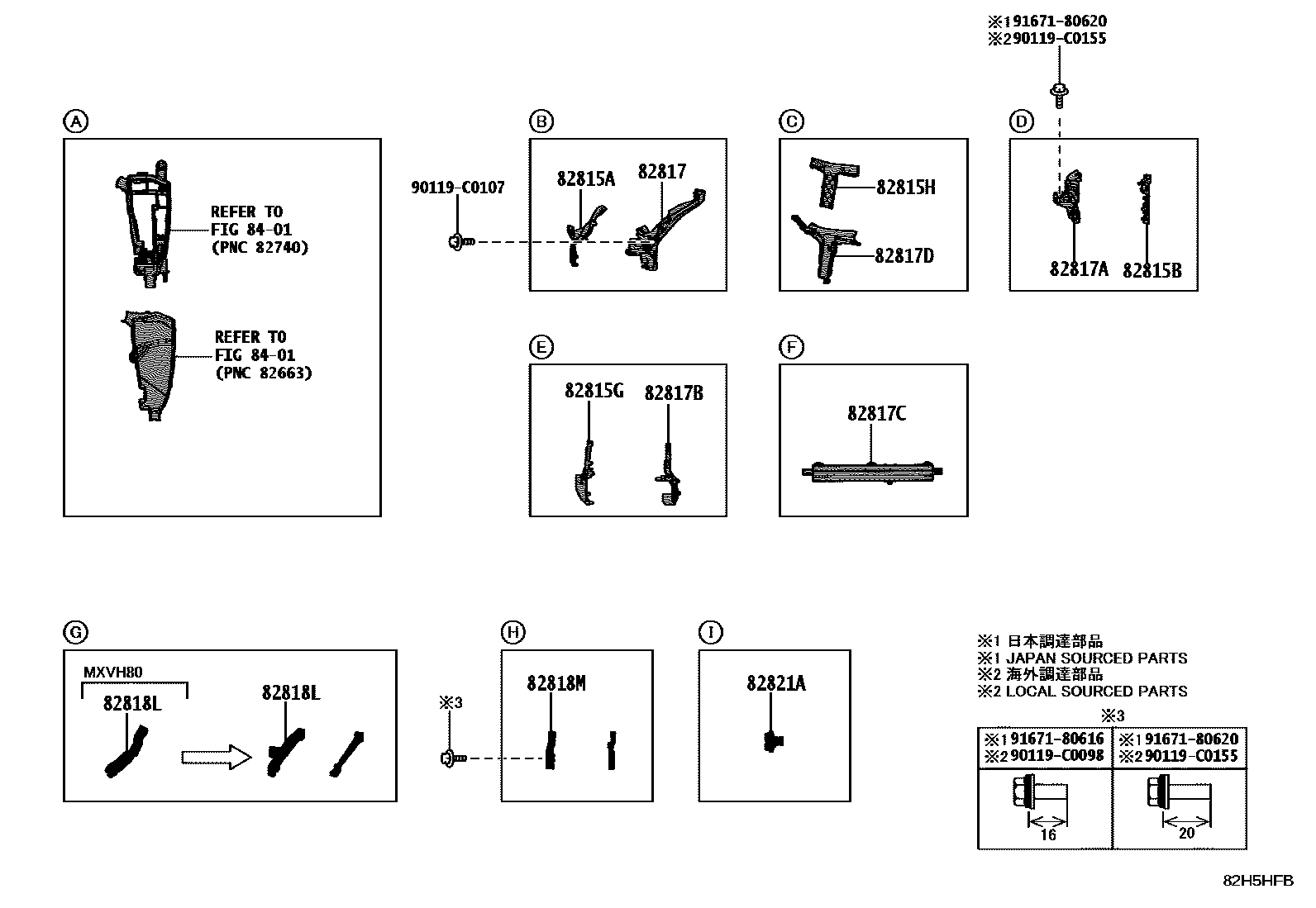

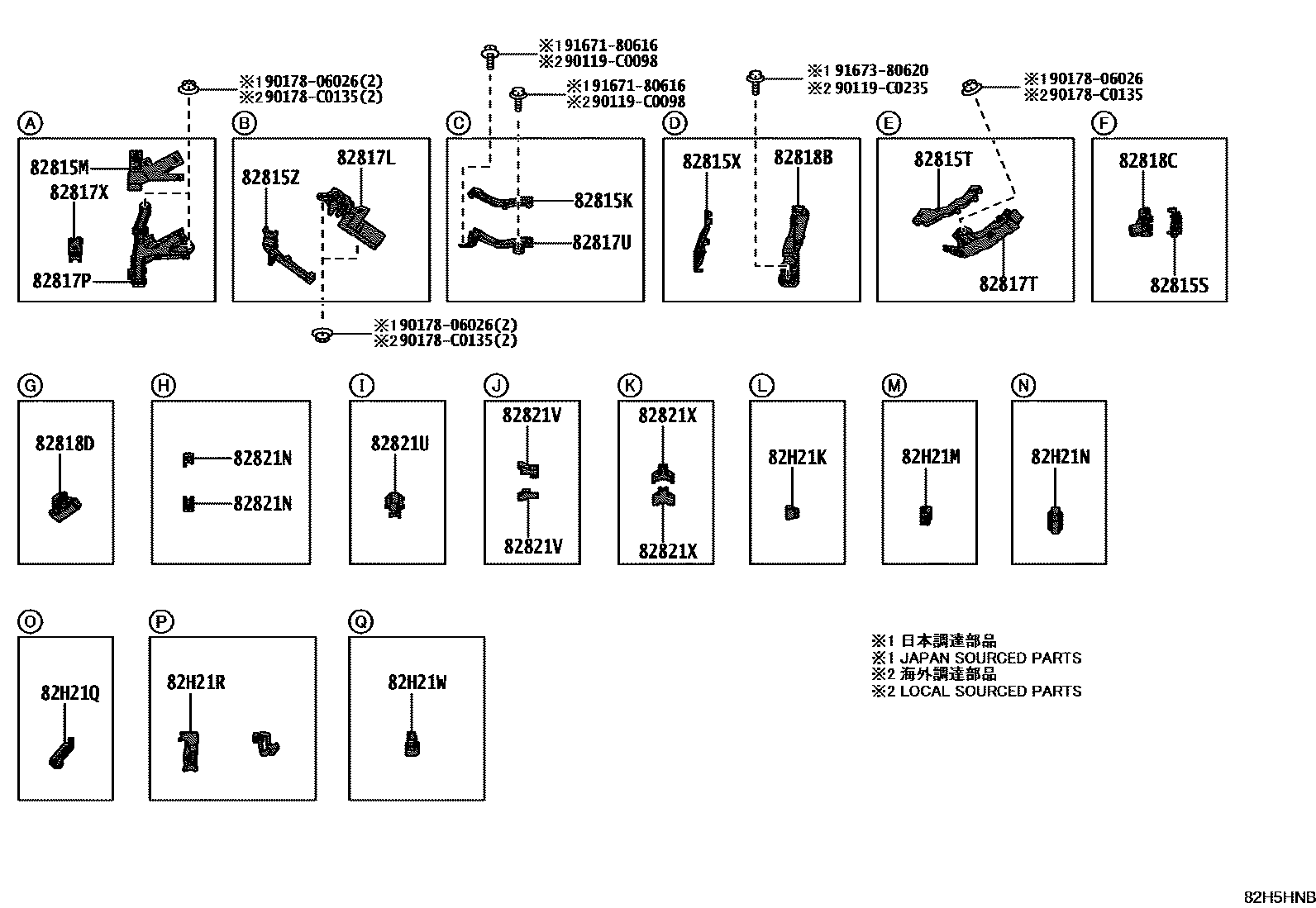

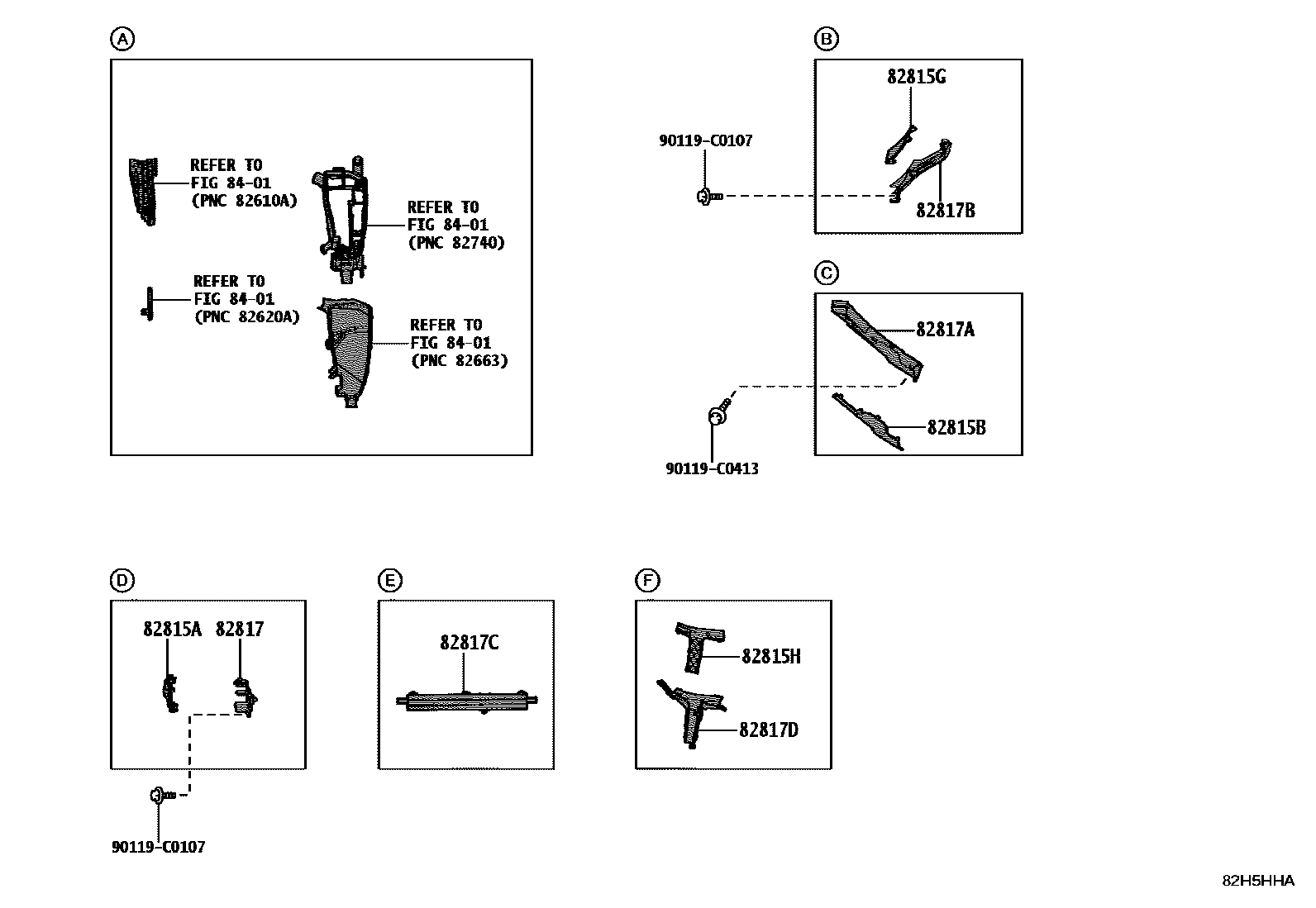

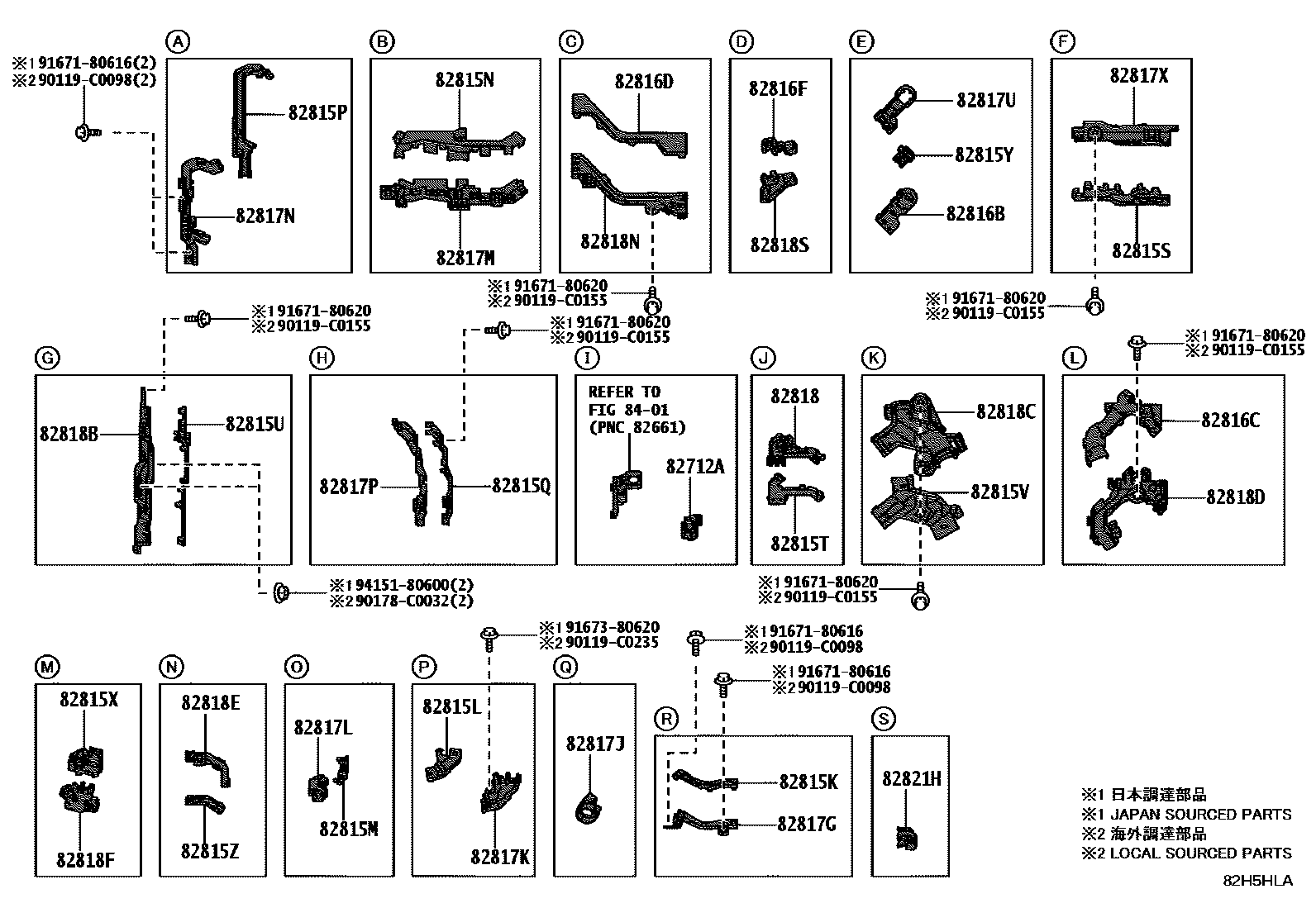

| 82815A | Wiring harness protector cover | 82815-33E00 · 82815-33E30 |
| 82815B | Wiring harness protector cover | 82815-33E10 · 82815-33Q80 |
| 82815G | No. 5 wire harness protector cover | 82815-33E20 · 82815-33R00 |
| 82815H | No. 6 wire harness protector cover | 82815-33K50 |
| 82815J | No. 7 wire harness protector cover | 82815-12E90 · 82815-33F60 |
| 82815K | No. 8 wire harness protector cover | 82815-33E80 |
| 82815L | No. 9 wire harness protector cover | 82815-16120 · 82815-33F70 · 82815-42810 |
| 82815M | No. 10 wire harness protector cover | 82815-33D10 · 82815-33G60 · 82815-42540 |
| 82815N | No. 11 wire harness protector cover | 82815-12D60 |
| 82815P | No. 12 wire harness protector cover | 82815-12B00 |
| 82815Q | No. 13 wire harness protector cover | 82815-06100 |
| 82815R | No. 14 wire harness protector cover | 82815-33E90 · 82815-33G70 |
| 82815S | No. 15 wire harness protector cover | 82815-33L30 · 82815-42740 |
| 82815T | No. 16 wire harness protector cover | 82815-33K00 · 82815-42750 |
| 82815U | No. 17 wire harness protector cover | 82815-42760 · 82815-76750 |
| 82815V | No. 1 wire harness protector cover | 82815-42770 · 82815-42C60 · 82815-76740 |
| 82815X | No. 3 wire harness protector cover | 82815-33F00 · 82815-42790 |
| 82815Y | No. 4 wire harness protector cover | 82815-33L00 · 82815-42520 |
| 82815Z | No. 18 wire harness protector cover | 82815-33D90 · 82815-33N00 |
| 82816B | No. 1 wire harness protector cover | 82815-33J10 |
| 82816C | No. 2 wire harness protector cover | 82815-42C70 |
| 82816D | No. 3 wire harness protector cover | 82815-12D80 |
| 82816F | No. 4 wire harness protector cover | 82815-12E80 |

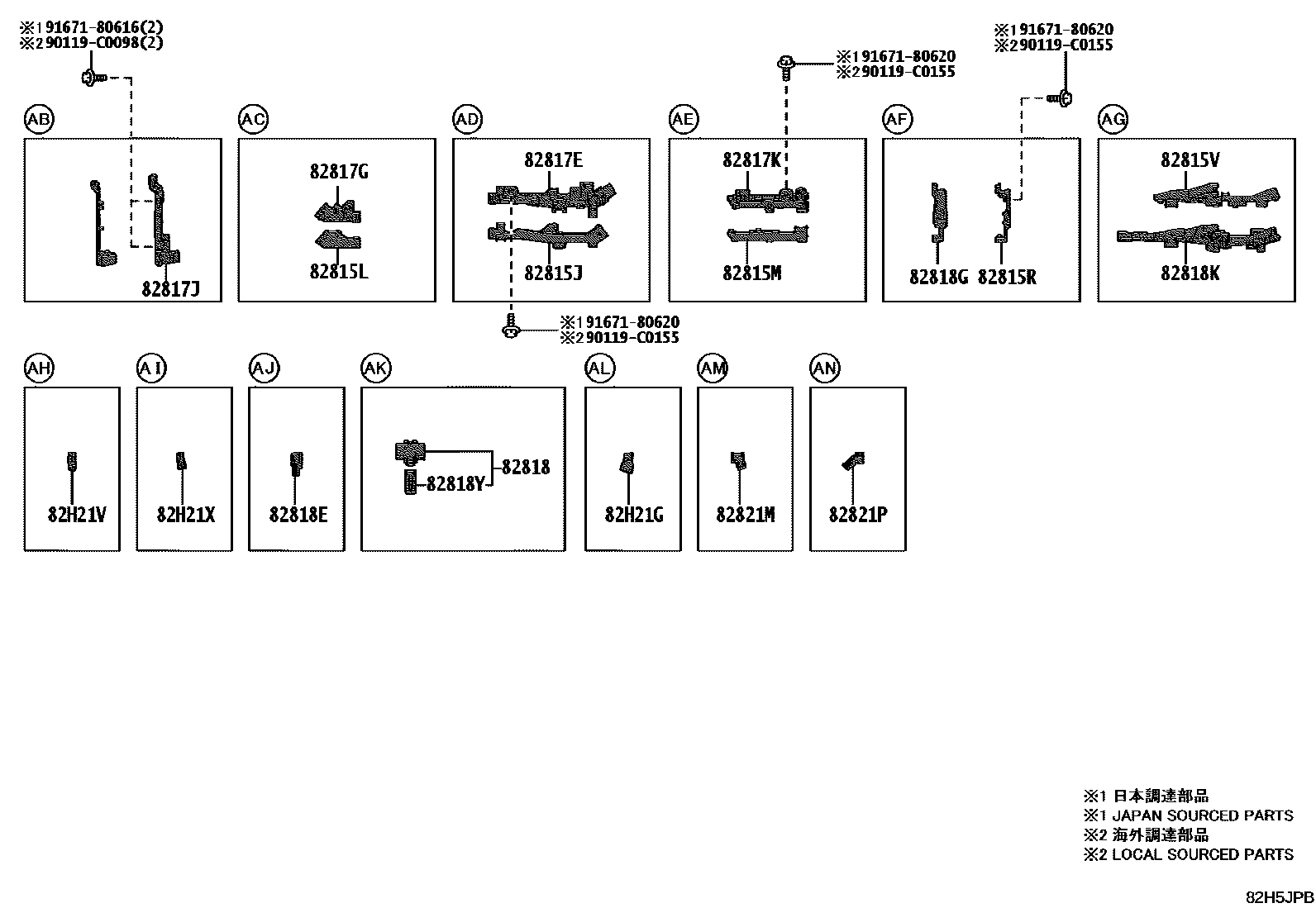

| 82817 | No. 1 wire harness protection device | 82817-33N30 · 82817-3T760 |
| 82817A | No. 2 wire harness protection device | 82817-33N40 · 82817-3T790 |
| 82817B | No. 3 wire harness protection device | 82817-33N60 · 82817-3T810 |
| 82817C | No. 4 wire harness protection device | 82817-33Y20 |
| 82817D | No. 5 wire harness protection device | 82817-33Y30 |
| 82817E | No. 6 wire harness protection device | 82817-12R60 · 82817-33R20 |
| 82817G | No. 8 wire harness protection device | 82817-12S90 · 82817-33R30 · 82817-33X40 |
| 82817J | No. 9 wire harness protection device | 82817-16860 · 82817-33S60 · 82817-42J70 |
| 82817K | No. 10 wire harness protection device | 82817-12V00 · 82817-33S20 · 82817-42J80 |
| 82817L | No. 11 wire harness protection device | 82817-3T290 · 82817-42F60 |
| 82817M | No. 12 wire harness protection device | 82817-12R60 · 82817-42F40 |
| 82817N | No. 13 wire harness protection device | 82817-12V00 |
| 82817P | No. 14 wire harness protection device | 82817-06240 · 82817-3T270 |
| 82817T | No. 15 wire harness protection device | 82817-3T520 |
| 82817U | No. 16 wire harness protection device | 82817-33S70 · 82817-33X40 |
| 82817X | No. 17 wire harness protection device | 82817-3T280 · 82817-42J10 |
| 82818 | No. 2 wire harness protection device | 82817-33Y50 · 82817-3T300 · 82817-42J20 |
| 82818B | No. 3 wire harness protection device | 82817-3T410 · 82817-42J30 |
| 82818C | No. 4 wire harness protection device | 82817-3T690 · 82817-42J40 |
| 82818D | No. 5 wire harness protection device | 82817-3T860 · 82817-42J50 |
| 82818E | No. 6 wire harness protection device | 82817-3T250 · 82817-42N60 |
| 82818F | No. 7 wire harness protection device | 82817-42J60 |
| 82818G | No. 8 wire harness protection device | 82817-3T490 · 82817-76540 |
| 82818K | No. 11 wire harness protection device | 82817-42P40 · 82817-76550 |
| 82818L | No. 12 wire harness protection device | 82817-0EM60 · 82817-3T660 |
| 82818M | No. 13 wire harness protection device | 82817-VT250 |
| 82818N | No. 14 wire harness protection device | 82817-12R80 |
| 82818S | No. 15 wire harness protection device | 82817-12S80 |
| 82818Y | No. 21 wire harness protection device | 82817-33Z40 |
| 82821A | Connector cover | 82821-0R140 |
| 82821H | Connector cover | 82821-33460 |
| 82821M | Connector cover | 82821-12600 · 82821-33A50 |
| 82821N | Connector cover | 82821-12710 |
| 82821P | Connector cover | 82821-12780 · 82821-20510 |
| 82821U | Connector cover | 82821-28420 |
| 82821V | Connector cover | 82821-30600 |
| 82821W | Connector cover | 82821-33460 |
| 82821X | Connector cover | 82821-33490 |
| 82821Y | Connector cover | 82821-33590 |
| 82H21C | Connector cover | 82821-33610 |
| 82H21D | Connector cover | 82821-33650 |
| 82H21G | Connector cover | 82821-33660 · 82821-33A60 |
| 82H21H | Connector cover | 82821-33690 |
| 82H21J | Connector cover | 82821-33700 |
| 82H21K | Connector cover | 82821-33750 |
| 82H21L | Connector cover | 82821-33780 |
| 82H21M | Connector cover | 82821-33810 |
| 82H21N | Connector cover | 82821-33860 |
| 82H21P | Connector cover | 82821-33A40 |
| 82H21Q | Connector cover | 82821-33B80 |
| 82H21R | Connector cover | 82821-33C00 |
| 82H21S | Connector cover | 82821-50510 |
| 82H21T | Connector cover | 82821-42360 · 82821-60670 |
| 82H21V | CACHE, CONNECTEUR | 82821-76100 · 82821-78050 |
| 82H21W | CACHE, CONNECTEUR | 82821-V1030 |
| 82H21X | CACHE, CONNECTEUR | 82821-33840 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-06090 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-06100 |
| 89348X | Front corner ultrasonic sensor clip | 89348-06380 · 89348-50050 |
| 89348Y | Rear corner ultrasonic sensor clip | 89348-06380 · 89348-50050 |
