Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

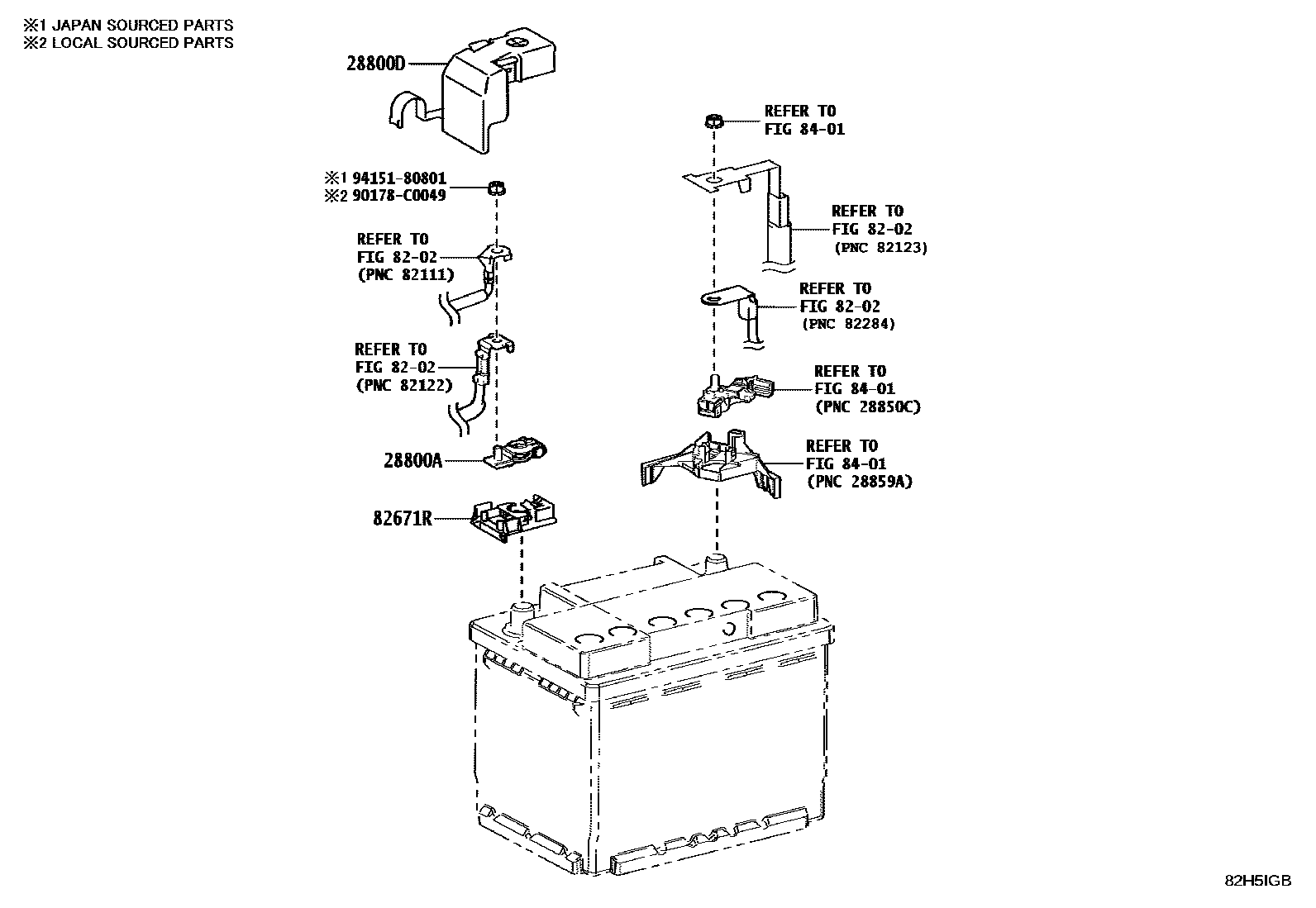

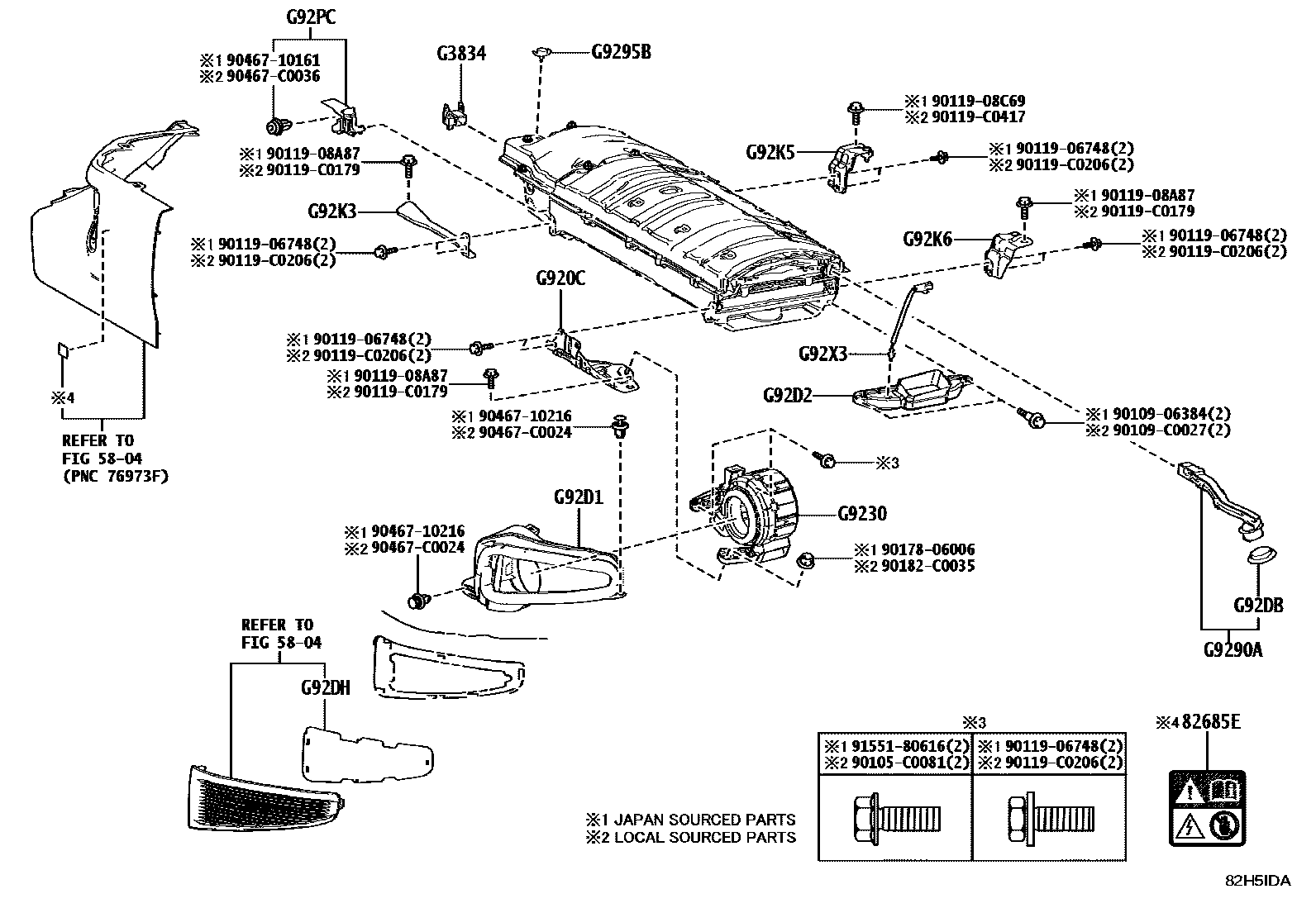

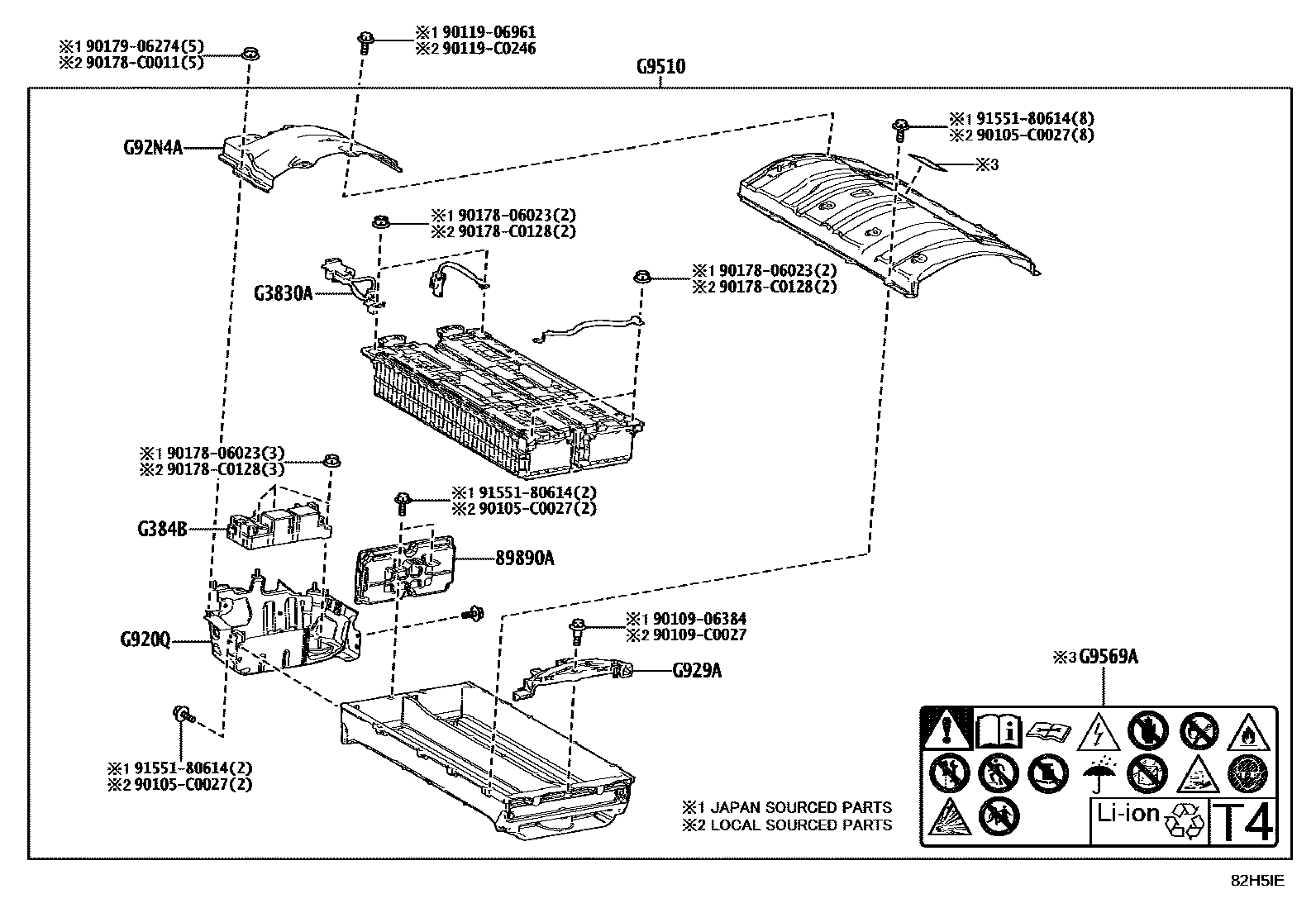

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05053 · 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82621-06130 · 82821-33440 |
| 28885B | battery hose | 28885-F0130 |
| 82671R | battery terminal block | 82671-33090 · 82671-33100 |
| 82685E | Maintenance plug warning nameplate | G9118-33030 |
| 89890A | Battery ECU assembly | 89890-06010 |
| G3830A | Electric vehicle battery plug assembly | G3830-06010 |
| G3834 | Service plug handle | G3834-02010 |
| G384B | Power battery device box No. 1 | G384B-33010 |
| G920C | HV battery bracket No. 2 bracket sub-assembly | G920C-06030 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-06010 |
| G9230 | Battery cooling blower assembly | G9230-06020 |
| G9290A | HV battery hose assembly | G9290-06030 |
| G9295B | Battery cover lock | G9295-02010 |
| G929A | HV battery hose No. 1 | G929A-06010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06180 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06110 |
| G92DB | No. 1 HV battery seal | G92DB-06050 |
| G92DH | No. 1 HV battery air intake filter | G92DH-06010 |
| G92K3 | HV Battery Bracket No. 1 Bracket | G92K3-06030 |
| G92K5 | HV battery bracket No. 3 bracket | G92K5-06020 |
| G92K6 | HV Battery Bracket No. 4 Bracket | G92K6-06020 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-06030 |
| G92PC | No. 1 HV battery protective cover | G92PC-06010 |
| G92X3 | No. 3 HV battery pack wiring harness | G92X3-06010 |
| G9510 | HV power supply battery assembly | G9510-06040 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-06020 |
