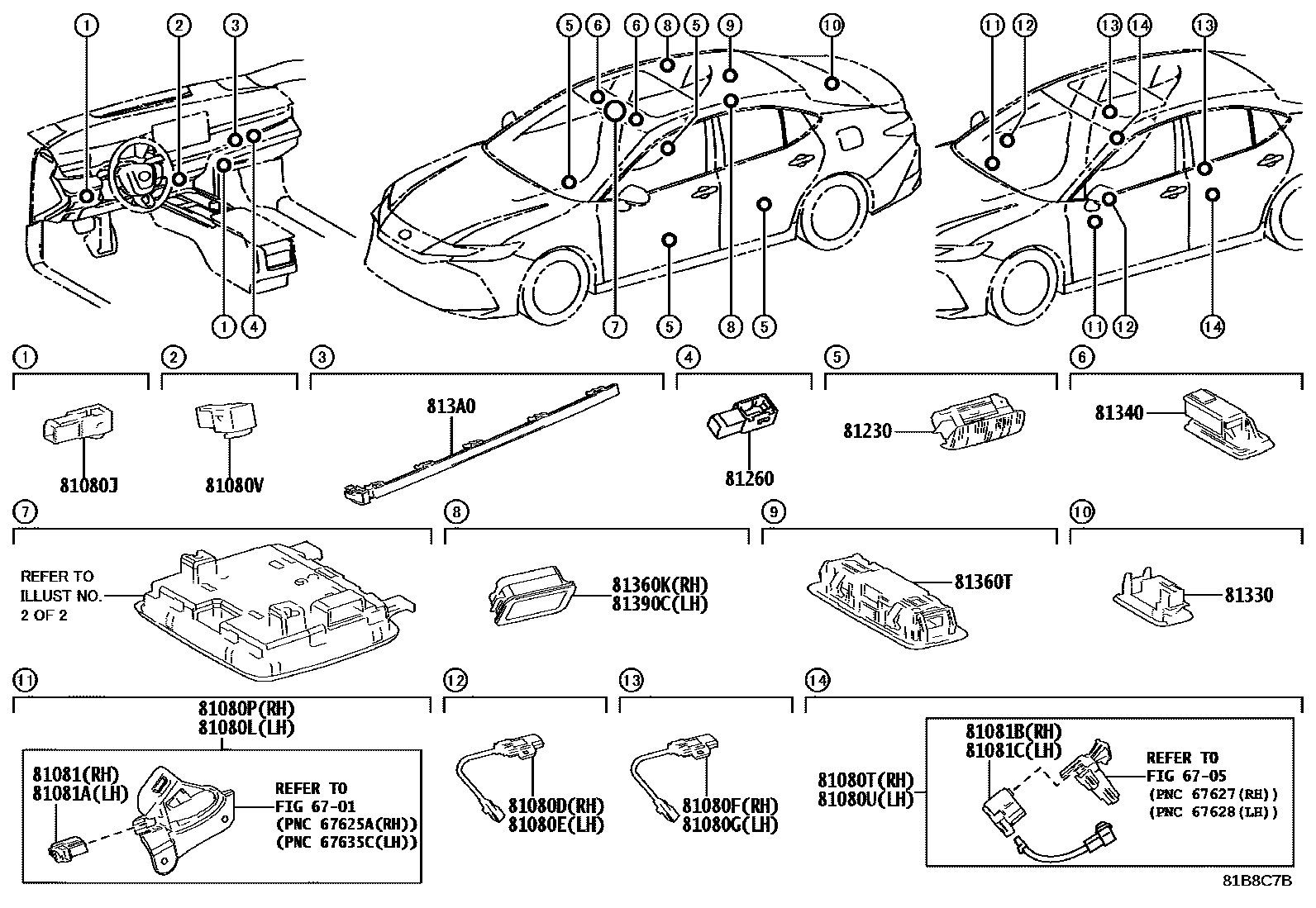

Toyota CAMRY 车内灯 — Figure 8121
Toyota CAMRY EPC diagram 8121, 车内灯, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080D | Right front door inner handle lighting assembly | 81080-06630 · 81080-06750 |
| 81080E | Left front door inner handle lighting assembly | 81080-06650 · 81080-06760 |
| 81080F | Right rear door inner handle lighting assembly | 81080-06630 · 81080-06750 |
| 81080G | Left rear door inner handle lighting assembly | 81080-06650 · 81080-06760 |
| 81080J | No. 1 interior lighting assembly | 81080-06620 · 8130A-06060 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-06790 · 81080-06830 · 81080-06870 |
| 81080P | Right No. 1 interior lighting assembly | 81080-06780 · 81080-06820 · 81080-06860 |
| 81080T | Right No. 2 interior lighting assembly | 81080-06640 · 81080-06800 · 81080-06840 |
| 81080U | No. 2 interior lighting assembly on the left | 81080-06660 · 81080-06810 · 81080-06850 |
| 81080V | No. 2 interior lighting assembly | 81080-06600 · 81080-06770 |
| 81081 | Interior lighting sub-assembly | 81081-06010 · 81081-06130 · 81081-06170 |
| 81081A | No. 2 interior lighting sub-assembly | 81081-06020 · 81081-06140 · 81081-06180 |
| 81081B | No. 3 interior lighting sub-assembly | 81081-06030 · 81081-06150 · 81081-06190 |
| 81081C | No. 4 interior lighting sub-assembly | 81081-06040 · 81081-06160 · 81081-06200 |
| 81230 | Door control light assembly | 81230-0E031 |
| 81260 | Glove box light assembly | 81080-06570 |

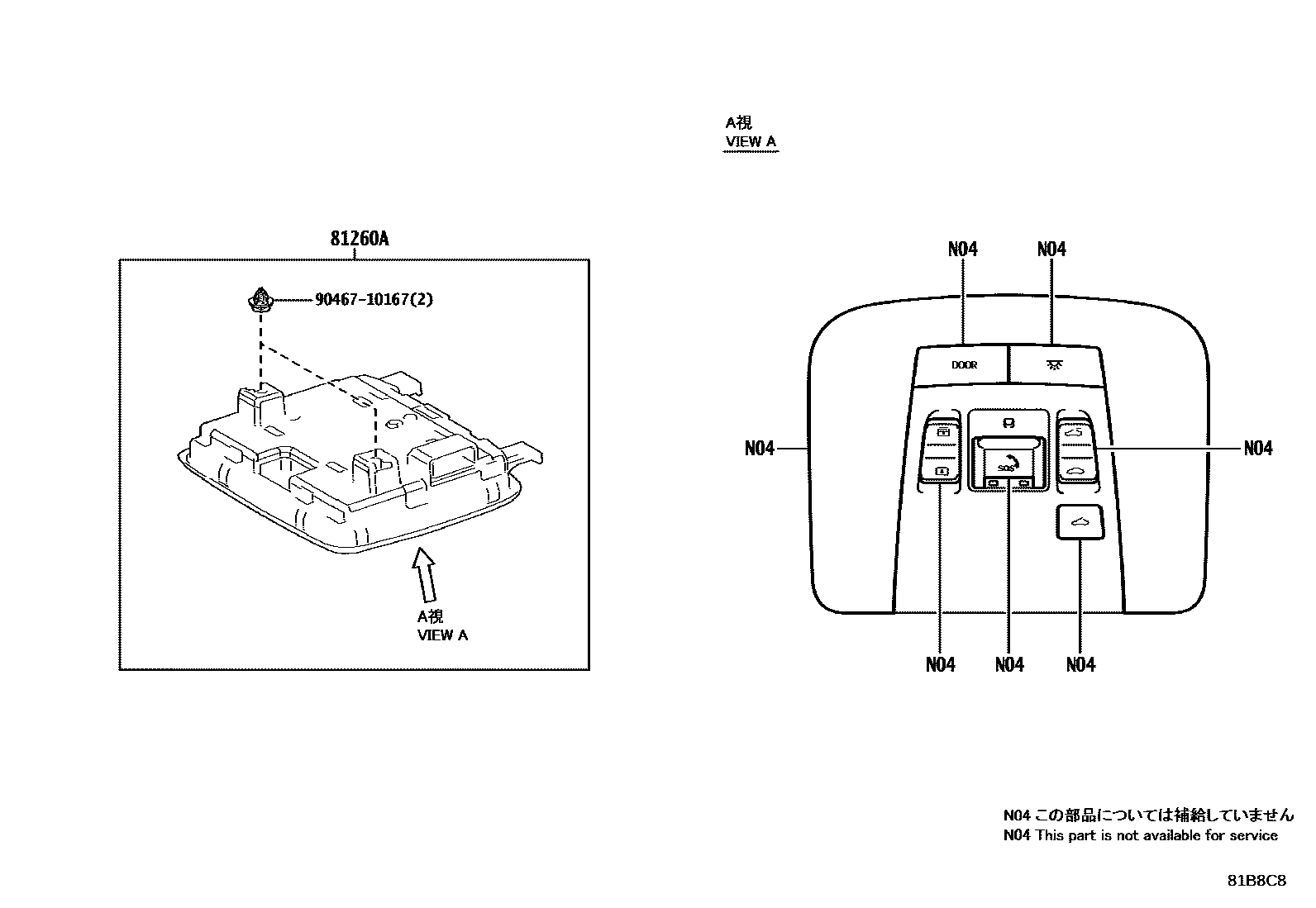

| 81260A | Reading light assembly | 63650-06650 · 63650-06C50 · 63650-06C60 |
| 81330 | No. 1 trunk light assembly | 81330-0E031 |
| 81340 | Vanity light assembly | 81340-0E010 |
| 813A0 | Dashboard light assembly | 813A0-06020 · 813A0-06030 |
