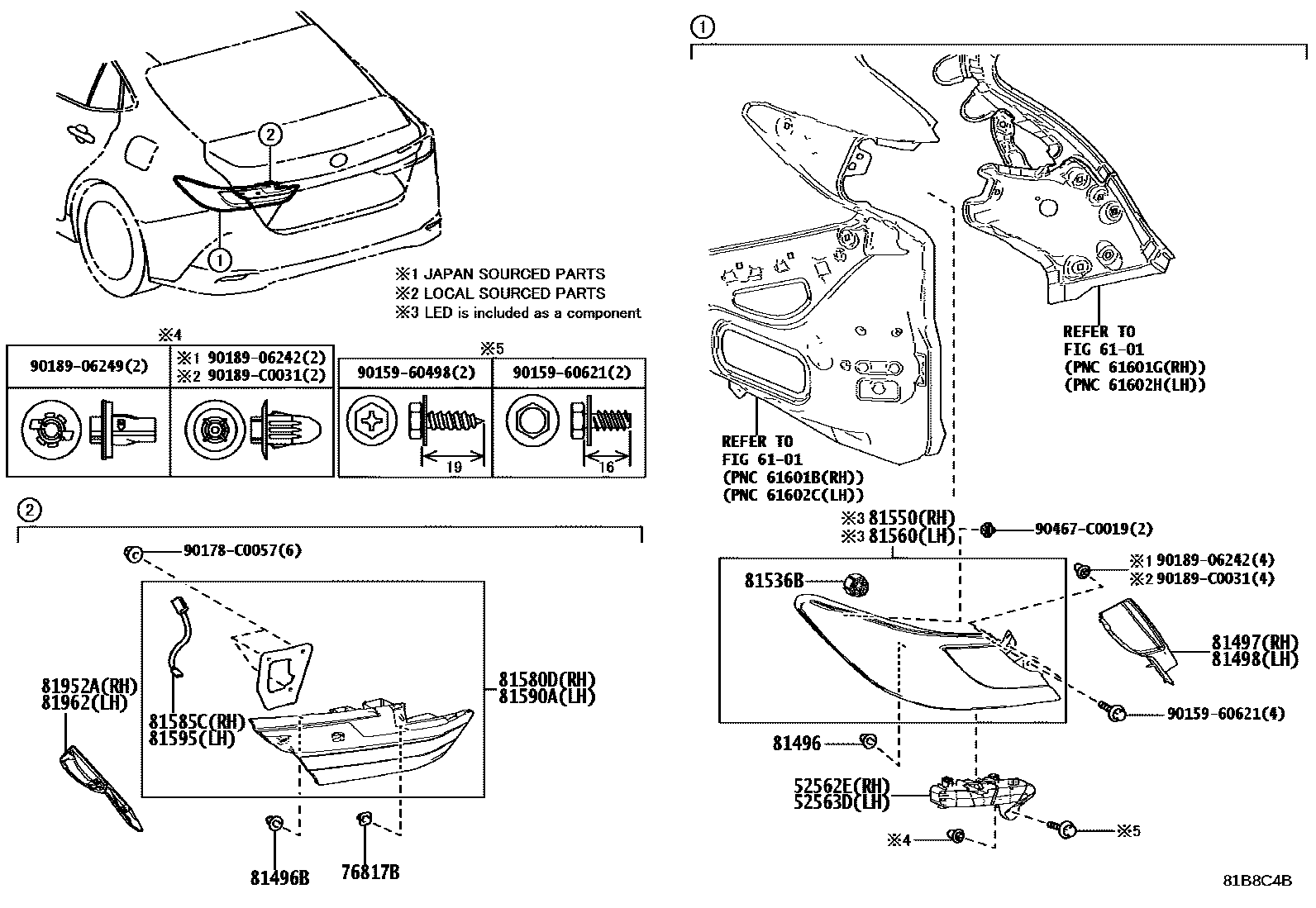

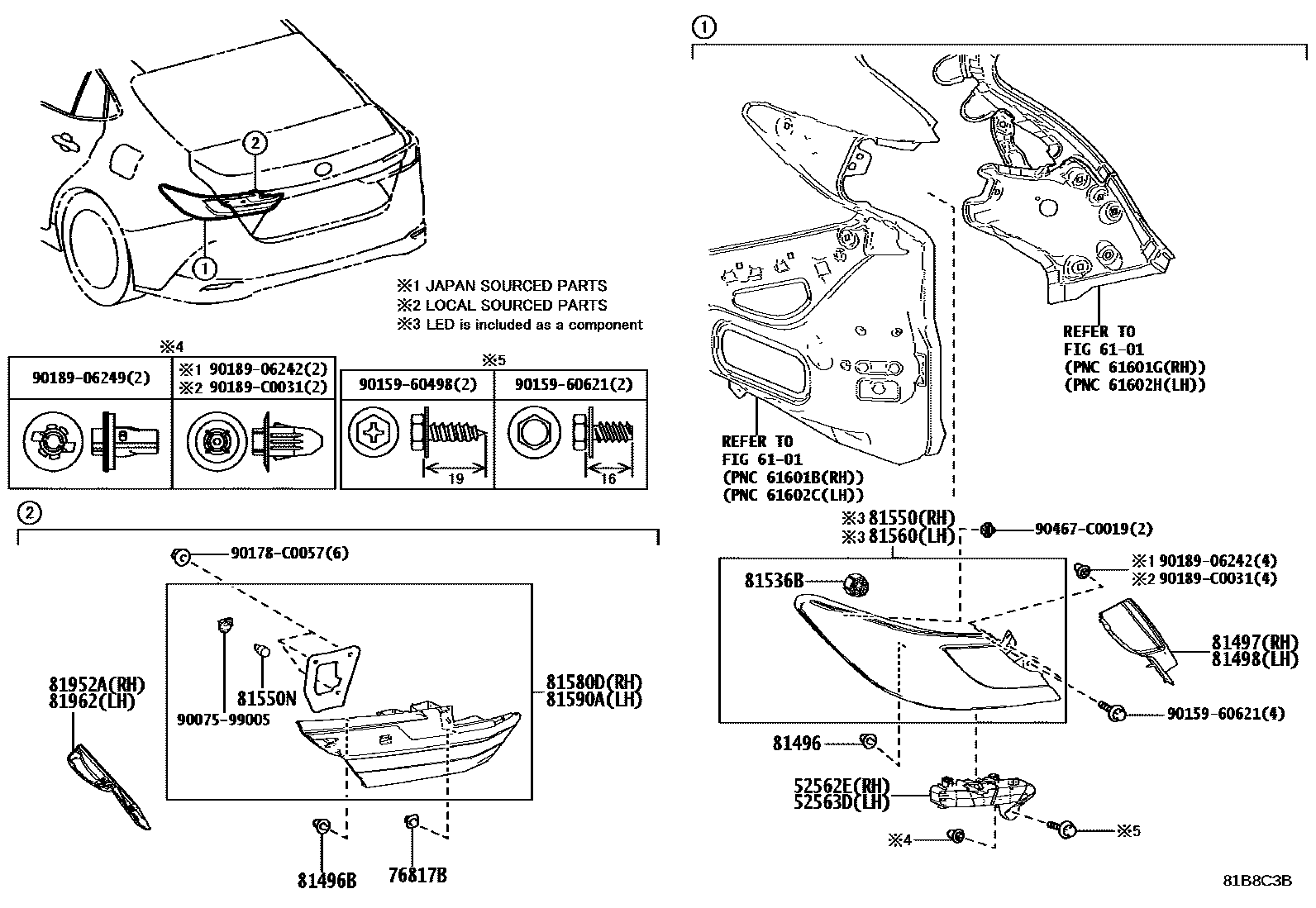

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-06190 |
| 52563D | Rear bumper upper left fixing bracket | 52563-06100 |
| 76817B | Rear light clip | 76817-26040 · 90467-C0083 |
| 81496 | Rear combination light guide block | 81496-0D030 |
| 81496B | Rear light guide block | 81496-0D030 · 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-06060 |
| 81498 | Left rear combination lamp cover | 81498-06060 |
| 81536B | LED rear turn signal light | 81965-33010 |
| 81550 | Right rear combination light assembly | 81550-06B30 · 81550-06B40 |
| 81550N | reversing light bulb | 90981-11059 |
| 81560 | Left rear combination light assembly | 81560-06B30 · 81560-06B40 |
| 81580D | Right rear light assembly | 81580-06A40 · 81580-06A50 · 81580-06A51 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-06A50 |
| 81590A | Left rear light assembly | 81590-06A20 · 81590-06A30 · 81590-06A31 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-06A30 |
| 81952A | Right rear light cover | 81952-06060 |
| 81962 | Left rear light cover | 81962-06060 |
