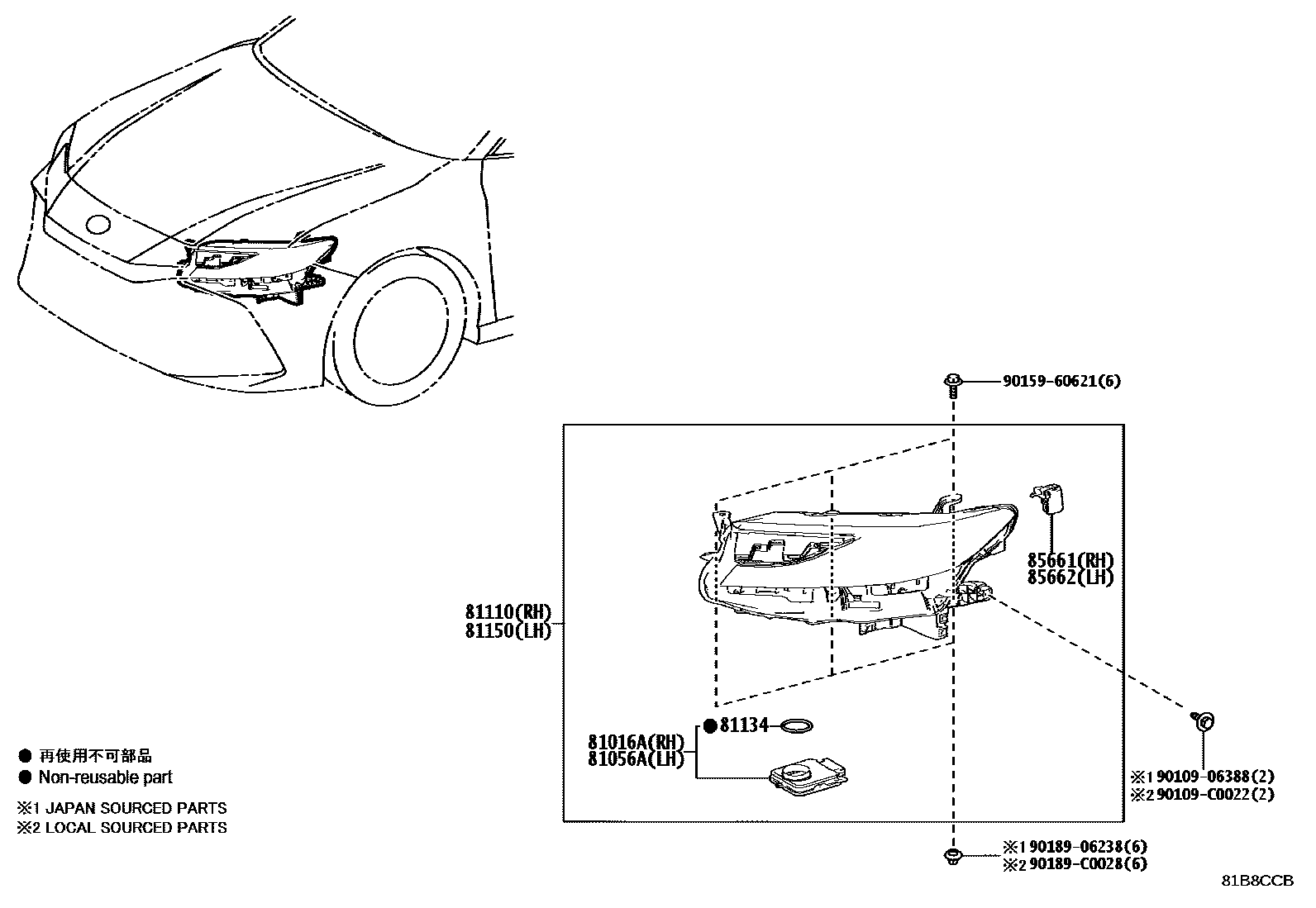

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-06G90 |
| 81056A | Left headlight ECU sub-assembly | 81056-06G80 |
| 81110 | Right headlight assembly | 81110-06F70 · 81110-06G80 · 81110-06G90 |
| 81134 | headlight gasket | 90075-23003 |
| 81150 | Left headlight assembly | 81150-06C30 · 81150-06E00 · 81150-06G80 |
| 85661 | Right headlight beam height adjustment motor | 85661-06020 |
| 85662 | Left headlight beam height adjustment motor | 85661-06020 |
