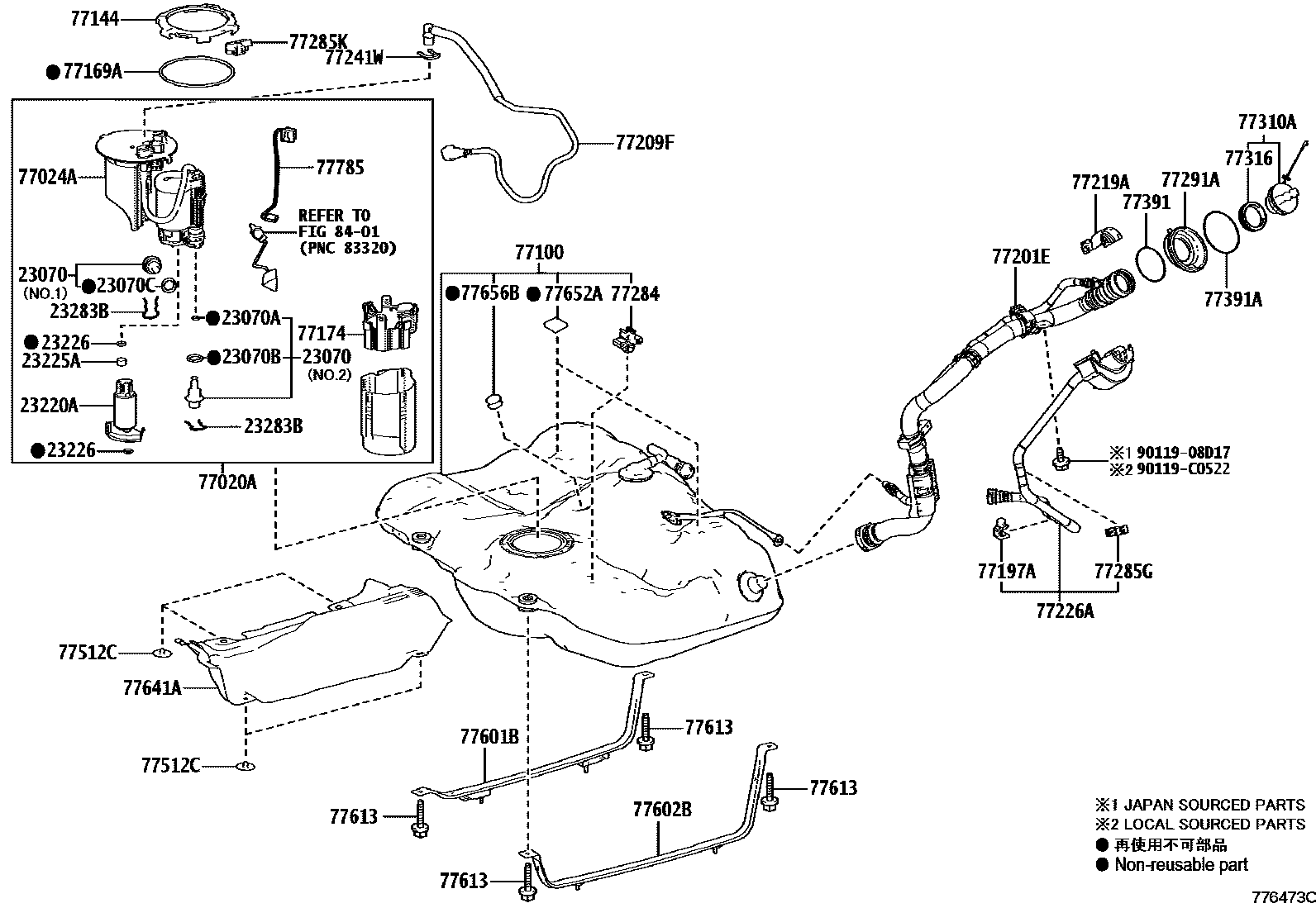

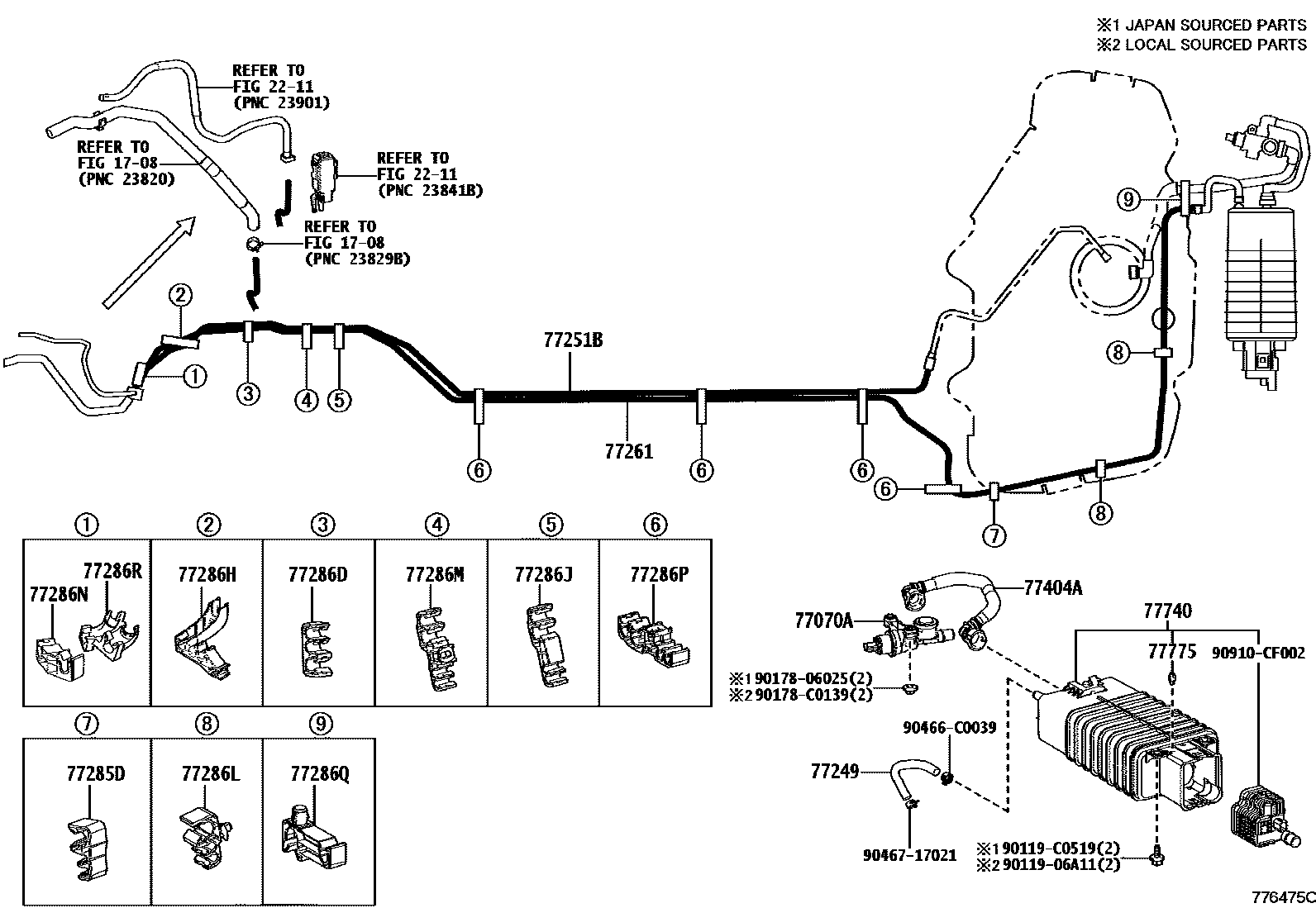

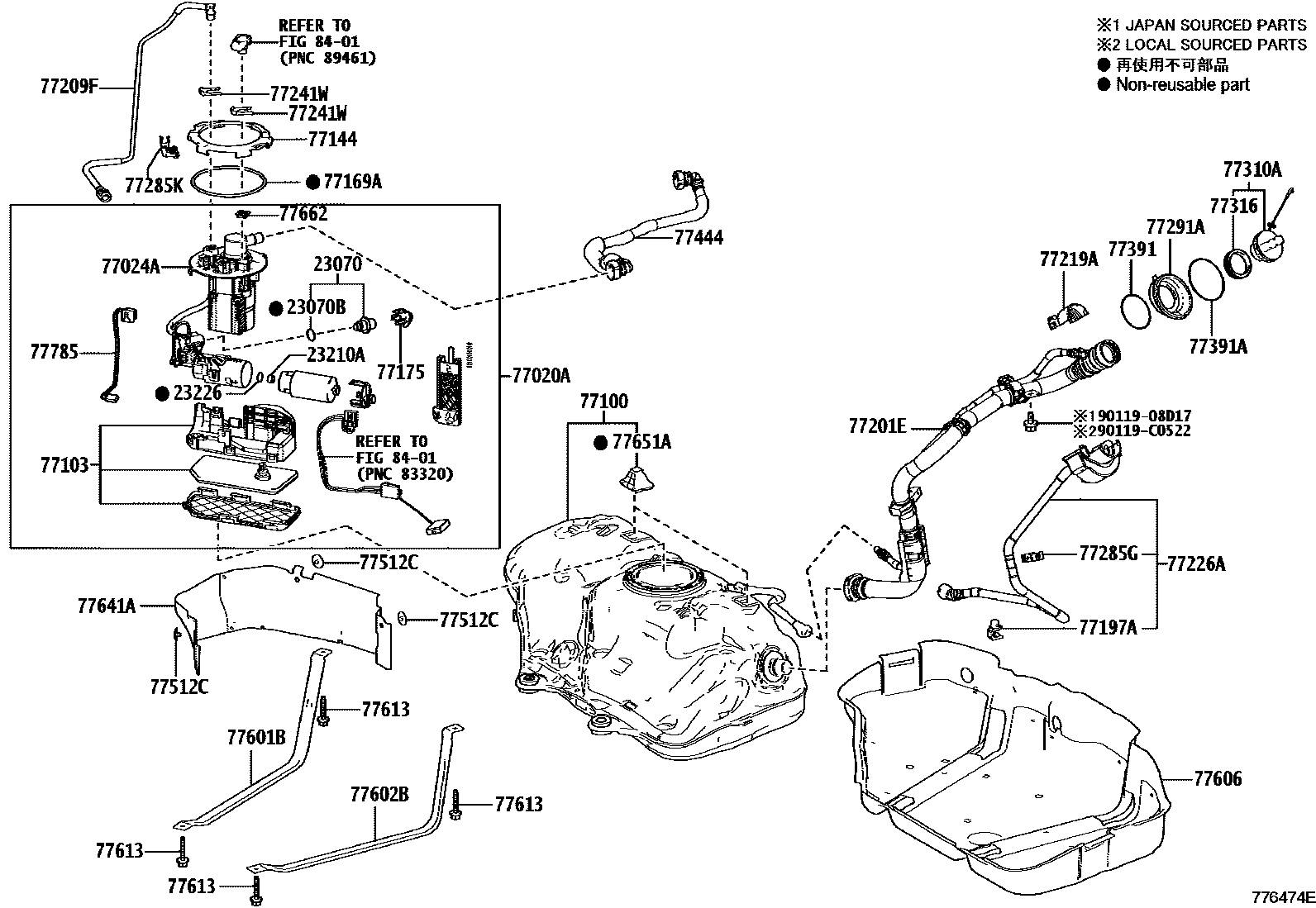

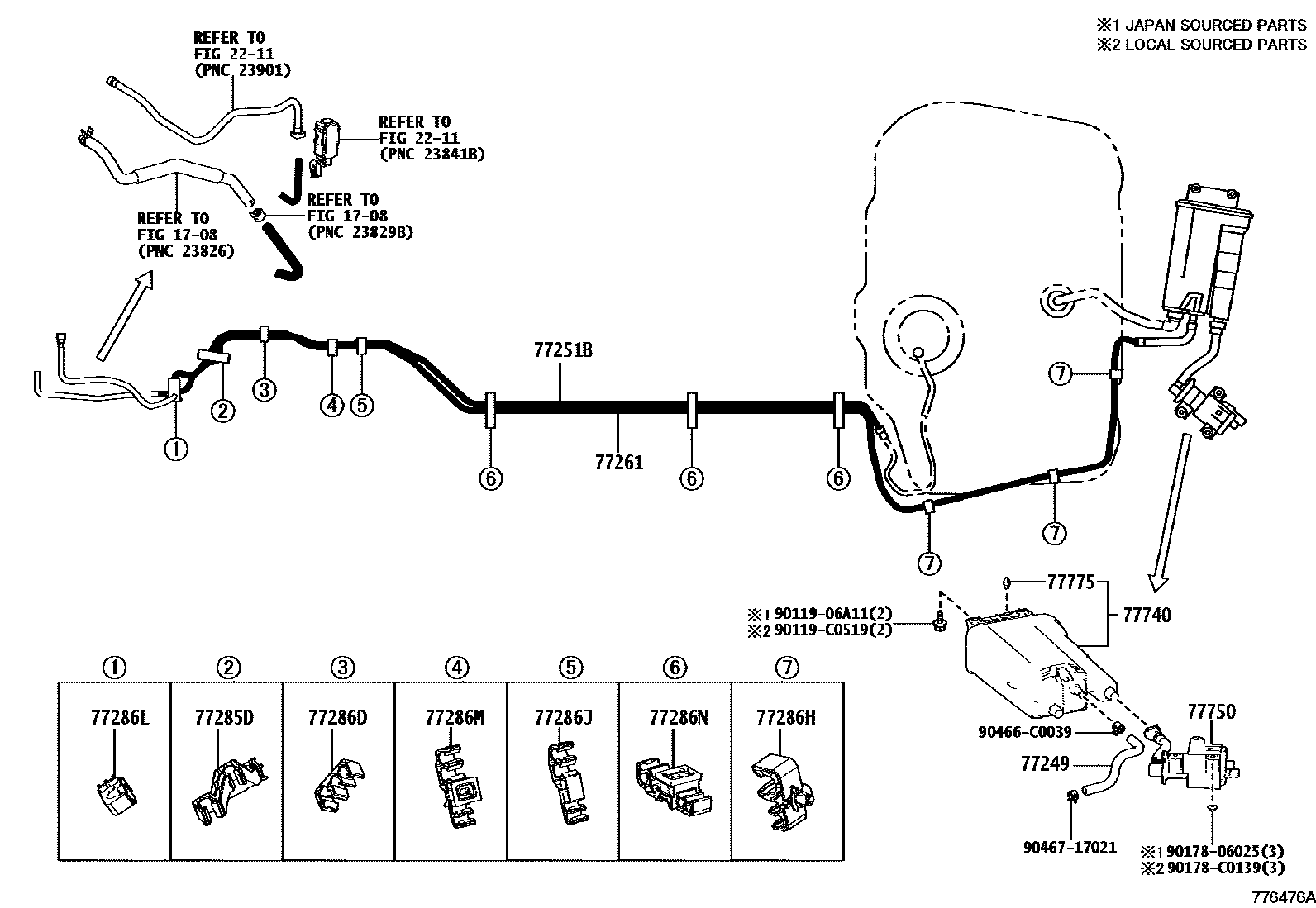

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 5 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-25020 · 23070-31030 · 23070-F0030 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-04013 |
| 23070B | No. 2 O-ring (for main fuel valve) | 90301-15024 |
| 23070C | No. 3 O-ring (for main fuel valve) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-F0020 · 23210-F2040 |
| 23220A | Fuel pump assembly with filter | 23220-F0030 |
| 23225A | fuel pump septum | 23225-F0030 |
| 23226 | O-ring (for fuel pump) | 90301-C0034 · 90301-C0073 |
| 23283B | Fuel pressure regulator mount | 23283-36010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06481 · 77020-06482 · 77020-06720 |
| 77024A | Fuel absorber sub-assembly | 77024-06340 · 77024-06441 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-06030 · 77030-06040 |
| 77070A | Closed fuel tank valve assembly | 90910-15089 · 90910-CE004 · 90910-CE006 |
| 77100 | fuel tank assembly | 77001-06380 · 77001-06390 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-F4041 |
| 77144 | Fuel pump instrument fixture | 77144-06010 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-47030 |
| 77174 | No. 1 oil suction pipe bracket | 77174-06120 |
| 77175 | No. 2 oil suction pipe bracket | 77175-F4020 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-06100 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06380 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06080 · 77209-06260 |
| 77219A | Fuel tank filler pipe cap | 77219-0D130 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06320 · 77226-06330 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-06180 · 77249-06190 |
| 77251B | main fuel pipe | 77251-06550 · 77251-06560 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06610 · 77261-06620 |
| 77284 | Fuel pipe clamp | 77289-06190 |
| 77285D | No. 1 fuel pipe clamp | 77285-06530 · 77285-06550 |
| 77285G | No. 1 fuel pipe clamp | 77285-06580 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77285-0R170 |
| 77286H | No. 3 fuel pipe clamp | 77285-06600 · 77285-0R220 |
| 77286J | No. 4 fuel pipe clamp | 77298-02270 |
| 77286L | No. 5 fuel pipe clamp | 77285-0R220 · 77298-06350 |
| 77286M | No. 6 fuel pipe clamp | 77298-02260 · 77298-06360 |
| 77286N | No. 7 fuel pipe clamp | 77298-06320 · 77298-06390 |
| 77286P | No. 8 fuel pipe clamp | 77298-06330 |
| 77286Q | No. 9 fuel pipe clamp | 77298-06340 |
| 77286R | No. 10 fuel pipe clamp | 77298-06430 |
| 77291A | Fuel tank filler pipe cover | 77291-06211 |
| 77310A | Fuel tank cap assembly | 77300-06110 · 77300-0R010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-06150 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 |
| 77378A | Fuel filler cap lock cover | 77378-06010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-06030 |
| 77391 | fuel inlet ring | 77391-0R080 |
| 77391A | fuel inlet ring | 77391-33060 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-06370 |
| 77444 | fuel tank vent hose | 77404-06360 |
| 77512C | fuel tank bracket | 77512-06040 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06160 · 77601-06170 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06170 · 77602-06200 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-06100 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 · 90119-C0526 |
| 77641A | No. 1 fuel tank protective shell | 77606-06040 · 77641-06020 |
| 77651A | No. 1 fuel tank liner | 77651-06190 |
| 77652A | No. 2 fuel tank liner | 77652-33060 |
| 77656B | No. 6 fuel tank liner | 77656-06050 |
| 77662 | fuel tank cover | 77662-48010 |
| 77740 | Carbon canister assembly | 77740-06301 · 77740-F4030 |
| 77750 | Carbon canister assembly | 77730-06051 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-06190 · 77785-06210 · 77785-76010 |
