Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 3 images and 29 PNC and OE references.

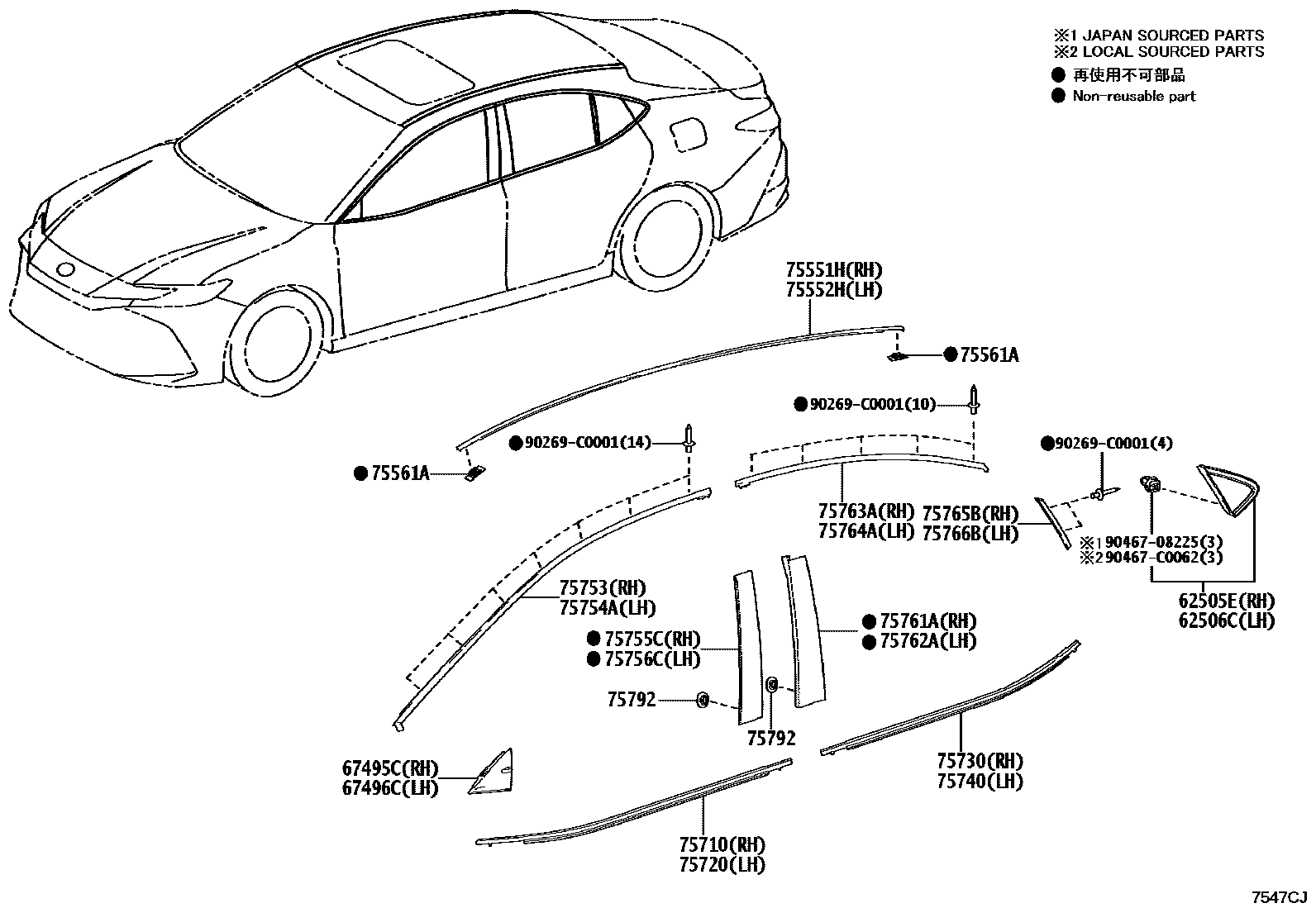

Toyota CAMRY 侧防护条 EPC diagram — 7547CJA
侧防护条 — 7547CJA (202403 – 999999)

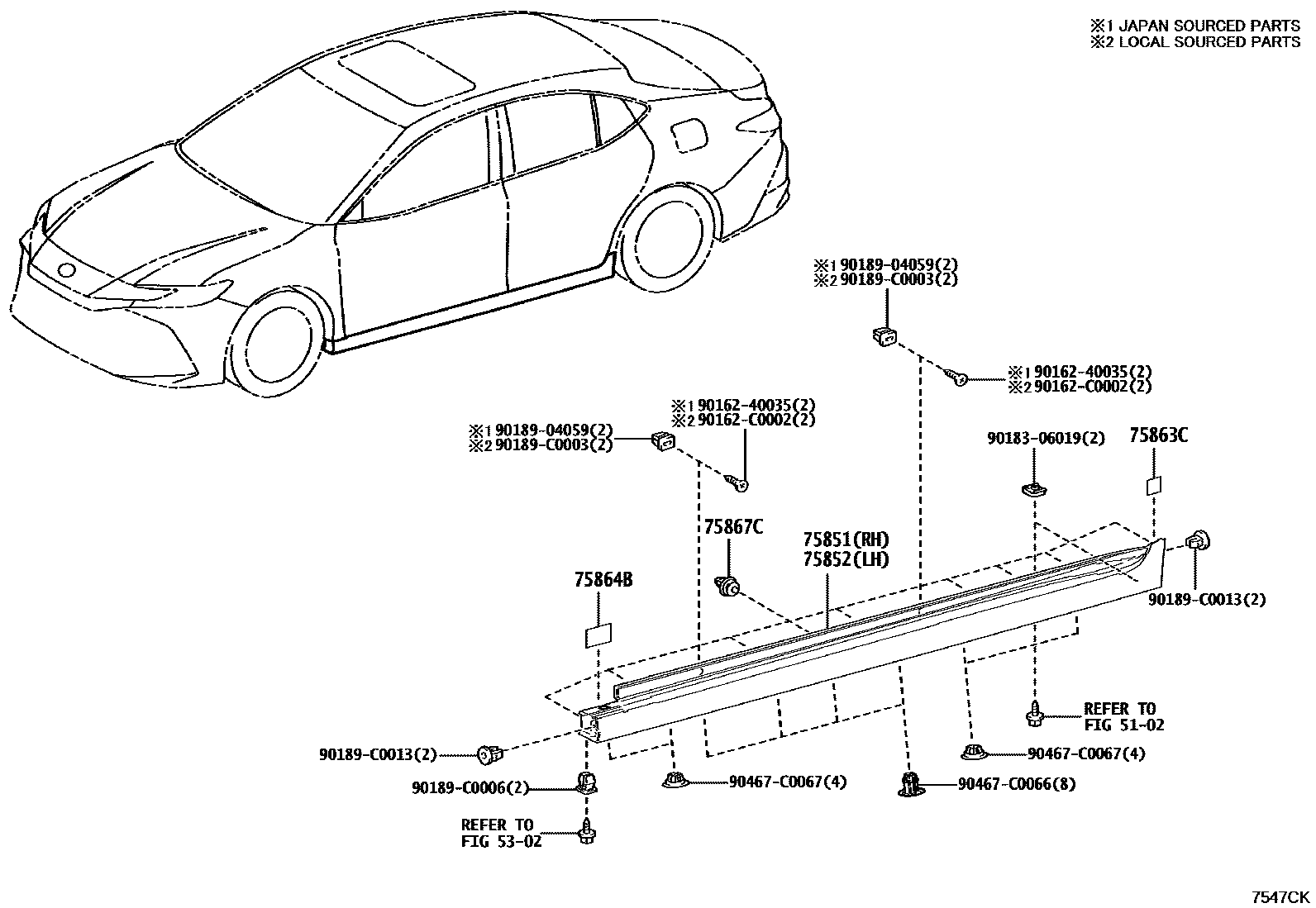

Toyota CAMRY 侧防护条 EPC diagram — 7547CK
侧防护条 — 7547CK (202403 – 999999)

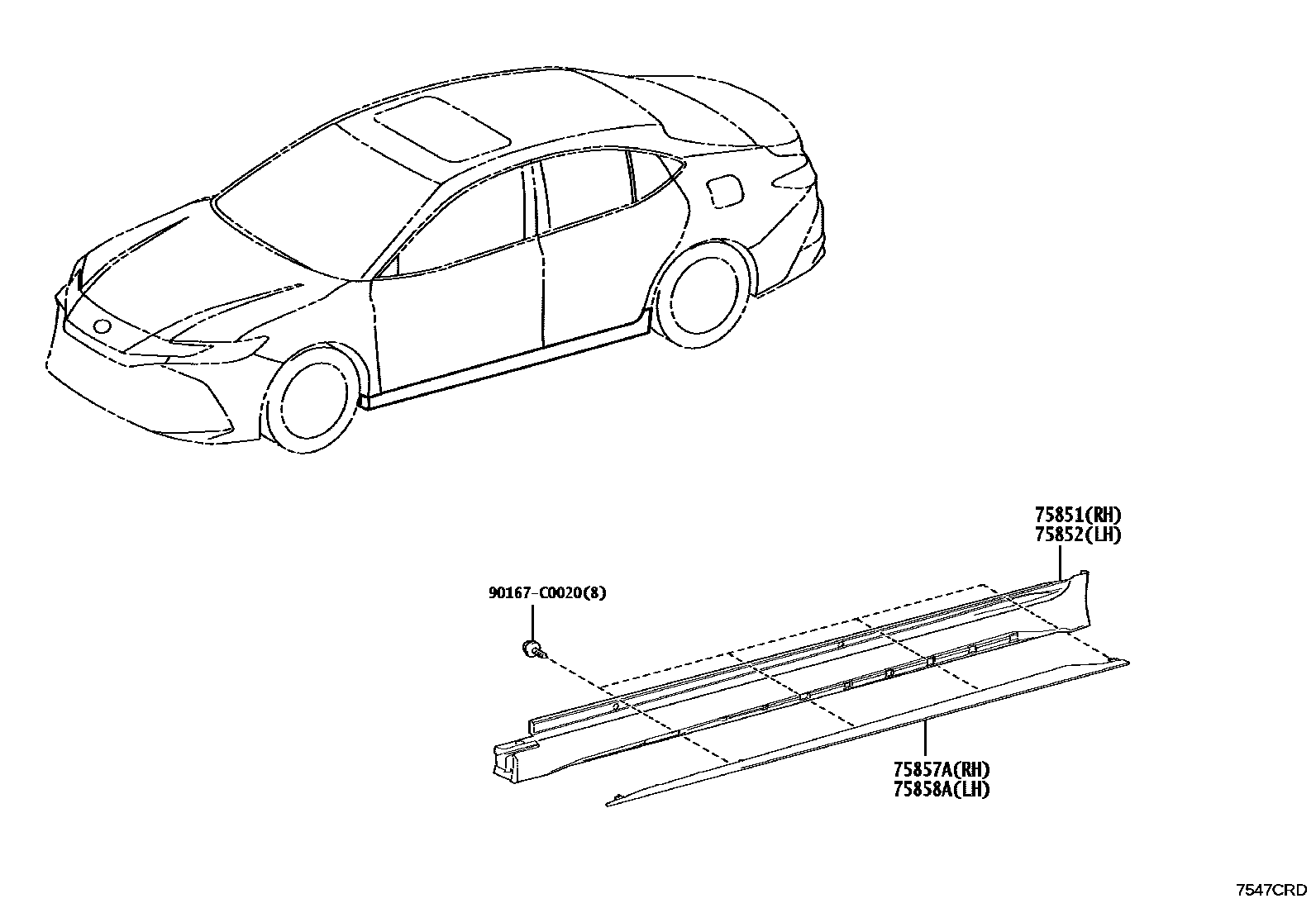

Toyota CAMRY 侧防护条 EPC diagram — 7547CRD
侧防护条 — 7547CRD (202403 – 999999)

PNC and OE references

PNCPart nameOE numbers
62505ERight corner window pillar cover sub-assembly62505-06010 · 62505-06020
62506CLeft corner window pillar cover sub-assembly62506-06010 · 62506-06020
67495CRight front door front lower door frame upper cover67495-06080
67496CLeft front door front lower door frame upper cover67496-06080
75551HDrainage groove side on the right side of the roof75555-06130 · 75555-06190
75552HDrainage channel side protection strip on the left side of the roof75556-06130 · 75556-06190
75561ARoof drain channel side decorative strip clip75561-52040
75710Right front door waistline protection strip assembly75710-06230 · 75710-06280 · 75710-06310
75720Left front door waistline protection strip assembly75720-06230 · 75720-06280 · 75720-06310
75730Right rear door waistline protection strip assembly75730-06290 · 75730-06291 · 75730-06300
75740Left rear door waistline protection strip assembly75740-06290 · 75740-06291 · 75740-06300
75753Protective strip on right front door window frame75753-06240 · 75753-06250
75754AProtective strip on left front door window frame75754-06240 · 75754-06250
75755CRight front door window frame rear protective strip75755-06230
75756CLeft front door window frame rear protective strip75756-06230
75761ARight rear door window frame front protective strip75761-06230
75762ALeft rear door window frame front protective strip75762-06230
75763AProtective strip on right rear door window frame75763-06260 · 75763-06270
75764AProtective strip on left rear door window frame75764-06260 · 75764-06270
75765BRear door window frame protection strip (right rear pillar)75765-06160
75766BRear door window frame protection strip (left rear pillar)75766-06160
75792Car door window frame protective strip clip75792-47010
75851Right side door sill panel protective strip75851-06946 · 75851-06947 · 75851-YY904
75852Left side door sill panel protective strip75852-06946 · 75852-06947 · 75852-YY902
75857ARight side door sill panel protective strip cover75857-YY030
75858ALeft side door sill panel protective strip cover75858-YY030
75863CNo. 3 rocker panel protective strip protective cover75863-06250
75864BNo. 4 door sill panel protective strip protective cover75864-06230
75867CDoor sill panel protective strip clip75867-06050
