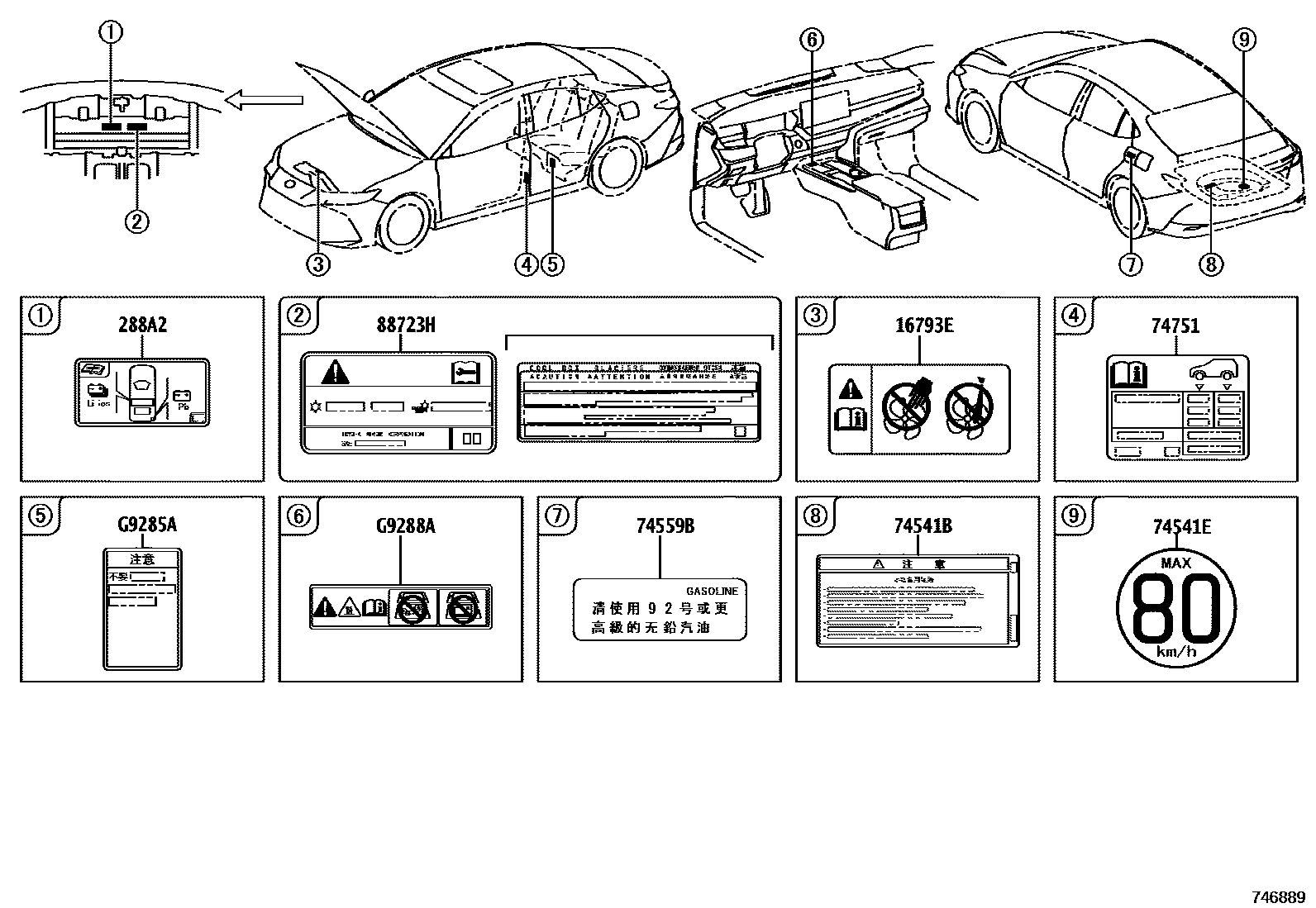

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16793E | Cooling fan warning label | 16793-36030 |
| 288A2 | Battery location label | 288A2-F2050 · 288A2-F2100 |
| 74541B | Small spare tire warning plate | 42668-06060 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74579-0D010 · 74579-26011 |
| 74751 | tire pressure information label | 42661-06D90 · 42661-06E10 · 42661-06E20 |
| 88723H | Cooler maintenance warning label | 88723-06290 · 88723-06300 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
| G9288A | Battery charging precautions label | 861C8-06020 |
