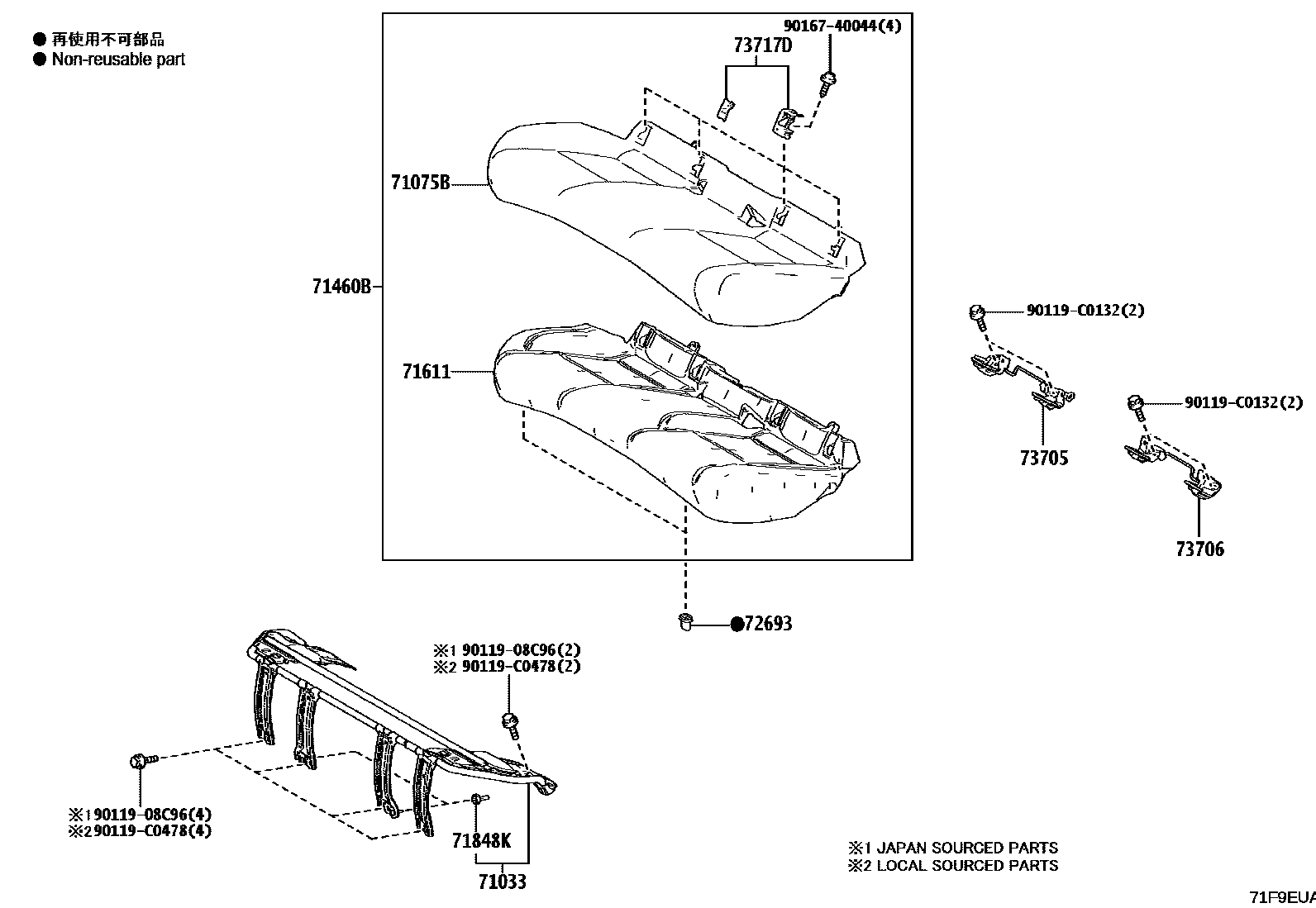

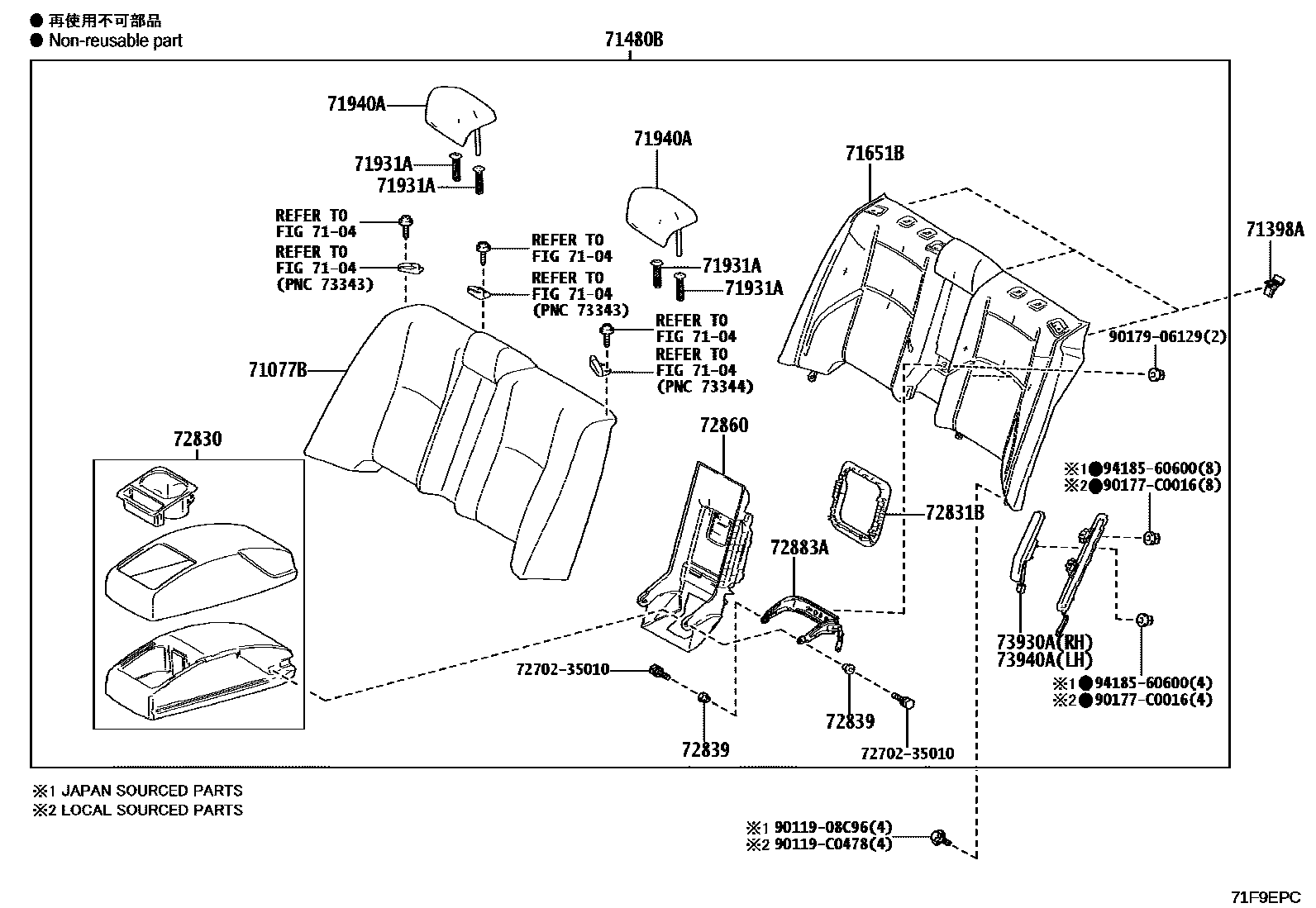

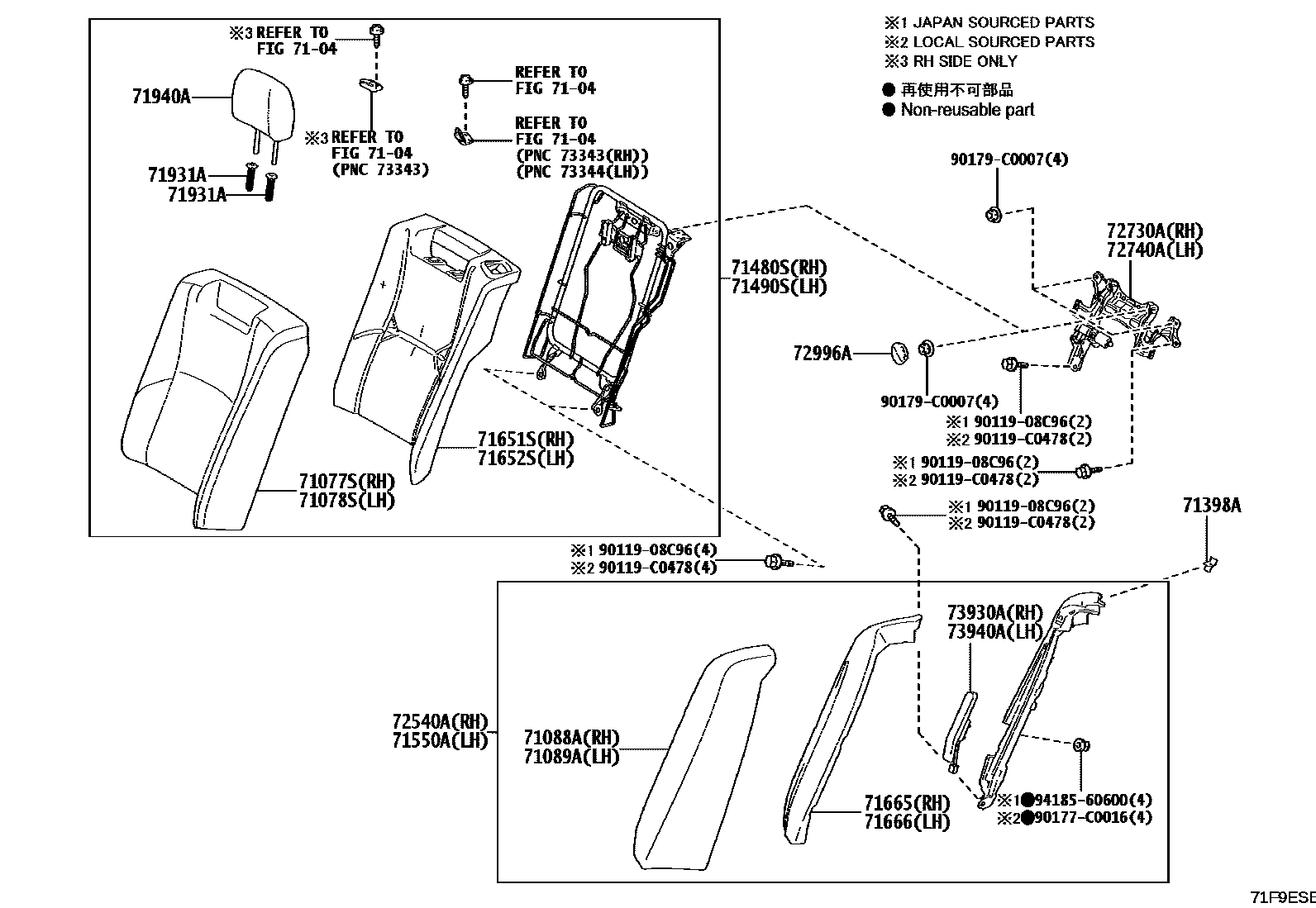

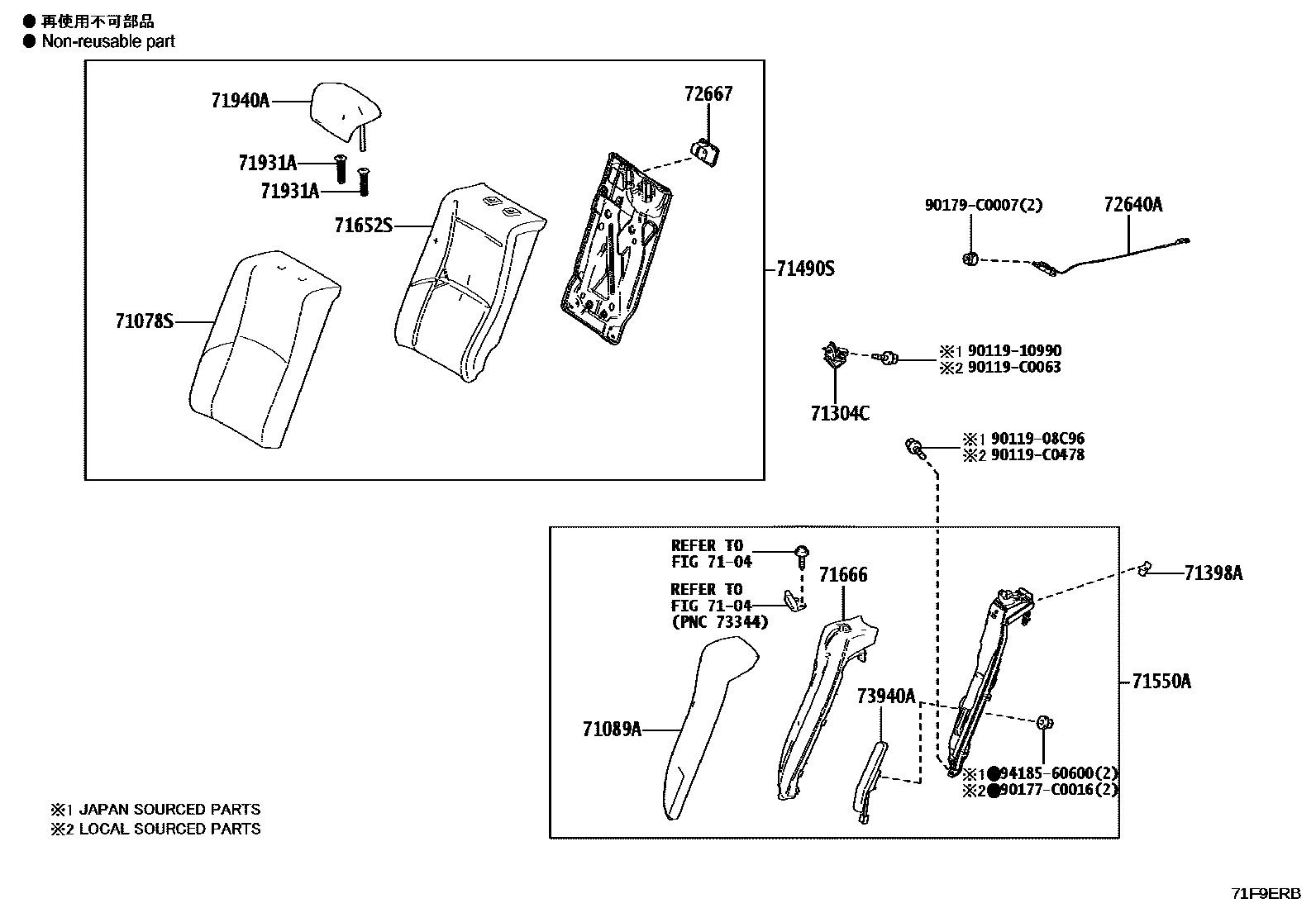

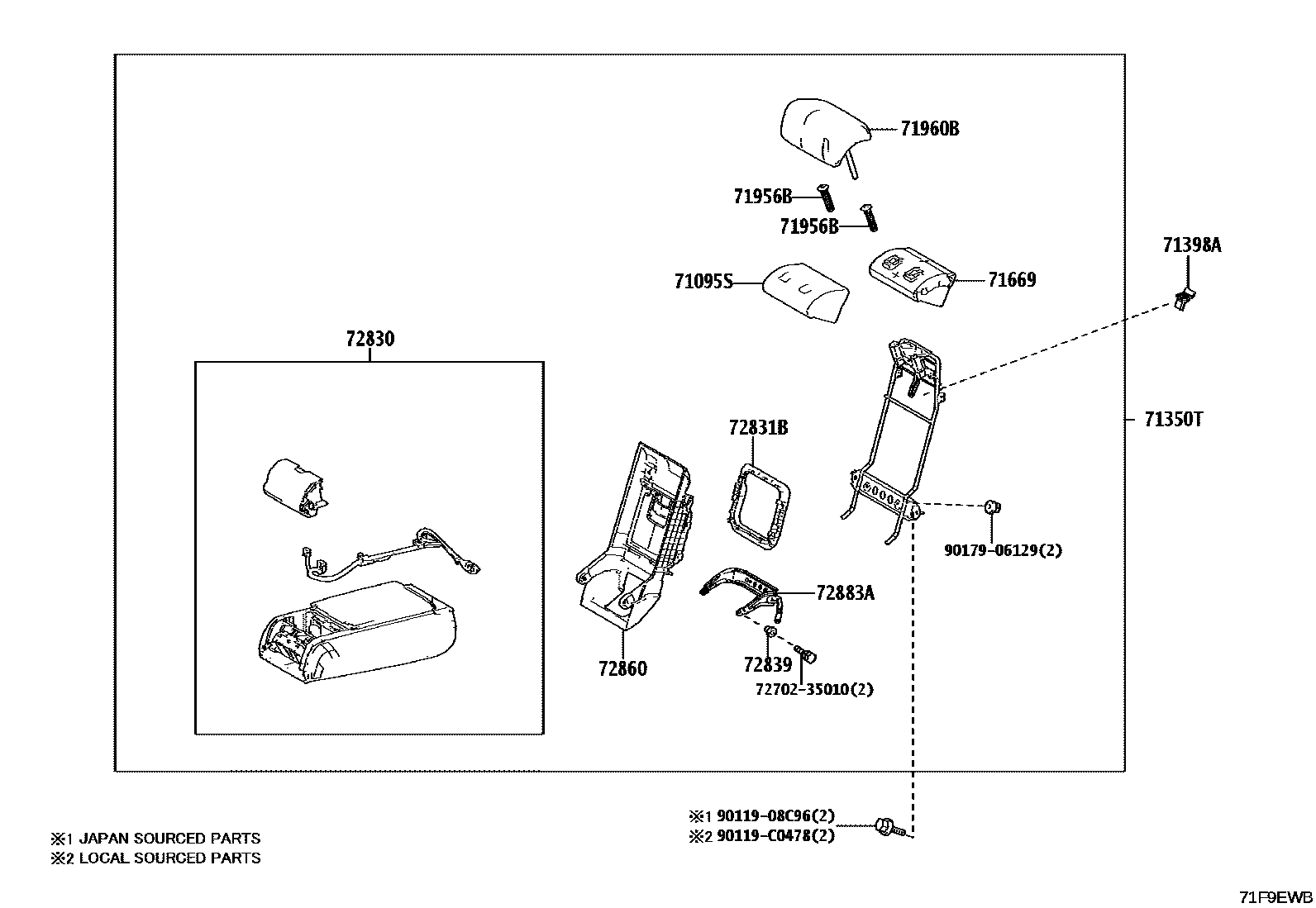

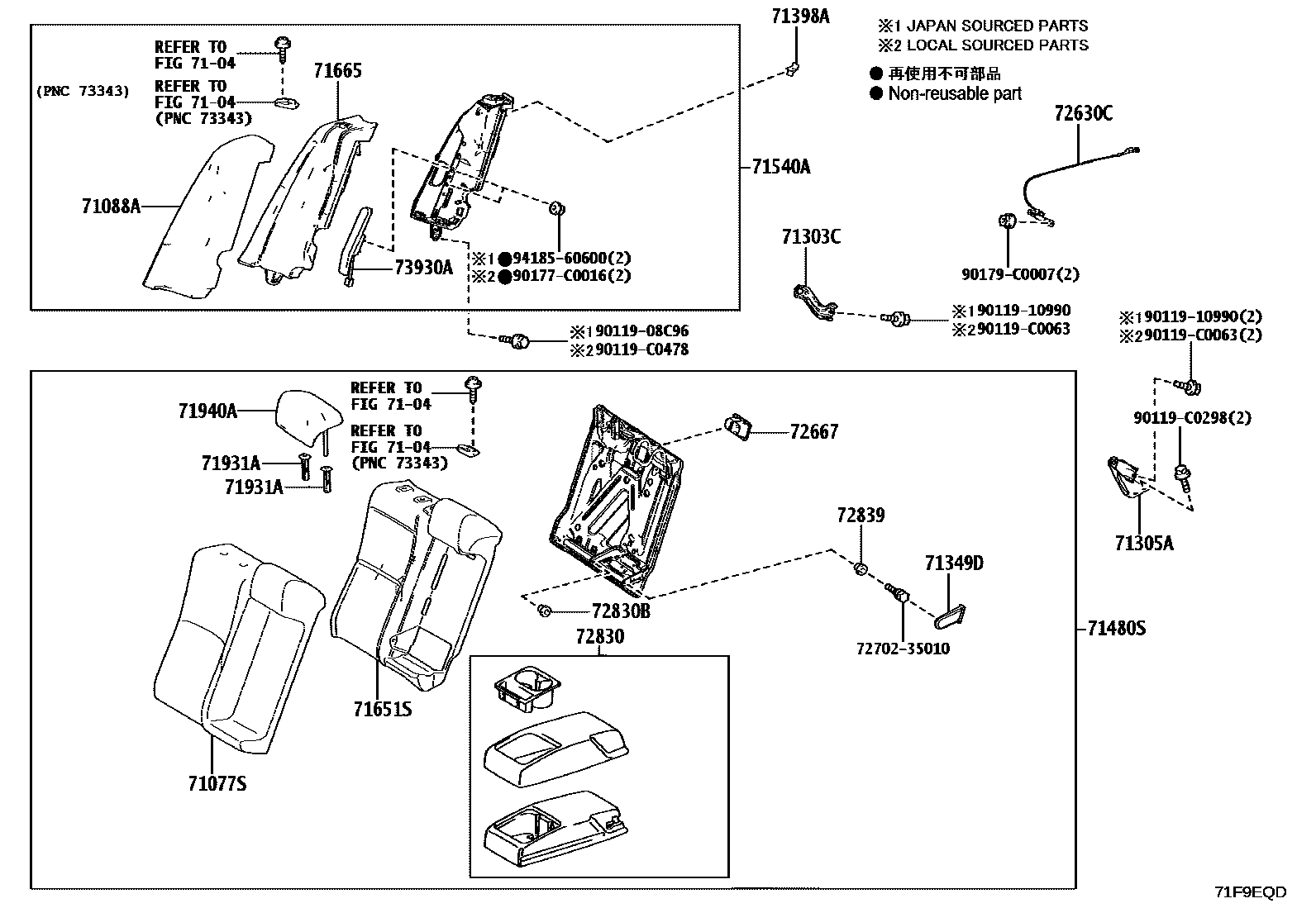

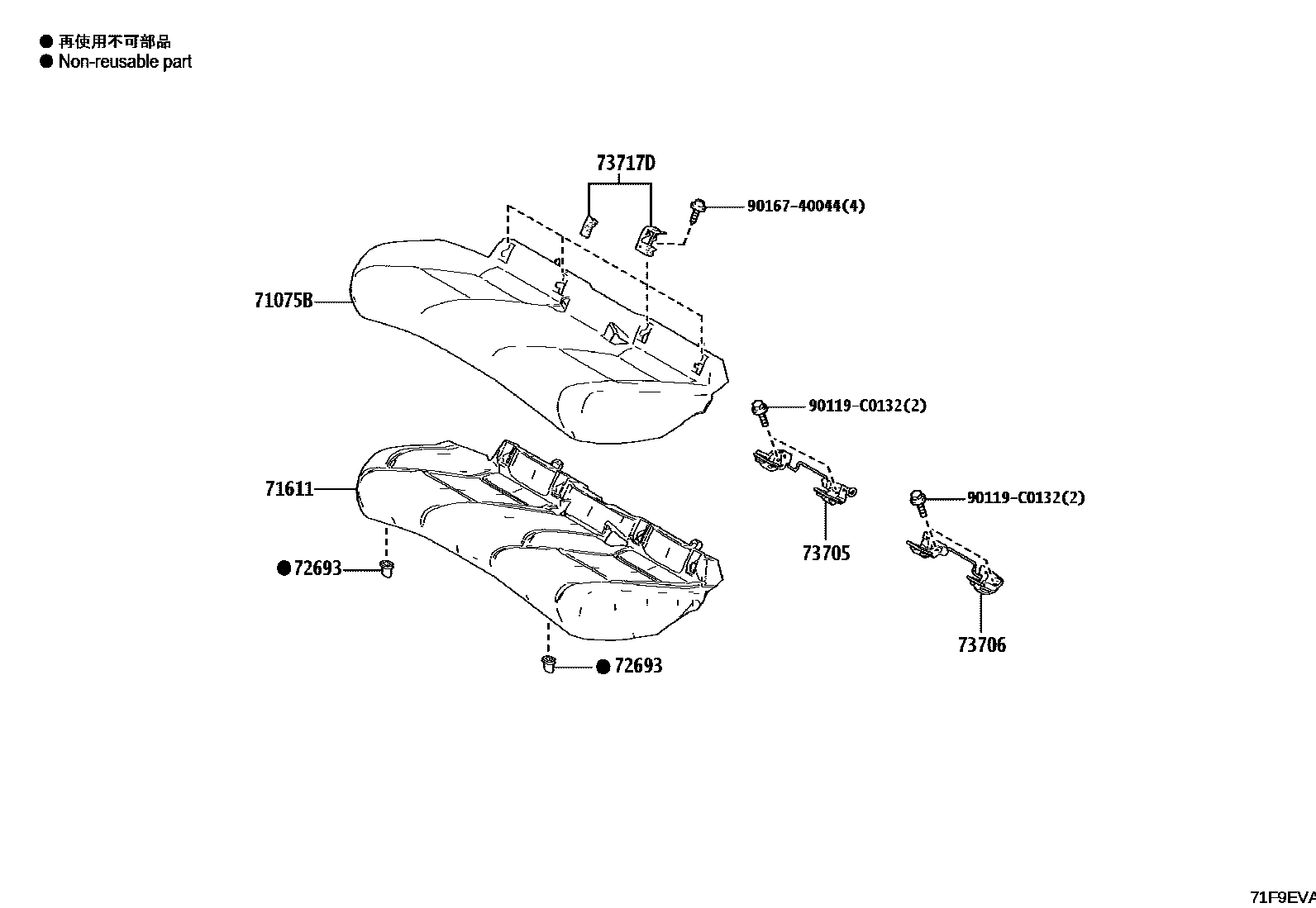

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71033 | Rear seat cushion and leg sub-assembly | 71033-06070 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06050 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-06030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06140 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-06540 · 71503-06550 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-06230 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06720 · 71651-06730 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06420 · 71652-06430 |
| 71665 | Rear right seat backrest side cushion | 71665-06160 · 71665-06190 |
| 71666 | Rear left seat backrest side cushion | 71666-06180 · 71666-06210 |
| 71669 | Rear seat back cushion | 71507-06170 |
| 71848K | seat adjuster cover | 71848-47050 |
| 72630C | Rear right seat back lock assembly | 72630-06060 |
| 72640A | Rear left seat back lock assembly | 72640-06060 |
| 72667 | Rear seat back locking frame | 72667-06080 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-06040 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-06040 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06009 |
| 72831B | No. 1 rear seat center armrest panel | 72831-06130 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-06150 · 72883-06230 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06130 · 73705-06150 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06130 · 73706-06150 |
| 73930A | Rear right seat airbag assembly | 73930-06120 |
| 73940A | Rear left seat air bag assembly | 73940-06120 |
