Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

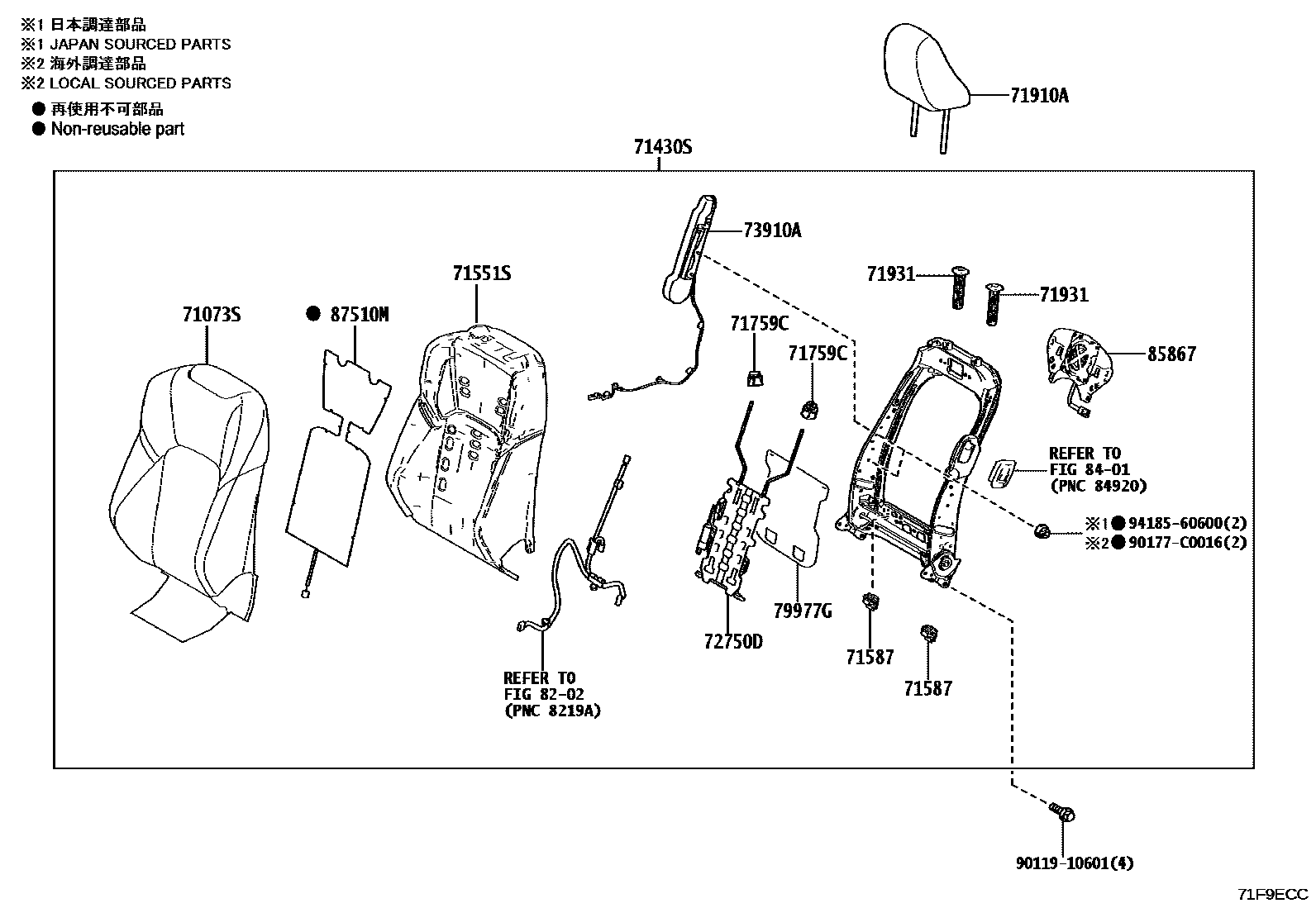

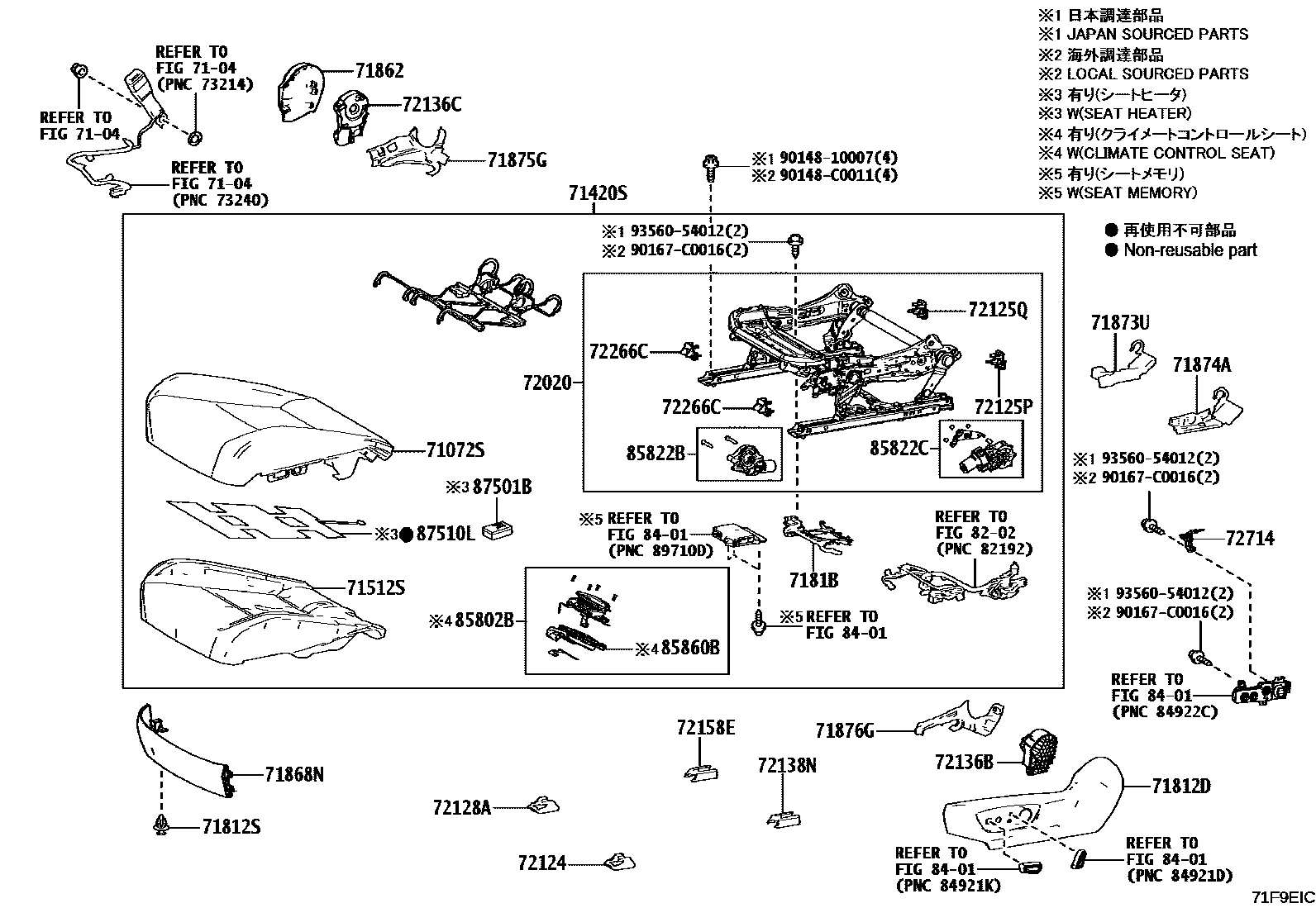

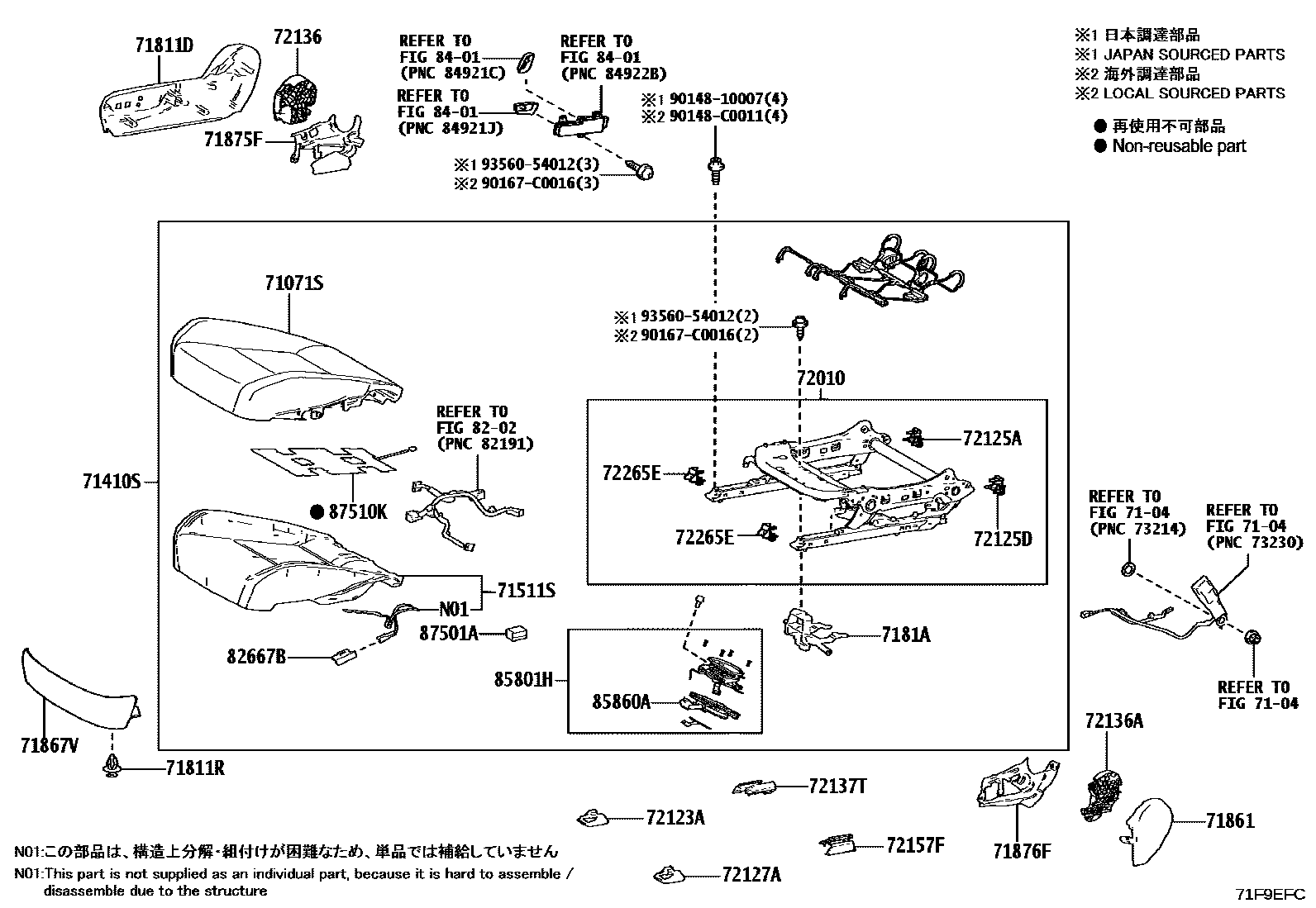

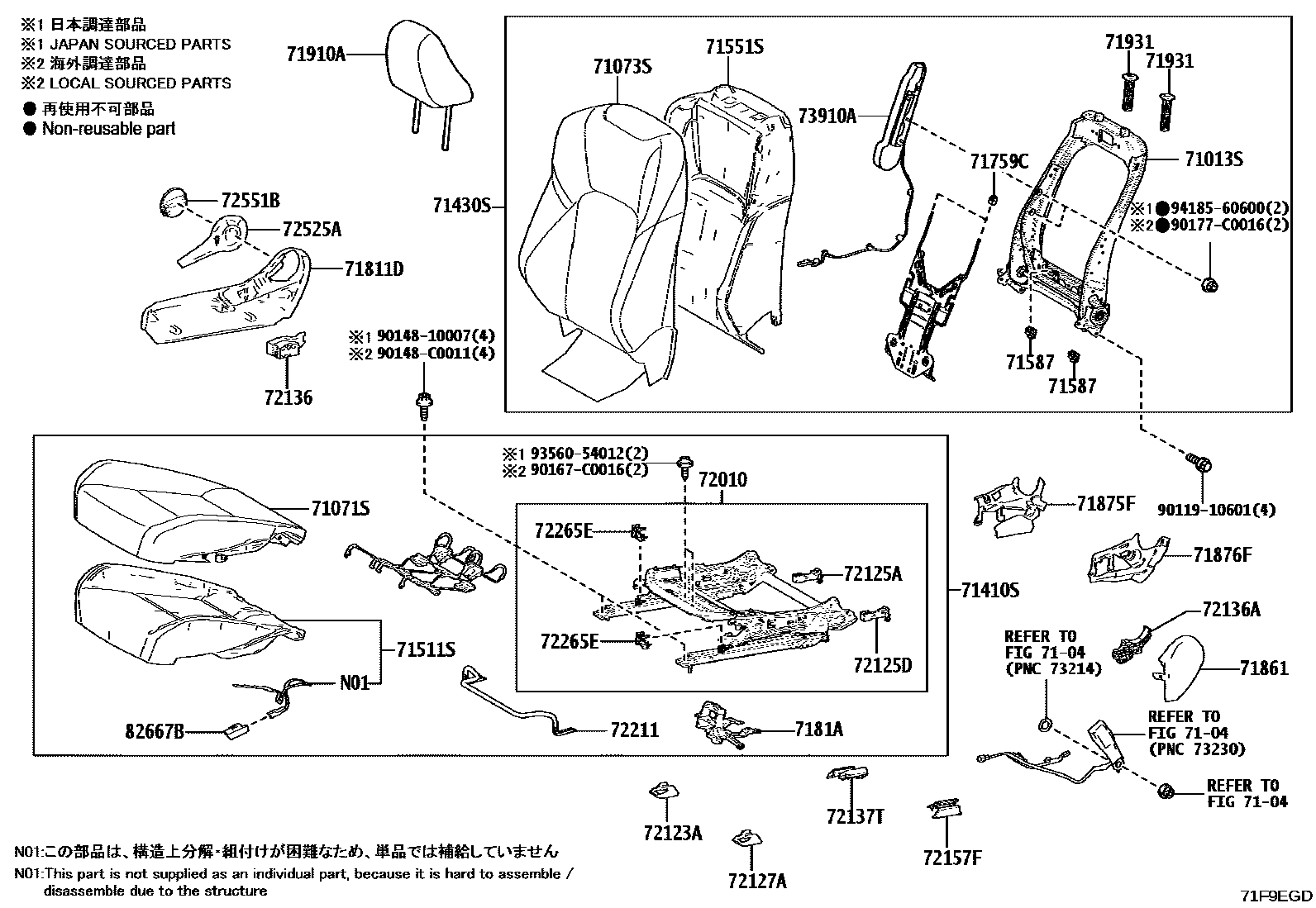

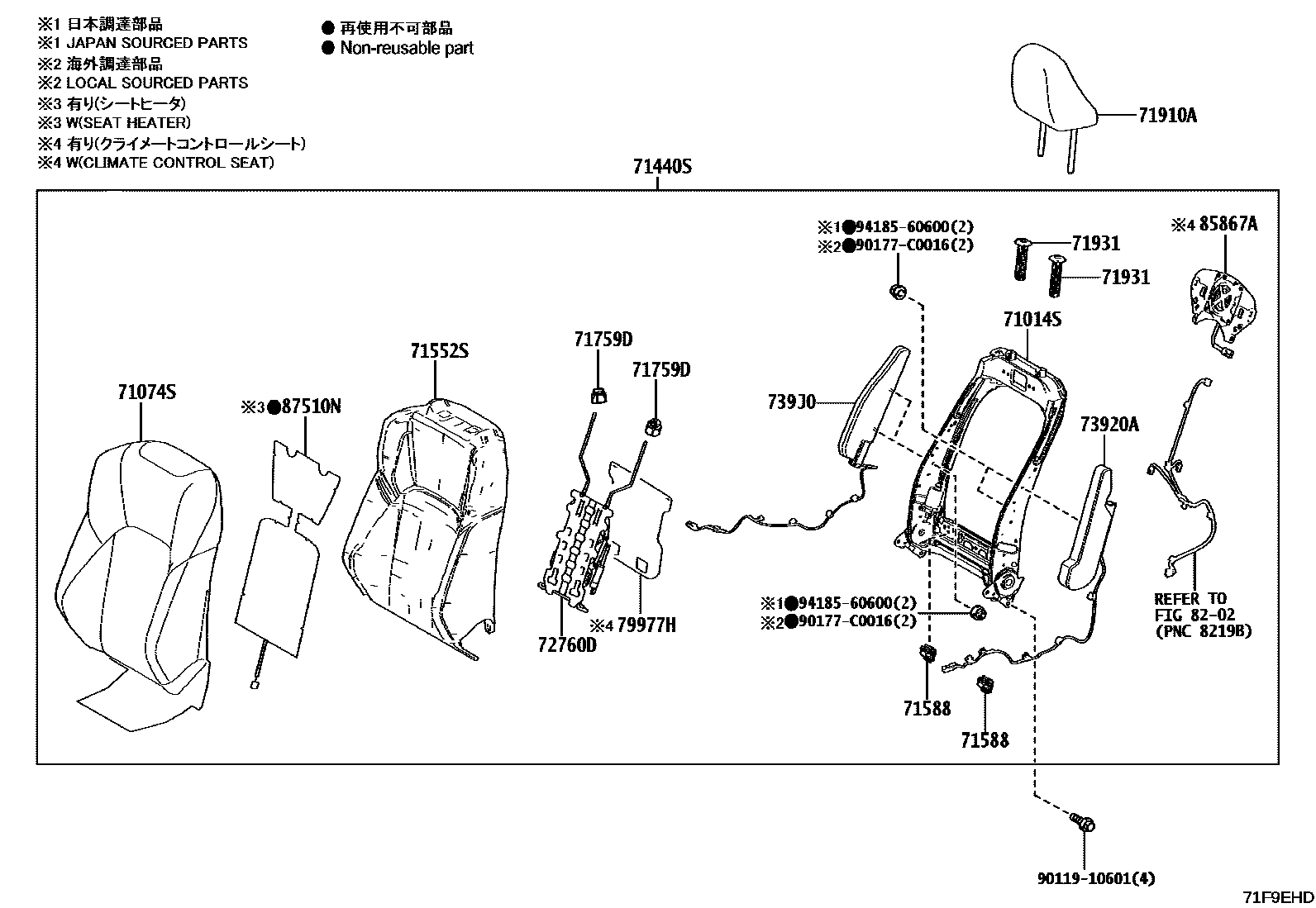

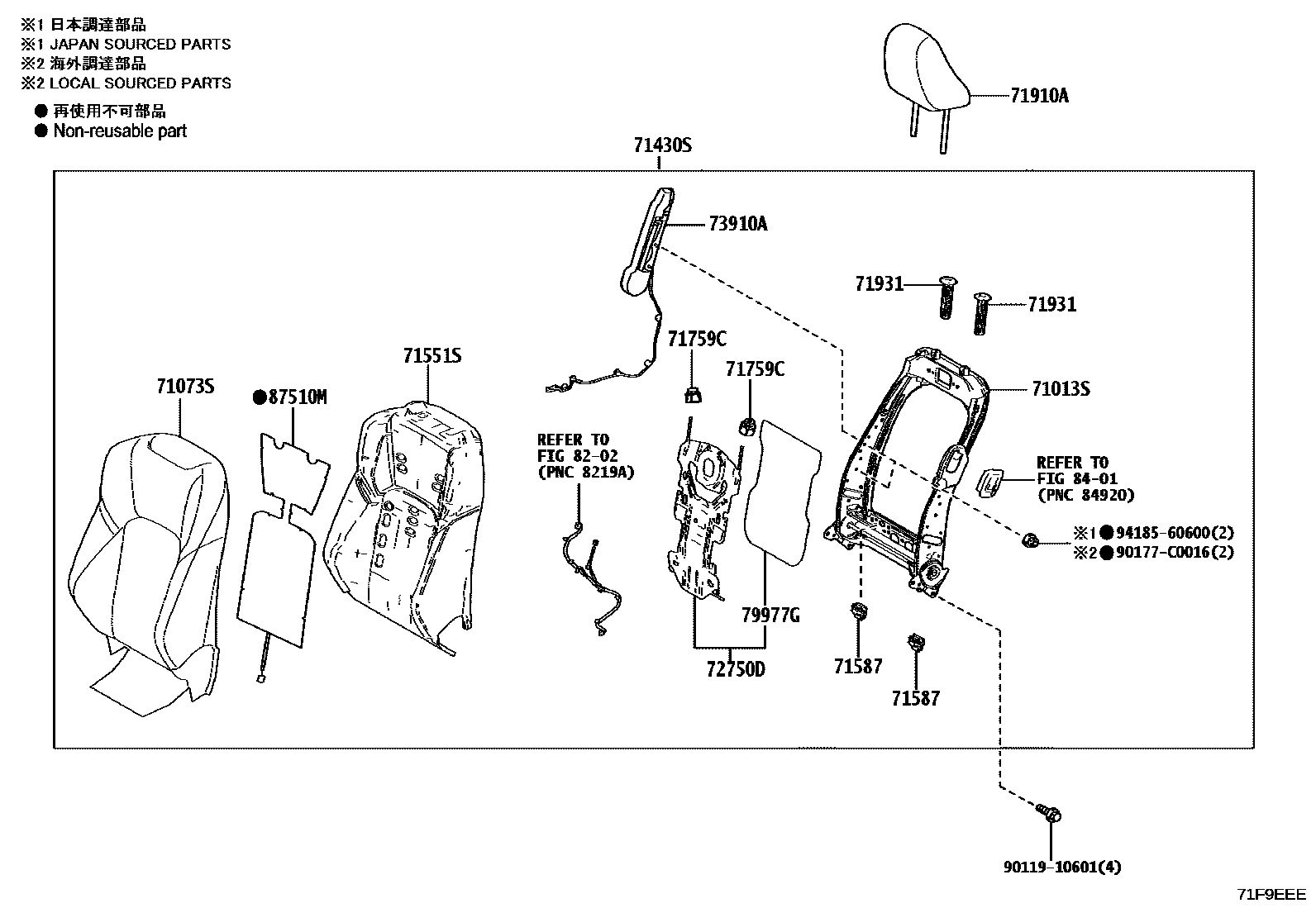

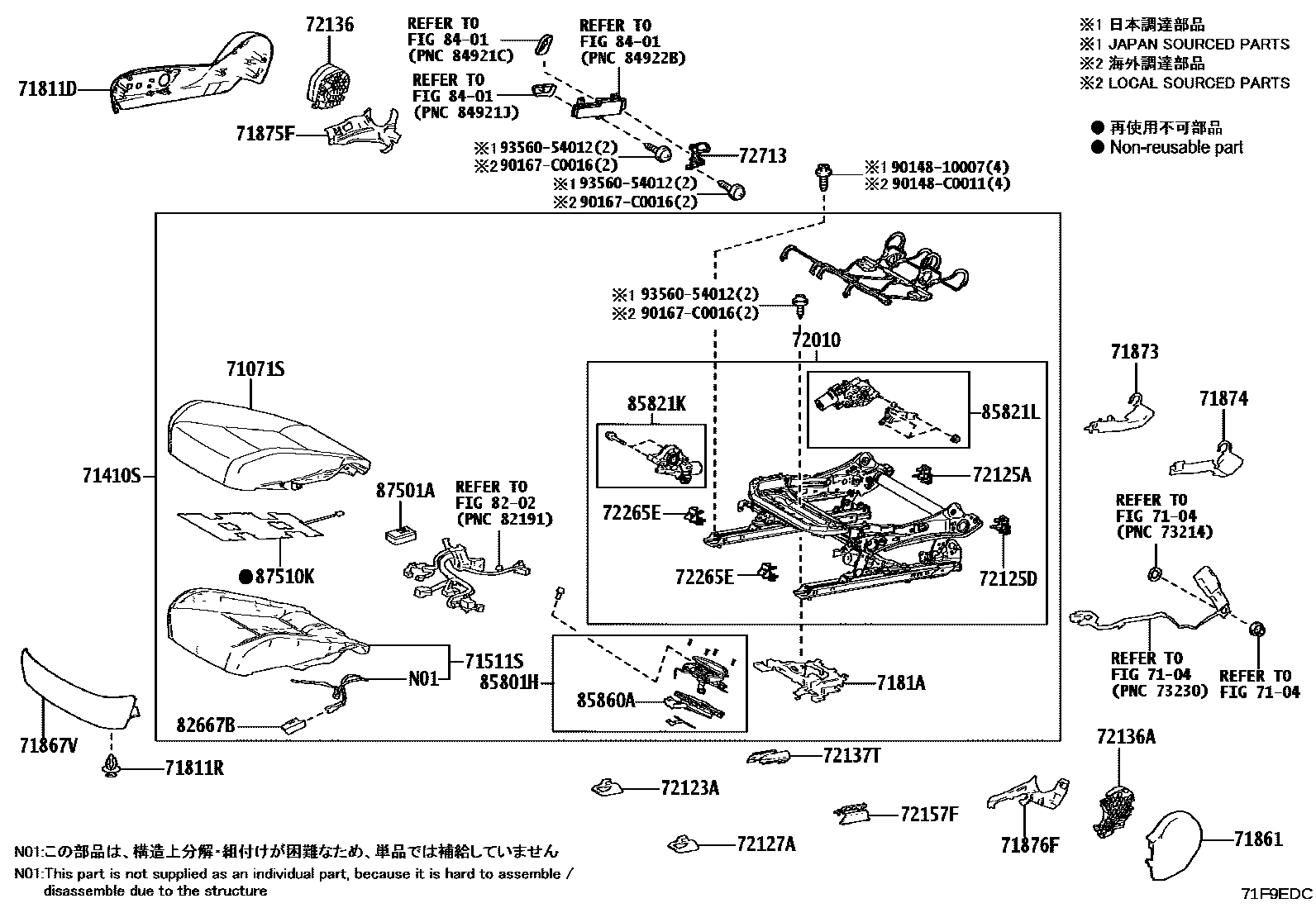

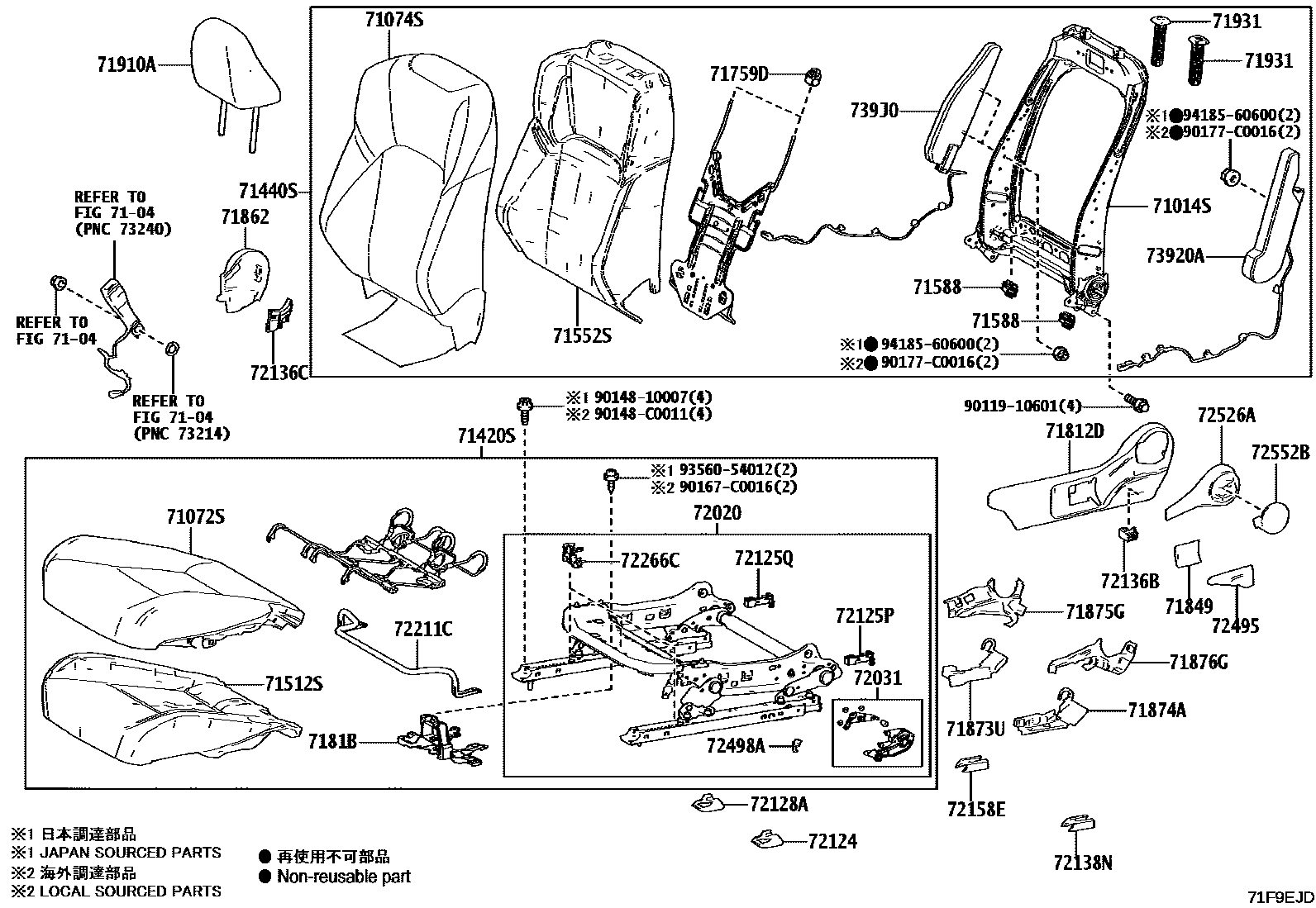

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06880 · 71013-06890 |
| 71014S | Front left seat back frame sub-assembly | 71014-06A20 · 71014-06A30 · 71014-06A40 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06430 · 71501-06440 · 71501-06450 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06A70 · 71512-06B10 · 71512-06B20 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06430 · 71551-06A70 · 71551-06A90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06870 · 71552-06A00 |
| 71587 | Front seat back edge protective cover | 71587-06010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-06010 |
| 71759C | Front seat back hook No. 1 | 71759-06030 |
| 71759D | Front seat back hook 2 | 71759-06030 |
| 71811R | Front seat cushion right guard panel clip | 90467-07215 |
| 71812S | Front seat cushion left guard panel clip | 90467-07215 |
| 7181A | Front right seat cushion harness holder | 7181A-06010 · 7181A-06070 |
| 7181B | Front left seat cushion harness holder | 7181B-06010 · 7181B-06070 |
| 71873 | Front right seat cushion lower guard panel | 71873-06690 |
| 71873U | Front right seat cushion lower guard panel | 71874-06710 · 71874-06720 |
| 71874 | Front left seat cushion lower guard | 71873-06700 |
| 71874A | Front left seat cushion lower guard | 71874-06710 · 71874-06720 |
| 72010 | Front right seat adjuster assembly | 72010-06580 · 72010-06590 · 72010-06600 |
| 72020 | Front left seat adjuster assembly | 72020-06600 · 72020-06640 · 72020-06650 |
| 72031 | Front seat height adjuster assembly | 72443-06020 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06110 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-06110 |
| 72125A | Rear seat upper slide rail cover | 72125-06050 · 72125-06060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-06050 · 72125-06060 |
| 72125P | Slide rail cover on rear seat 3 | 72125-06050 · 72125-06060 |
| 72125Q | Slide rail cover on rear seat No. 4 | 72125-06050 · 72125-06060 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-06110 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-06110 |
| 72136 | No. 1 seat slide rail lower rail | 72136-06A90 · 72136-06B10 |
| 72136A | No. 2 seat slide rail lower rail | 72136-06B00 · 72136-06B20 |
| 72136B | No. 3 seat slide rail lower rail | 72136-06A60 · 72136-06B50 |
| 72136C | No. 4 seat slide rail lower rail | 72136-06B40 · 72136-06B60 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-06130 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-06130 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-06200 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-06200 |
| 72211 | Seat slide adjustment handle | 72211-06160 |
| 72211C | Seat slide adjustment handle | 72211-06160 |
| 72265E | Right seat rail upper rail cover | 72265-06020 · 72265-06030 |
| 72266C | Left seat rail upper rail cover | 72265-06020 · 72265-06030 |
| 72498A | Left height adjuster bracket cover | 72498-06060 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06050 |
| 72714 | Left seat adjuster protective clip bracket | 72714-06060 |
| 72750D | Right lumbar support adjuster assembly | 72750-06110 · 72750-0R020 |
| 72760D | Left lumbar support adjuster assembly | 72760-06230 · 72760-06250 |
| 73910A | Front right seat airbag assembly | 73910-06140 |
| 73920A | Front left seat airbag assembly | 73920-06160 |
| 739J0 | Front left seat center airbag assembly | 739J0-06010 · 739J0-06020 |
| 79977G | Front seat back right felt pad | 79977-06080 |
| 79977H | Felt pad, left side of front seat backrest | 79977-06080 |
| 82667B | Connector holder | 82666-06160 |
| 85801H | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, DROIT | 85801-06100 · 85801-0R020 |
| 85802B | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, GAUCHE | 85802-06040 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-06130 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-06120 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-06150 · 85801-06160 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-06140 · 85801-06170 |
| 85860A | Right seat cushion temperature control blower assembly | 85860-42010 |
| 85860B | Left seat cushion temperature control blower assembly | 85860-42010 |
| 85867 | Right seat back temperature control blower | 85867-0R040 |
| 85867A | Left-hand seat back temperature control blower | 85867-0R040 |
| 87501A | Right seat heater control sub-assembly | 87501-06020 |
| 87501B | Left side seat heater control sub-assembly | 87501-06020 |
| 87510K | Front right seat cushion heater assembly | 87510-06370 |
| 87510L | Front left seat cushion heater assembly | 87510-06370 |
| 87510M | Front right seat back heater assembly | 87530-06230 |
| 87510N | Front left seat back heater assembly | 87530-06230 |
