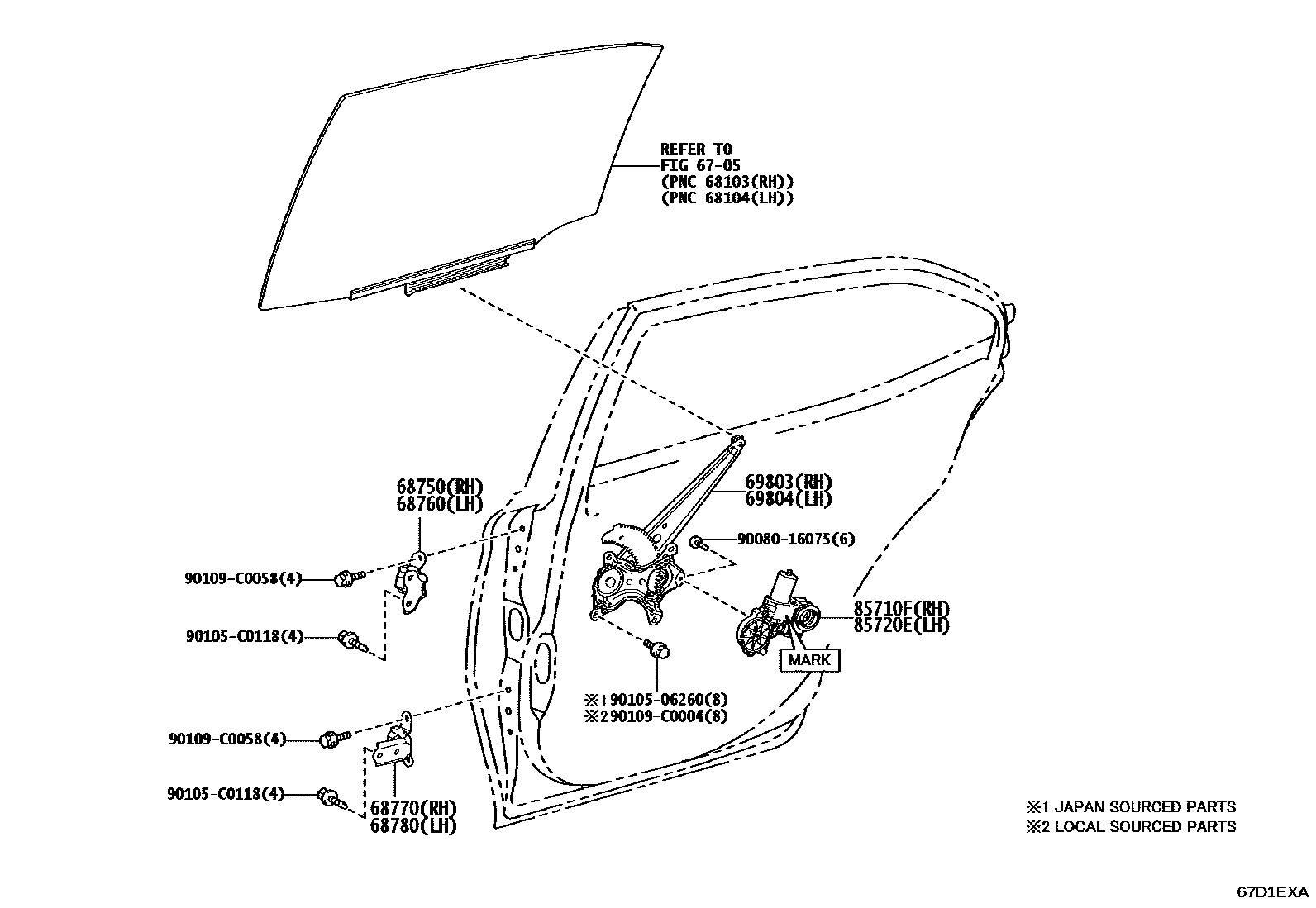

Toyota CAMRY 后门车窗升降器和合页 — Figure 6707
Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0P011 |
| 68760 | Left rear door upper hinge assembly | 68760-0P011 |
| 68770 | Right rear door lower hinge assembly | 68770-06060 |
| 68780 | Left rear door lower hinge assembly | 68780-06060 |
| 69803 | Right rear door window lifter sub-assembly | 69803-06200 |
| 69804 | Left rear door window lifter sub-assembly | 69804-06200 |
| 85710F | Right power window lift motor assembly | 85720-0A120 · 85720-16200 |
| 85720E | Left electric window lift motor assembly | 85710-0A130 · 85710-16220 |
