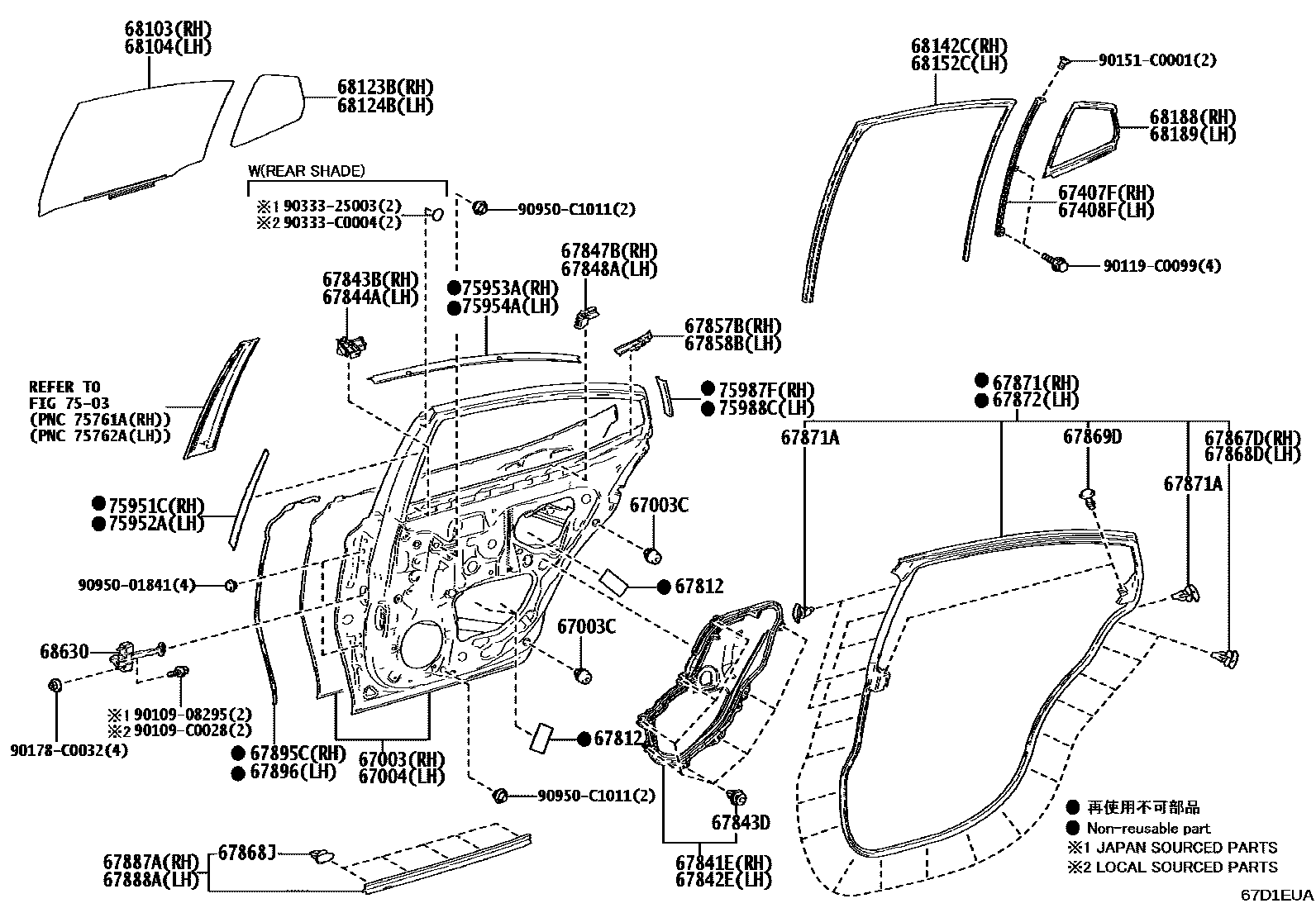

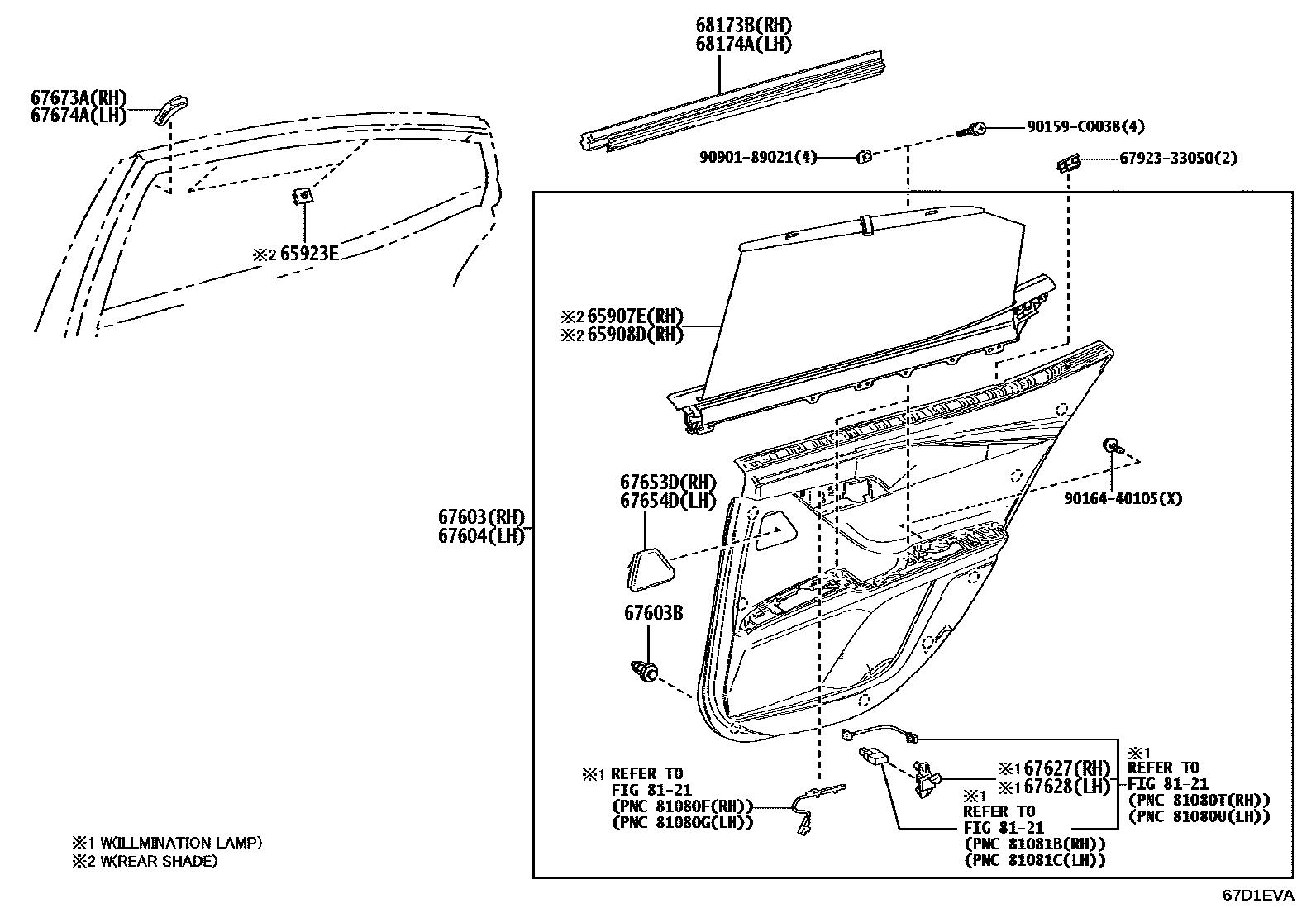

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-06060 |
| 67003 | Right rear door panel sub-assembly | 67003-06250 · 67003-06251 · 67003-06400 · 67003-06401 |
| 67003C | Rear door panel cushion | 90541-09143 · 90541-C0003 |
| 67004 | Left rear door panel sub-assembly | 67004-06390 · 67004-06391 · 67004-06420 · 67004-06421 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-06190 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-06190 |
| 67603B | Catch (for rear door trim panel) | 90467-C0033 |
| 67627 | Right rear door trim panel bracket | 67626-06040 |
| 67628 | Left rear door trim panel bracket | 67636-06040 |
| 67673A | Right rear door frame decorative strip | 67673-06150 |
| 67674A | Left rear door frame decorative strip | 67674-06150 |
| 67812 | Rear door silencer pad | 67811-06050 |
| 67841E | Right rear door access hole cover | 67841-06291 |
| 67842E | Left rear door access hole cover | 67842-06291 |
| 67843B | Right rear door No. 2 access hole cover | 67843-06120 |
| 67843D | Rear door access hole clip | 90467-C0033 |
| 67844A | Left rear door No. 2 access hole cover | 67844-06050 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-06060 |
| 67848A | No. 1 left rear door ventilator seal | 67848-06040 |
| 67857B | Right rear door panel protector | 67857-06040 |
| 67858B | Left rear door panel protector | 67858-06040 |
| 67867D | Right rear door seal strip fixing | 67868-0D030 |
| 67868D | Left rear door seal strip fixing | 67867-0D090 |
| 67868J | door seal fixings | 67867-0D110 |
| 67869D | Car door seal strip clip | 67868-30030 |
| 67871 | Right rear door sealing strip | 67871-06250 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-06250 |
| 67887A | Right rear door seal No. 2 | 67887-06120 |
| 67888A | Left rear door seal No. 2 | 67887-06120 |
| 67895C | Right rear door seal No. 3 | 67895-06030 |
| 67896 | Left rear door No. 3 sealing strip | 67896-06030 |
| 68103 | Right rear door glass sub-assembly | 68103-06410 · 68103-06420 |
| 68104 | Left rear door glass sub-assembly | 68104-06400 · 68104-06410 |
| 68123B | Right rear door corner window glass | 68123-06380 |
| 68124B | Left rear door corner window glass | 68124-06380 |
| 68142C | Right rear door glass lift slot | 68142-06240 |
| 68152C | Left rear door glass lift slot | 68152-06240 |
| 68173B | Right rear door glass inner sealing strip | 68173-06180 |
| 68174A | Left rear door glass inner sealing strip | 68174-06180 |
| 68188 | Right rear door corner window seal | 68188-06220 |
| 68189 | Left rear door corner window seal | 68189-06220 |
| 68630 | Rear door opening limiter assembly | 68630-06201 |
| 75951C | Inner right front light-shielding film | 75977-06120 |
| 75952A | Inner left front light-shielding film | 75978-06120 |
| 75953A | Inner right rear light-shielding film | 75987-06280 · 75987-06290 |
| 75954A | Inner left rear light-shielding film | 75988-06280 · 75988-06290 |
| 75987F | Right rear door outer trim | 75987-06300 |
| 75988C | Left rear door outer trim | 75988-06300 |
