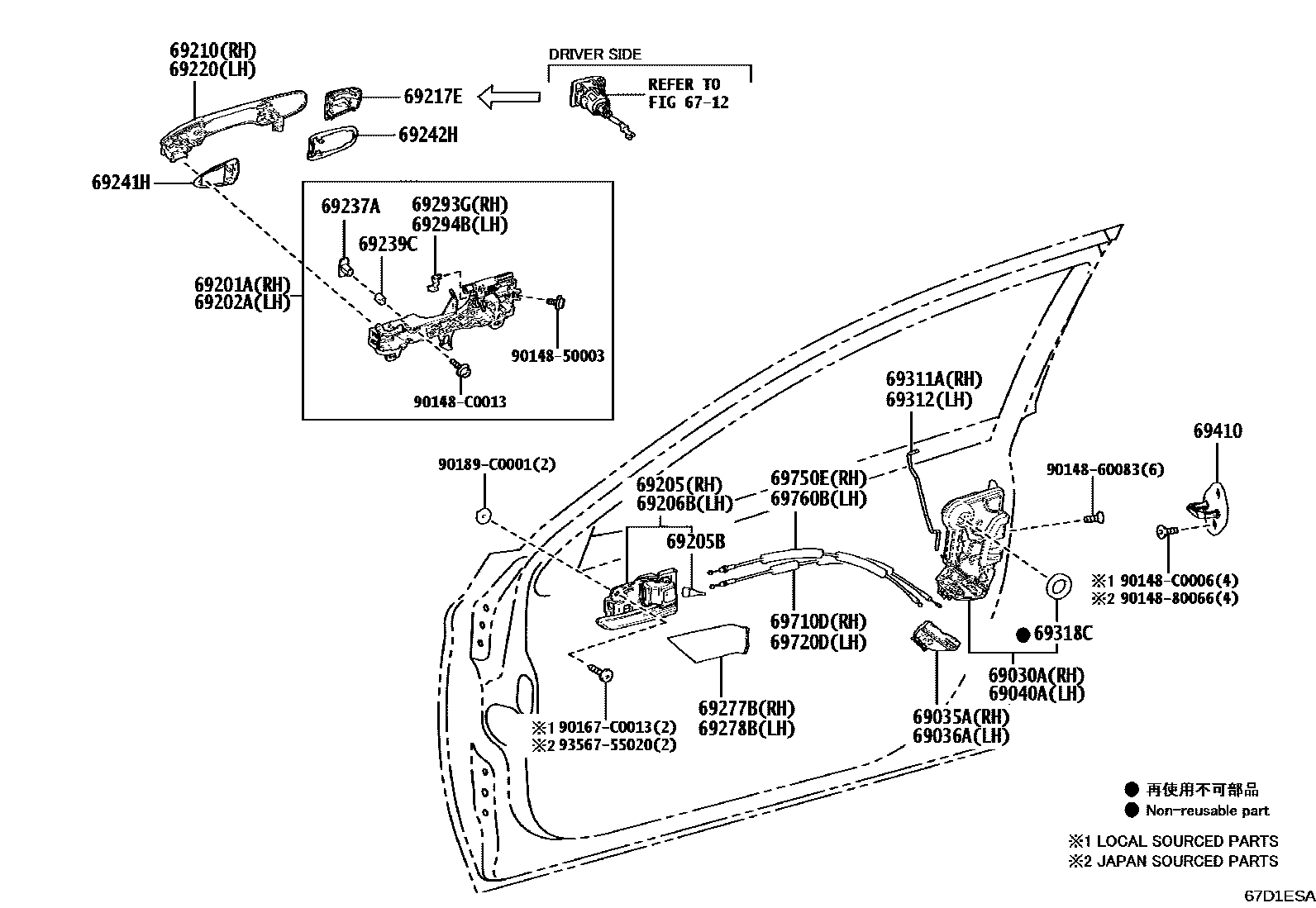

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-06260 |
| 69035A | Right front door lock cover sub-assembly | 69035-02090 |
| 69036A | Left front door lock cover sub-assembly | 69036-02090 |
| 69040A | Left front door door lock assembly with motor | 69040-06210 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-06150 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-06150 |
| 69205B | Cushion pad (for inner front door handle) | 90080-54005 |
| 69210 | Right front door outer handle assembly | 69210-02481 · 69210-02560 |
| 69217E | Right front door outer handle cover | 69217-02600 |
| 69220 | Left front door outer handle assembly | 69210-02550 · 69210-02570 |
| 69237A | Front door handle nut | 69237-62010 |
| 69239C | Front door handle bushing | 69239-06050 |
| 69241H | Front door exterior handle pad | 69241-02270 |
| 69242H | Front door rear outer handle pad | 69242-02260 |
| 69293G | Right front door outer handle buckle | 69293-06050 |
| 69294B | Left front door outer handle buckle | 69293-06060 |
| 69311A | Right front door lock opening lever | 69311-06200 |
| 69312 | Left front door lock opening lever | 69312-06200 |
| 69318C | door lock harness seal | 69318-02030 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-06240 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-06240 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-06230 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-06230 |
