Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

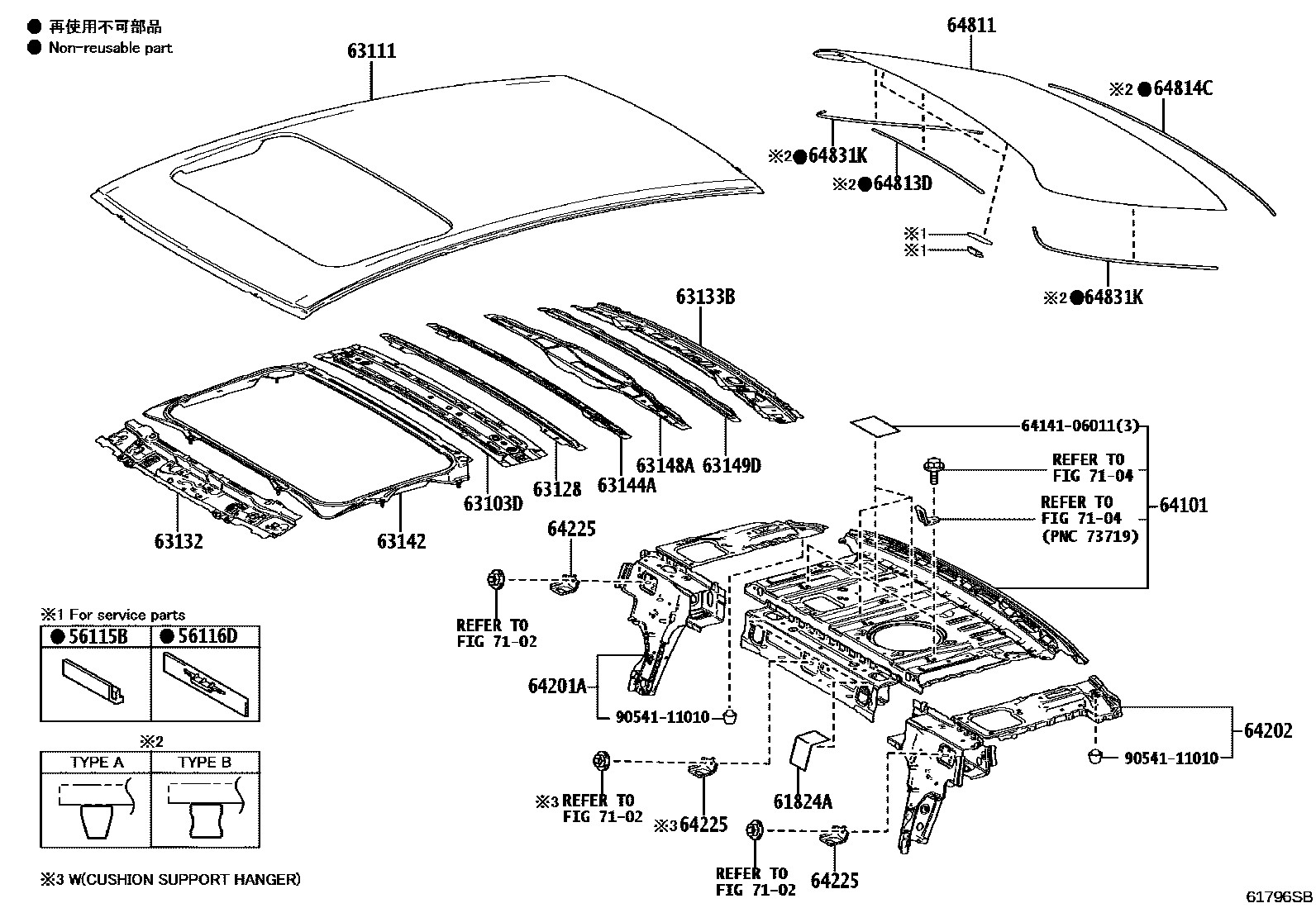

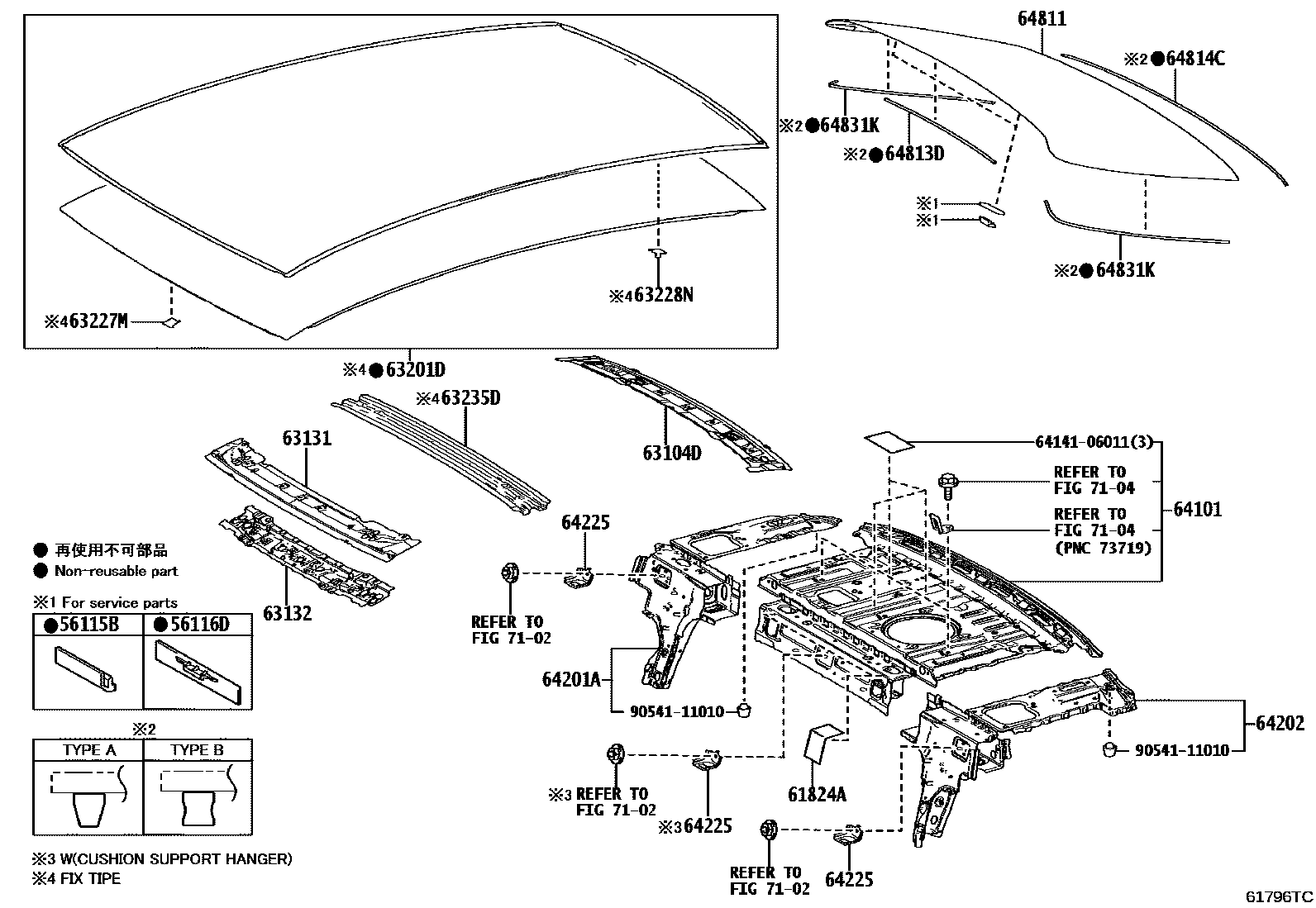

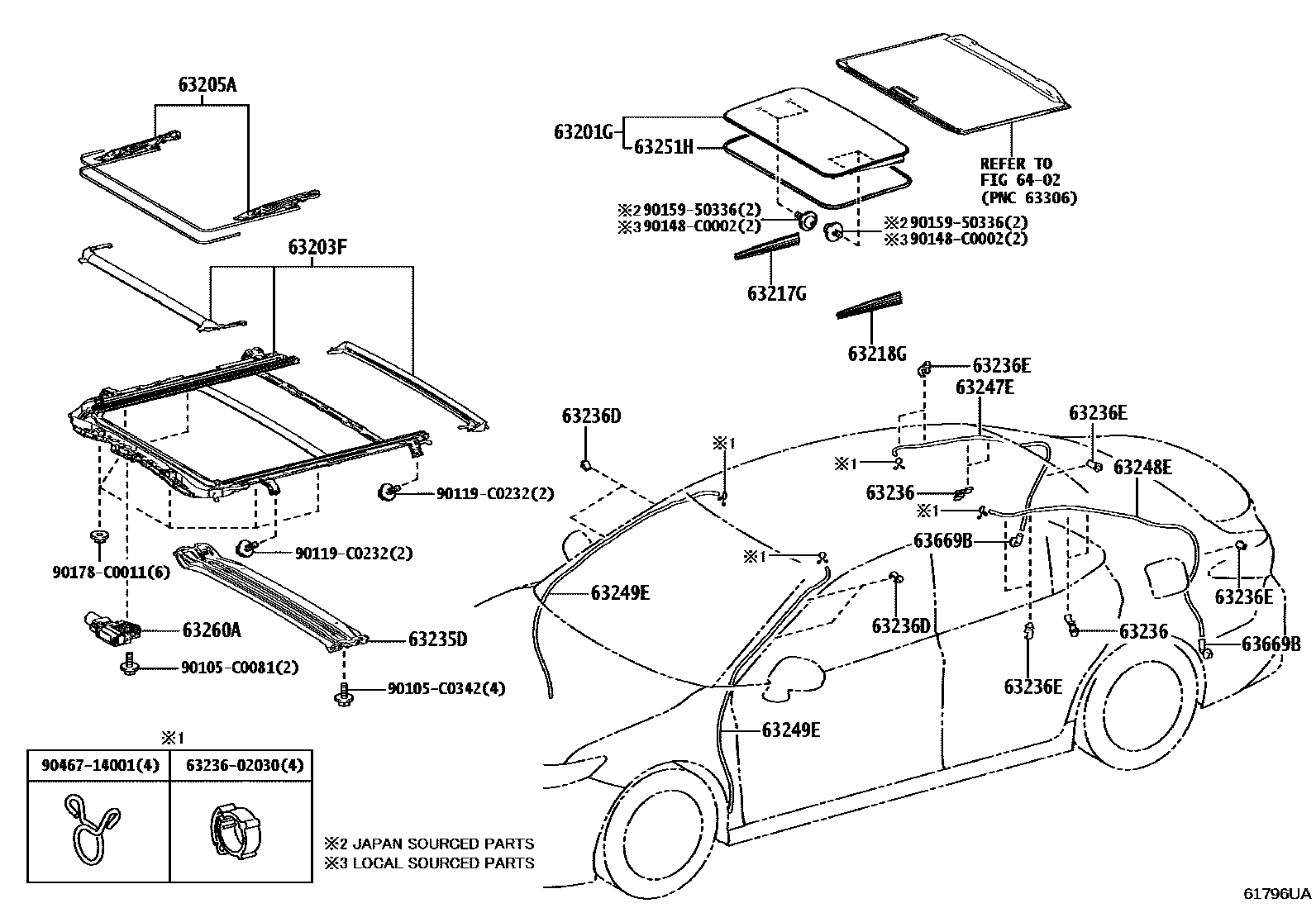

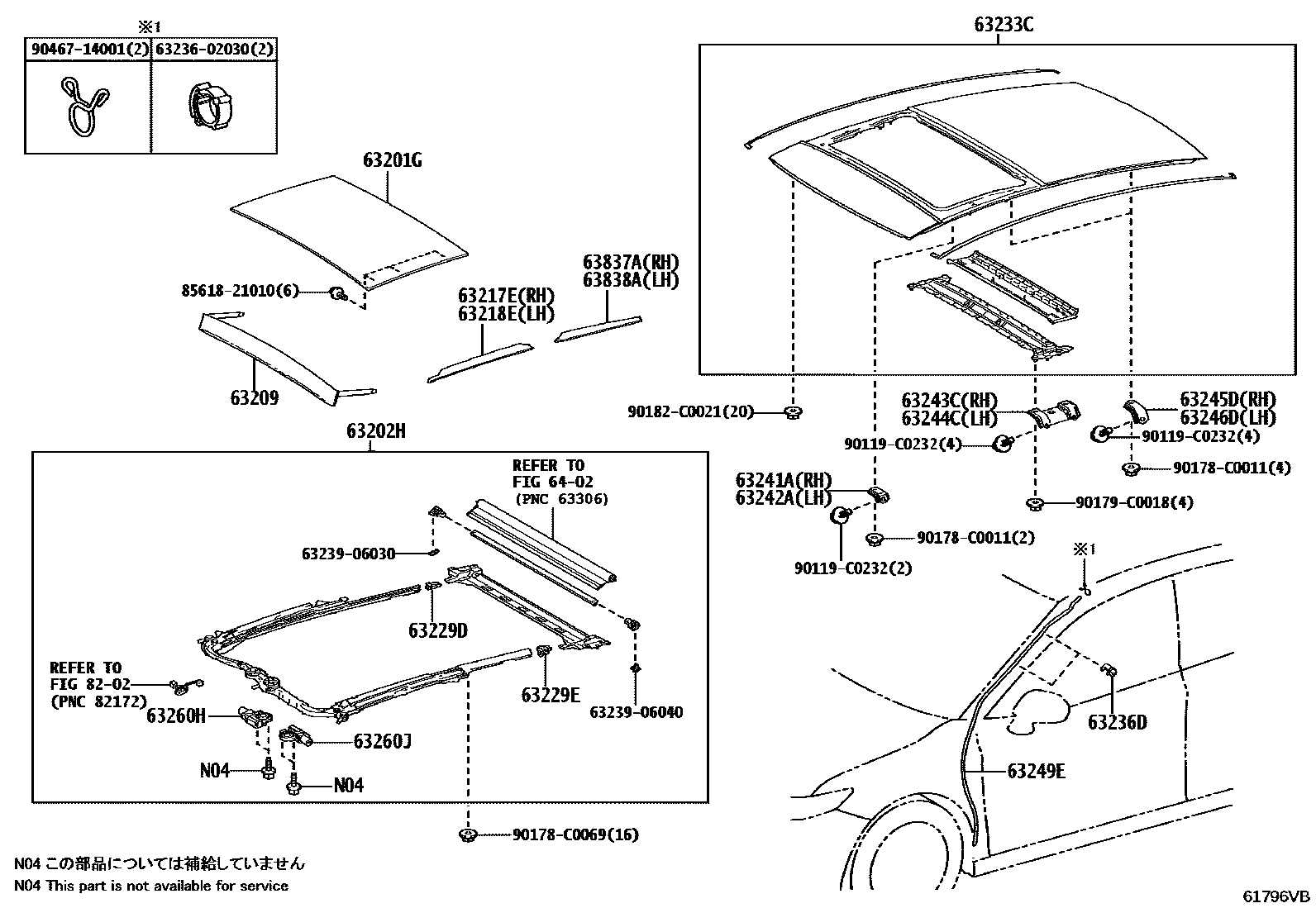

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61824A | Noise Control Panel No. 1 | 61824-06070 |
| 63103D | Roof panel No. 3 reinforcement sub-assembly | 63107-06021 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-06150 |
| 63111 | roof panel | 63111-06721 |
| 63128 | No. 6 roof panel reinforcement | 63128-06020 |
| 63131 | Windshield outer roof panel | 63131-06080 |
| 63132 | Windshield inner roof panel | 63132-06130 · 63132-06160 |
| 63133B | back window frame | 63133-06180 |
| 63142 | No. 2 roof panel reinforcement | 63142-06150 |
| 63144A | No. 4 roof panel reinforcement | 63144-06270 |
| 63148A | No. 7 roof panel reinforcement | 63148-06140 |
| 63149D | No. 8 roof panel reinforcement | 63149-06090 |
| 63201D | No. 1 right sunroof glass sub-assembly | 63201-06340 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06350 · 63201-06370 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06200 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06080 |
| 63209 | Roof deflector sub-assembly | 63209-06160 |
| 63217E | Right front sliding sunroof trim | 63217-06280 |
| 63217G | Right sliding sunroof trim | 63217-08051 |
| 63218E | Left front sliding sunroof trim | 63218-06210 |
| 63218G | Sliding sunroof trim, left | 63217-08051 |
| 63227M | Catch under skylight | 63227-06030 |
| 63228N | Skylight side clip | 63228-06020 |
| 63229D | Right rear sliding sunroof sunshade stop | 63229-06060 |
| 63229E | Left rear sliding sunroof sunshade stop | 63229-06070 |
| 63233C | Sliding skylight shelf | 63233-06160 |
| 63235D | central sliding skylight frame | 63235-06060 · 63235-06090 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-06040 · 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-0R010 |
| 63236E | Sliding skylight drain hose clamp | 63236-0R010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-06190 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-06190 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-06140 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-06150 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-06110 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-06110 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06110 |
| 63248E | Left rear sliding sunroof drain hose | 63247-06110 |
| 63249E | Sliding skylight drain hose | 63249-06180 · 63249-06270 |
| 63251H | Sliding skylight seal | 63251-06060 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-06090 |
| 63260H | Sliding sunroof driving gear assembly | 63260-06230 |
| 63260J | Sliding sunroof driving gear assembly | 63260-06240 |
| 63669B | Sliding skylight drain seal | 63669-06040 |
| 63837A | Right rear sliding sunroof trim | 63217-06290 |
| 63838A | Left rear sliding sunroof trim | 63218-06220 |
| 64101 | Upper back panel sub-assembly | 64101-06391 |
| 64201A | Glove box right extension sub-assembly | 64201-06191 |
| 64202 | Glove box left extension section sub-assembly | 64202-06190 |
| 64225 | Rear seat cushion bracket hanger | 64225-06040 |
| 64811 | back window glass | 64811-06400 |
| 64813D | Back window glass adhesive seal | 64813-06410 · 64813-06420 |
| 64814C | Adhesive sealing strip under rear window glass | 64813-06140 · 64813-06200 |
| 64831K | Back window glass sealing strip assembly | 64813-06390 · 64813-06400 |
