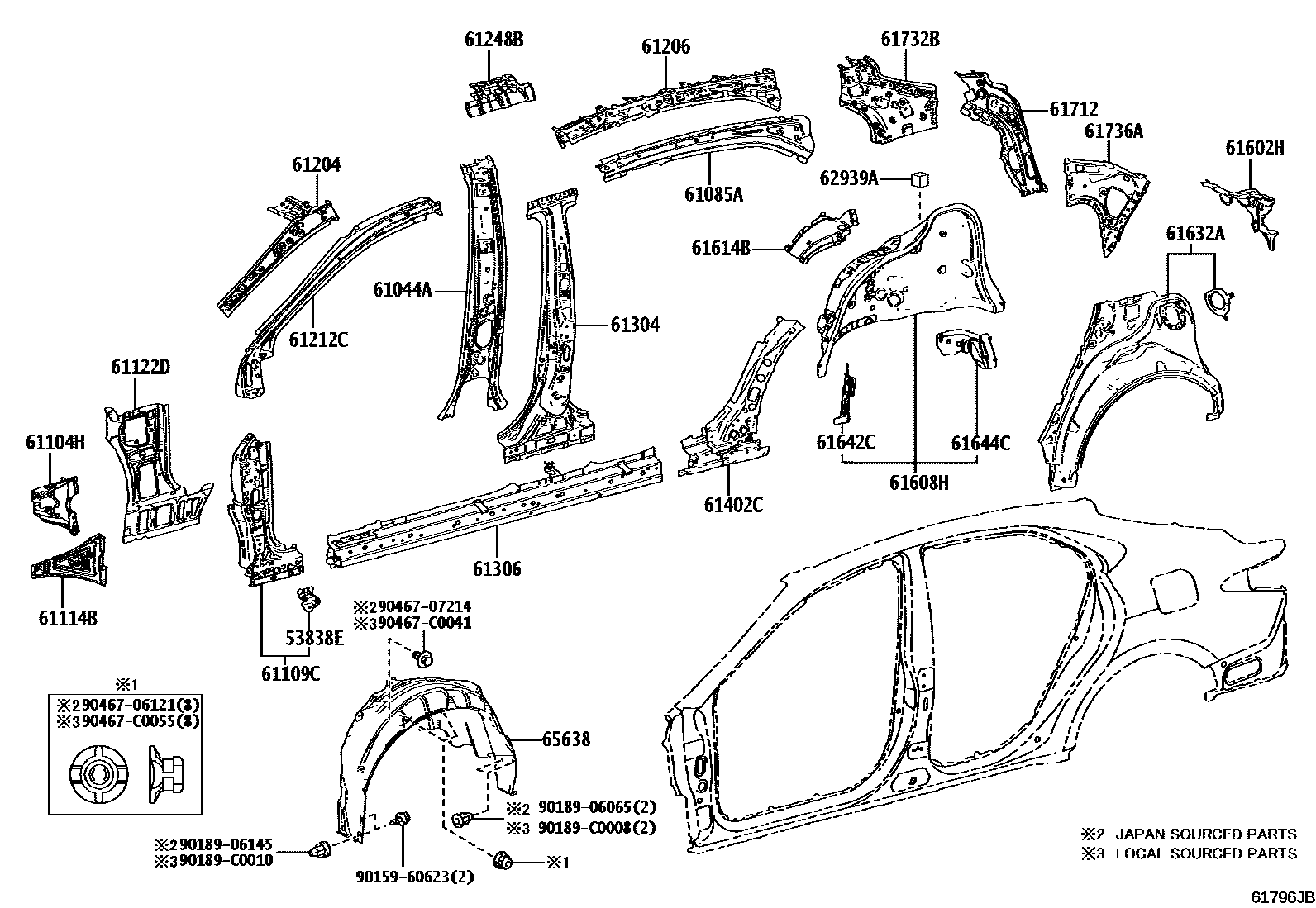

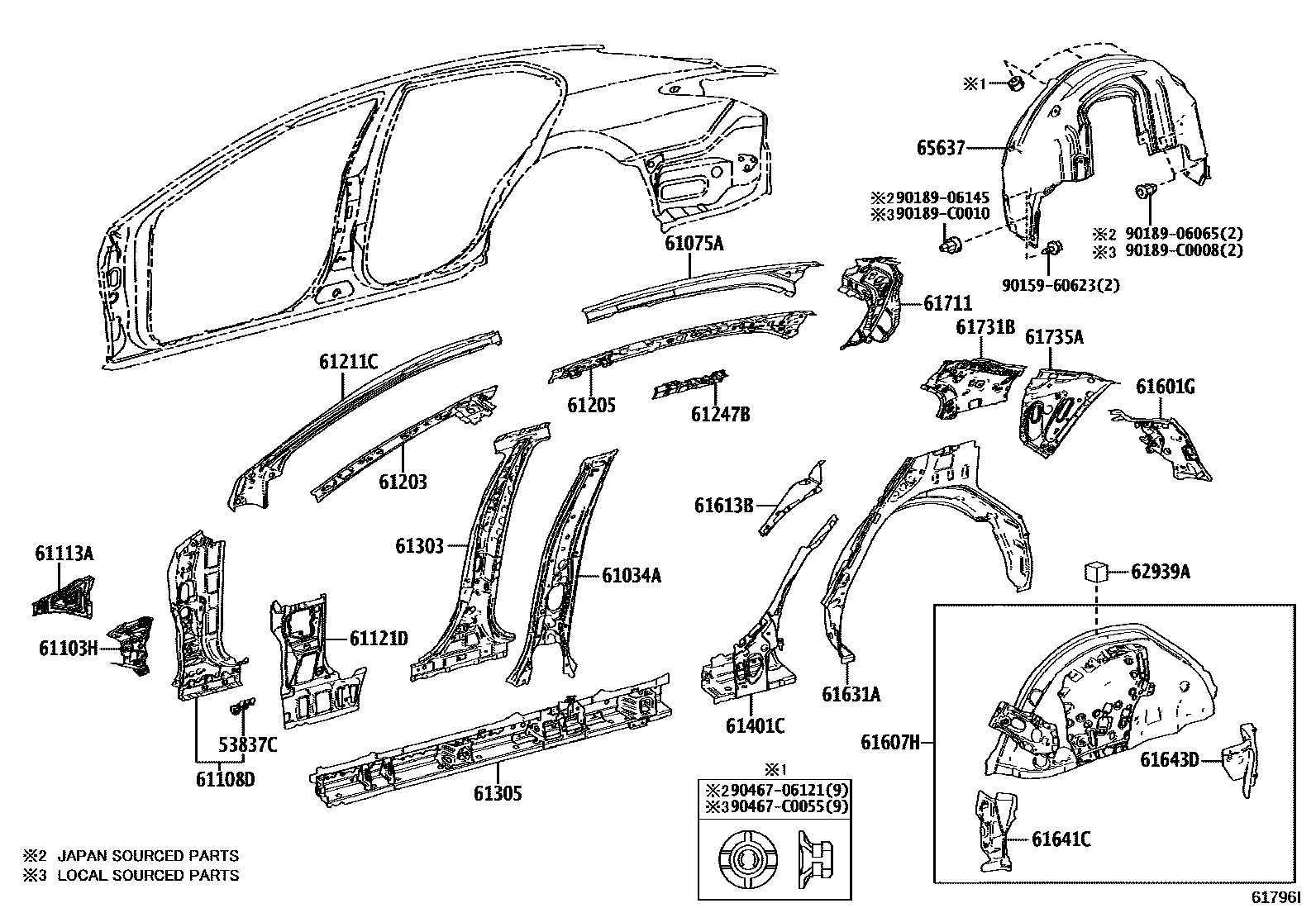

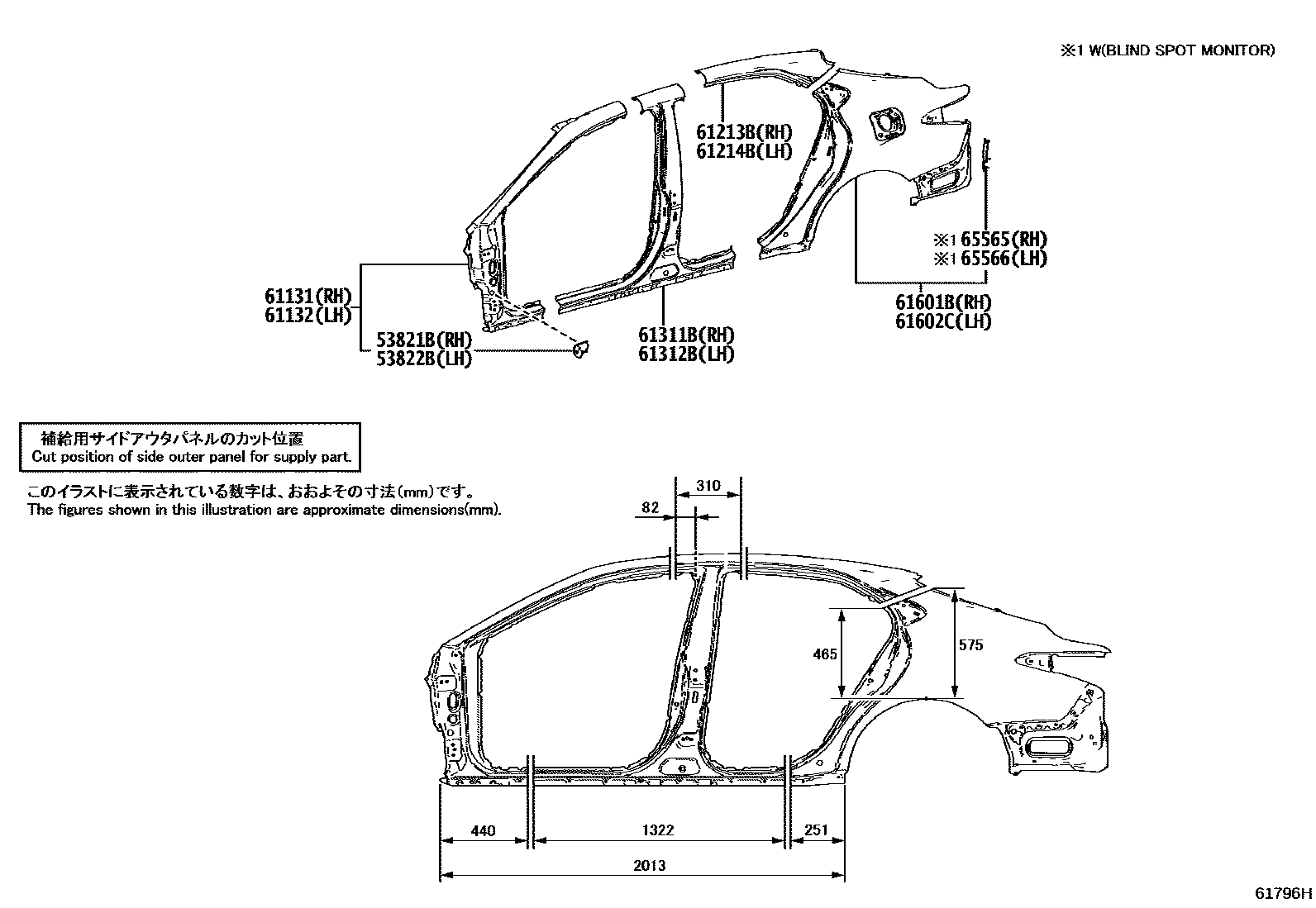

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 3 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-06190 |
| 53822B | Left front fender rear support | 53821-06190 |
| 53837C | No. 2 right front side panel bracket | 53837-06030 |
| 53838E | No. 2 left front side panel bracket | 53838-06040 |
| 61034A | No. 3 right inner column sub-assembly | 61034-06050 |
| 61044A | No. 3 left inner column sub-assembly | 61044-06040 |
| 61075A | No. 3 right longitudinal beam sub-assembly on the outside | 61075-06010 |
| 61085A | No. 3 left longitudinal beam sub-assembly on the outside | 61085-06010 |
| 61103H | No. 2 right side plate sub-assembly | 61103-06080 · 61103-06081 |
| 61104H | No. 2 left side panel sub-assembly | 61104-06080 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-06180 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-06190 |
| 61113A | No. 2 right outer panel | 61113-06031 |
| 61114B | No. 2 left outer panel | 61114-06031 |
| 61121D | Right front panel | 61121-06180 · 61121-06181 |
| 61122D | Left front panel | 61122-06170 · 61122-06171 |
| 61131 | Right body outer front upper pillar | 61131-06230 |
| 61132 | Left body outer front upper pillar | 61132-06230 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06220 · 61203-06221 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06280 · 61204-06281 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-06010 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-06010 |
| 61211C | Roof right side rail | 61211-06191 |
| 61212C | Roof left side rail | 61212-06181 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06280 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06270 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-06171 · 61247-06190 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-06111 · 61248-06120 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06180 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06180 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06911 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06915 |
| 61311B | Right body outer center pillar | 61311-06160 |
| 61312B | Left body outer center pillar | 61312-06160 |
| 61401C | Right door outer sill panel sub-assembly | 61401-06081 |
| 61402C | Left door outer sill sub-assembly | 61402-06091 |
| 61601B | Right side enclosure sub-assembly | 61601-06420 · 61601-06430 |
| 61601G | Right rear body rear side panel sub-assembly | 61601-06410 |
| 61602C | Left side enclosure sub-assembly | 61602-06420 · 61602-06430 |
| 61602H | Left rear body rear side panel sub-assembly | 61602-06410 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-06160 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-06160 |
| 61613B | Right front side panel inner panel | 61613-06040 |
| 61614B | Left front side panel inner panel | 61614-06080 |
| 61631A | Right wheel cover outer panel | 61631-06210 |
| 61632A | Left side wheel cover outer panel | 61632-06902 |
| 61641C | Right front side wheel housing corner panel | 61641-06180 |
| 61642C | Left front side wheel housing corner panel | 61642-06190 |
| 61643D | No. 1 right side wheel cover lining | 61643-06030 |
| 61644C | No. 1 left wheel housing lining | 61644-06030 |
| 61711 | Roof right side outer panel | 61711-06220 |
| 61712 | Roof left outer panel | 61712-06220 |
| 61731B | Roof right inner panel | 61731-06270 |
| 61732B | Roof left inner panel | 61732-06260 |
| 61735A | Right rear roof inner panel | 61735-06170 |
| 61736A | Left rear roof inner panel | 61736-06170 |
| 62939A | Side ventilation silencers | 62939-06060 |
| 65565 | Right side panel rear end lining | 65565-06120 |
| 65566 | Left side panel rear end lining | 65565-06120 |
| 65637 | Right rear wheel house lining | 65637-06240 |
| 65638 | Left rear wheel house lining | 65638-06240 |
