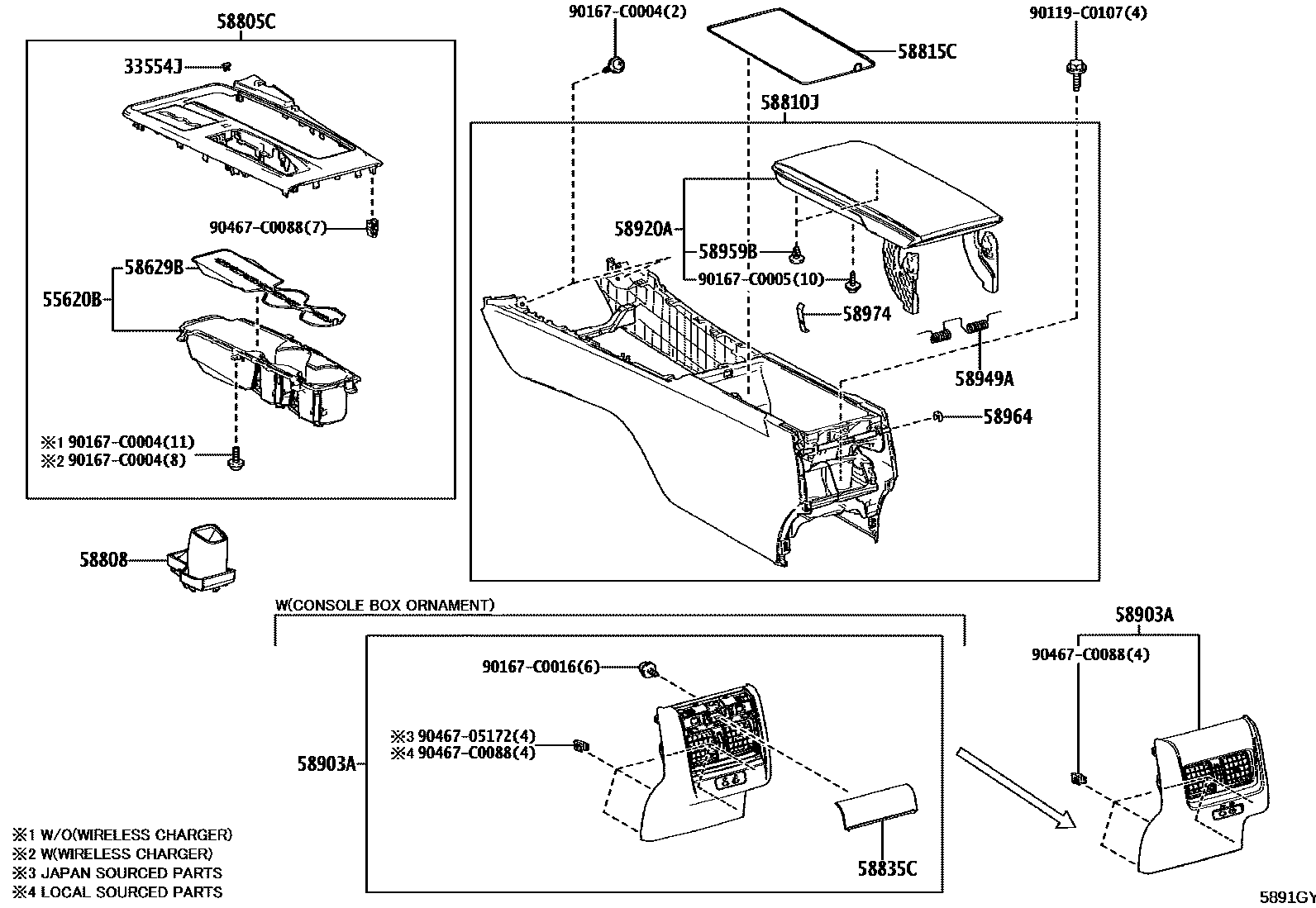

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554J | Shift lock release button cover | 33554-06130 |
| 55620B | Dashboard cup holder | 55620-06690 |
| 58629B | center console pad | 58629-06020 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06G80 · 58805-06G90 |
| 58815C | Armrest box felt pad | 58815-06320 |
| 58835C | Armrest box decorative parts | 58835-06190 · 58835-06200 · 58835-06210 |
| 58949A | Armrest box mounting bracket spring | 58949-06120 |
| 58959B | Armrest box cover cushion | 58959-35010 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58974 | Armrest box lid lock plate | 58974-06030 |
