Toyota CAMRY 地板隔热垫 — Figure 5802

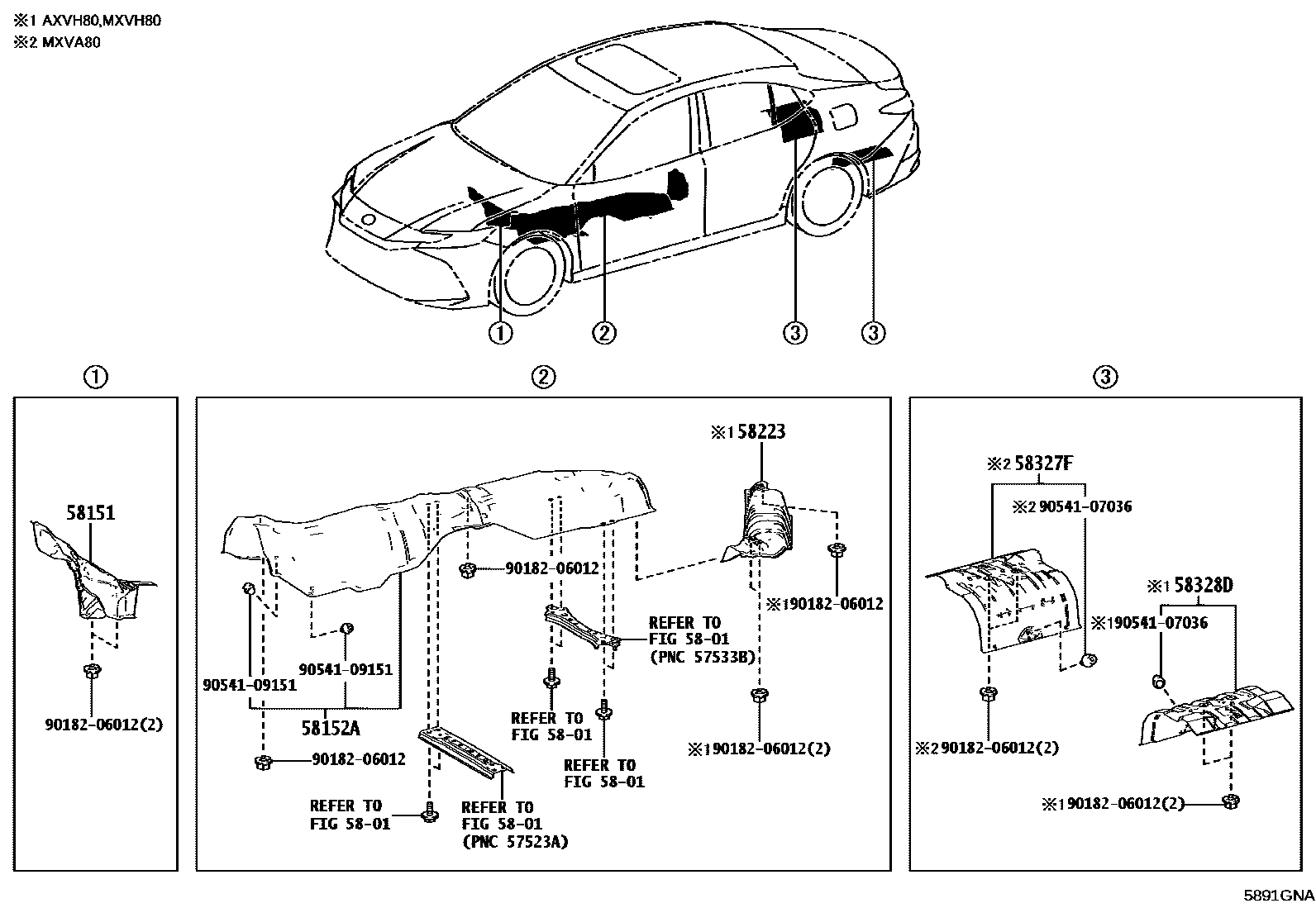

Toyota CAMRY EPC diagram 5802, 地板隔热垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-06100 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-06250 |
| 58223 | Central Floor Insulating Mat No. 2 | 58223-06060 |
| 58327F | Main muffler right heat insulation pad | 58327-06140 |
| 58328D | Main muffler left heat insulation pad | 58327-06140 |
