Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

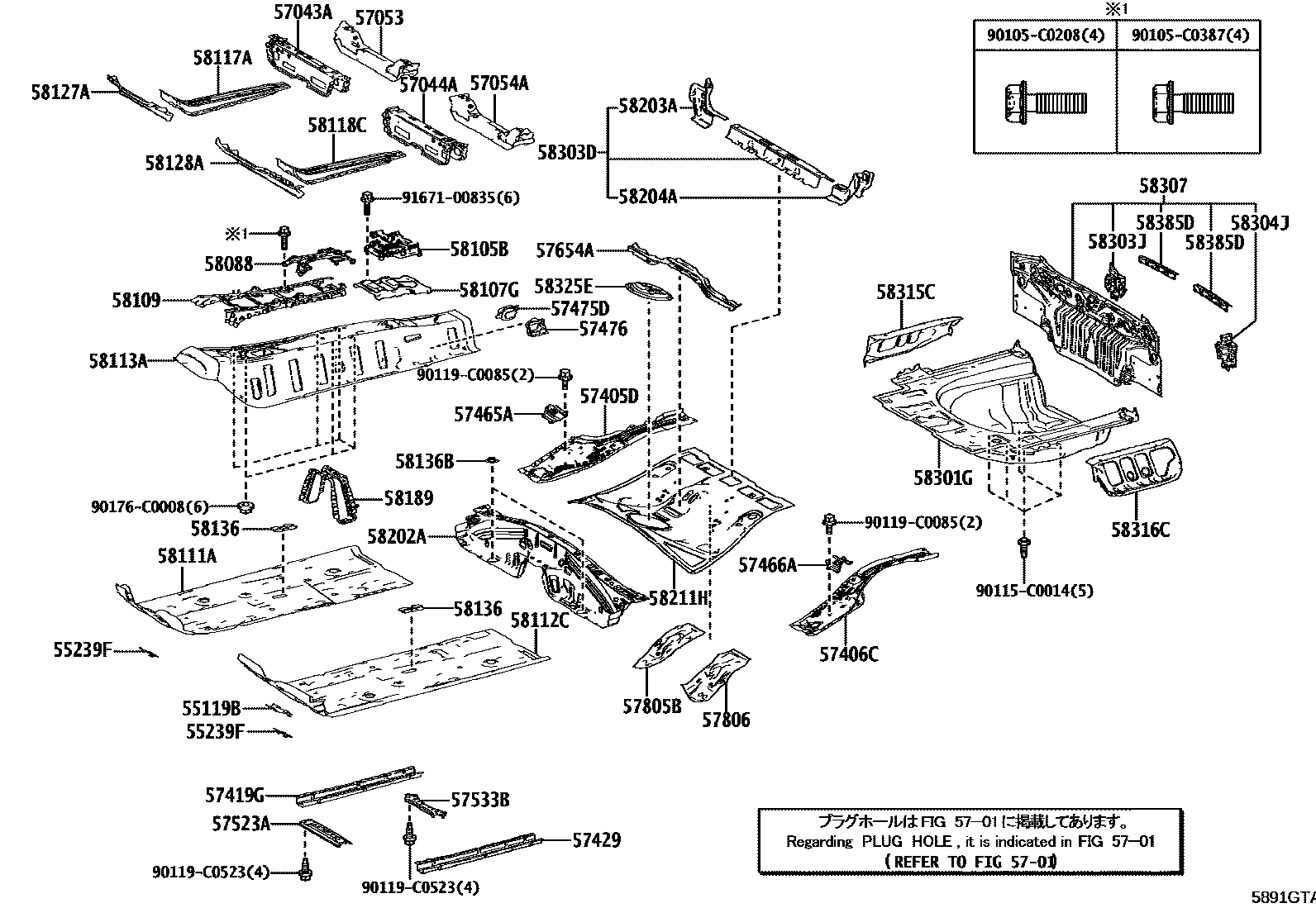

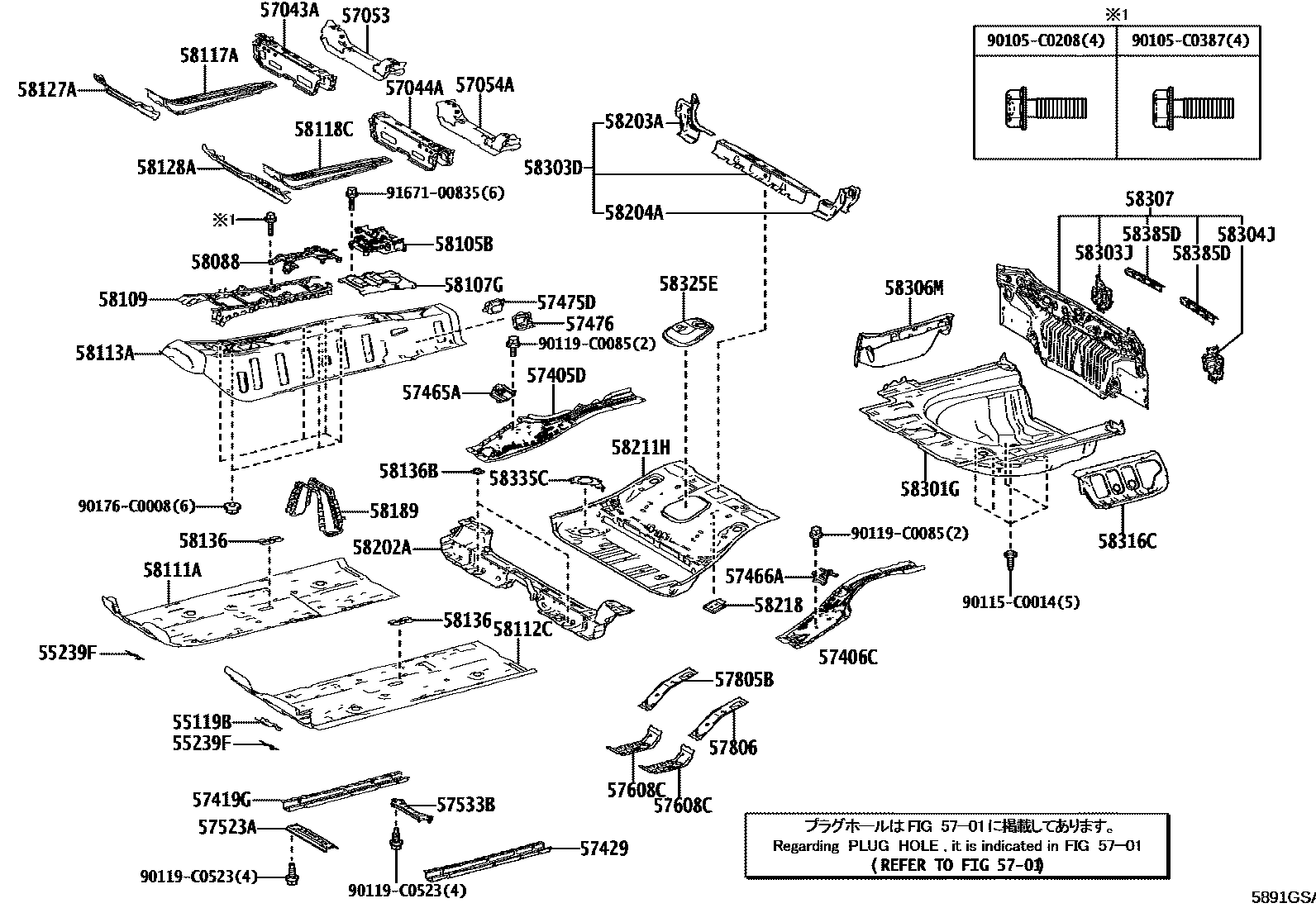

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55119B | Left front apron extension | 55119-06060 |
| 55239F | No. 3 insulation pad for front wall panel | 55239-06060 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-06110 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-06110 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-06100 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-06140 |
| 57405D | Center floor right longitudinal beam sub-assembly | 57405-06050 |
| 57406C | Center floor left longitudinal beam sub-assembly | 57406-06050 |
| 57419G | Front floor right rear lower reinforcement | 57419-06110 |
| 57429 | Left rear reinforcement under front floor | 57419-06110 |
| 57465A | Center floor right beam corner panel | 57465-06020 |
| 57466A | Center floor left transom corner panel | 57466-06020 |
| 57475D | Front floor right cross member panel | 57475-06090 |
| 57476 | Front floor left cross member panel | 57476-06080 |
| 57523A | Central floor beam bracket | 57523-06020 |
| 57533B | Front floor center bracket | 57533-06100 |
| 57608C | Fuel tank mounting bracket sub-assembly | 57608-06160 |
| 57654A | Rear floor beam No. 3 | 57654-06150 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-06060 · 57805-06140 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57805-06060 · 57806-06100 |
| 58088 | Floor-mounted shift link bracket sub-assembly | 58088-06080 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-06110 |
| 58107G | Parking brake base reinforcement sub-assembly | 58107-06060 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-06020 |
| 58111A | Front floor right bottom panel | 58111-06150 |
| 58112C | Front floor left bottom panel | 58112-06031 |
| 58113A | front floor center panel | 58113-06030 |
| 58117A | Front floor right reinforcement | 58117-06030 |
| 58118C | Front floor left reinforcement | 58117-06030 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-06060 |
| 58128A | Front cross member to front panel beam left reinforcement | 58128-06100 |
| 58136 | Front floor hole cover | 58136-06060 |
| 58136B | Center floor hole cover | 58136-06110 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06150 |
| 58202A | Center floor front floor sub-assembly | 58202-06110 · 58202-06180 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-06070 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-06090 |
| 58211H | central floor base | 58211-06350 · 58211-06380 |
| 58218 | seat floor | 58218-06080 |
| 58301G | Rear floor sub-assembly | 58301-06902 · 58301-06903 |
| 58303D | Rear floor partition sub-assembly | 58303-06130 · 58303-06140 |
| 58303J | Rear bumper arm right side bracket reinforcement sub-assembly | 58303-06050 |
| 58304J | Rear bumper arm left bracket reinforcement sub-assembly | 58304-06060 |
| 58306M | Rear floor side panel sub-assembly | 58306-06130 |
| 58307 | Body lower back panel sub-assembly | 58307-06230 · 58307-06231 |
| 58315C | Rear floor right side panel extension | 58315-06030 |
| 58316C | Rear floor left side panel extension | 58316-06050 |
| 58325E | Rear floor access hole cover | 58325-06110 · 58325-06120 |
| 58335C | Front floor right panel | 58335-06060 |
| 58385D | Rear bumper cover bracket | 58385-06160 |
