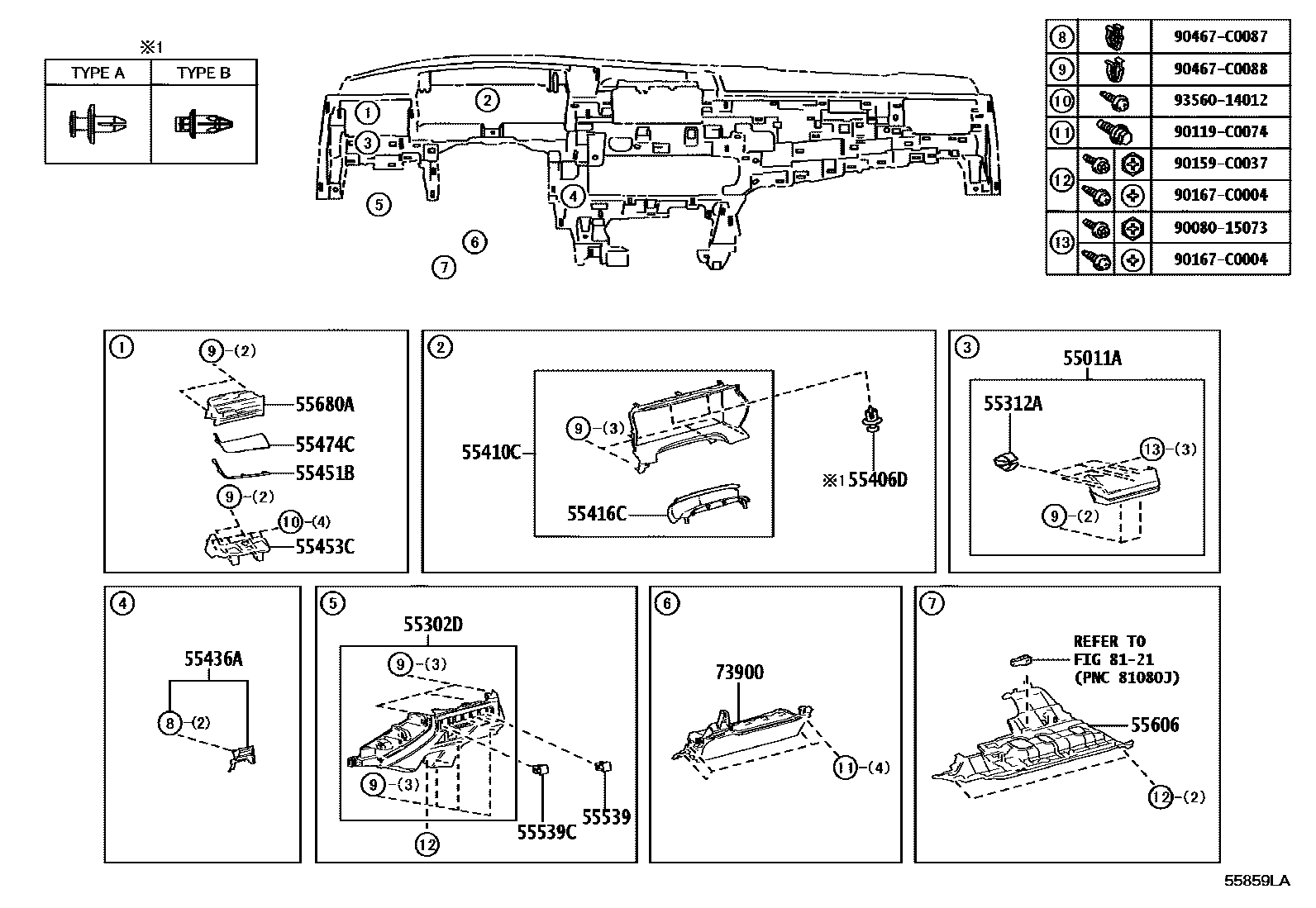

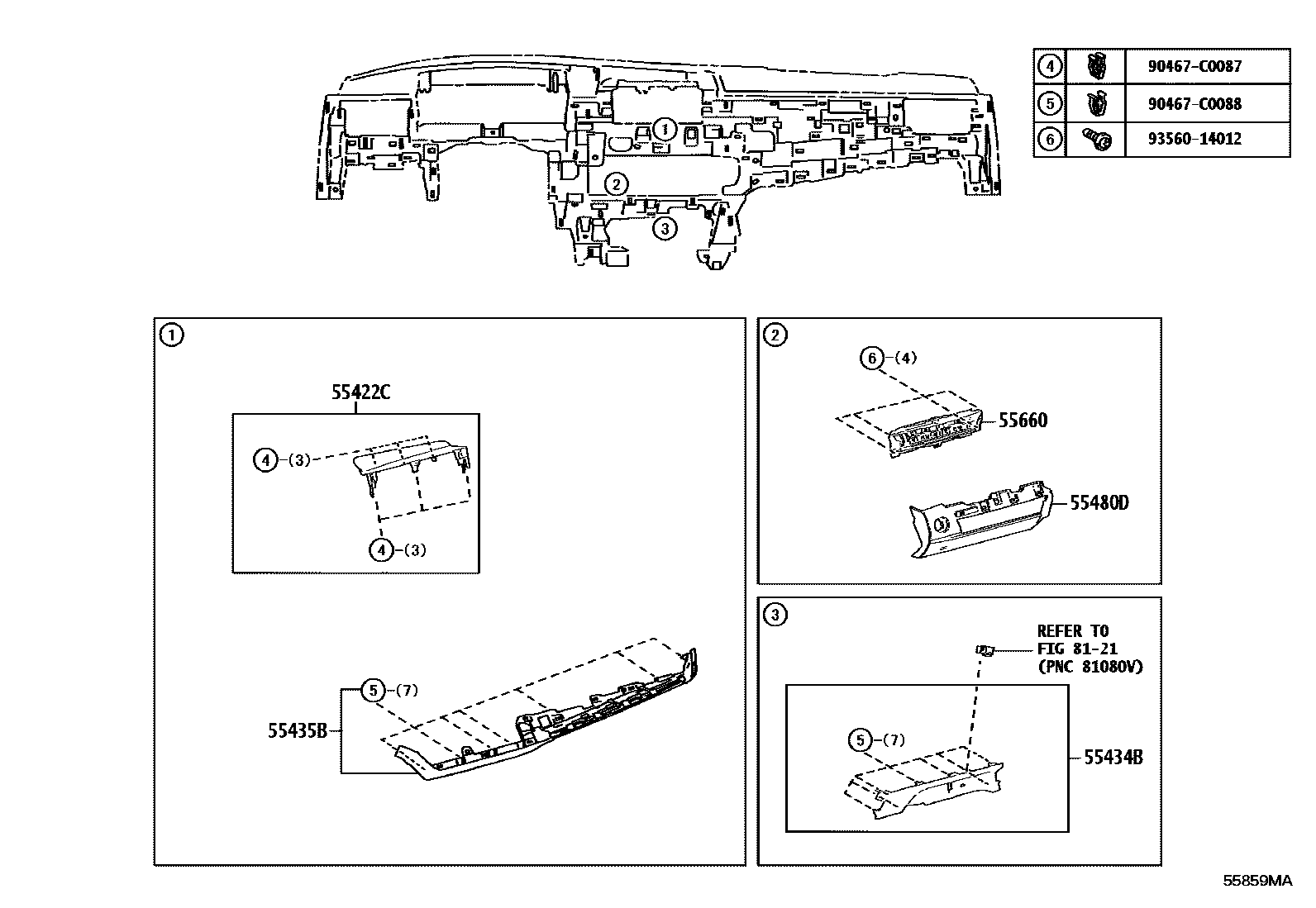

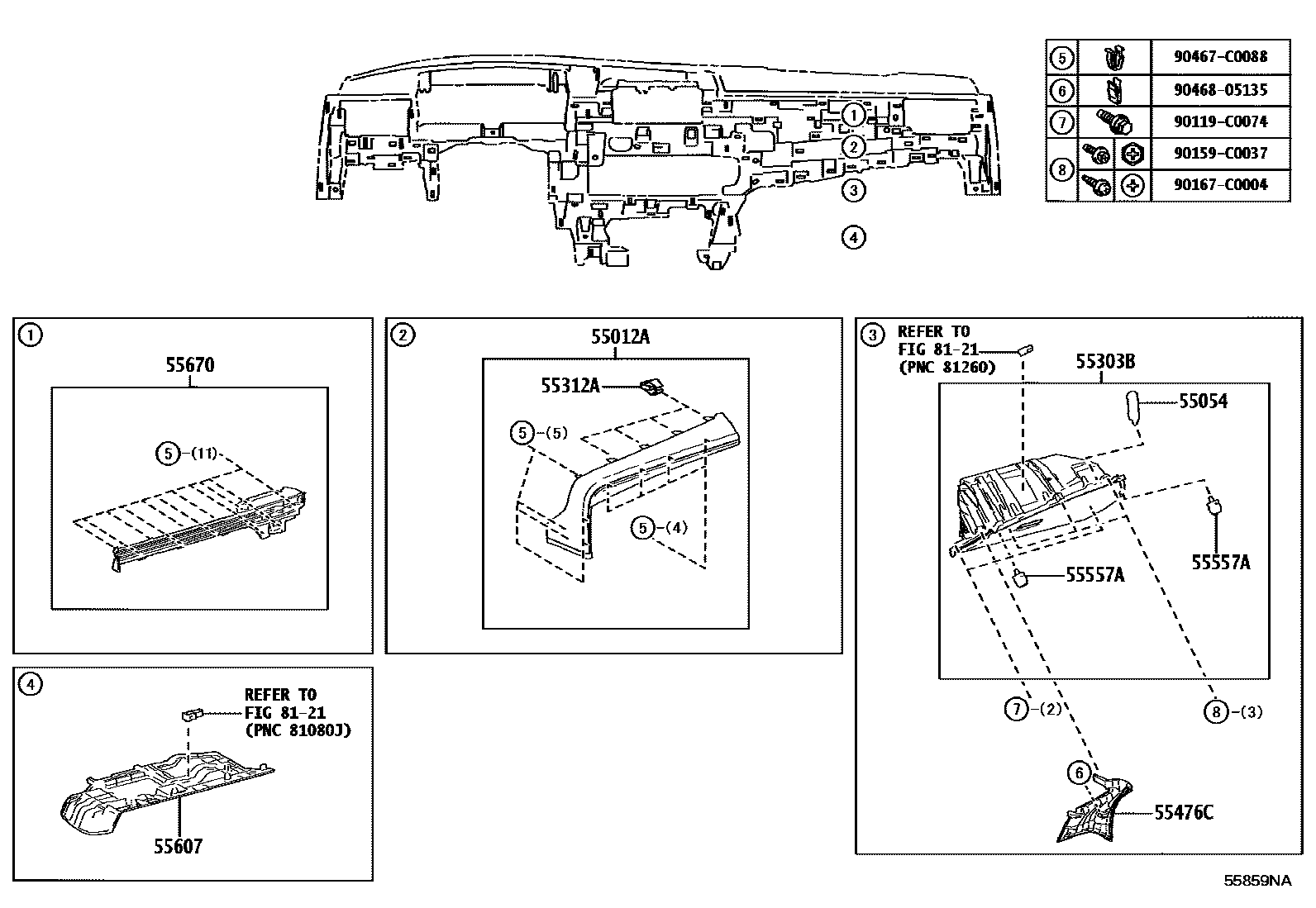

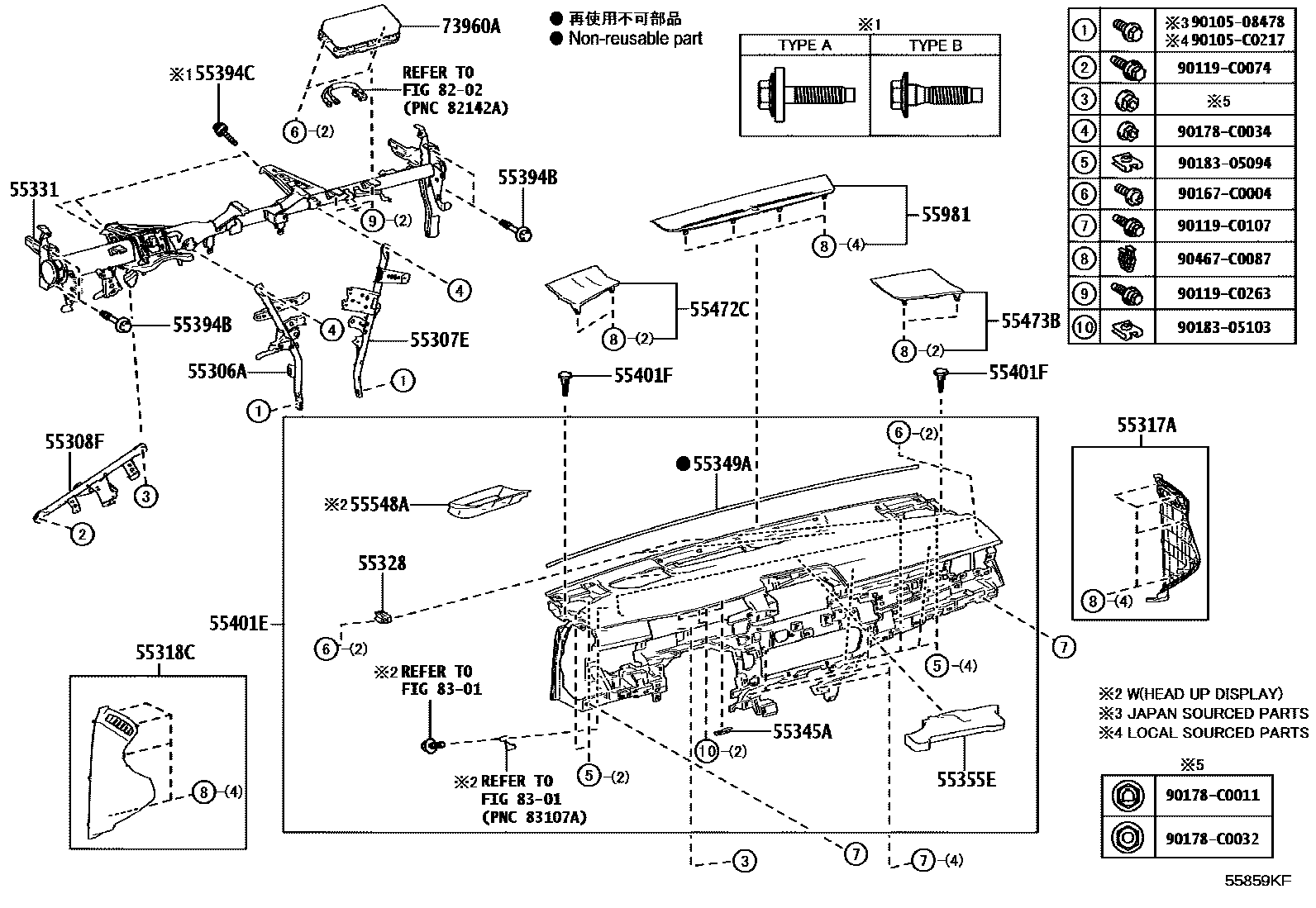

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02050 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06290 |
| 55307E | Instrument panel No. 2 bracket sub-assembly | 55307-06280 |
| 55308F | No. 3 instrument panel trim sub-assembly | 55308-06150 |
| 55328 | Instrument panel pin 1 | 55328-0E100 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-06230 |
| 55355E | Dashboard cushion | 55355-06330 |
| 55394B | Dashboard bolts | 90105-08473 · 90105-C0318 |
| 55394C | Dashboard bolts | 90105-08526 · 90105-C0407 · 90119-08D16 · 90119-C0223 |
| 55401F | Clip (for safety mat) | 52161-02040 · 52161-16010 |
| 55410C | Instrument cluster decorative panel assembly | 55410-06340 · 55410-06350 · 55410-06360 |
| 55416C | Instrument cluster decorative panel fixings | 55416-06240 · 55416-06250 |
| 55422C | Center instrument cluster upper decorative panel | 55422-06050 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-06390 |
| 55436A | Instrument panel left end decorative panel | 55436-06350 |
| 55451B | Dashboard safety pad cover | 554B3-06060 |
| 55453C | Instrument panel safety pad cover No. 2 | 554B4-06050 |
| 55474C | Instrument cluster No. 1 decorative panel decorative parts | 55474-06630 · 55474-06640 · 55474-06650 |
| 55539 | Spare switch hole cover | 55539-06120 |
| 55539C | Spare switch hole cover | 55539-08050 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06260 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-06400 · 55660-06430 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-06A80 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-06090 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06330 |
