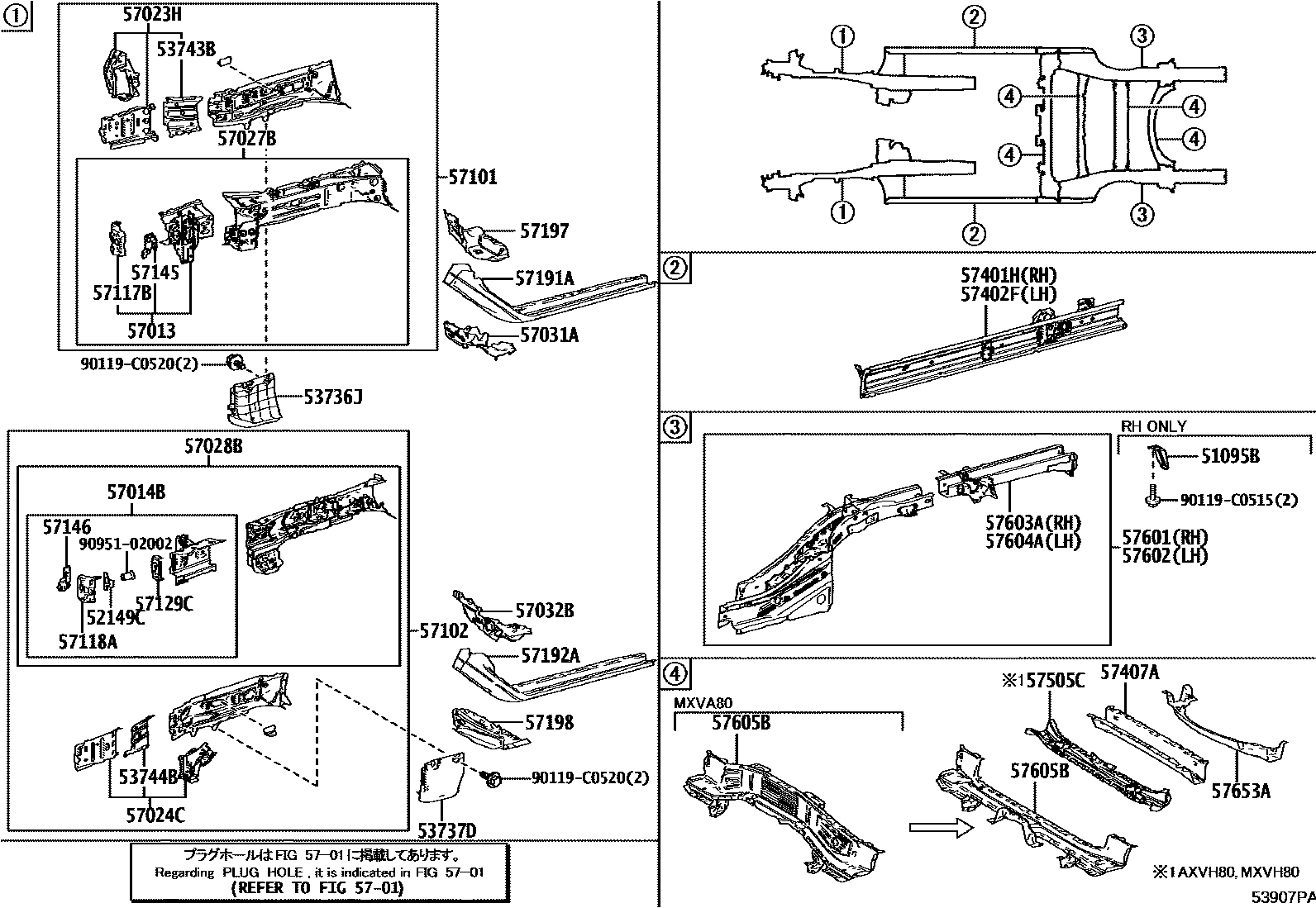

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-06010 |
| 52149C | Reinforcement block on the left side of the front bumper | 52149-06050 |
| 53736J | fender fender seal | 53736-06100 |
| 53737D | Left front fender fender seal | 53737-06140 |
| 53743B | Right front fender fender front reinforcement | 53743-06020 |
| 53744B | Left front fender fender front reinforcement | 53744-06020 |
| 57013 | Right front longitudinal beam bracket sub-assembly | 57013-06041 |
| 57014B | Left front longitudinal beam bracket sub-assembly | 57014-06031 |
| 57023H | Right body No. 2 mounting bracket sub-assembly | 57023-06020 |
| 57024C | Left body No. 2 mounting bracket sub-assembly | 57024-06020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-06150 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-06230 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-06050 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-06050 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-06903 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-06903 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06100 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06100 |
| 57129C | Left front longitudinal beam front panel | 57129-06030 |
| 57145 | Right front longitudinal beam center panel | 57145-06091 |
| 57146 | Left front longitudinal beam center panel | 57146-06071 |
| 57191A | Right rear longitudinal member inside front floor | 57191-06070 |
| 57192A | Left rear longitudinal member inside front floor | 57192-06060 |
| 57197 | Right front torsion box section piece | 57197-06091 |
| 57198 | Left front anti-torsion box section piece | 57198-06091 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-06320 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-06300 |
| 57407A | Center floor beam sub-assembly | 57407-06042 |
| 57505C | Front underfloor reinforcement sub-assembly | 57505-06060 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06440 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06270 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-06030 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-06060 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06220 · 57605-06230 |
| 57653A | No. 2 rear floor cross member | 57653-06120 |
