Toyota CAMRY radiator grille — Figure 5301

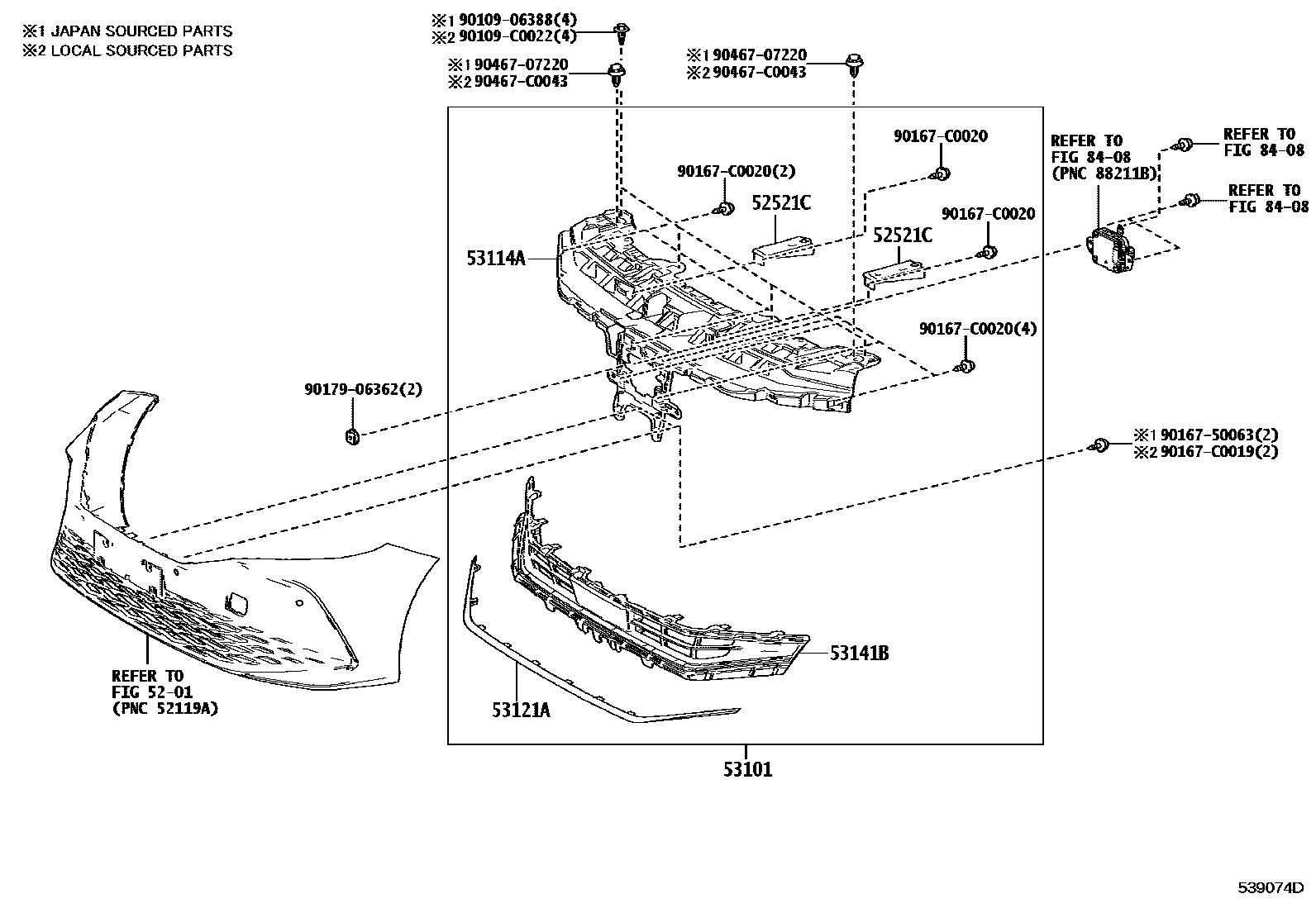

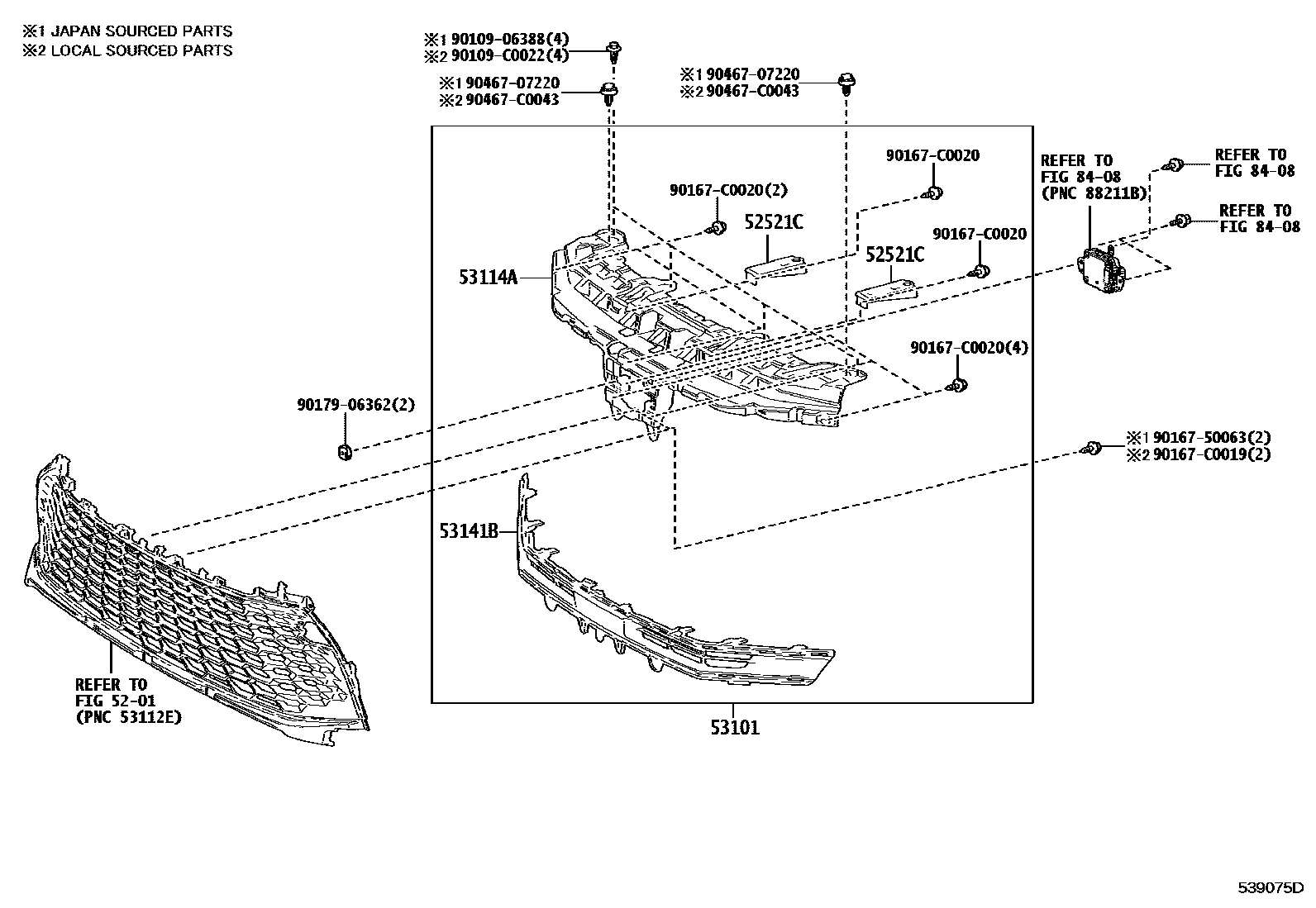

Toyota CAMRY EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52521C | Front bumper upper fixing bracket | 52521-06160 |
| 53101 | Radiator grille sub-assembly | 53101-06B30 · 53101-06B40 · 53101-06C50 · 53101-06C60 |
| 53114A | inner radiator grille | 53114-06140 · 53114-06150 |
| 53121A | Radiator grille protection strip | 53121-06080 |
| 53141B | Radiator grille trim part 1 | 53141-06090 · 53141-06110 · 53141-06130 · 53141-06140 |
