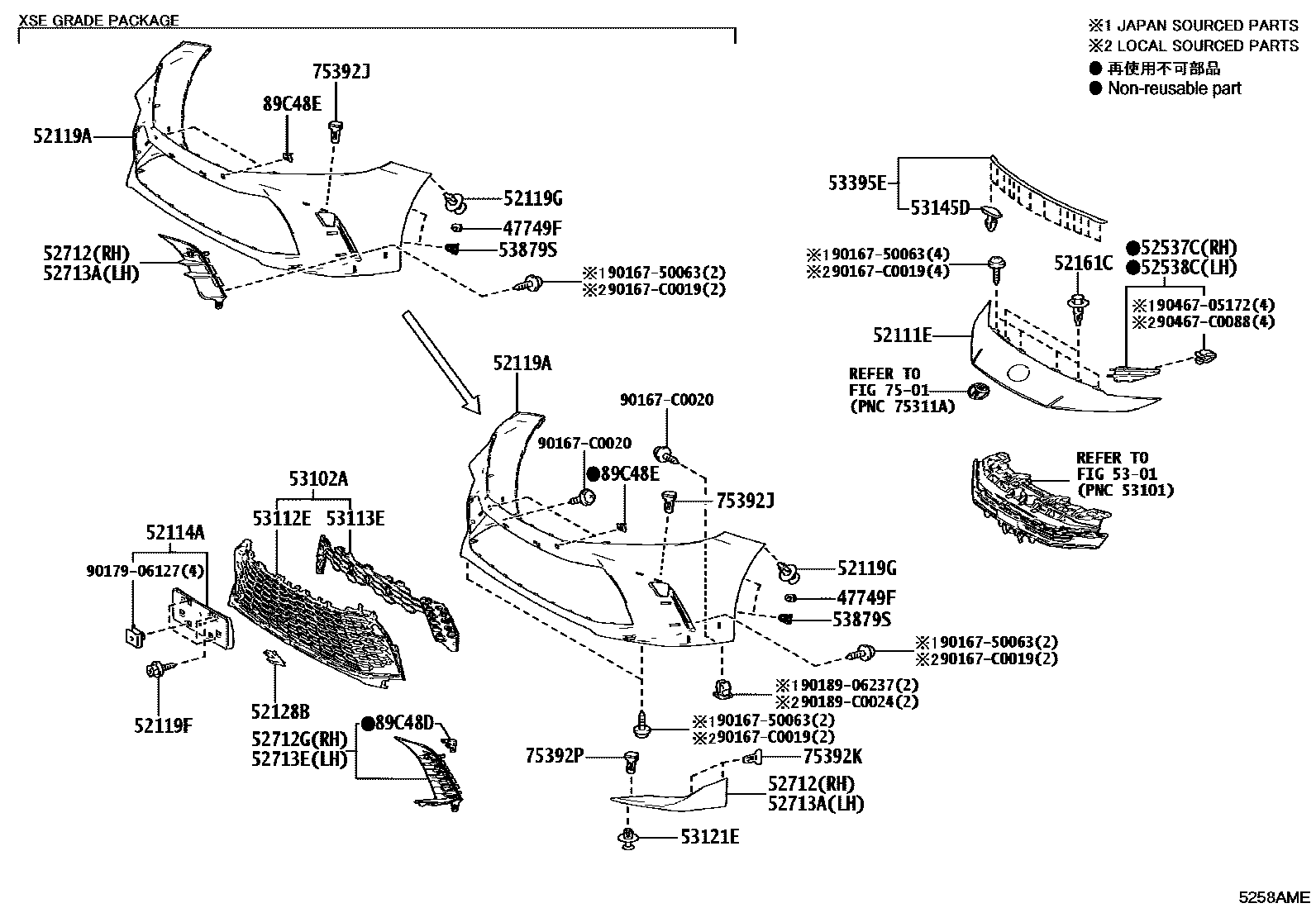

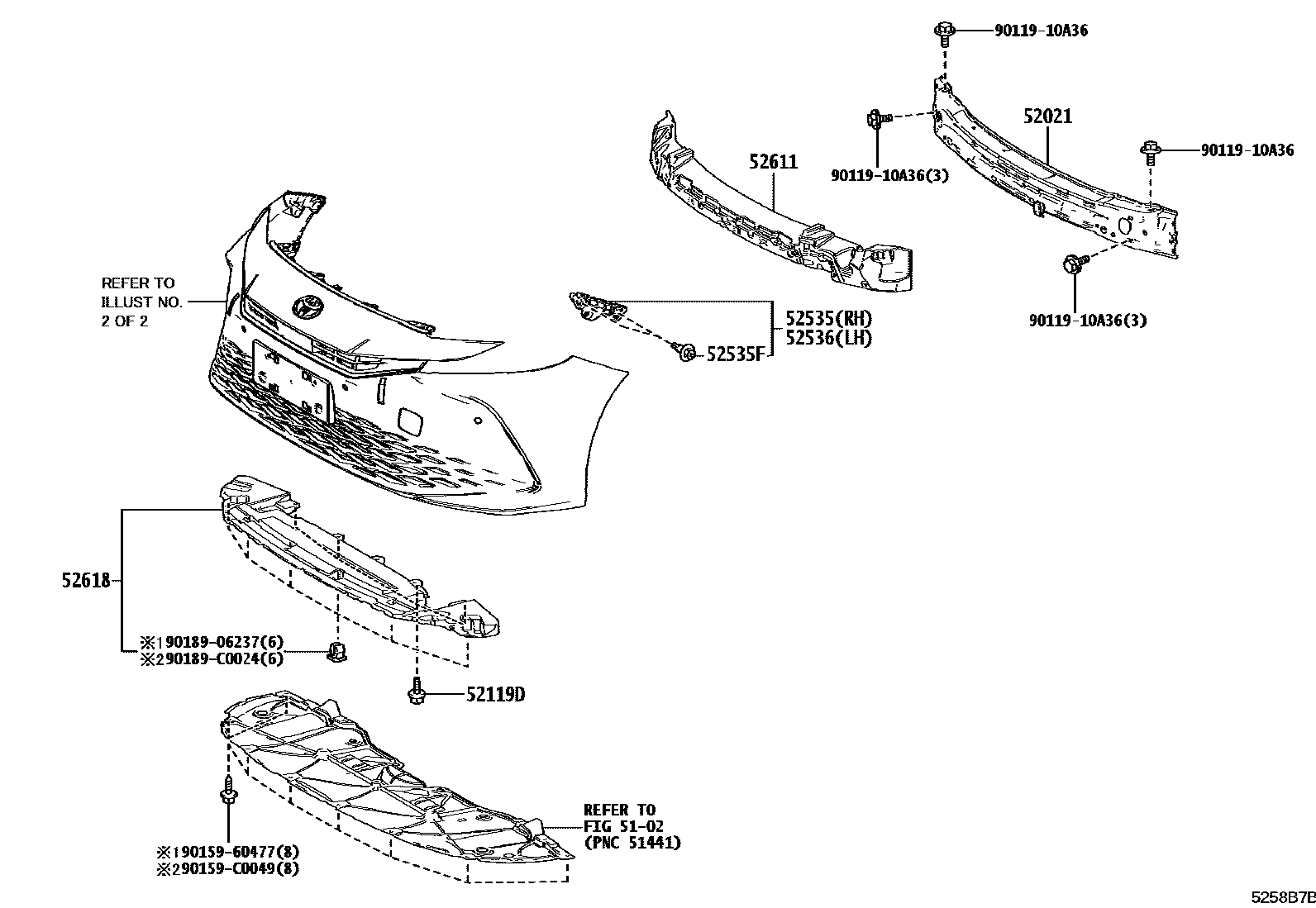

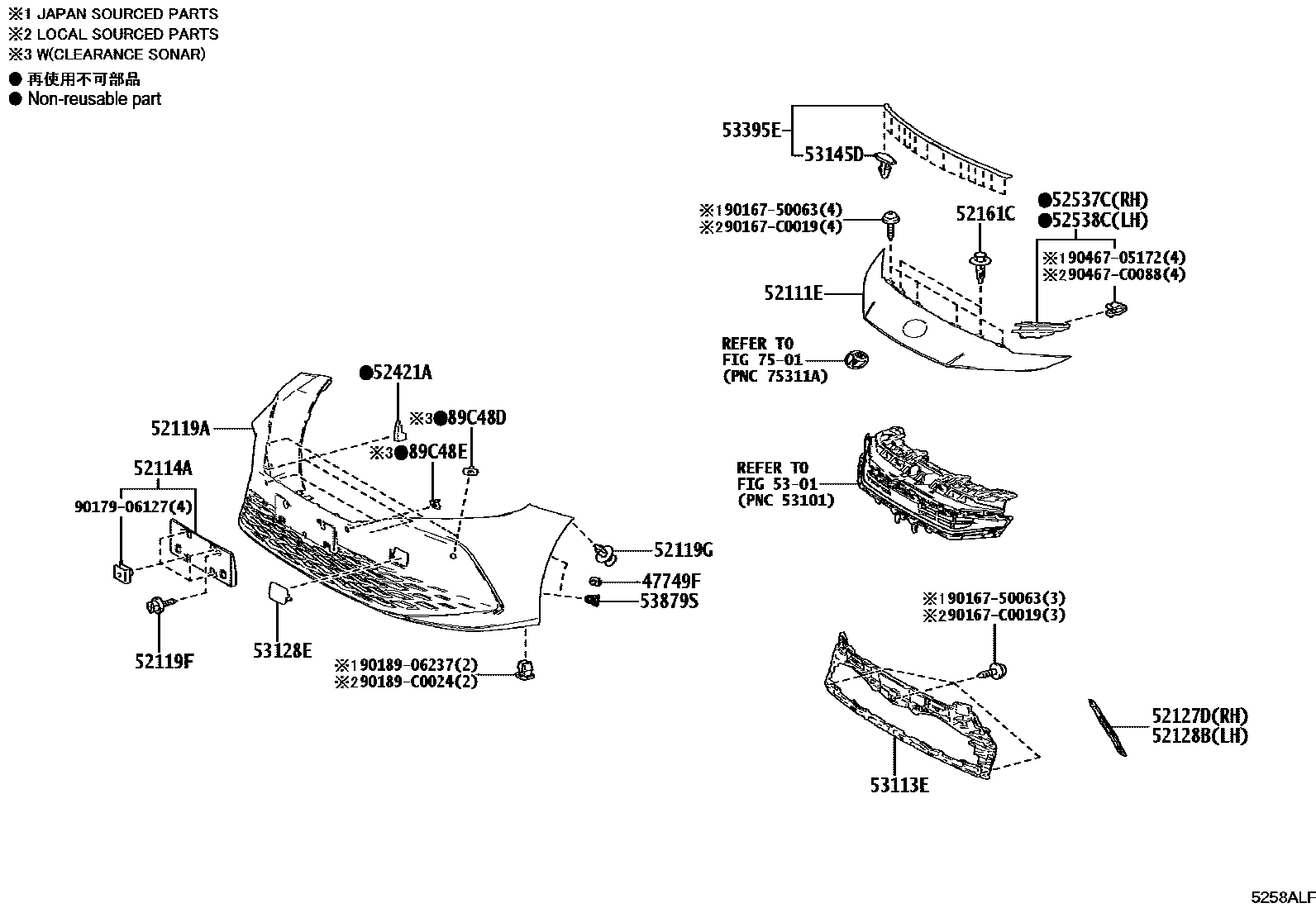

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-02080 · 47749-30090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06220 · 52021-06230 |
| 52111E | front bumper stay | 52111-06904 |
| 52114A | Front bumper extension mounting bracket | 52114-06610 · 52114-06620 |
| 52119A | front bumper cover | 52119-0X966 · 52119-0X967 · 52119-0X968 · 52119-0X969 · 52119-0X971 |
| 52119D | Screw No. 1 | 90119-06A13 · 90119-C0520 |
| 52119F | No. 3 screw | 90159-60477 · 90159-C0049 |
| 52119G | No. 1 clip | 90467-05170 · 90467-C0032 |
| 52127D | Front bumper right hole cover | 52127-06570 |
| 52128B | Front bumper left hole cover | 52128-06680 · 52128-06720 |
| 52161C | front bumper insert | 52161-02040 |
| 52421A | front bumper lining | 52421-06040 |
| 52535 | Front bumper right side fixing bracket | 52535-06250 |
| 52535F | Front bumper side fixing clip | 90467-09237 · 90467-C0058 |
| 52536 | Front bumper left fixed bracket | 52536-06180 |
| 52537C | Front bumper No. 2 right side fixing bracket | 52537-06020 |
| 52538C | Front bumper No. 2 left side fixing bracket | 52538-06020 |
| 52611 | front bumper energy absorber | 52611-06620 |
| 52618 | Front bumper lower shock absorber | 52618-06130 |
| 52712 | Front bumper right side protective strip | 52712-06130 · 52712-YY030 |
| 52712G | MOULURE, LAT PARE-CHOCS AV, MD NO.2 | 52712-06270 · 52712-06280 |
| 52713A | Front bumper left protective strip | 52713-06130 · 52713-YY020 |
| 52713E | MOULURE, LAT PARE-CHOCS AV, MG NO.2 | 52713-06270 · 52713-06290 |
| 53102A | Radiator lower grille sub-assembly | 53102-06610 |
| 53112E | No. 1 radiator lower grille | 53112-06D70 |
| 53113E | No. 2 radiator lower grille | 53113-06070 · 53113-06320 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 · 90467-C0043 |
| 53128E | Lower left radiator grille | 53128-06900 |
| 53145D | Radiator grille clip | 53145-02040 · 53145-60030 |
| 53395E | Engine cover to front end plate seal | 53395-06160 |
| 53879S | Front fender lining fixing parts | 53879-02080 · 53879-30090 |
| 75392J | External protective strip fixings | 75392-0R040 |
| 75392K | No. 2 outer protective strip fixings | 75392-0R040 |
| 75392P | No. 3 outer protective strip fixings | 75392-0R040 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06590 · 89348-06600 |
